2007 PORSCHE CAYMAN Owners Manual

Closingfrontandrearluggage
compartmentlid
Lowerthelidandcloseit.
Pushthelidclosedwiththepalmofyourhandintheareaofthelock.Checkthatthelidhascorrectlyengagedinthelock.
Warning!
Riskoflossofcontroloranaccident,resultinginseriouspersonalinjuryordeath.
Shouldyounoticeatanytimewhiledrivingthatoneofthelidsisnotsecuredproperly,pleasestopimmediatelyinasuitableplaceandcloseit.Thefrontlidmayflyupimpairingvision.
Controls,Instruments175

FrontLuggageCompartment
Accesscovers
(onvehicleswithDVDnavigationorCDchanger)
Opening
GraspaccesscoverAorBatthehandleandopen.
ThedriveforDVDnavigationandtheCDchangercanbefoundbehindtheaccesscoverB.
Caution!
Riskofdamage.
Donotstoreanyheavy,damporheat-sensitiveobjectsbehindtheaccesscovers.
E-AdapterforsecuritywheelboltsF-TirellingcompressorG-TowinghookH-ToolkitI-Tiresealant
Toolbox
Opening
Unlockturn-locksC.
Opentoolboxandplaceitontheflooroftheluggagecompartment.
176Controls,Instruments

Closing
Inserttoolboxintotheguidepegsintheluggagecompartmentfloor.
Closetoolboxandlocktheturn-locksC.
Controls,Instruments177

A-OpeningfrontluggagecompartmentlidB-Openingrearluggagecompartmentlid
RearLid
Releasingtherearlid
Operatepull-buttonBnexttothedriver’sseatorcorrespondingbuttonoftheremotecontrol.
Openingtherearlid
Caution!
Riskofdamagetothepaintontherearlidifthistouchestheloadtransportedontheroofrackwhenopening.
Onlyopentherearlidifthiscannottouchtheload.
Therearlidcanbeheldopenin2positions.Theluggagecompartmentisilluminatedwhentherespectivelidisopen.
Pleaseobservethechapter”LOADSWITCH-OFFAFTER2HOURSOR7DAYS”onpage259.
Position1:Raiserearliduptopressurepoint.
Position2:Raiserearlidbeyondthepressurepoint.
Closingtherearlid
Pulldowntherearlidonthehandleandallowittofallintothelock.Checkthattherearlidhascorrectlyengagedinthelock.
Warningmessage
Awarningmessageintheon-boardcomputercomesonifthelidsarenotcompletelyclosed.
Fullyclosethelid.
178Controls,Instruments

A-ToppingupengineoilB-Checkingcoolantlevelortoppingup
Rearluggagecompartment
Serviceap
Presscatchbuttonontheserviceflapandopenflap.
Luggagenet,tie-downrings
Warning!
Unsecuredluggageandheavyobjectsmaycomelooseduringbraking,rapiddirectionalchangesorinanaccidentandcauseseriouspersonalinjuryordeath.
Donotcarryitemsofluggageorobjectsinthepassengercompartmentunsecured.Secureloadagainstsliding.
Donottransportheavyobjectsundertheluggagenet.
Hangtheluggagenetonthe4tie-downringsaroundtheenginecoverorintherearluggagecompartment.
Controls,Instruments179

Cargopartition
Removingthecargopartition
Warning!
Unsecuredluggageandheavyobjectsmaycomelooseduringbraking,rapiddirectionalchangesorinanaccidentandcauseseriouspersonalinjuryordeath.
Donotcarryitemsofluggageorobjectsinthepassengercompartmentunsecured.Secureloadagainstslidingusingthecargopartition.
1.Turnbothturn-locksto”Lockopen“fromthepassengercompartment.
2.LiftthecargopartitionsomewhatfromtheluggagecompartmentanddisengageonbothsidesfromtheupperhooksBandhold.
180Controls,Instruments

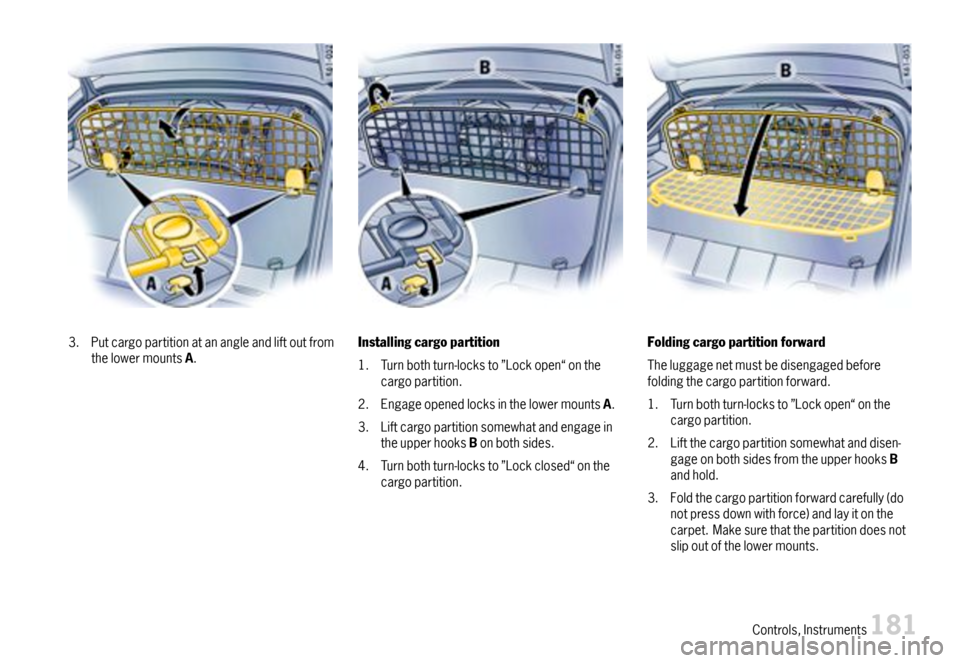

3.PutcargopartitionatanangleandliftoutfromthelowermountsA.Installingcargopartition
1.Turnbothturn-locksto”Lockopen“onthecargopartition.
2.EngageopenedlocksinthelowermountsA.
3.LiftcargopartitionsomewhatandengageintheupperhooksBonbothsides.
4.Turnbothturn-locksto”Lockclosed“onthecargopartition.
Foldingcargopartitionforward
Theluggagenetmustbedisengagedbeforefoldingthecargopartitionforward.
1.Turnbothturn-locksto”Lockopen“onthecargopartition.
2.Liftthecargopartitionsomewhatanddisen-gageonbothsidesfromtheupperhooksBandhold.
3.Foldthecargopartitionforwardcarefully(donotpressdownwithforce)andlayitonthecarpet.Makesurethatthepartitiondoesnotslipoutofthelowermounts.
Controls,Instruments181

4.Turnbothturn-locksto”Lockclosed“onthecargopartition.Luggagecover
Theluggagecoverprotectsluggageintherearstorageareafromdirectsunlightandcuriouseyes.
Caution!
Riskofdamagetoluggagecoverfromsharp-edgedorslidingpiecesofluggage.
Alwaysremoveluggagecoverwhenpiecesofluggagecandamagetheluggagecover.
182Controls,Instruments
