2007 PORSCHE CAYMAN Owners Manual

Taillight,left
Taillight
Changingbulbs
1.Turnlockofthelightcoverapprox.90°andtakeoffcover.
2.Pulloutsidecarpeting.3.Pressthemountingofthelampbracketupwards.Pulltheunlockedlampbracketoutalittle(approx.0.79in./2cm),tipitdownwardsslightlyandthenremoveitfully.
PracticalTips,EmergencyService279

A-TurnsignallightB-ReversinglightC-Rearfoglight,rearlightD-TaillightE-Brakelight,rearlight
4.Replacethedefectivebulb(bayonetfitting).
5.Insertlampbracket.Makesurethatthemountingisfelttoengage.
6.Refitsidecarpeting.
7.Insertthelightcoverintothethreereceptaclesandlockthecover.
8.Checkoperationoflights.
Additionalbrakelight
Thelight-emittingdiodesoftheadditionalbrakelightcannotbereplacedindividually.
HavethedefectivebrakelightreplacedatanauthorizedPorschedealer.
280PracticalTips,EmergencyService

Licenseplatelights
Changingbulb
1.Unscrewbothscrewsandremovethelightlens.
2.Removedefectivebulbfrombetweenthecontactspringsandreplaceit.
3.Reassembleinreverseorder.Checkoperationofthelight.
PracticalTips,EmergencyService281

Example:Frontluggagecompartmentlight
Frontluggage
compartment/footwelllights
Changingbulb
1.Withascrewdriver(arrow),carefullypushoutthelight.
2.Removedefectivebulbfrombetweenthecontactspringsandreplace.
3.Insertthelightintothecut-out,firstfromonesidethenfromtheother.Checkoperation.
282PracticalTips,EmergencyService

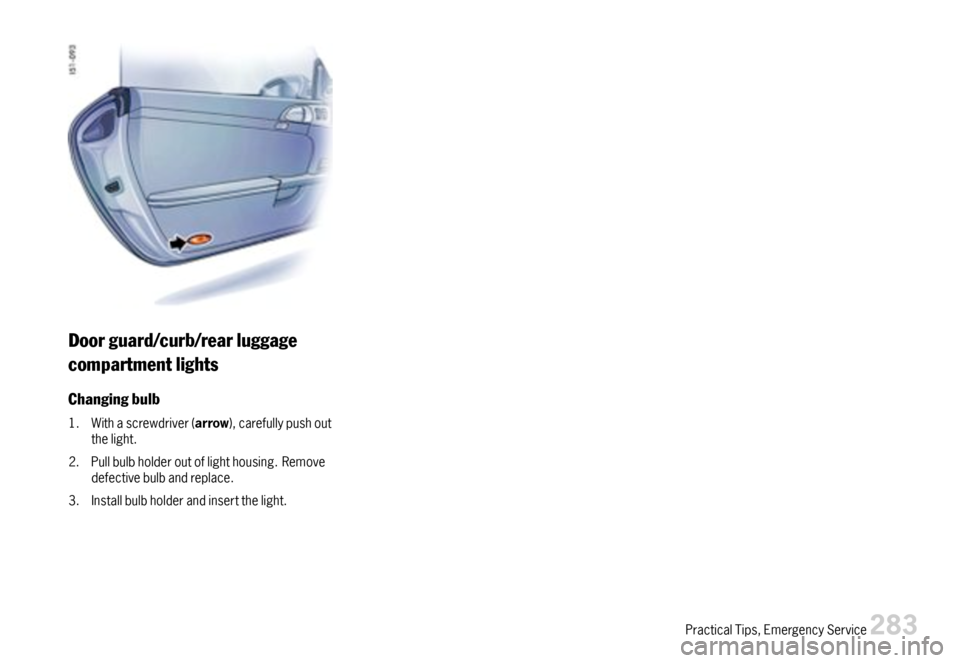

Doorguard/curb/rearluggage
compartmentlights
Changingbulb
1.Withascrewdriver(arrow),carefullypushoutthelight.
2.Pullbulbholderoutoflighthousing.Removedefectivebulbandreplace.
3.Installbulbholderandinsertthelight.
PracticalTips,EmergencyService283

AdjustingHeadlights
Adjustment
Pleaseobservethechapter”REPLACINGBULBS”onpage269.
Pleaseobservethechapter”TIREPRESSUREFORCOLDTIRES”onpage299.
Theadjustmentismadewiththevehiclereadytodriveandthefueltankcompletelyfilled.
Thedriver’sseatmustbeloadedbyapersonora165lbs.(75kg)weightandthetirepressuresmustmeettheprescribedvalues.Afterbeingloaded,
thecarmustberolledafewmeterssothatthesuspensioncansettle.
Forcheckingtheheadlightadjustment,theverticalpositionofthecutoffofthelowbeam(seefig.)hastobeprojectedonaverticalscreen(wall)indistanceof24.6ft.(7.5m)fromthefrontlensoftheheadlamp.Thecorrectpositionofthecutoffis2.0in.(5cm)at24.6ft.or7.5m(0.4°)belowahorizontalline,xin.fromgroundtothecenteroftheheadlamplens.
284PracticalTips,EmergencyService

Lateraladjustmentoftheheadlightsshouldbecarriedoutataspecialistworkshopwithanopticaladjustmentunit.
Distance
Visualaimshallbeperformedatnotlessthan24.6ft.(7.5m)(thisvalueisaroundeddownconversionfromthe25-footdistancetypicaloffieldaimusingascreen).The24.6ft.(7.5m)distanceismeasuredfromtheheadlamplenstotheviewingscreen.
Floor
Thesurfaceuponwhichthevehiclerestsisflatandapproximatelylevel.
Screen
Thescreenuponwhichheadlampbeamsareprojectedisperpendiculartothefloorandthevehicle’slongitudinalaxis,flat,uniformlylightincolor,unobstructed,andwideandhighenoughtoaccommodatethevehiclebeampatternstobeaimed.
Thescreenshouldbewideenoughtoprovideatleast3.3ft.(1m)ofspaceoutboardofthevehicle’sheadlampspacing.
Adjustmentscrews
Detachsidecarpetinginluggagecompart-ment.UnscrewplasticnutA.Openthecoveroftheappropriateadjustmentscrew.Theset-tingisadjustedbyturningthehexagonsocketscrewsrightorleft,asappropriate.
PracticalTips,EmergencyService285

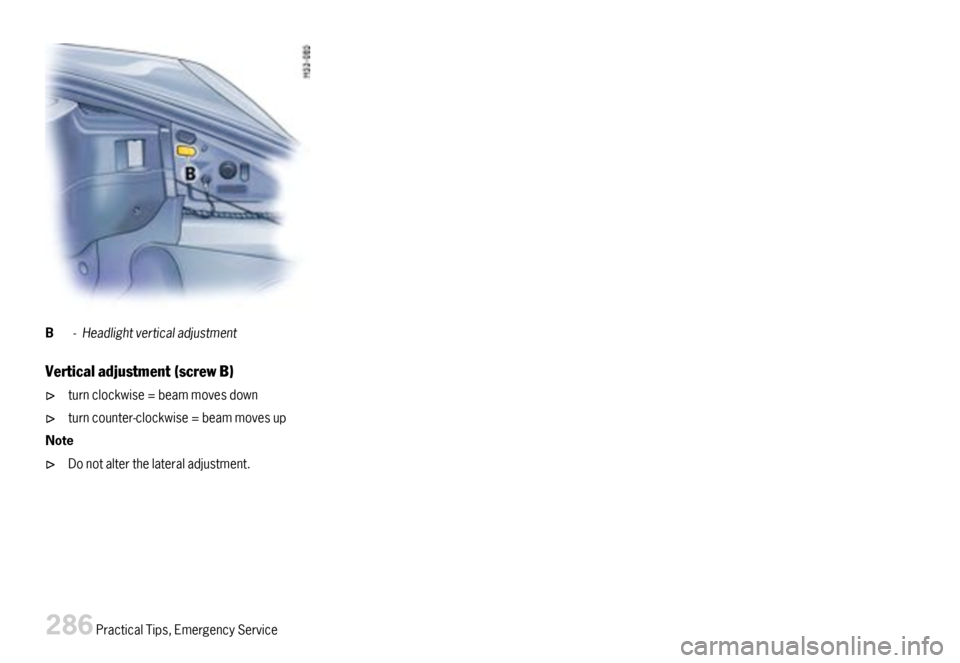

B-Headlightverticaladjustment
Verticaladjustment(screwB)
turnclockwise=beammovesdown
turncounter-clockwise=beammovesup
Note
Donotalterthelateraladjustment.
286PracticalTips,EmergencyService
