2007 Peugeot 207 Dag Owner's Manual

i
!
59

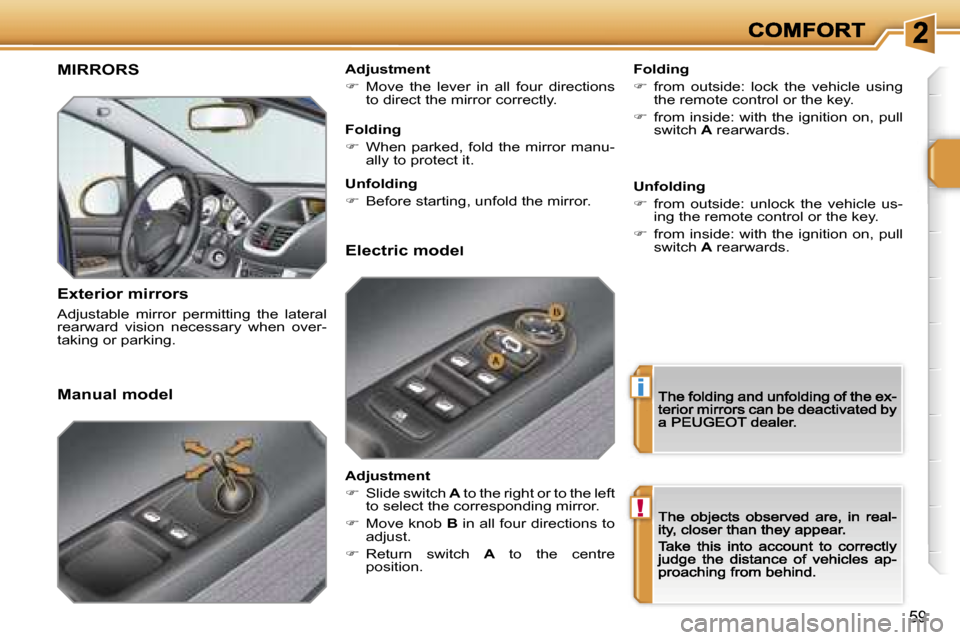

MIRRORS
Exterior mirrors
Adjustable mirror permitting the lateral rearward vision necessary when over-taking or parking.
Folding
 from outside: lock the vehicle using the remote control or the key.
 from inside: with the ignition on, pull switch A rearwards.
Manual model
Adjustment
 Move the lever in all four directions to direct the mirror correctly.
Folding
 When parked, fold the mirror manu-ally to protect it.
Unfolding
 Before starting, unfold the mirror.
Electric model
Adjustment
 Slide switch A to the right or to the left to select the corresponding mirror.
 Move knob B in all four directions to adjust.
 Return switch A to the centre position.
Unfolding
 from outside: unlock the vehicle us-ing the remote control or the key.
 from inside: with the ignition on, pull switch A rearwards.

!
i
60
Interior mirror
Adjustable mirror permitting central rearward vision.
Adjustment
 Adjust the mirror to direct it correctly in the "day" position.
Automatic day/night model
System which automatically and gradu-ally changes between the day and night uses.
To avoid glare, the interior mirror dark-ens automatically in relation to the in-tensity of the light from the rear.
It clears as soon as the light (light beam of vehicles behind, sun...) decreases, so providing optimum visibility.
Switching on
 Switch on the ignition and press switch 1.
The indicator light 2 comes on and the mirror operates in automatic mode.Manual model
The mirror is fitted with a night anti-dazzle device.
Day/night position
 Pull the lever to change to the "night" anti-dazzle position.
 Push the lever to change to the normal "day" position.
Switching off
 Press switch 1.
The indicator light 2 switches off and the mirror remains at its clearest.

!
i
61

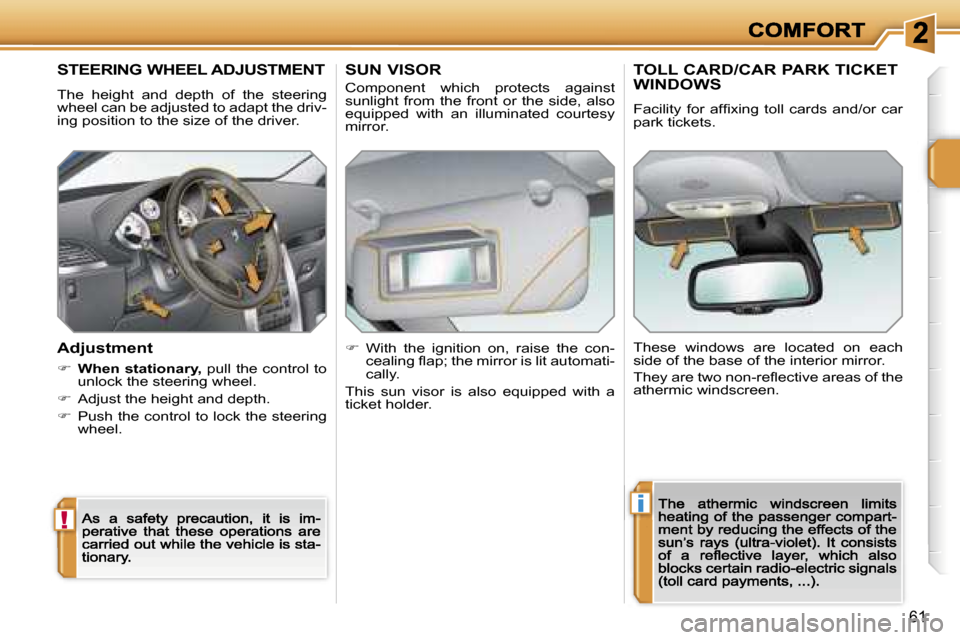

STEERING WHEEL ADJUSTMENT
The height and depth of the steering wheel can be adjusted to adapt the driv-ing position to the size of the driver.
Adjustment
When stationary, pull the control to unlock the steering wheel.
 Adjust the height and depth.
 Push the control to lock the steering wheel.
SUN VISOR
Component which protects against sunlight from the front or the side, also equipped with an illuminated courtesy mirror.
 With the ignition on, raise the con-cealing flap; the mirror is lit automati-cally.
This sun visor is also equipped with a ticket holder.
TOLL CARD/CAR PARK TICKET
WINDOWS
Facility for affixing toll cards and/or car park tickets.
These windows are located on each side of the base of the interior mirror.
They are two non-reflective areas of the athermic windscreen.

!
62

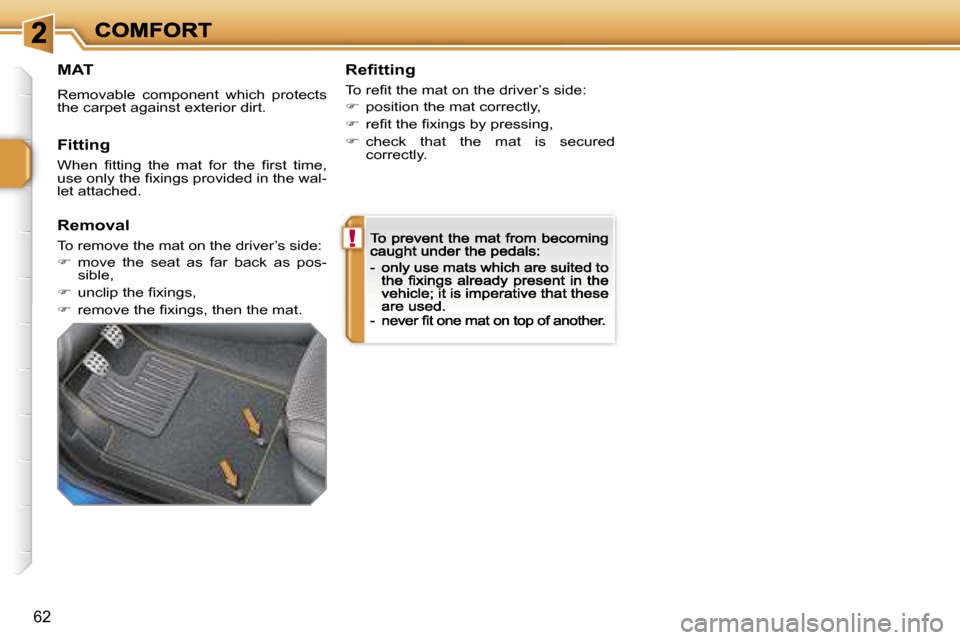

MAT
Removable component which protects the carpet against exterior dirt.
Refitting
To refit the mat on the driver’s side:
 position the mat correctly,
 refit the fixings by pressing,
 check that the mat is secured correctly.Fitting
When fitting the mat for the first time, use only the fixings provided in the wal-let attached.
Removal
To remove the mat on the driver’s side:
 move the seat as far back as pos-sible,
 unclip the fixings,
 remove the fixings, then the mat.

63

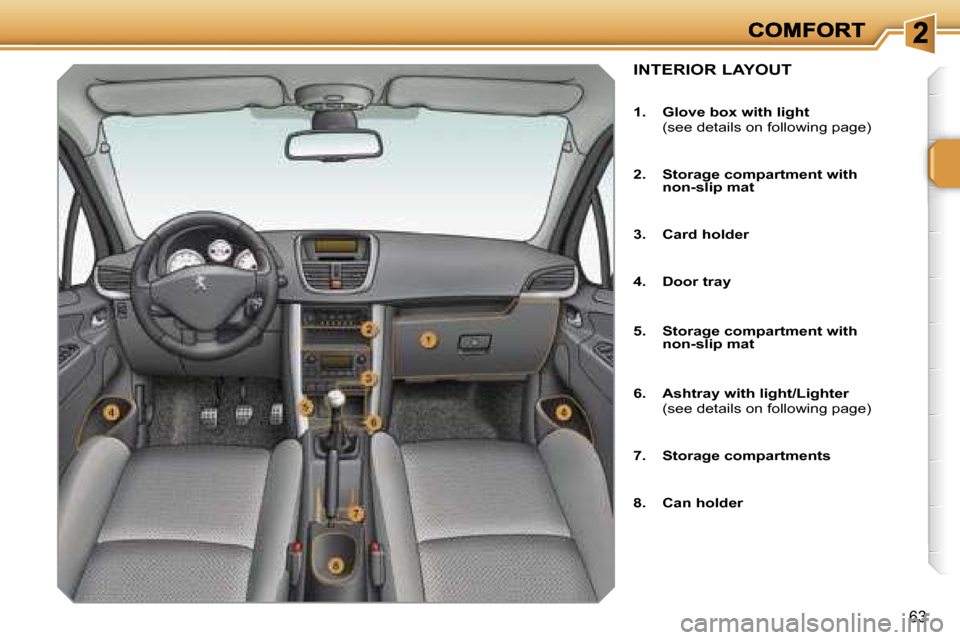

INTERIOR LAYOUT
1. Glove box with light (see details on following page)
2. Storage compartment with non-slip mat
3. Card holder
4. Door tray
5. Storage compartment with non-slip mat
6. Ashtray with light/Lighter (see details on following page)
7. Storage compartments
8. Can holder

64

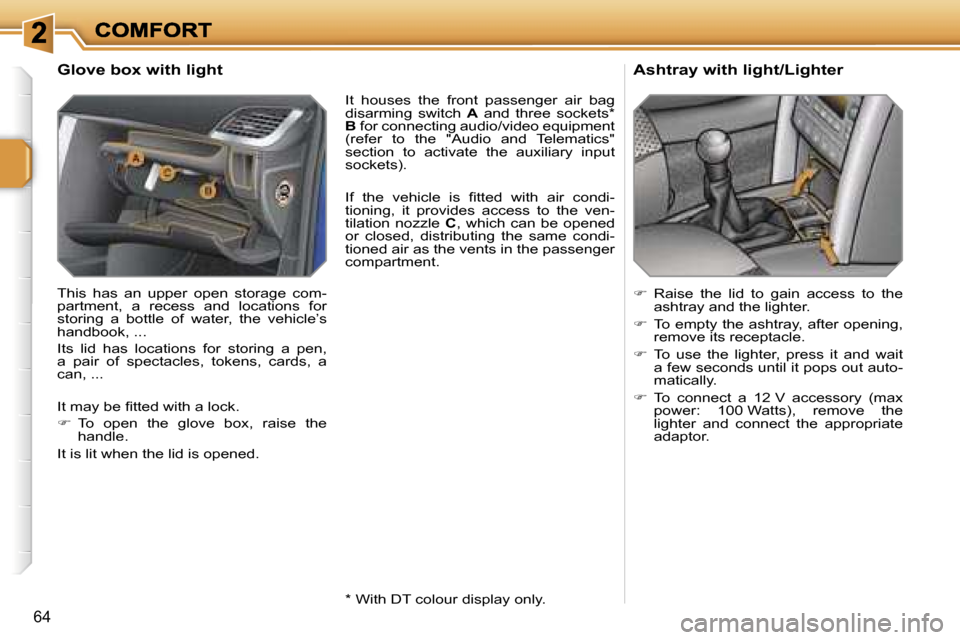

Glove box with light
This has an upper open storage com-partment, a recess and locations for storing a bottle of water, the vehicle’s handbook, ...
Its lid has locations for storing a pen, a pair of spectacles, tokens, cards, a can, ...
It may be fitted with a lock.
 To open the glove box, raise the handle.
It is lit when the lid is opened.
Ashtray with light/Lighter
 Raise the lid to gain access to the ashtray and the lighter.
 To empty the ashtray, after opening, remove its receptacle.
 To use the lighter, press it and wait a few seconds until it pops out auto-matically.
 To connect a 12 V accessory (max power: 100 Watts), remove the lighter and connect the appropriate adaptor.
It houses the front passenger air bag disarming switch A and three sockets* B for connecting audio/video equipment (refer to the "Audio and Telematics" section to activate the auxiliary input sockets).
If the vehicle is fitted with air condi-tioning, it provides access to the ven-tilation nozzle C, which can be opened or closed, distributing the same condi-tioned air as the vents in the passenger compartment.
* With DT colour display only.

65
BOOT LAYOUT
(SALOON)
1. Rear shelf(see details on following page)
2. Hooks(see details on following page)
3. Stowing rings
4. Luggage retaining net(see details on following page)

i
66
Hooks
Hooked onto the stowing rings, this ena-bles you to secure your luggage, either to the bottom of the boot or to the back of the rear seats.
Rear shelf (Saloon)
To remove the shelf:
 unhook the two cords,
 raise the shelf slightly, then remove it.
You have two storage options:
- either upright behind the front seats,- or upright behind the rear seats.
The hooks permit the securing of shop-ping bags.
Luggage retaining net
