2007 Peugeot 207 Dag Owner's Manual

!
i
i
53

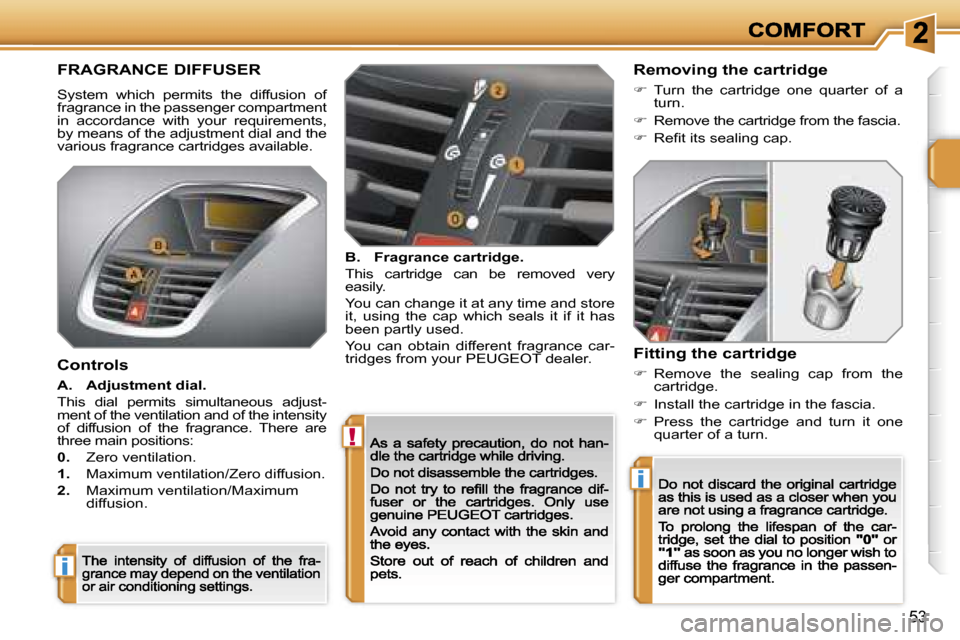

FRAGRANCE DIFFUSER
System which permits the diffusion of fragrance in the passenger compartment in accordance with your requirements, by means of the adjustment dial and the various fragrance cartridges available.
Fitting the cartridge
 Remove the sealing cap from the cartridge.
 Install the cartridge in the fascia.
 Press the cartridge and turn it one quarter of a turn.
Controls
A. Adjustment dial.
This dial permits simultaneous adjust-ment of the ventilation and of the intensity of diffusion of the fragrance. There are three main positions:
0. Zero ventilation.
1.Maximum ventilation/Zero diffusion.
2. Maximum ventilation/Maximum diffusion.
B. Fragrance cartridge.
This cartridge can be removed very easily.
You can change it at any time and store it, using the cap which seals it if it has been partly used.
You can obtain different fragrance car-tridges from your PEUGEOT dealer.
Removing the cartridge
 Turn the cartridge one quarter of a turn.
 Remove the cartridge from the fascia.
 Refit its sealing cap.

54
FRONT SEATS
Seat consisting of a seat cushion, seat back and head restraint which can all be adjusted to adapt your position for maximum ease of driving and comfort.
1. Forwards-backwards adjustment
 Lift the control and slide the seat for-wards or backwards.
2. Driver’s or passenger’s seat height adjustment
 Pull the handle upwards or push it downwards as many times as nec-essary to obtain the required posi-tion.
3.Seatback angle adjustment
 Push the handle towards the rear.

!
!
55
4. Access to rear seats (3 door and GTi)
 Pull the handle to fold the seat back and move the seat forwards. On re-positioning, the seat returns to its ini-tial position.
5. Head restraint height and angle adjustment (except GTi)
 To raise the head restraint, pull it up-wards.
 To remove the head restraint, press the lug A and pull the head restraint upwards.
 To put the head restraint back in po-sition, locate the stems of the head restraint in the holes, taking care to keep them in line with the seat back.
 To lower the head restraint, press the lug A and the head restraint at the same time.
 To tilt the head restraint, tilt the lower part forwards or rearwards.

!
i
56

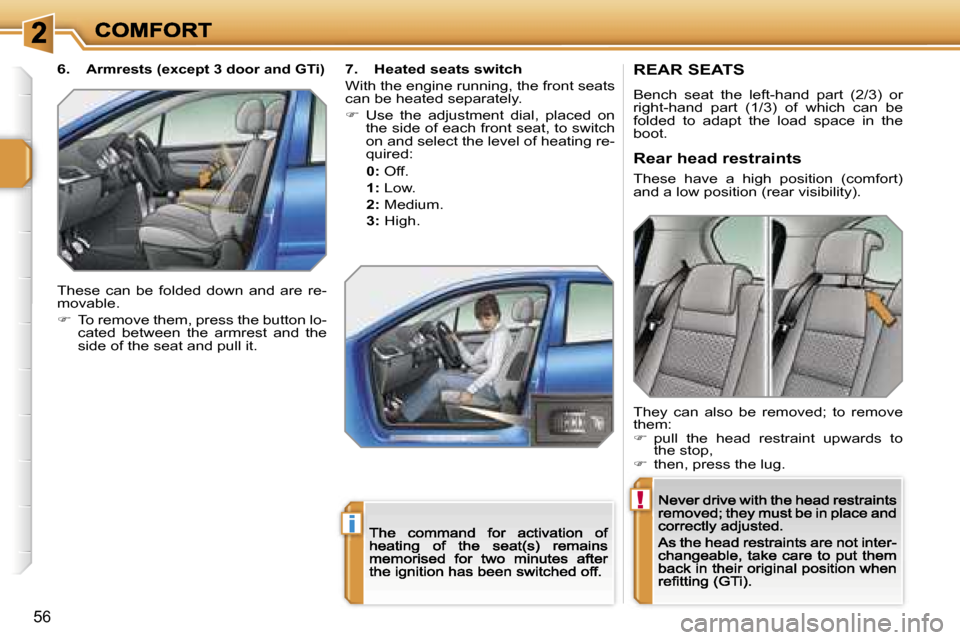

REAR SEATS
Bench seat the left-hand part (2/3) or right-hand part (1/3) of which can be folded to adapt the load space in the boot.
Rear head restraints
These have a high position (comfort) and a low position (rear visibility).
7. Heated seats switch
With the engine running, the front seats can be heated separately.
 Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating re-quired:
0: Off.
1: Low.
2: Medium.
3: High.
They can also be removed; to remove them: pull the head restraint upwards to the stop, then, press the lug.
6. Armrests (except 3 door and GTi)
These can be folded down and are re-movable.
 To remove them, press the button lo-cated between the armrest and the side of the seat and pull it.

!
i
56
REAR SEATS
Bench seat the left-hand part (2/3) or right-hand part (1/3) of which can be folded to adapt the load space in the boot.
Rear head restraints
These have a high position (comfort) and a low position (rear visibility).
7. Heated seats switch
With the engine running, the front seats can be heated separately.
 Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating re-quired:
0: Off.
1: Low.
2: Medium.
3: High.
They can also be removed; to remove them: pull the head restraint upwards to the stop, then, press the lug.
6. Armrests (except 3 door and GTi)
These can be folded down and are re-movable.
 To remove them, press the button lo-cated between the armrest and the side of the seat and pull it.

!
57

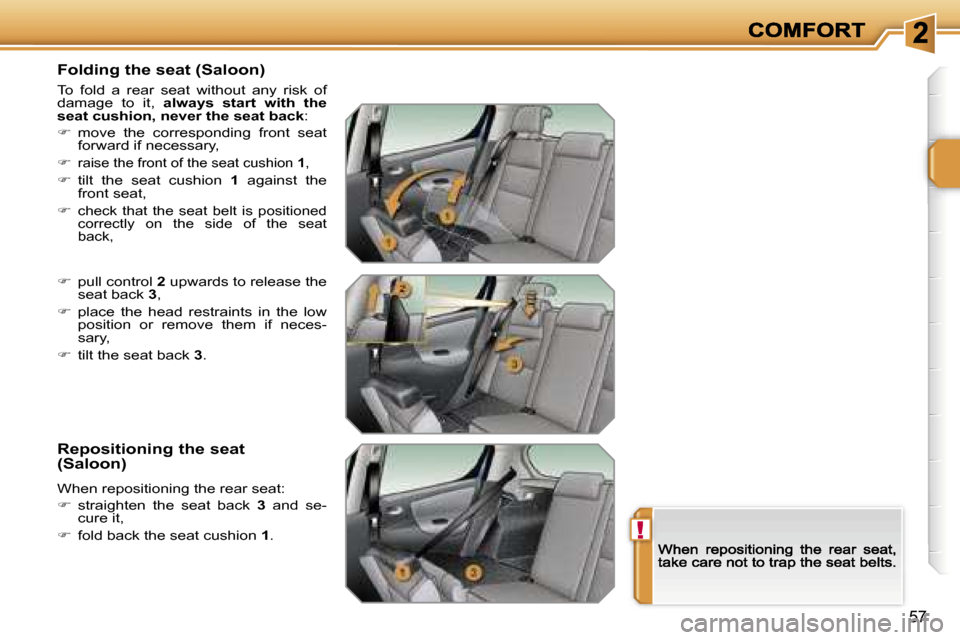

Folding the seat (Saloon)
To fold a rear seat without any risk of damage to it, always start with the seat cushion, never the seat back:
 move the corresponding front seat forward if necessary,
raise the front of the seat cushion 1,
 tilt the seat cushion 1 against the front seat,
check that the seat belt is positioned correctly on the side of the seat back,
Repositioning the seat
(Saloon)
When repositioning the rear seat:
 straighten the seat back 3 and se-cure it,
 fold back the seat cushion 1.
 pull control 2 upwards to release the seat back 3,
 place the head restraints in the low position or remove them if neces-sary,
 tilt the seat back 3.

!
i
56
REAR SEATS
Bench seat the left-hand part (2/3) or right-hand part (1/3) of which can be folded to adapt the load space in the boot.
Rear head restraints
These have a high position (comfort) and a low position (rear visibility).
7. Heated seats switch
With the engine running, the front seats can be heated separately.
 Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating re-quired:
0: Off.
1: Low.
2: Medium.
3: High.
They can also be removed; to remove them: pull the head restraint upwards to the stop, then, press the lug.
6. Armrests (except 3 door and GTi)
These can be folded down and are re-movable.
 To remove them, press the button lo-cated between the armrest and the side of the seat and pull it.

!
i
58

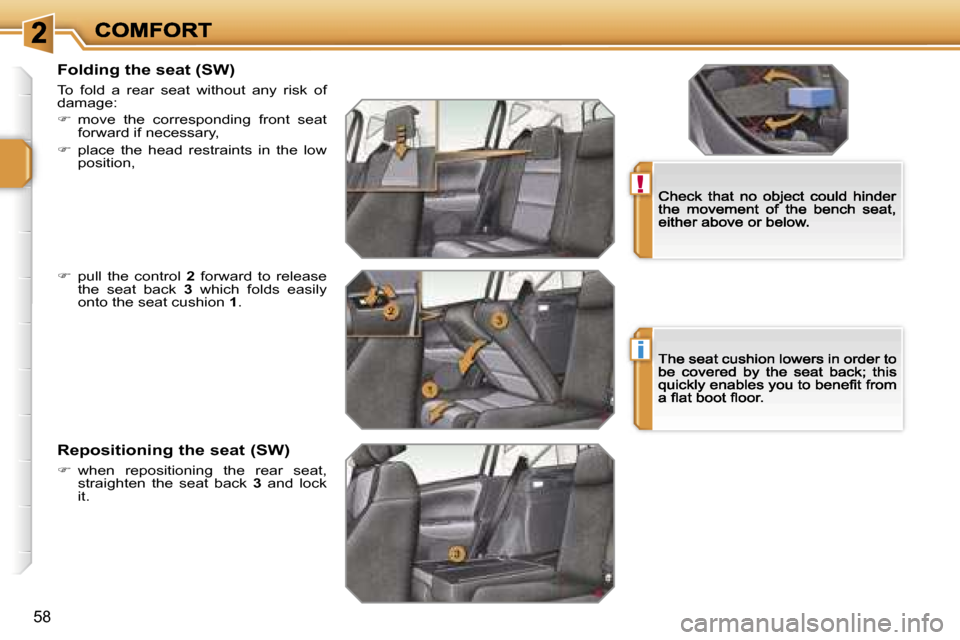

Folding the seat (SW)
To fold a rear seat without any risk of damage:
 move the corresponding front seat forward if necessary,
 place the head restraints in the low position,
Repositioning the seat (SW)
 when repositioning the rear seat, straighten the seat back 3 and lock it.
 pull the control 2 forward to release the seat back 3 which folds easily onto the seat cushion 1.
