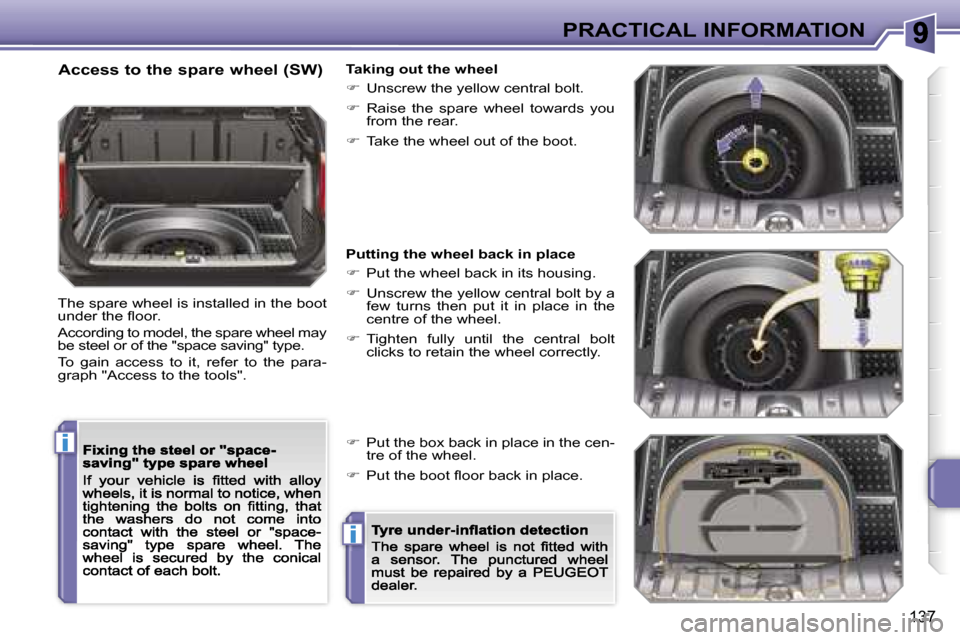

Access to the spare wheel (SW)
The spare wheel is installed in the boot under the floor.
According to model, the spare wheel may be steel or of the "space saving" type.
To gain access to it, refer to the para-graph "Access to the tools".
Taking out the wheel
 Unscrew the yellow central bolt.
 Raise the spare wheel towards you from the rear.
 Take the wheel out of the boot.
Putting the wheel back in place
 Put the wheel back in its housing.
 Unscrew the yellow central bolt by a few turns then put it in place in the centre of the wheel.
 Tighten fully until the central bolt clicks to retain the wheel correctly.
 Put the box back in place in the cen-tre of the wheel.
 Put the boot floor back in place.

i
PRACTICAL INFORMATION
138

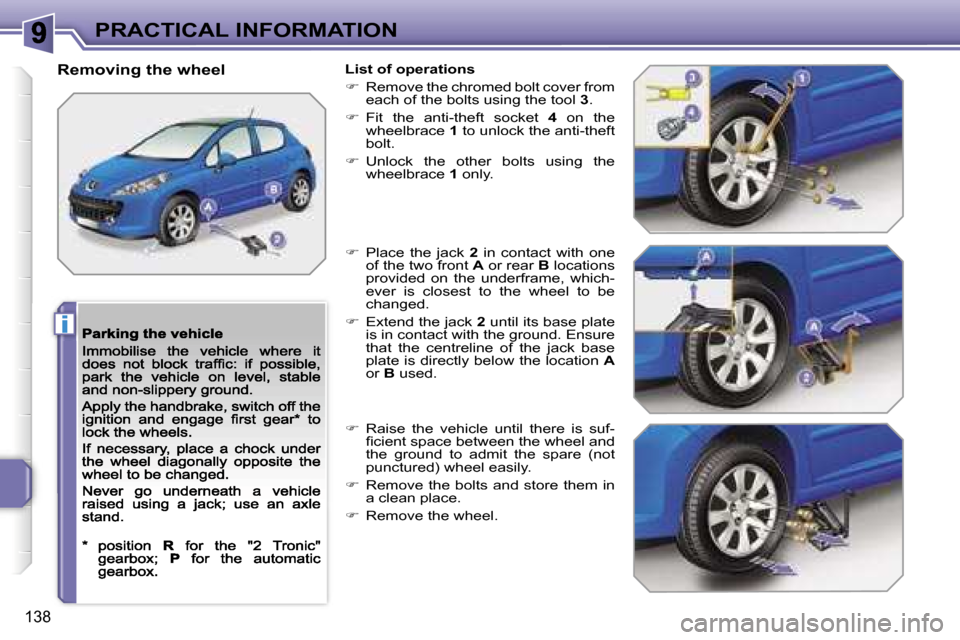

Removing the wheelList of operations
 Remove the chromed bolt cover from each of the bolts using the tool 3.
 Fit the anti-theft socket 4 on the wheelbrace 1 to unlock the anti-theft bolt.
 Unlock the other bolts using the wheelbrace 1 only.
 Place the jack 2 in contact with one of the two front A or rear B locations provided on the underframe, which-ever is closest to the wheel to be changed.
 Extend the jack 2 until its base plate is in contact with the ground. Ensure that the centreline of the jack base plate is directly below the location Aor B used.
 Raise the vehicle until there is suf-ficient space between the wheel and the ground to admit the spare (not punctured) wheel easily.
 Remove the bolts and store them in a clean place.
 Remove the wheel.

i
PRACTICAL INFORMATION
139
Fitting the wheelList of operations
 Put the wheel in place on the hub.
 Screw in the bolts by hand to the stop.
 Pre-tighten the anti-theft bolt using the wheelbrace 1 fitted with the anti-theft socket 4.
 Pre-tighten the other bolts using the wheelbrace 1 only.
 Lower the vehicle fully.
 Fold the jack 2 and detach it.
 Lock the anti-theft bolt using the wheelbrace 1 fitted with the anti-theft socket 4.
 Lock the other bolts using the wheel-brace 1 only.
 Refit the chromed bolt covers on each of the bolts.
 Store the tools in the box.

!
i
i
PRACTICAL INFORMATION
140

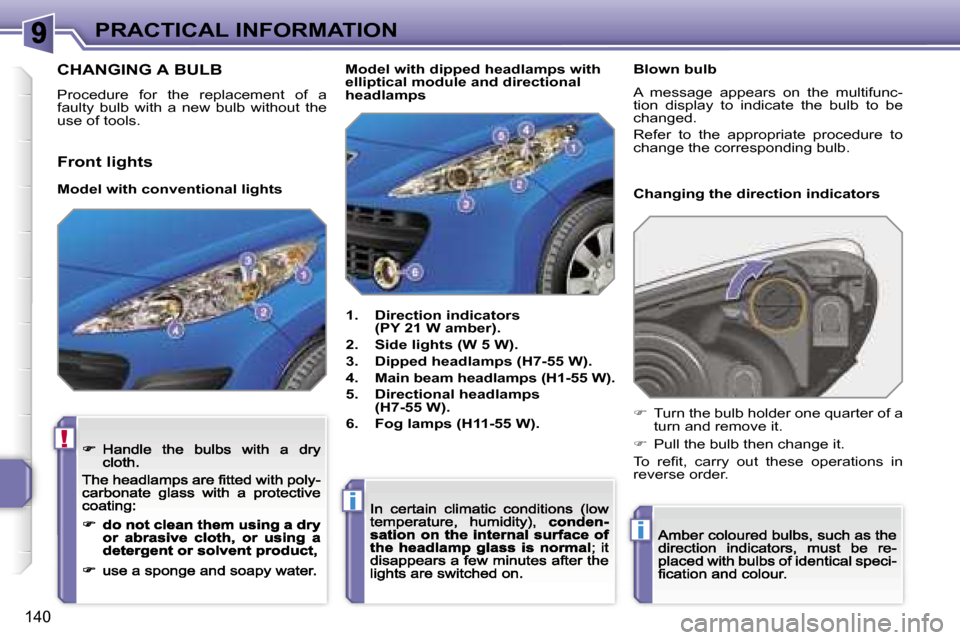

CHANGING A BULB
Procedure for the replacement of a faulty bulb with a new bulb without the use of tools.
1. Direction indicators (PY 21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4. Main beam headlamps (H1-55 W).
5. Directional headlamps(H7-55 W).
6. Fog lamps (H11-55 W).
Changing the direction indicators
Model with dipped headlamps with elliptical module and directional headlamps
 Turn the bulb holder one quarter of a turn and remove it.
 Pull the bulb then change it.
To refit, carry out these operations in reverse order.
Front lights
Model with conventional lights
Blown bulb
A message appears on the multifunc-tion display to indicate the bulb to be changed.
Refer to the appropriate procedure to change the corresponding bulb.

PRACTICAL INFORMATION
141

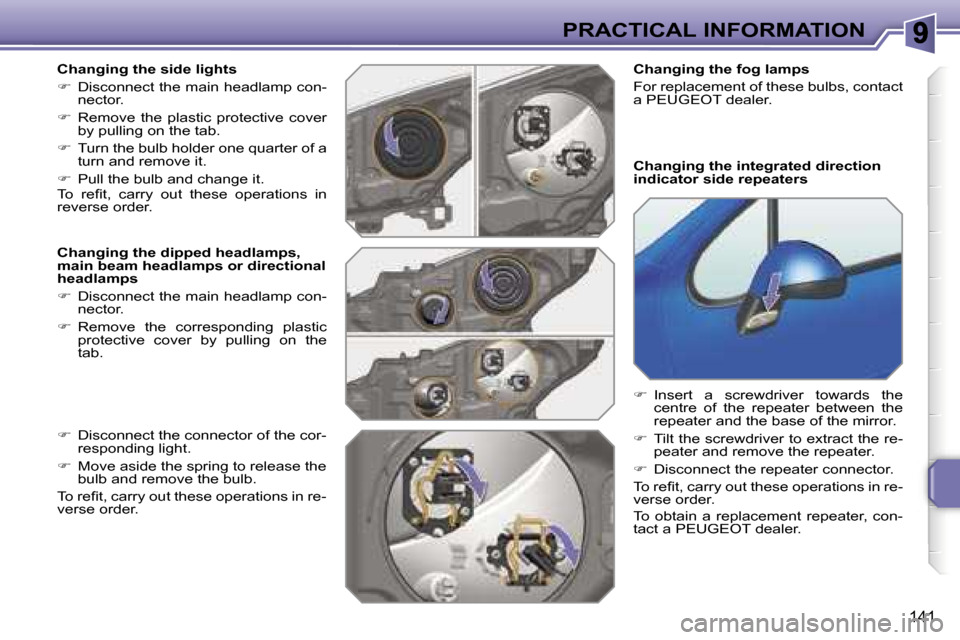

Changing the side lights
 Disconnect the main headlamp con-nector.
 Remove the plastic protective cover by pulling on the tab.
 Turn the bulb holder one quarter of a turn and remove it.
 Pull the bulb and change it.To refit, carry out these operations in reverse order.
Changing the dipped headlamps, main beam headlamps or directional headlamps
 Disconnect the main headlamp con-nector.
 Remove the corresponding plastic protective cover by pulling on the tab.
Changing the integrated direction indicator side repeaters
 Insert a screwdriver towards the centre of the repeater between the repeater and the base of the mirror.
 Tilt the screwdriver to extract the re-peater and remove the repeater.
 Disconnect the repeater connector.
To refit, carry out these operations in re-verse order.
To obtain a replacement repeater, con-tact a PEUGEOT dealer.
 Disconnect the connector of the cor-responding light.
 Move aside the spring to release the bulb and remove the bulb.
To refit, carry out these operations in re-verse order.
Changing the fog lamps
For replacement of these bulbs, contact a PEUGEOT dealer.

ii
PRACTICAL INFORMATION
142

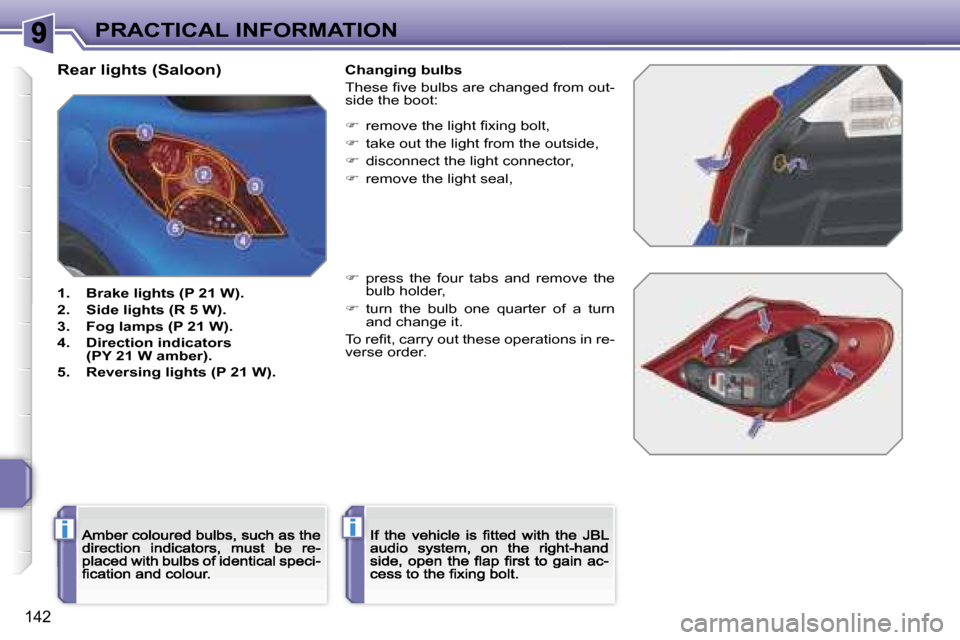

Rear lights (Saloon)
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Fog lamps (P 21 W).
4. Direction indicators (PY 21 W amber).
5. Reversing lights (P 21 W).
Changing bulbs
These five bulbs are changed from out-side the boot:
 remove the light fixing bolt,
 take out the light from the outside,
 disconnect the light connector,
 remove the light seal,
 press the four tabs and remove the bulb holder,
 turn the bulb one quarter of a turn and change it.
To refit, carry out these operations in re-verse order.

PRACTICAL INFORMATION
143

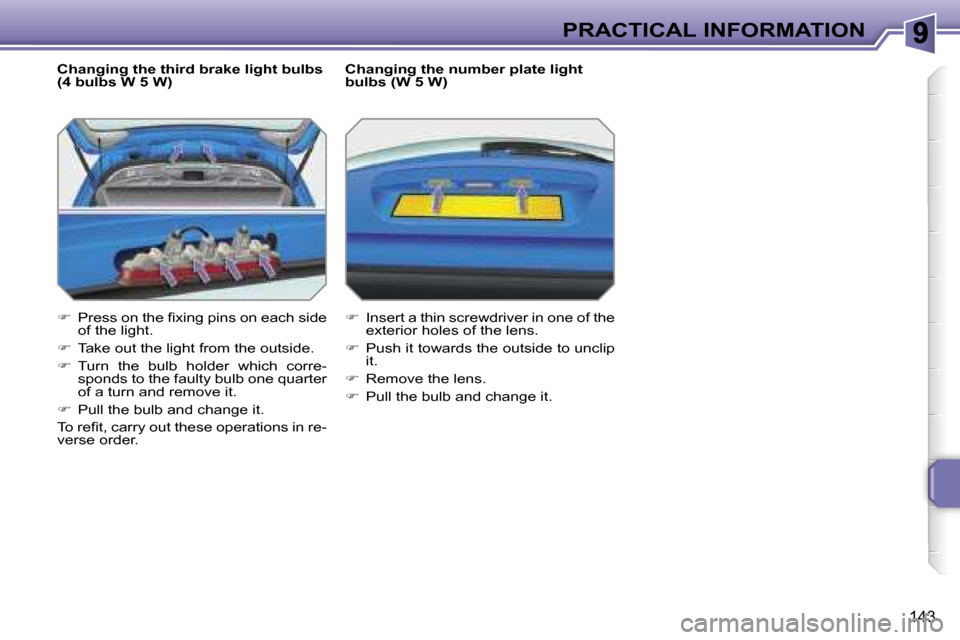

Changing the third brake light bulbs (4 bulbs W 5 W)
 Press on the fixing pins on each side of the light.
 Take out the light from the outside.
 Turn the bulb holder which corre-sponds to the faulty bulb one quarter of a turn and remove it.
 Pull the bulb and change it.
To refit, carry out these operations in re-verse order.
Changing the number plate light bulbs (W 5 W)
 Insert a thin screwdriver in one of the exterior holes of the lens.
 Push it towards the outside to unclip it.
 Remove the lens.
 Pull the bulb and change it.

i
PRACTICAL INFORMATION
144

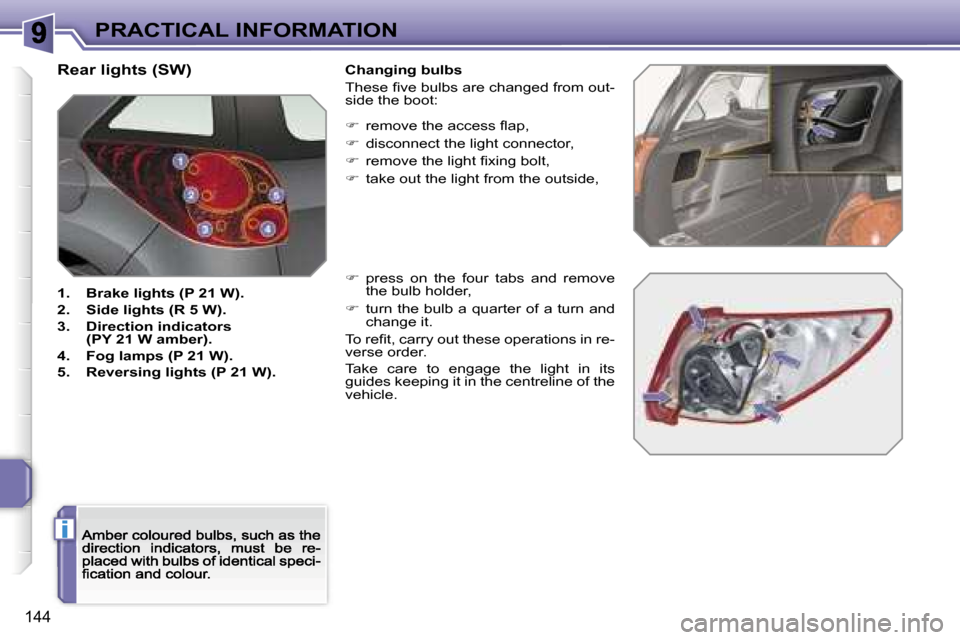

Rear lights (SW)
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Direction indicators (PY 21 W amber).
4. Fog lamps (P 21 W).
5. Reversing lights (P 21 W).
Changing bulbs
These five bulbs are changed from out-side the boot:
 remove the access flap,
 disconnect the light connector,
 remove the light fixing bolt,
 take out the light from the outside,
 press on the four tabs and remove the bulb holder,
 turn the bulb a quarter of a turn and change it.
To refit, carry out these operations in re-verse order.
Take care to engage the light in its guides keeping it in the centreline of the vehicle.
