2007 Peugeot 207 Dag Owner's Manual

10
170
SALOON WEIGHTS AND TOWED LOADS (in kg)
Diesel engines1.4 litre Turbo HDI 70 bhp70 bhp1.6 litre Turbo HDI 16V 90 bhp90 bhp90 bhp1.6 litre Turbo HDI 16V 110 bhp110 bhp110 bhp
GearboxManualManualManual
Model codes: WC... WA... WG...8HZ-C9HX-C9HV-C9HY-C9HZ-C
- Kerb weight1 261 - 1 251 - 1 2691 280 - 1 272 - 1 2901 328 - 1 319 - 1 358
- Payload399 - 369 - 341420 - 408 - 340382 - 391 - 323
- Gross vehicle weight (GVW)1 660 - 1 620 - 1 6101 700 - 1 680 - 1 6301 710 - 1 710 - 1 681
- Gross train weight (GTW)
on a 12 % gradient2 6002 6502 690
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient940 - 980 - 990950 - 970 - 1 020980
on an 8 % gradient940 - 980980 - 1 0001 030
- Braked trailer* (with load transfer within GTW limit)1 1501 1501 150
- Unbraked trailer600600600
- Recommended nose weight464646
* The weight of the braked trailer may be increase d, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior temperature is higher than 37 °C, limit the weight towed.

10
165
SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines1.4 litre 75 bhp1.4 litre 16V 95 bhp
GearboxManualManual
Model codes: WE...KFV-C8FS-C
- Kerb weight1 2711 290
- Payload371401
- Gross vehicle weight (GVW)1 6421 691
- Gross train weight (GTW)
on a 12 % gradient2 4222 591
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient780900
on an 8 % gradient--
- Braked trailer* (with load transfer within GTW limit)1 0451 150
- Unbraked trailer600600
- Recommended nose weight4246
* The weight of the braked trailer may be increase d, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior temperature is higher than 37 °C, limit the weight towed.

10
166

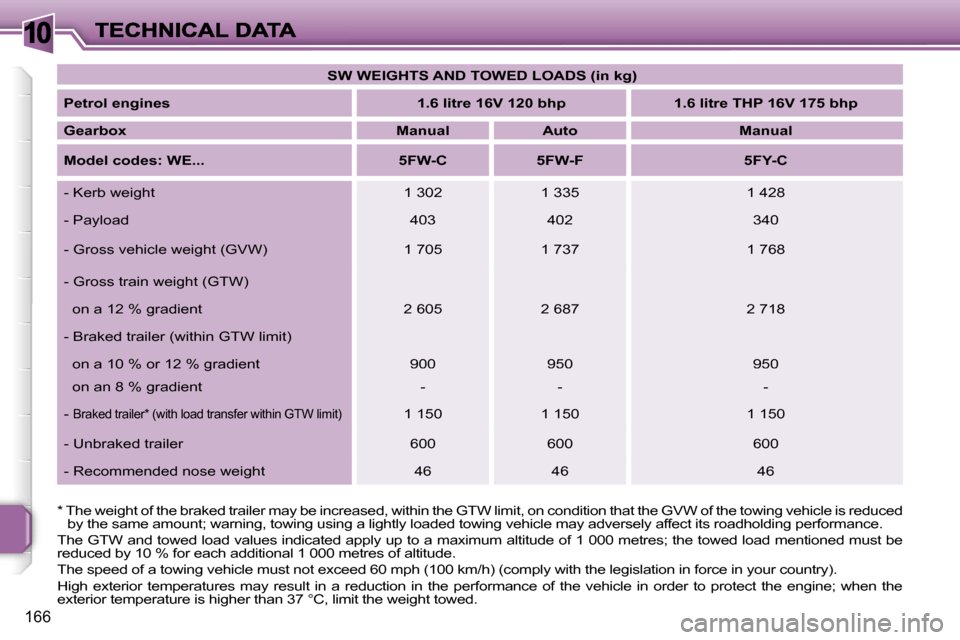

SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines1.6 litre 16V 120 bhp1.6 litre THP 16V 175 bhp
GearboxManual AutoManual
Model codes: WE...5FW-C5FW-F5FY-C
- Kerb weight1 3021 3351 428
- Payload403402340
- Gross vehicle weight (GVW)1 7051 7371 768
- Gross train weight (GTW)
on a 12 % gradient2 6052 6872 718
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient900950950
on an 8 % gradient---
- Braked trailer* (with load transfer within GTW limit)1 1501 1501 150
- Unbraked trailer600600600
- Recommended nose weight464646
* The weight of the braked trailer may be increase d, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior temperature is higher than 37 °C, limit the weight towed.

10
171

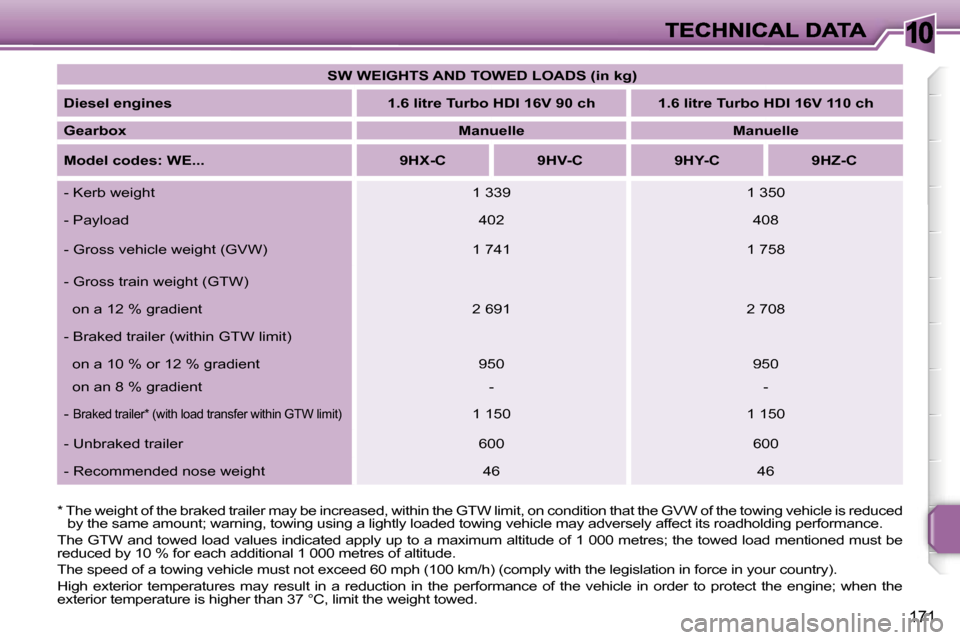

SW WEIGHTS AND TOWED LOADS (in kg)
Diesel engines1.6 litre Turbo HDI 16V 90 ch1.6 litre Turbo HDI 16V 110 ch
GearboxManuelleManuelle
Model codes: WE...9HX-C9HV-C9HY-C9HZ-C
- Kerb weight1 3391 350
- Payload402408
- Gross vehicle weight (GVW)1 7411 758
- Gross train weight (GTW)
on a 12 % gradient2 6912 708
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient950950
on an 8 % gradient--
- Braked trailer* (with load transfer within GTW limit)1 1501 150
- Unbraked trailer600600
- Recommended nose weight4646
* The weight of the braked trailer may be increase d, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior temperature is higher than 37 °C, limit the weight towed.

10
172

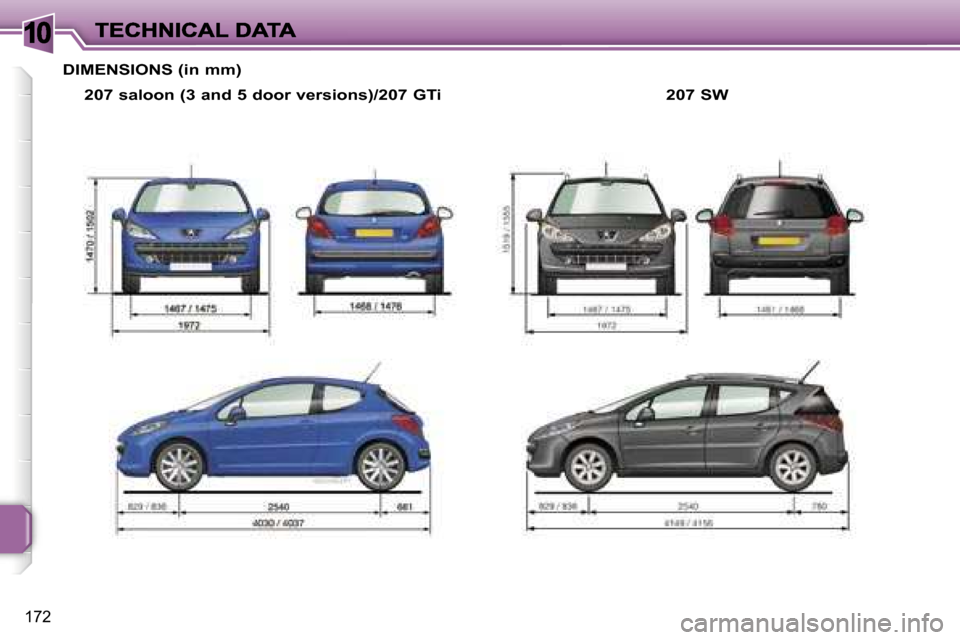

DIMENSIONS (in mm)207 saloon (3 and 5 door versions)/207 GTi 207 SW

10
!
i
173

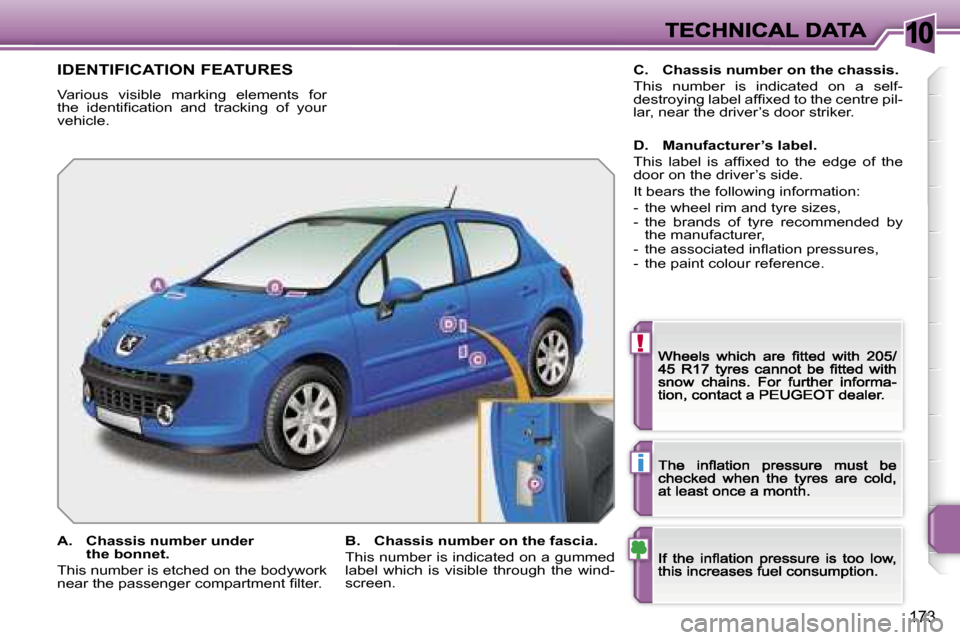

IDENTIFICATION FEATURES
Various visible marking elements for the identification and tracking of your vehicle.
A. Chassis number under the bonnet.
This number is etched on the bodywork near the passenger compartment filter.
B. Chassis number on the fascia.
This number is indicated on a gummed label which is visible through the wind-screen.
C. Chassis number on the chassis.
This number is indicated on a self-destroying label affixed to the centre pil-lar, near the driver’s door striker.
D. Manufacturer’s label.
This label is affixed to the edge of the door on the driver’s side.
It bears the following information:
- the wheel rim and tyre sizes,- the brands of tyre recommended by the manufacturer,- the associated inflation pressures,- the paint colour reference.

175

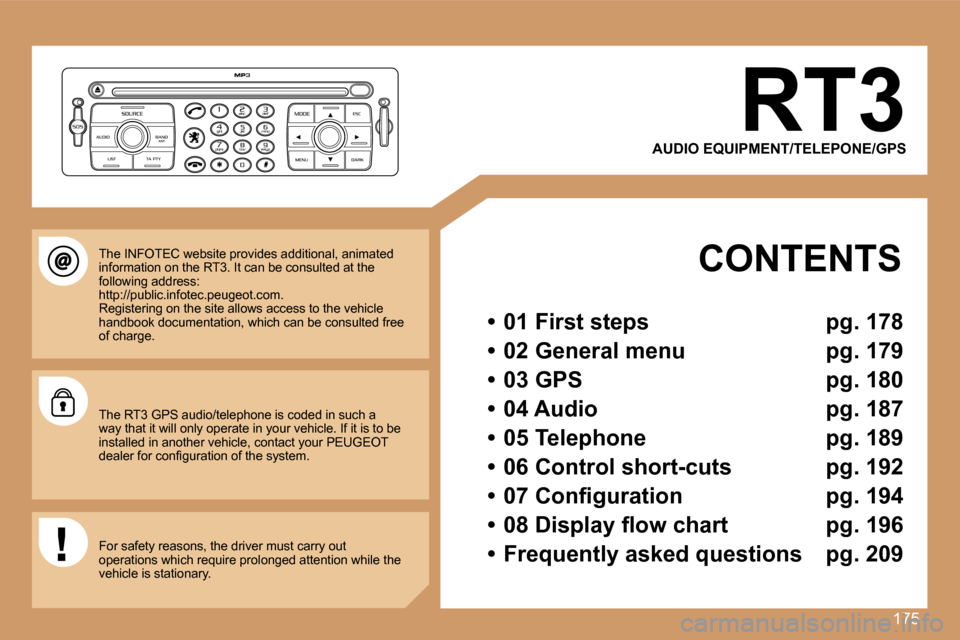

RT3
AUDIO EQUIPMENT/TELEPONE/GPS
CONTENTS
• 01 First steps pg. 178
• 02 General menu pg. 179
• 03 GPS pg. 180
• 04 Audio pg. 187
• 05 Telephone pg. 189
• 06 Control short-cuts pg. 192
• 07 Configuration pg. 194
• 08 Display flow chart pg. 196
• Frequently asked questions pg. 209
The INFOTEC website provides additional, animated information on the RT3. It can be consulted at the following address:http://public.infotec.peugeot.com.Registering on the site allows access to the vehicle handbook documentation, which can be consulted free of charge.
The RT3 GPS audio/telephone is coded in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact your PEUGEOT dealer for configuration of the system.
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.

176

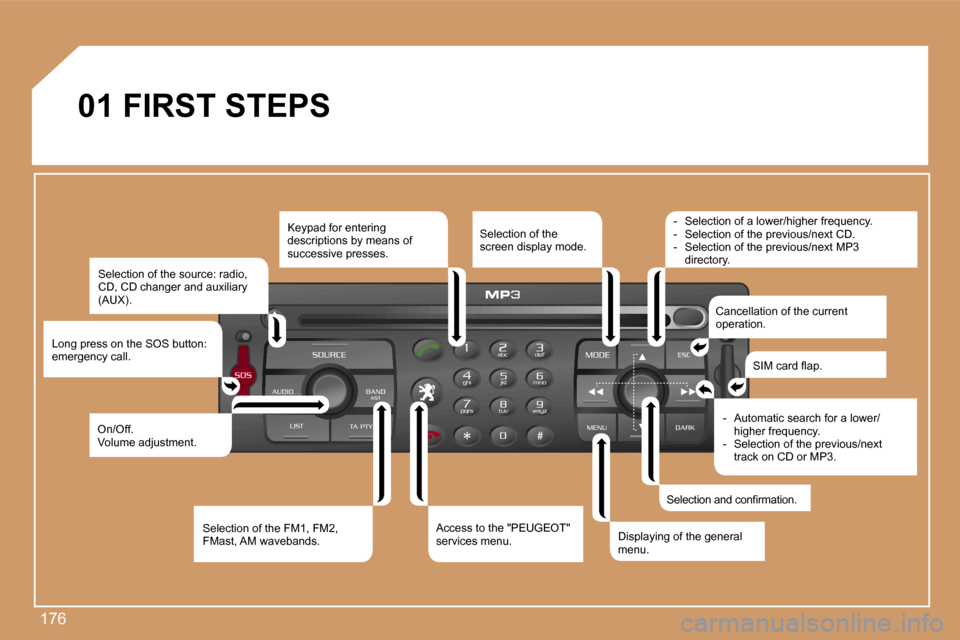

01 FIRST STEPSSelection of the source: radio,
CD, CD changer and auxiliary
(AUX).
Long press on the SOS button:
emergency call.
On/Off.
Volume adjustment.
Selection of the FM1, FM2,
FMast, AM wavebands.Keypad for entering
descriptions by means of
successive presses.
Access to the "PEUGEOT"
services menu. Displaying of the general
menu.SIM card flap.
Cancellation of the current
operation.
- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Selection of the previous/next MP3
directory.
- Automatic search for a lower/higher frequency.
- Selection of the previous/next track on CD or MP3.
Selection and confirmation.
Selection of the
screen display mode.
