2007 Peugeot 207 Dag Owner's Manual

!
i
91

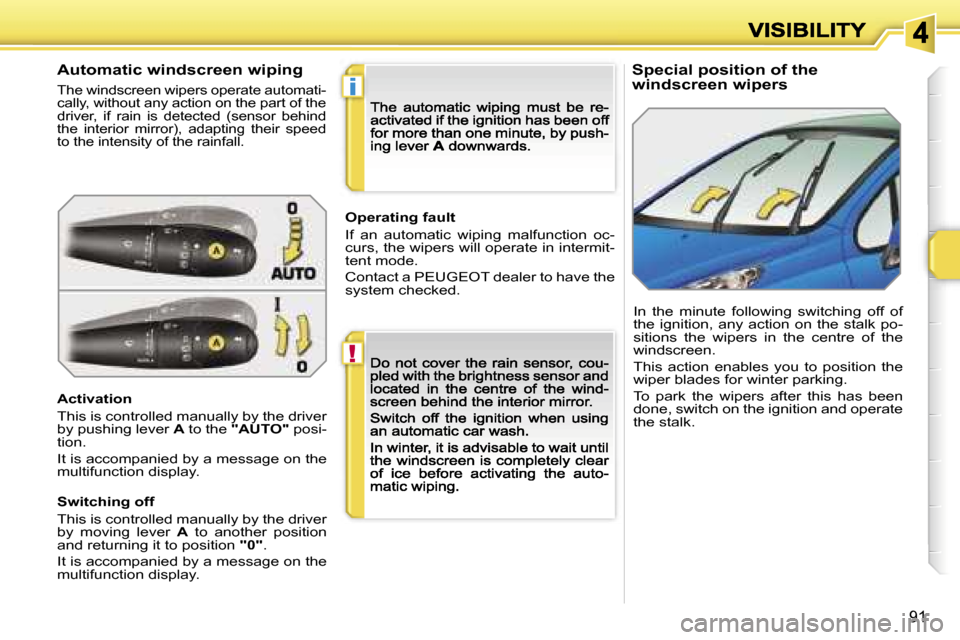

Special position of the windscreen wipersAutomatic windscreen wiping
The windscreen wipers operate automati-cally, without any action on the part of the driver, if rain is detected (sensor behind the interior mirror), adapting their speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by pushing lever A to the "AUTO" posi-tion.
It is accompanied by a message on the multifunction display.
In the minute following switching off of the ignition, any action on the stalk po-sitions the wipers in the centre of the windscreen.
This action enables you to position the wiper blades for winter parking.
To park the wipers after this has been done, switch on the ignition and operate the stalk.
Switching off
This is controlled manually by the driver by moving lever A to another position and returning it to position "0".
It is accompanied by a message on the multifunction display.
Operating fault
If an automatic wiping malfunction oc-curs, the wipers will operate in intermit-tent mode.
Contact a PEUGEOT dealer to have the system checked.

!
i
91
Special position of the windscreen wipersAutomatic windscreen wiping
The windscreen wipers operate automati-cally, without any action on the part of the driver, if rain is detected (sensor behind the interior mirror), adapting their speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by pushing lever A to the "AUTO" posi-tion.
It is accompanied by a message on the multifunction display.
In the minute following switching off of the ignition, any action on the stalk po-sitions the wipers in the centre of the windscreen.
This action enables you to position the wiper blades for winter parking.
To park the wipers after this has been done, switch on the ignition and operate the stalk.
Switching off
This is controlled manually by the driver by moving lever A to another position and returning it to position "0".
It is accompanied by a message on the multifunction display.
Operating fault
If an automatic wiping malfunction oc-curs, the wipers will operate in intermit-tent mode.
Contact a PEUGEOT dealer to have the system checked.

i
92

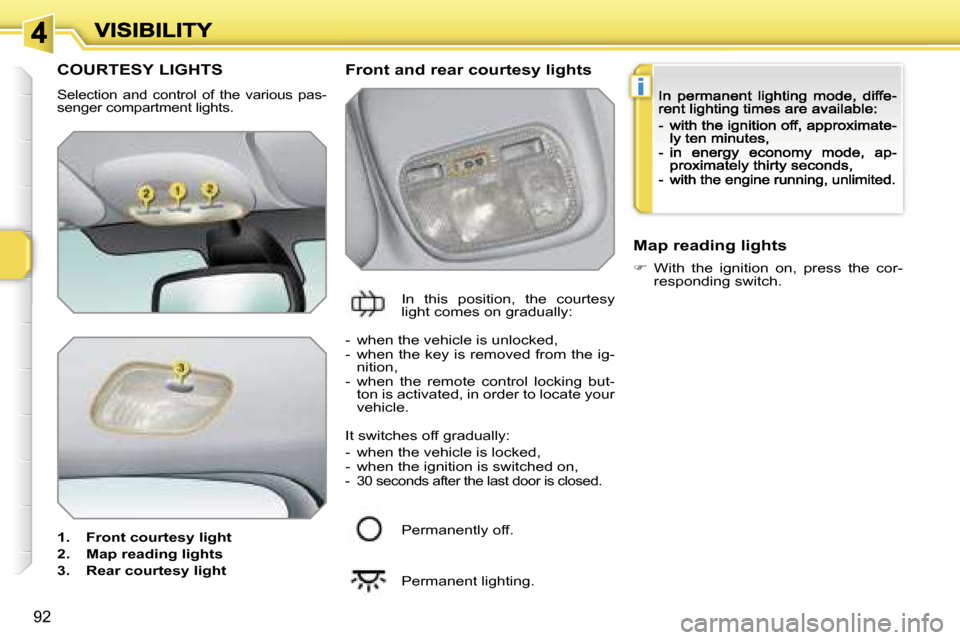

COURTESY LIGHTS
Selection and control of the various pas-senger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy light comes on gradually:
Map reading lights
 With the ignition on, press the cor-responding switch.
- when the vehicle is unlocked,- when the key is removed from the ig-nition,- when the remote control locking but-ton is activated, in order to locate your vehicle.
It switches off gradually:
- when the vehicle is locked,- when the ignition is switched on,- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.

!
93

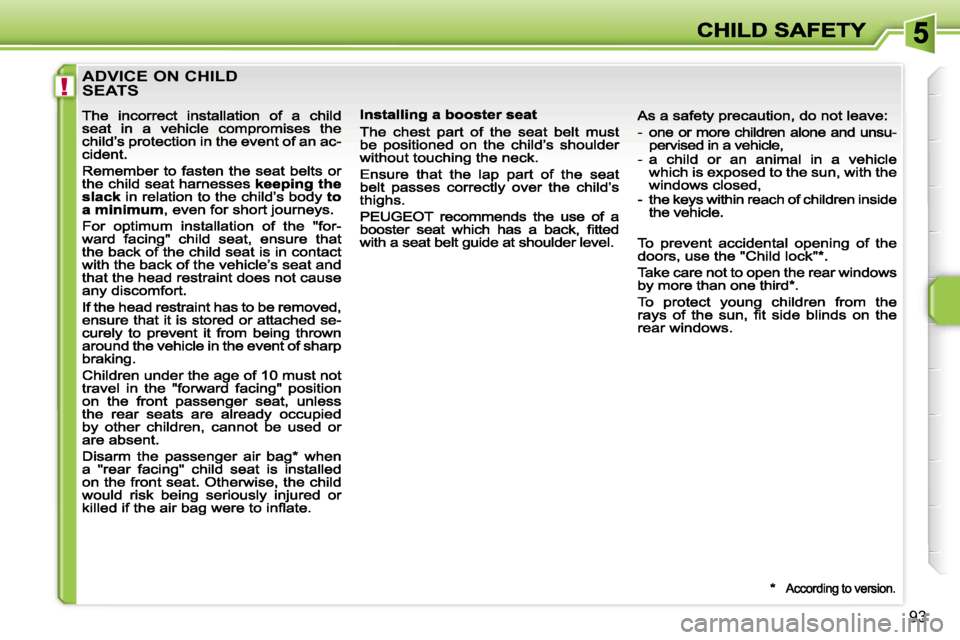

ADVICE ON CHILD
SEATS

i
94

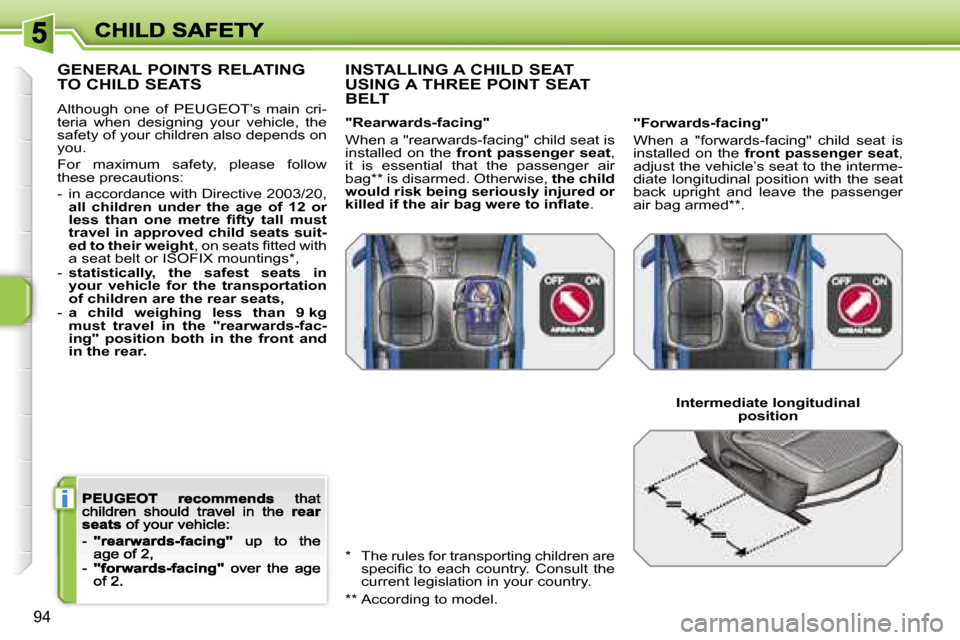

GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT’s main cri-teria when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
- in accordance with Directive 2003/20, all children under the age of 12 or less than one metre fifty tall must travel in approved child seats suit-ed to their weight, on seats fitted with a seat belt or ISOFIX mountings*,- statistically, the safest seats in your vehicle for the transportation of children are the rear seats,- a child weighing less than 9 kg must travel in the "rearwards-fac-ing" position both in the front and in the rear.
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is installed on the front passenger seat, adjust the vehicle’s seat to the interme-diate longitudinal position with the seat back upright and leave the passenger air bag armed**.
"Rearwards-facing"
When a "rearwards-facing" child seat is installed on the front passenger seat, it is essential that the passenger air bag** is disarmed. Otherwise, the child would risk being seriously injured or killed if the air bag were to inflate.
Intermediate longitudinal position
* The rules for transporting children are specific to each country. Consult the current legislation in your country.
** According to model.

95
Passenger air bag OFF**
** According to version.

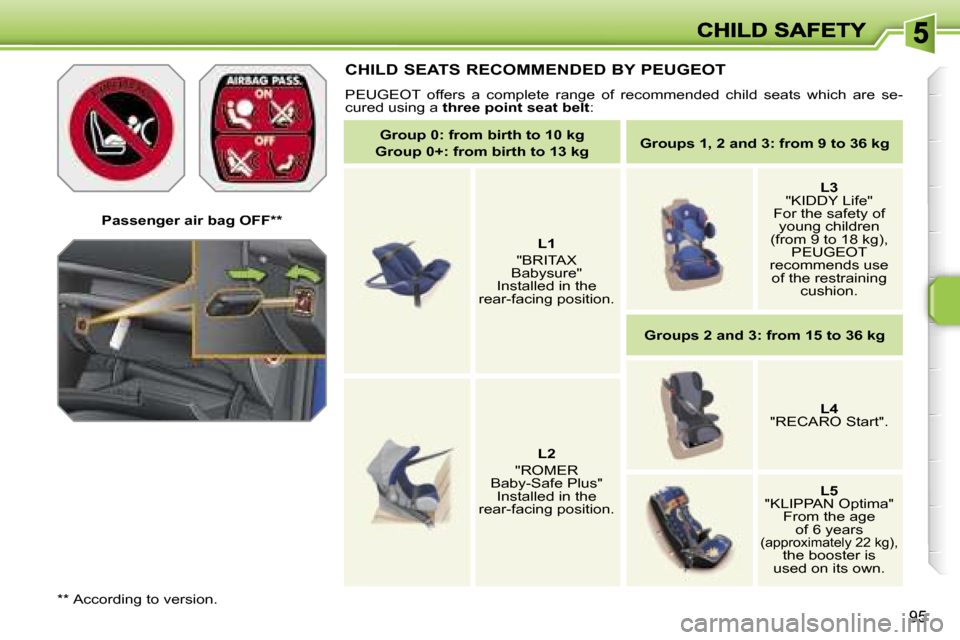

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-cured using a three point seat belt:
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"BRITAX Babysure" Installed in the rear-facing position.
L2
"ROMER Baby-Safe Plus" Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L3
"KIDDY Life"For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining
cushion.
Groups 2 and 3: from 15 to 36 kg
L4
"RECARO Start".
L5
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg),
the booster is
used on its own.

95
Passenger air bag OFF**
** According to version.
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-cured using a three point seat belt:
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"BRITAX Babysure" Installed in the rear-facing position.
L2
"ROMER Baby-Safe Plus" Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L3
"KIDDY Life"For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining
cushion.
Groups 2 and 3: from 15 to 36 kg
L4
"RECARO Start".
L5
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg),
the booster is
used on its own.

96
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SALOON)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.

* Except GTi.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/ or "forward facing".
X: seat not suitable for the installation of a child seat of the weight group indicated.
Seat
Weight of the child/indicative age
Less than 13 kg (groups 0 (b) and 0+)Up to 1 year approx
From 9 to 18 kg (group 1) From 1 to 3 years approx
From 15 to 25 kg (group 2)From 3 to 6 years approx
From 22 to 36 kg (group 3)From 6 to 10 years approx
Front passenger seat (c)
- fixedUUUU
- height adjustable
Rear side seatsUUUU
Rear centre seat*UXXX
