2007 Peugeot 207 Dag Owner's Manual

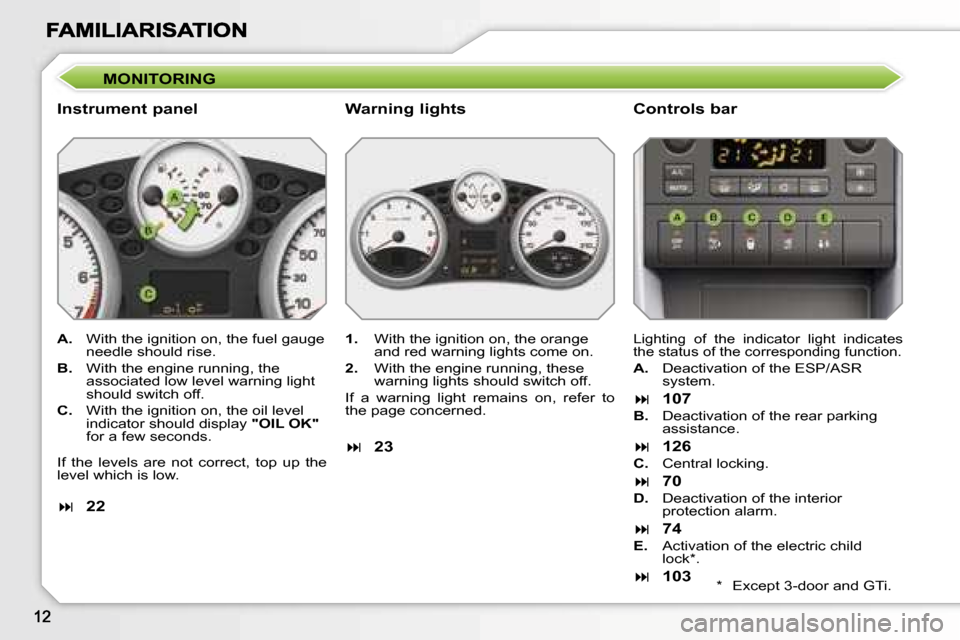

MONITORING
Instrument panel Controls bar
A. With the ignition on, the fuel gauge needle should rise.
B. With the engine running, the associated low level warning light should switch off.
C. With the ignition on, the oil level indicator should display "OIL OK"for a few seconds.
If the levels are not correct, top up the level which is low.
22
Lighting of the indicator light indicates the status of the corresponding function.
A. Deactivation of the ESP/ASR system.
107
B. Deactivation of the rear parking assistance.
126
C. Central locking.
70
D. Deactivation of the interior protection alarm.
74
E. Activation of the electric child lock*.
103
1. With the ignition on, the orange and red warning lights come on.
2. With the engine running, these warning lights should switch off.
If a warning light remains on, refer to the page concerned.
23
Warning lights
* Except 3-door and GTi.

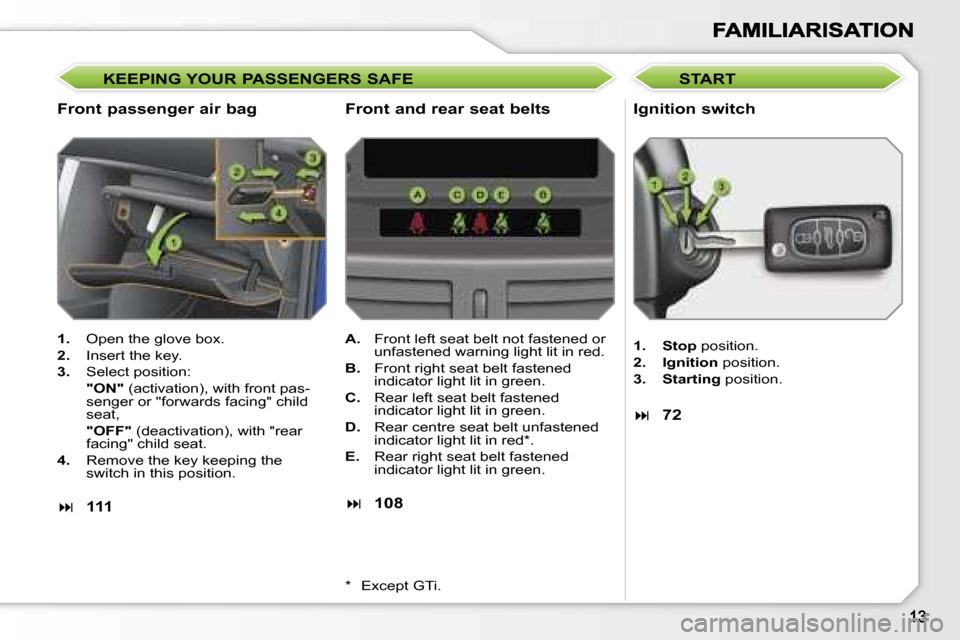

KEEPING YOUR PASSENGERS SAFE
Front passenger air bag Ignition switch
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front pas-senger or "forwards facing" child seat,
"OFF" (deactivation), with "rear facing" child seat.
4. Remove the key keeping the switch in this position.
111
1.Stop position.
2.Ignition position.
3.Starting position.
72
A. Front left seat belt not fastened or unfastened warning light lit in red.
B. Front right seat belt fastened indicator light lit in green.
C. Rear left seat belt fastened indicator light lit in green.
D. Rear centre seat belt unfastened indicator light lit in red*.
E. Rear right seat belt fastened indicator light lit in green.
108
Front and rear seat beltsSTART
* Except GTi.

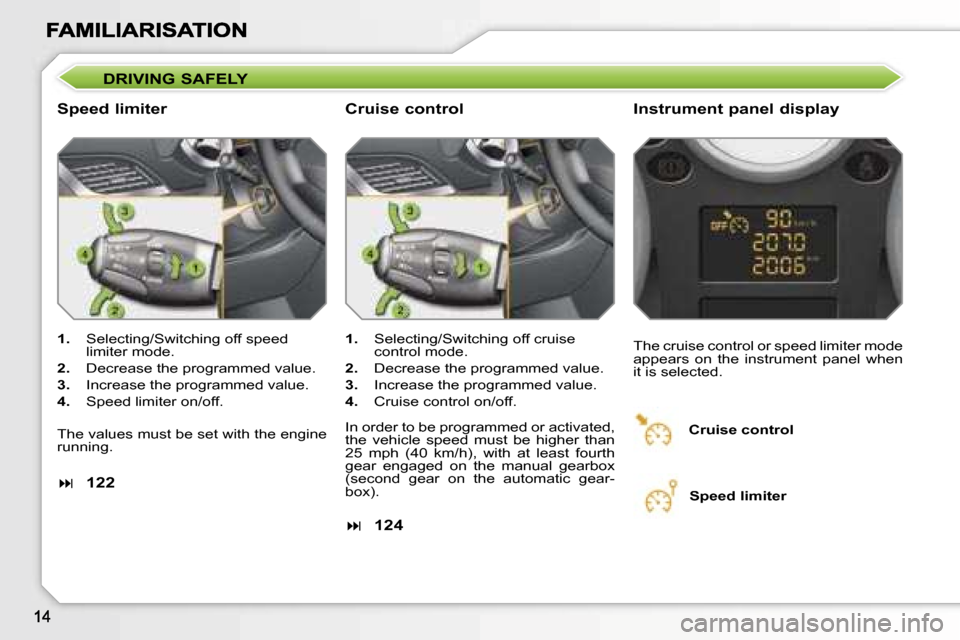

DRIVING SAFELY
Speed limiter Instrument panel display
1. Selecting/Switching off speed limiter mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter on/off.
The values must be set with the engine running.
122
The cruise control or speed limiter mode appears on the instrument panel when it is selected.
1. Selecting/Switching off cruise control mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Cruise control on/off.
In order to be programmed or activated, the vehicle speed must be higher than 25 mph (40 km/h), with at least fourth gear engaged on the manual gearbox (second gear on the automatic gear-box).
124
Cruise control
Cruise control
Speed limiter

EXTERIOR FEATURES
Panoramic roof
This extensively glazed roof provides incomparable visibility and light in the passenger compartment.
83
Static directional lighting
This additional lighting automatically pro-vides extended visibility when turning.
88
Opening rear screen (SW)
This equipment permits easy access to the luggage compartment without hav-ing to open the tailgate.
81
Tyre under-inflation detection
This equipment monitors the pressure in each tyre and warns you if a puncture or deflation occurs.
105
Rear parking
assistance
This equipment provides a warning when reversing by detecting obstacles located behind the vehicle.
126

INTERIOR FEATURES
Dual zone automatic air
conditioning
This equipment permits the setting of a different level of comfort for the driver and front passenger. It then automati-cally controls this level in relation to the exterior climatic conditions.
51
"2 Tronic" gearbox*
This equipment provides perfect driving by combining a fully automatic mode, a manual mode and an auto-sequential mode which unites the advantages of the other two modes.
116
Fragrance diffuser
This fragrance diffuser diffuses the per-fume that you have selected throughout the passenger compartment by means of its location in the ventilation system.
53
Audio and communication
systems
This equipment benefits from the latest technology: MP3 compatible audio RD4, Bluetooth hands-free kit, RT3 audio/telephone with navigation (except SW), JBL audio system.
RT3 175
RD4197
* During the year.

22

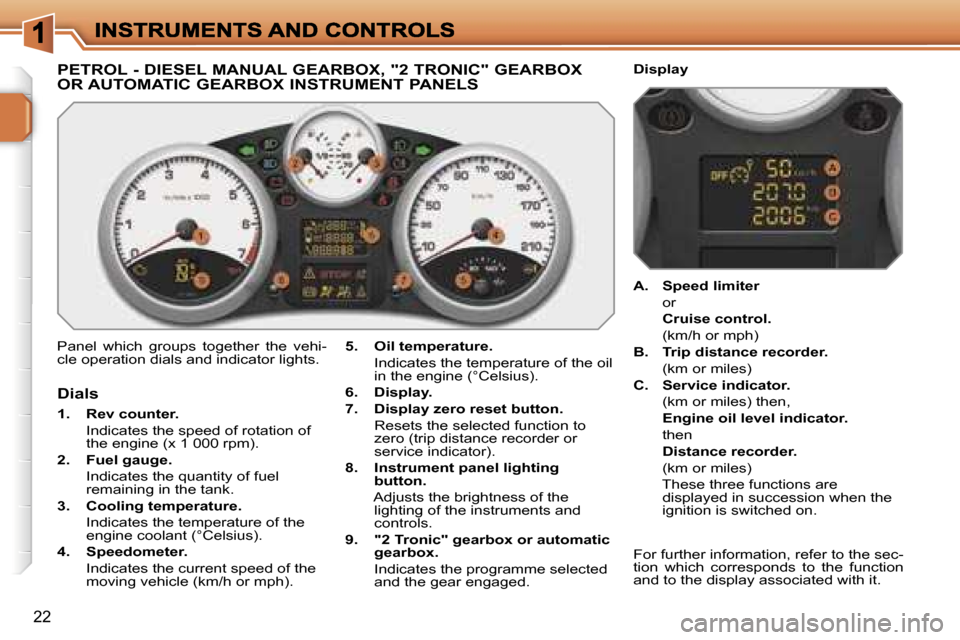

PETROL - DIESEL MANUAL GEARBOX, "2 TRONIC" GEARBOX
OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel which groups together the vehi-cle operation dials and indicator lights.5.Oil temperature.
Indicates the temperature of the oil in the engine (°Celsius).
6.Display.
7.Display zero reset button.
Resets the selected function to zero (trip distance recorder or service indicator).
8.Instrument panel lightingbutton.
Adjusts the brightness of the lighting of the instruments and controls.
9."2 Tronic" gearbox or automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials
1.Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2.Fuel gauge.
Indicates the quantity of fuel remaining in the tank.
3.Cooling temperature.
Indicates the temperature of the engine coolant (°Celsius).
4.Speedometer.
Indicates the current speed of the moving vehicle (km/h or mph).
A.Speed limiter
or
Cruise control.
(km/h or mph)
B.Trip distance recorder.
(km or miles)
C.Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
These three functions are displayed in succession when theignition is switched on.
For further information, refer to the sec-tion which corresponds to the function and to the display associated with it.
Display

!
23
Indicator and warning lights
Visual indicators which inform the driv-er when a system comes into opera-tion (operation or deactivation indicator lights) or of the occurrence of a fault (warning light).
Associated warnings
The lighting of certain indicator/warning lights may be accompanied by an audi-ble signal and a message on the multi-function display.
Operation indicator lights
The lighting of one of the following indi-cator lights confirms that the correspond-ing system has come into operation.
Left-hand directionindicator.
Handbrake applied.
Right-hand direction indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this switches off be-fore operating the starter.
Front fog lamps.
Rear fog lamps.
When the ignition is switched on
The warning lights come on for a few seconds when the vehicle ignition is switched on.
When the engine is started, these warn-ing lights should switch off.
If they remain on, before moving off, consult the text relating to the warning light concerned.

24
Deactivation indicator lights
The lighting of one of the following in-dicator lights confirms that the corre-sponding system has been switched off intentionally.
Passenger air bag system disarmed.
The passenger air bag system is activated automatically when the vehicle is started.
A special switch, located in the glove box, permits the disarming of this system. This is confirmed by continu-ous lighting of this indicator light.
Deactivation of the dynamic stability control (ESP).
The ESP system is activated automati-cally when the vehicle is started.
A special button, located in the centre of the fascia, permits the deactivation of this system. This is confirmed by con-tinuous lighting of this indicator light and of the indicator light on the button.
