2007 Peugeot 207 Dag Owner's Manual

i
84

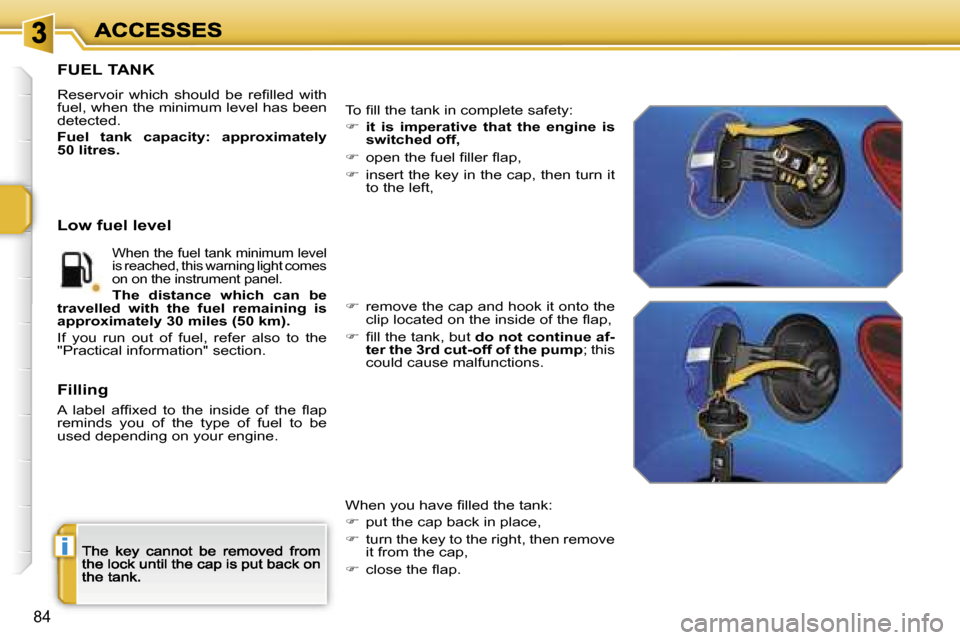

FUEL TANK
Reservoir which should be refilled with fuel, when the minimum level has been detected.
Fuel tank capacity: approximately 50 litres.
To fill the tank in complete safety:
it is imperative that the engine is switched off,
 open the fuel filler flap,
 insert the key in the cap, then turn it to the left,
When you have filled the tank:
 put the cap back in place,
 turn the key to the right, then remove it from the cap,
 close the flap.
 remove the cap and hook it onto the clip located on the inside of the flap,
 fill the tank, but do not continue af-ter the 3rd cut-off of the pump; this could cause malfunctions.
Low fuel level
Filling
A label affixed to the inside of the flap reminds you of the type of fuel to be used depending on your engine.
When the fuel tank minimum level is reached, this warning light comes on on the instrument panel.
The distance which can be travelled with the fuel remaining is approximately 30 miles (50 km).
If you run out of fuel, refer also to the "Practical information" section.

85

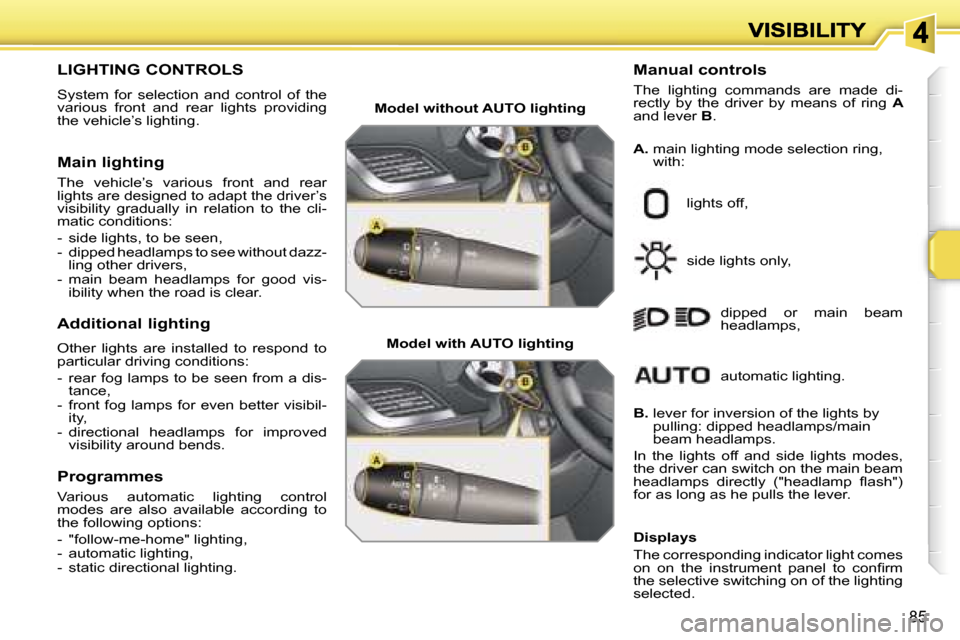

LIGHTING CONTROLS
System for selection and control of the various front and rear lights providing the vehicle’s lighting.
Manual controls
The lighting commands are made di-rectly by the driver by means of ring A and lever B.
lights off,
side lights only,
dipped or main beam headlamps,
B. lever for inversion of the lights by pulling: dipped headlamps/main beam headlamps.
In the lights off and side lights modes, the driver can switch on the main beam headlamps directly ("headlamp flash") for as long as he pulls the lever.
Displays
The corresponding indicator light comes on on the instrument panel to confirm the selective switching on of the lighting selected.
Main lighting
The vehicle’s various front and rear lights are designed to adapt the driver’s visibility gradually in relation to the cli-matic conditions:
- side lights, to be seen,- dipped headlamps to see without dazz-ling other drivers,- main beam headlamps for good vis-ibility when the road is clear.
Additional lighting
Other lights are installed to respond to particular driving conditions:
- rear fog lamps to be seen from a dis-tance,- front fog lamps for even better visibil-ity,- directional headlamps for improved visibility around bends.
Programmes
Various automatic lighting control modes are also available according to the following options:
- "follow-me-home" lighting,- automatic lighting,- static directional lighting.
A. main lighting mode selection ring, with:
Model without AUTO lighting
Model with AUTO lighting
automatic lighting.

!
i
86

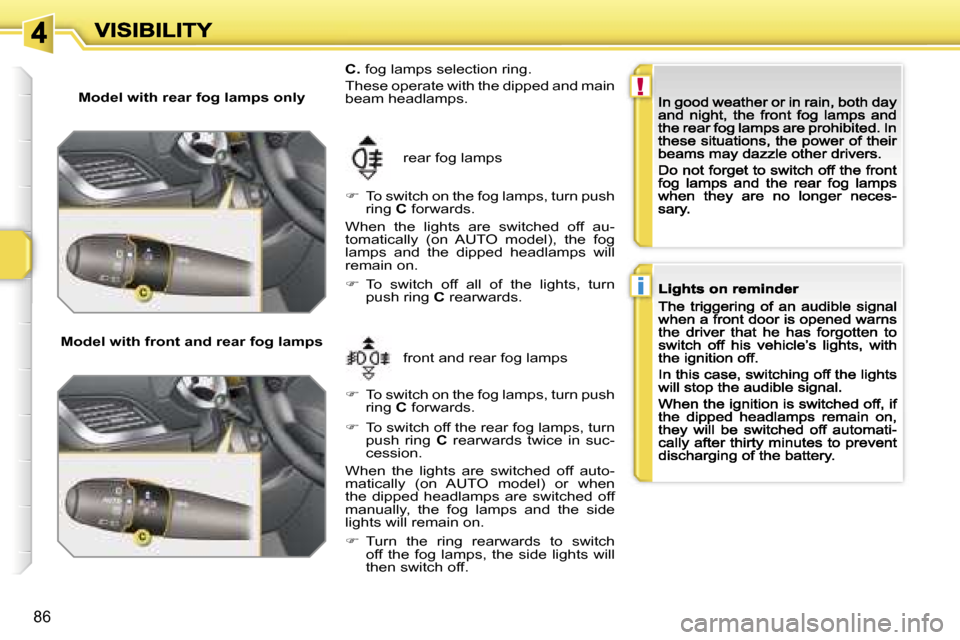

Model with rear fog lamps only
Model with front and rear fog lamps
front and rear fog lamps
rear fog lamps
C. fog lamps selection ring.
These operate with the dipped and main beam headlamps.
 To switch on the fog lamps, turn push ring C forwards.
When the lights are switched off au-tomatically (on AUTO model), the fog lamps and the dipped headlamps will remain on.
 To switch off all of the lights, turn push ring C rearwards.
 To switch on the fog lamps, turn push ring C forwards.
 To switch off the rear fog lamps, turn push ring C rearwards twice in suc-cession.
When the lights are switched off auto-matically (on AUTO model) or when the dipped headlamps are switched off manually, the fog lamps and the side lights will remain on.
 Turn the ring rearwards to switch off the fog lamps, the side lights will then switch off.

!
87

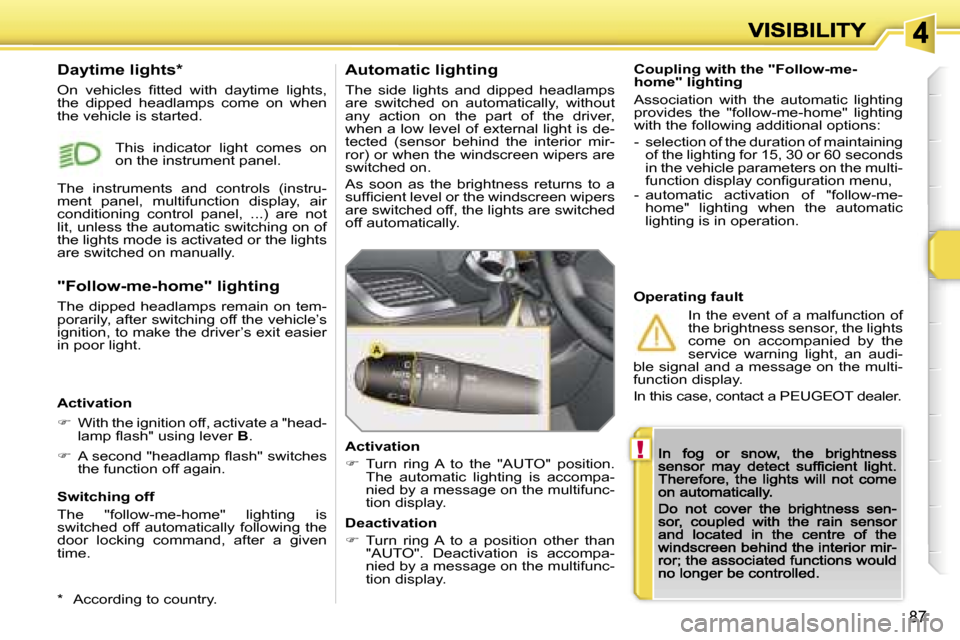

Coupling with the "Follow-me-home" lighting
Association with the automatic lighting provides the "follow-me-home" lighting with the following additional options:
- selection of the duration of maintaining of the lighting for 15, 30 or 60 seconds in the vehicle parameters on the multi-function display configuration menu,- automatic activation of "follow-me-home" lighting when the automatic lighting is in operation.
Automatic lighting
The side lights and dipped headlamps are switched on automatically, without any action on the part of the driver, when a low level of external light is de-tected (sensor behind the interior mir-ror) or when the windscreen wipers are switched on.
As soon as the brightness returns to a sufficient level or the windscreen wipers are switched off, the lights are switched off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-porarily, after switching off the vehicle’s ignition, to make the driver’s exit easier in poor light.
Activation
 With the ignition off, activate a "head-lamp flash" using lever B.
 A second "headlamp flash" switches the function off again.
Switching off
The "follow-me-home" lighting is switched off automatically following the door locking command, after a given time.
Activation
 Turn ring A to the "AUTO" position. The automatic lighting is accompa-nied by a message on the multifunc-tion display.
Operating fault
In the event of a malfunction of the brightness sensor, the lights come on accompanied by the service warning light, an audi-ble signal and a message on the multi-function display.
In this case, contact a PEUGEOT dealer.
Daytime lights*
On vehicles fitted with daytime lights, the dipped headlamps come on when the vehicle is started.
* According to country.
This indicator light comes on on the instrument panel.
The instruments and controls (instru-ment panel, multifunction display, air conditioning control panel, ...) are not lit, unless the automatic switching on of the lights mode is activated or the lights are switched on manually.
Deactivation
 Turn ring A to a position other than "AUTO". Deactivation is accompa-nied by a message on the multifunc-tion display.

!
87
Coupling with the "Follow-me-home" lighting
Association with the automatic lighting provides the "follow-me-home" lighting with the following additional options:
- selection of the duration of maintaining of the lighting for 15, 30 or 60 seconds in the vehicle parameters on the multi-function display configuration menu,- automatic activation of "follow-me-home" lighting when the automatic lighting is in operation.
Automatic lighting
The side lights and dipped headlamps are switched on automatically, without any action on the part of the driver, when a low level of external light is de-tected (sensor behind the interior mir-ror) or when the windscreen wipers are switched on.
As soon as the brightness returns to a sufficient level or the windscreen wipers are switched off, the lights are switched off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-porarily, after switching off the vehicle’s ignition, to make the driver’s exit easier in poor light.
Activation
 With the ignition off, activate a "head-lamp flash" using lever B.
 A second "headlamp flash" switches the function off again.
Switching off
The "follow-me-home" lighting is switched off automatically following the door locking command, after a given time.
Activation
 Turn ring A to the "AUTO" position. The automatic lighting is accompa-nied by a message on the multifunc-tion display.
Operating fault
In the event of a malfunction of the brightness sensor, the lights come on accompanied by the service warning light, an audi-ble signal and a message on the multi-function display.
In this case, contact a PEUGEOT dealer.
Daytime lights*
On vehicles fitted with daytime lights, the dipped headlamps come on when the vehicle is started.
* According to country.
This indicator light comes on on the instrument panel.
The instruments and controls (instru-ment panel, multifunction display, air conditioning control panel, ...) are not lit, unless the automatic switching on of the lights mode is activated or the lights are switched on manually.
Deactivation
 Turn ring A to a position other than "AUTO". Deactivation is accompa-nied by a message on the multifunc-tion display.

i
88
STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-lamps are on, this function enables the beam to light the inside of the turn with an additional angle of approximately 30°.
The use of this lighting is optimum above all at low and average speed (city driving, winding roads, ...).
with directional lighting
without directional lighting
Programming
Switching on
The system is switched on from a cer-tain speed and a certain angle of rota-tion of the steering wheel.
Operating fault
The function is activated or deactivated via the multi-function display configura-tion menu.
By default, this function is activated.
In the event of a malfunction, this warning light flashes on the instrument panel, accompanied by a message on the multifunc-tion display.
HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other road users, the height of the headlamps should be adjusted in relation to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
Switching off
The system is switched off below a certain angle of rotation of the steering wheel.
It is switched off when reverse gear is engaged.

89

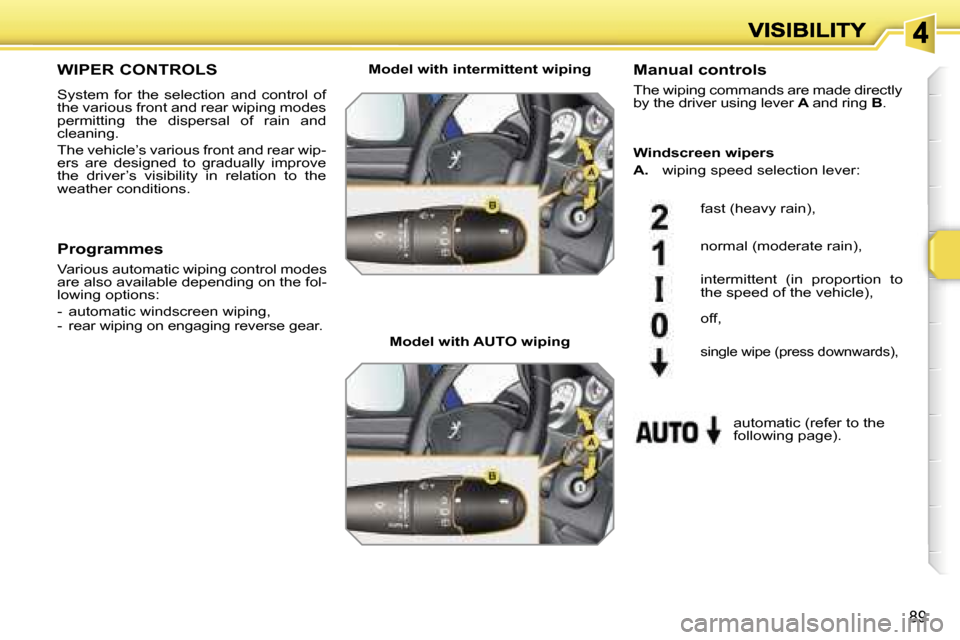

WIPER CONTROLS
System for the selection and control of the various front and rear wiping modes permitting the dispersal of rain and cleaning.
The vehicle’s various front and rear wip-ers are designed to gradually improve the driver’s visibility in relation to the weather conditions.
Manual controls
The wiping commands are made directly by the driver using lever A and ring B.
Model with intermittent wiping
Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (in proportion to the speed of the vehicle),
automatic (refer to the following page).
off,
single wipe (press downwards),
Programmes
Various automatic wiping control modes are also available depending on the fol-lowing options:
- automatic windscreen wiping,- rear wiping on engaging reverse gear.
Windscreen wipers
A. wiping speed selection lever:

!i
90

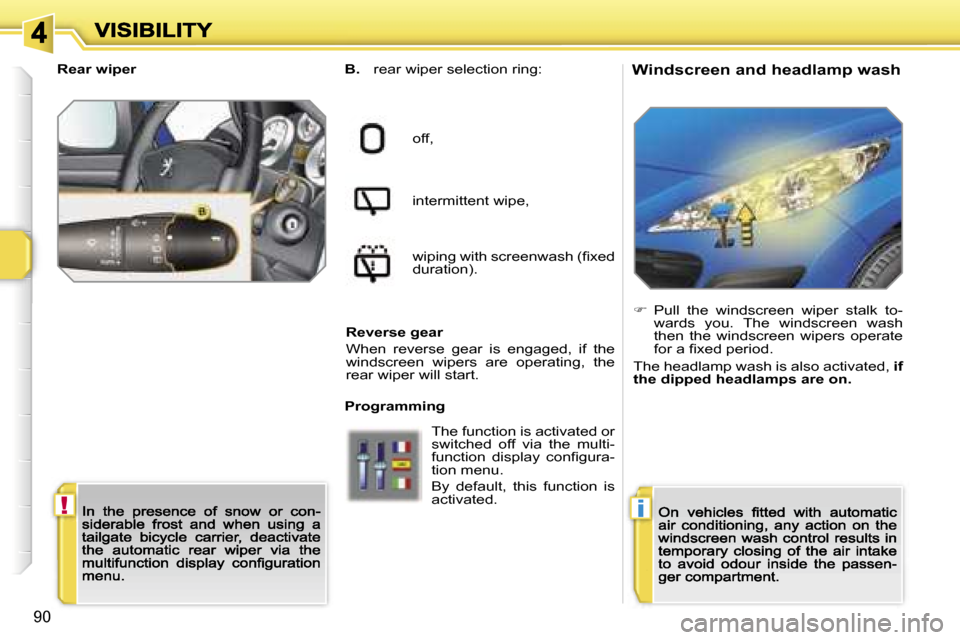

Windscreen and headlamp washB. rear wiper selection ring:
off,
intermittent wipe,
wiping with screenwash (fixed duration).
Reverse gear
When reverse gear is engaged, if the windscreen wipers are operating, the rear wiper will start.
Programming
 Pull the windscreen wiper stalk to-wards you. The windscreen wash then the windscreen wipers operate for a fixed period.
The headlamp wash is also activated, if the dipped headlamps are on.
Rear wiper
The function is activated or switched off via the multi-function display configura-tion menu.
By default, this function is activated.
