2007 NISSAN 350Z Brake Control System Workshop Manual

TROUBLE DIAGNOSIS
BRC-89
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z

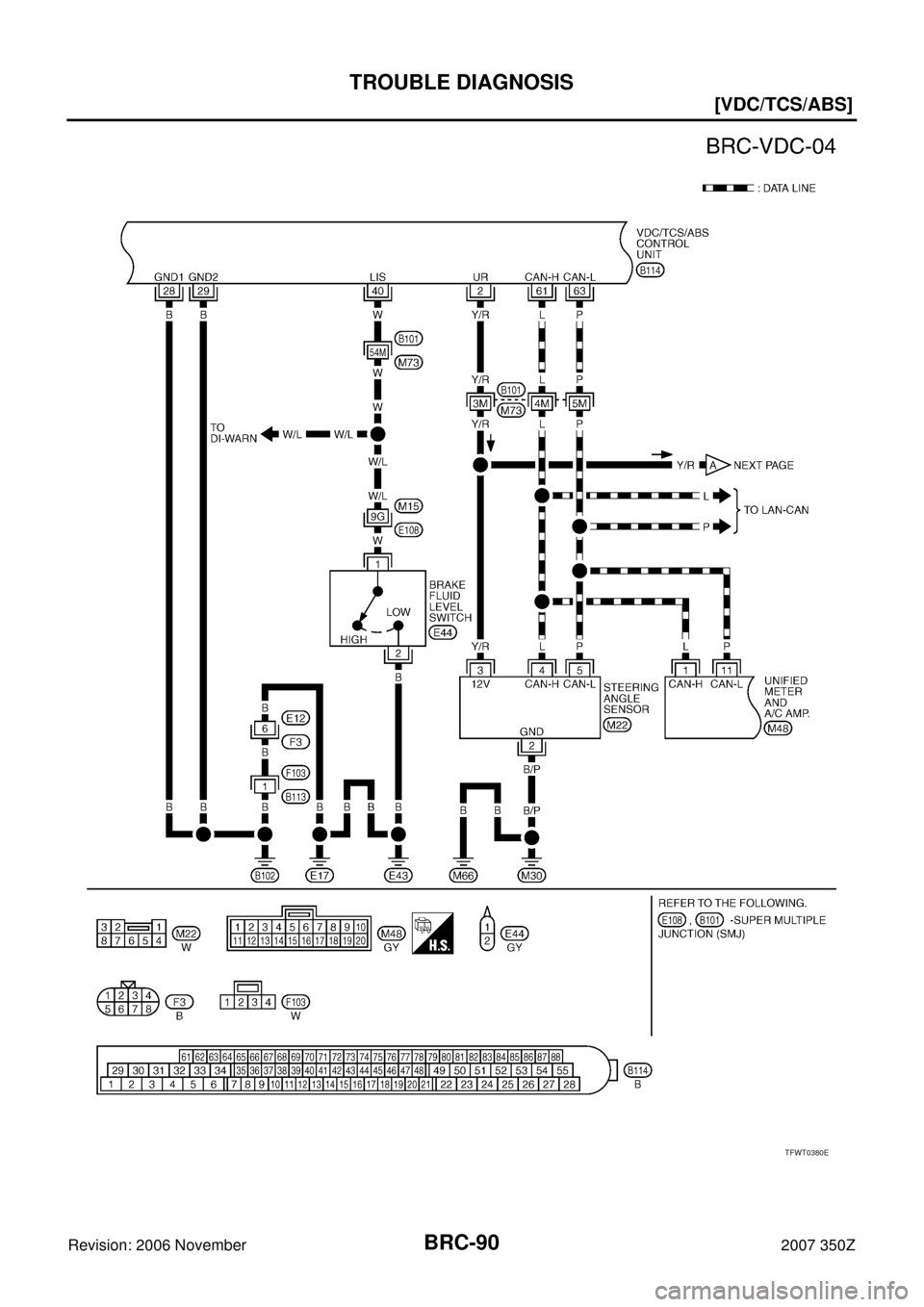

TFWT0370E

BRC-90
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

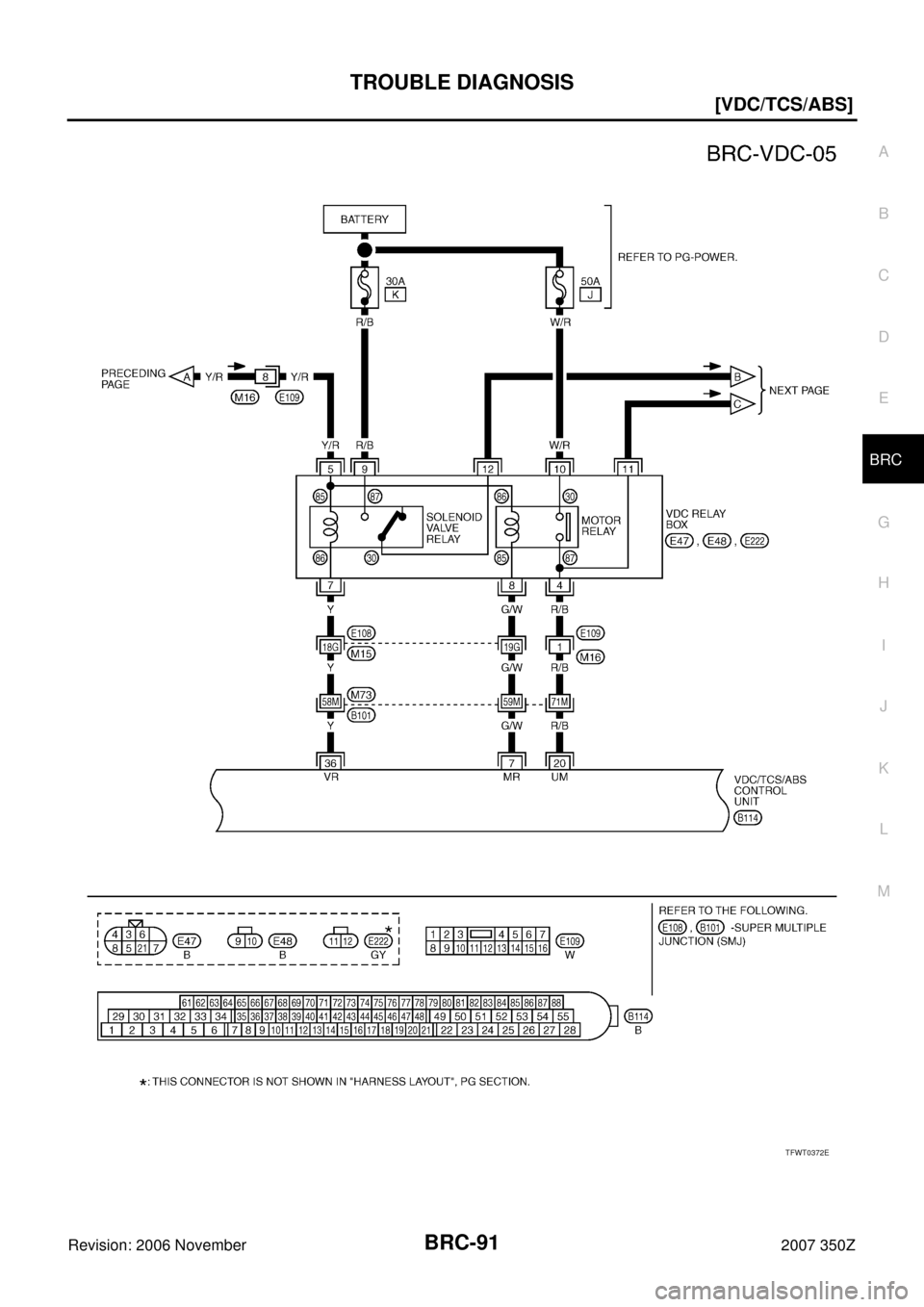

TFWT0380E

TROUBLE DIAGNOSIS
BRC-91
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z

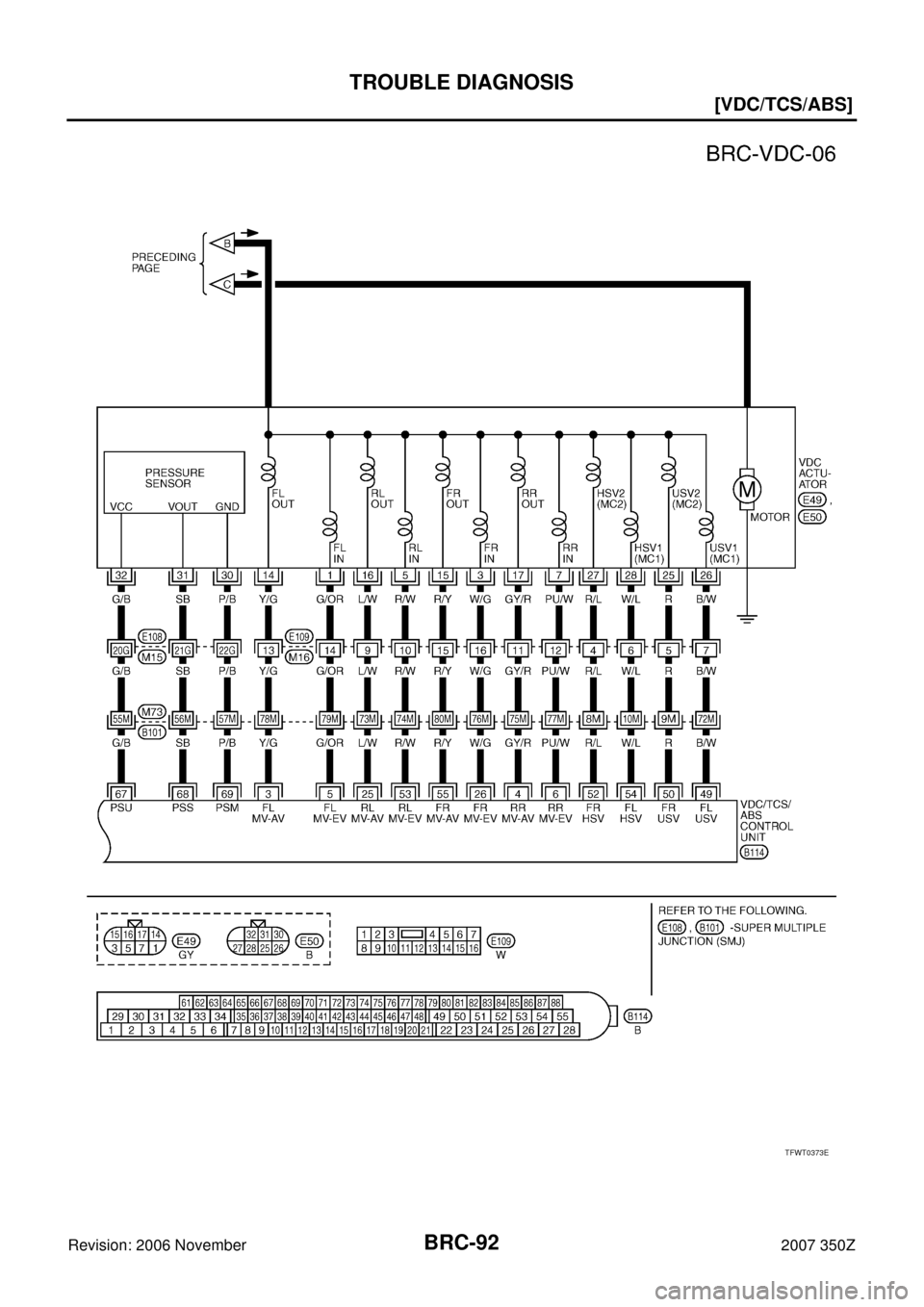

TFWT0372E

BRC-92
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
TFWT0373E

TROUBLE DIAGNOSIS
BRC-93
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z

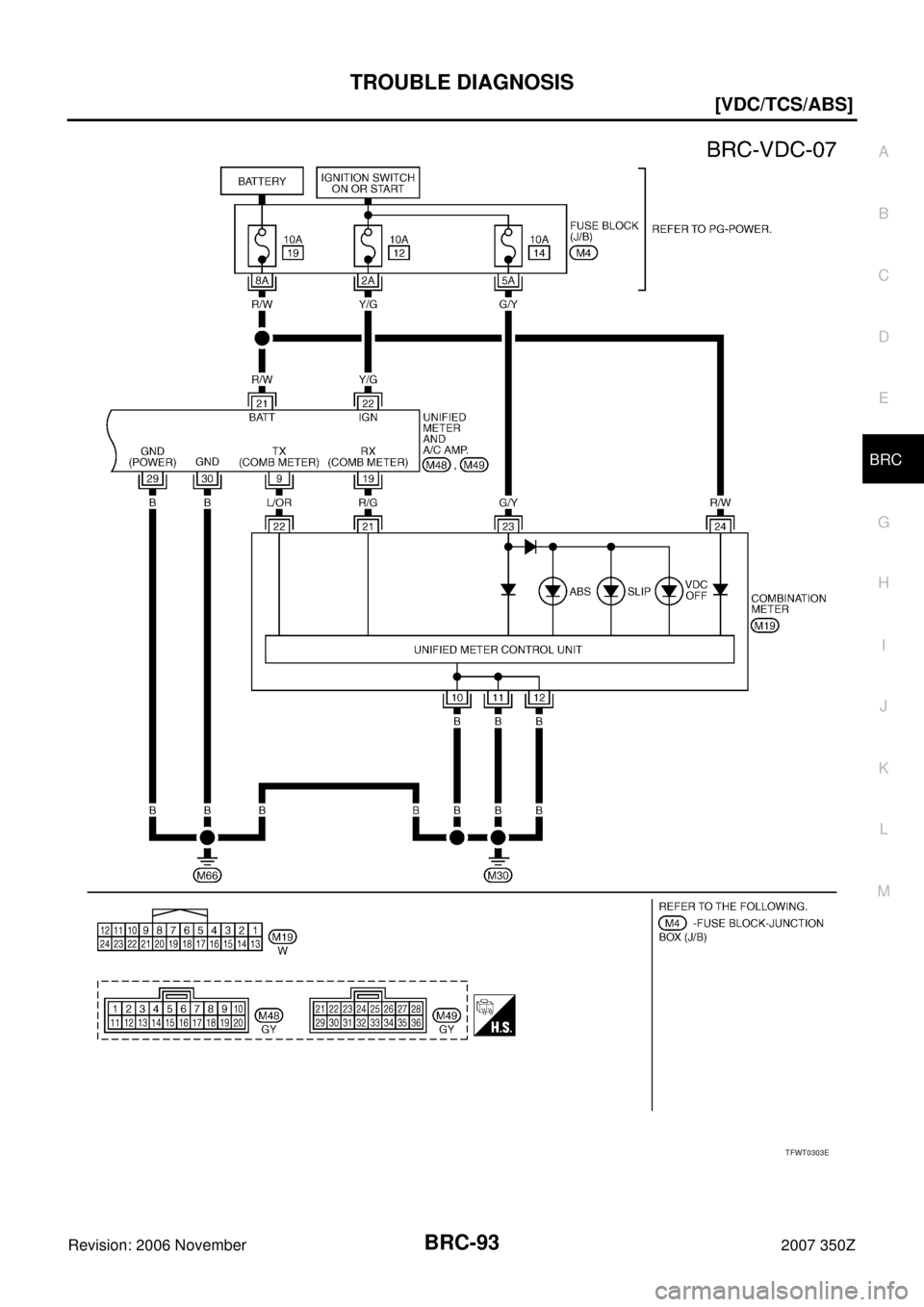

TFWT0303E

BRC-94
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
Control Unit Input/Output Signal StandardNFS00049
REFERENCE VALUE FROM CONSULT-III
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the
event the output circuit (harness) is open or short - circuited.
Monitor item Display ContentData monitor
ConditionReference values for normal
operation
WHEEL SENSORVehicle speed calculated using
signals from all four wheel sen-
sorsVehicle stopped 0 km/h (0 MPH)
While driving (Note 1)Nearly matches the speed-
ometer display (±10% or
less)
IN ABS S/V
OUT ABS S/VOperation status of all solenoidsWhen the actuator solenoid operates or
during a fail-safeON
When the actuator relay operates and
the actuator solenoid does not operateOFF
STOP LAMP SW Brake pedal operationBrake pedal depressed ON
Brake pedal not depressed OFF
MOTOR RELAYMotor and motor relay operation
statusWhen the motor relay and motor are
operatingON
When the motor relay and motor are not
operatingOFF
ACTUATOR RLY Actuator relay operation statusWhen the actuator relay is operating OFF
When the actuator relay is not operat-
ingON
ABS WARN LAMPABS warning lamp on condition
(Note 2)ABS warning lamp ON ON
ABS warning lamp OFF OFF
OFF LAMPVDC OFF indicator lamp on con-
dition (Note 3)When the VDC OFF indicator lamp on ON
When the VDC OFF indicator lamp off OFF
OFF SWVDC OFF switch
ON-OFF statusVDC OFF switch ON
(When the VDC OFF indicator lamp on)ON
When VDC OFF switch OFF
(When the VDC OFF indicator lamp off)OFF
SLIP LAMPSLIP indicator lamp on condition
(Note 4)When SLIP indicator lamp is ON ON
When SLIP indicator lamp is OFF OFF
BATTERY VOLTBattery voltage supplied to VDC/
TCS/ABS control unitIgnition switch ON 10 - 16V
GEARDetermined gear shift position
from the A/T PNP switch signalAlways1 (M/T vehicles normally
remain at 1)
POSITIONShift position determined by the
A/T PNP switch signalAlways## (M/T vehicles normally
remain at ##)
YAW RATE SENYaw rate detected by yaw rate
sensorVehicle stopped Approx. 0 d/s
While driving -70 - 70d/s
ACCEL POS SIGThrottle open/close status (linked
to the accelerator pedal)Do not step on the accelerator pedal
(When ignition switch is on)0%
Step on the Brake pedal (When ignition
switch is on)0 to 100%
SIDE G-SENSOR Side G detected by side G sensorVehicle stopped
Approx. 0 m/s
2
While driving
-24.3 - 24.1 m/s2
ST ANGLE SIGSteering angle detected by steer-
ing angle sensorStraight-ahead condition Approx. 0°
Steering wheel turned -720 - 720°

TROUBLE DIAGNOSIS
BRC-95
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approximately 1 sec. After turning on the ignition switch or when an error is detected.
OFF: Approximately 1 sec. After the ignition switch is turned on (when system is normal).
Note 3: ON/OFF timing of VDC OFF indicator lamp
ON: Approximately 1 sec. After the ignition switch is turned on, an error is detected, or the VDC OFF switch is on
OFF: Approximately 1 sec. After the ignition switch is turned on (when system is normal) and the VDC OFF switch is off
Note 4: ON/OFF timing of SLIP indicator lamp
ON: Approximately 1 sec. After turning on the ignition switch or when an error is detected.
OFF: Approximately 1 sec. After the ignition switch is turned on (when system is normal) and the VDC/TCS function is not operating
Flashing: VDC/TCS function is active during drivingPRESS SENSORBrake fluid pressure detected by
pressure sensorDo not step on the Brake pedal (When
ignition switch is on)Approx. 0 bar
Step on the accelerator pedal
(When ignition switch is on)-40 - 300 bar
ENGINE RPM Engine runningWith engine stopped 0rpm
Engine runningAlmost in accordance with
tachometer display
SNOW MODE SWSnow mode switch
ON/OFF conditionSnow mode switch ON ON
Snow mode switch OFF OFF
CONTROL BOOSTER Boost control statusWhen control booster is operating ON
When control booster is not operating OFF
M MODE A/T manual mode status AlwaysOFF (M/T vehicles normally
remain OFF)
OD OFF SW A/T OD switch status AlwaysOFF (M/T vehicles normally
remain OFF)
PARK BRAKE SW Parking brake statusParking brake depressed ON
Parking brake not depressed OFF
USV
HSVVDC switch-over valve statusDuring actuator change-over valve
operation or during a fail-safeON
When the actuator relay operates and
the actuator change-over valve does
not operateOFF
V/R POWERActuator relay activated
(ON/OFF)When actuator relay is active (engine is
running).ON
When actuator relay is not active
(before engine starts and in fail-safe
mode).OFF
M/R OUTPUTActuator motor and motor relay
status (ON/OFF)When actuator motor and motor relay
are active (“ACTIVE TEST” with CON-
SULT-III).ON
When the actuator motor and motor
relay are not operatingOFF
FLUID LEV SWBrake fluid level sensor ON/OFF
statusWhen brake fluid level sensor is on ON
When the brake fluid level sensor is off OFF
FAIL SIGNAL Fail signal statusDuring VDC fail-safe
During TCS fail-safe
During ABS fail-safe
During EBD fail-safeON Monitor item Display ContentData monitor
ConditionReference values for normal
operation

BRC-96
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
CONSULT-III Functions (ABS)NFS0004A
CONSULT-III MAIN FUNCTION
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
Self-DiagnosisNFS000HK
OPERATION PROCEDURE
1. Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for
approximately 1 minute.
HOW TO ERASE SELF-DIAGNOSIS RESULTS
1. After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately
1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp,
SLIP indicator lamp and brake warning lamp turn OFF.
CAUTION:
If memory cannot be erased, perform applicably diagnosis.

When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,
VDC OFF indicator lamp, SLIP indicator lamp and brake warning lamp will not turn OFF even when the
system is normal unless the vehicle is driving at approximately 30 km/h (19 MPH) or more for approxi-
mately 1 minute.

Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake
fluid level switch operation (when brake fluid is insufficient).
Diagnostic test mode Function Reference
WORK SUPPORTThis mode enables a technician to adjust some devices faster and more
accurately by following the indications on CONSULT-III.BRC-79, "
Adjustment of
Steering Angle Sensor
Neutral Position"
SELF-DIAG RESULTS Self-diagnostic results can be read and erased quickly.BRC-96, "Self-Diagnosis"
DATA MONITOR Input/Output data in the VDC/TCS/ABS control unit can be read.BRC-99, "Data Monitor"
CAN DIAG SUPPORT
MNTRThe results of transmit/receive diagnosis of communication can be read.LAN-44, "CAN Diagnostic
Support Monitor"
ACTIVE TESTDiagnostic Test Mode in which CONSULT-III drives some actuators apart
from the VDC/TCS/ABS control unit and also shifts some parameters in a
specified range.BRC-101, "Active Test"
FUNCTION TESTConducted by CONSULT-III instead of a technician to determine whether
each system is “OK” or “NG”.—
ECU PART NUMBER VDC/TCS/ABS control unit part number can be read. —
