SYSTEM DESCRIPTION
BRC-81
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
ABS FunctionNFS00040

The Anti-Lock Braking System is a function that detects wheel revolution while braking, and it improves
handling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.

If the electrical system breaks down, then the Fail-Safe function starts, the ABS becomes inoperative,
and the ABS warning lamp turns on.

Electrical System Diagnosis by CONSULT-III is available.
EBD FunctionNFS00041

Electronic Brake Distribution is a function that detects subtle slippages between the front and rear wheels
during braking, and it improves handling stability by electronically controlling the Brake Fluid Pressure
which results in reduced rear wheel slippage.

In case of electrical system break down, the Fail-Safe function is activated, the EBD and ABS becomes
inoperative, and the ABS warning lamp and brake warning lamp are turned on.

Electrical System Diagnosis by CONSULT-III is available.

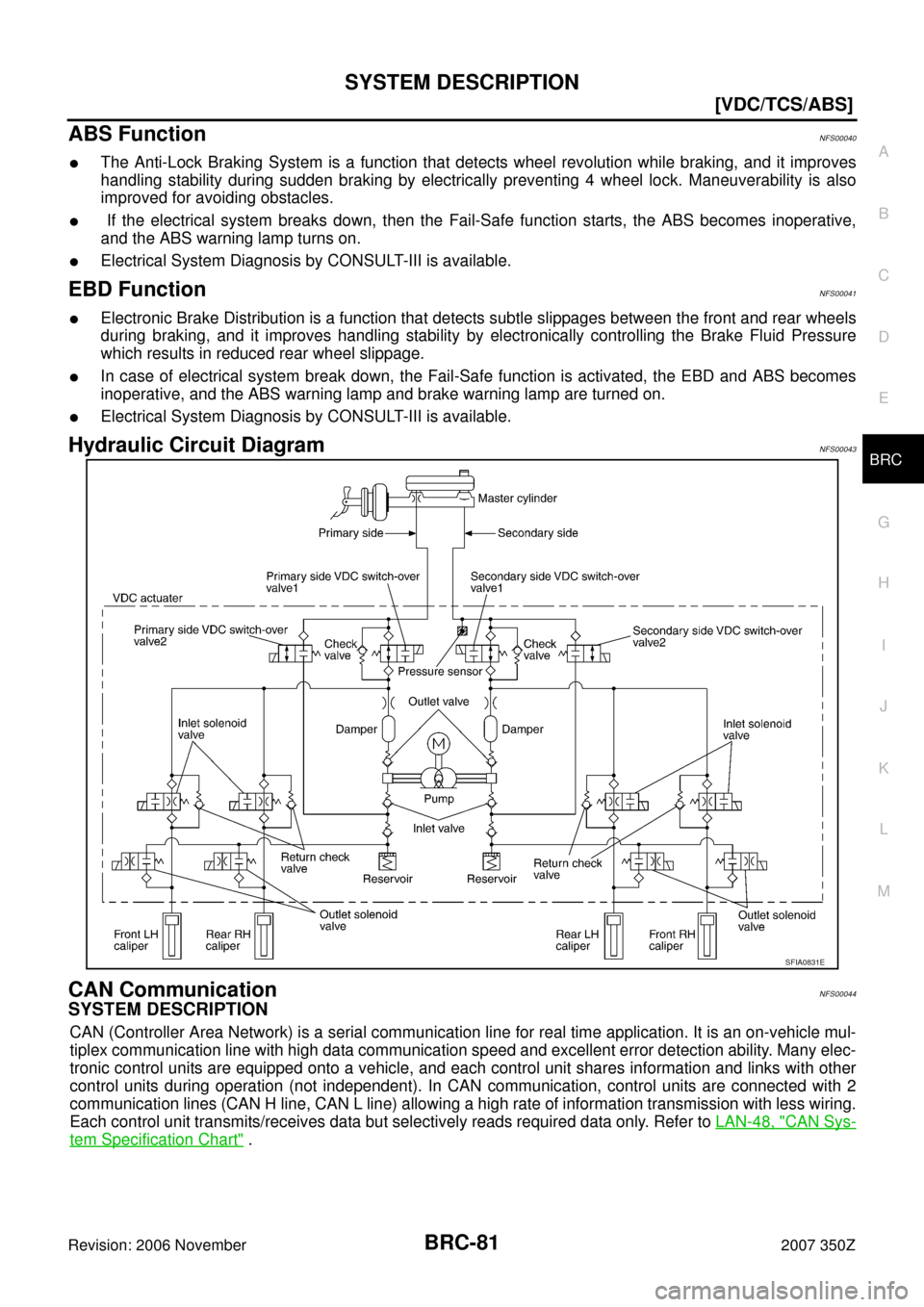

Hydraulic Circuit DiagramNFS00043
CAN CommunicationNFS00044
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. Refer to LAN-48, "
CAN Sys-
tem Specification Chart" .
SFIA0831E

BRC-82
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSISPFP:00004
Fail-Safe FunctionNFS000IK
VDC/TCS SYSTEM
In case of Throttle Control System trouble, the VDC OFF indicator lamp and SLIP indicator lamp are turned
on, and the condition of the vehicle is the same as the condition of vehicles without VDC/TCS equipment. In
case of trouble to the Throttle Control System, the ABS control continues to operate normally without VDC/
TCS control.
CAUTION:
If the Fail-Safe function is activated, then perform the self diagnosis for VDC/TCS/ABS control system.
ABS, EBD SYSTEM
In case of the electrical problems with the ABS, the ABS warning lamp, VDC OFF indicator lamp and SLIP
indicator lamp will turn on. In case of the electrical problem with the EBD, brake warning lamp, ABS warning
lamp, VDC OFF indicator lamp and SLIP indicator lamp will turn on. Simultaneously, the VDC/TCS/ABS
become one of the following conditions of the Fail-Safe function.

For ABS trouble, only the EBD is activated and the condition of the vehicle is the same condition of vehi-
cle without VDC/TCS/ABS equipment.
NOTE:
ABS self diagnosis sound may be heard. That is a normal condition because a self diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

For EBD trouble, the EBD and ABS become inoperative, and the condition of the vehicle is the same as
the condition of vehicles without VDC/TCS/ ABS, EBD equipment.
How to Proceed With DiagnosisNFS00045
BASIC CONCEPT

Most important point to perform diagnosis is to understand systems (control and mechanism) in vehicle
thoroughly.

It is also important to clarify customer complaints before inspec-
tion.
First of all, reproduce symptom, and understand it fully.
Ask customer about his/her complaints carefully. In some cases,
it will be necessary to check symptom by driving vehicle with
customer.
NOTE:
Customers are not professionals. Do not assume “maybe cus-
tomer means...” or “maybe customer mentioned this symptom”.

It is essential to check symptoms right from beginning in order to
repair a malfunction completely.
For an intermittent malfunction, it is important to reproduce
symptom based on interview with customer and past examples.
Do not perform inspection on ad hoc basis. Most intermittent
malfunctions are caused by poor contacts. In this case, it will be
effective to shake suspected harness or connector by hand.
When repairs are performed without any symptom check, no
one can judge if malfunction has actually been eliminated.

After diagnosis, make sure to carry out “erase memory”. Refer to
BRC-96, "
HOW TO ERASE SELF-DIAGNOSIS RESULTS" .

For an intermittent malfunction, move harness or harness con-
nector by hand to check poor contact or false open circuit.

Always read “GI General Information” to confirm general precautions. Refer to GI-3, "General Precau-
tions"
SEF234G
SEF233G

TROUBLE DIAGNOSIS
BRC-83
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
DIAGNOSIS FLOWCHART
SFIA3407E

BRC-84
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
ASKING COMPLAINTS

Complaints against malfunction vary depending on each person.
It is important to clarify customer complaints.

Ask customer about what symptoms are present and under
what conditions. Use information to reproduce symptom while
driving.

It is also important to use diagnosis sheet so as not to miss infor-
mation.

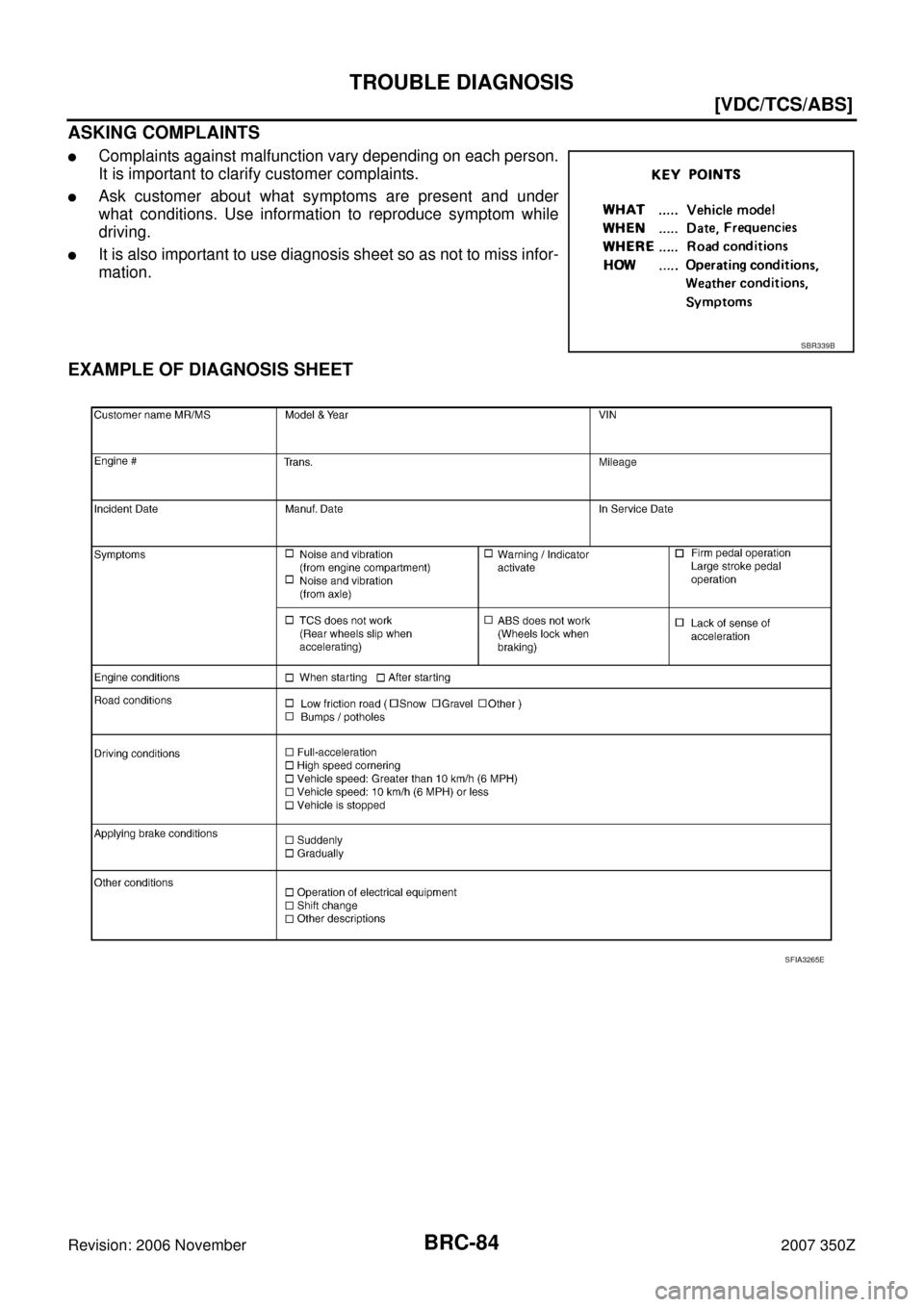

EXAMPLE OF DIAGNOSIS SHEET
SBR339B
SFIA3265E

TROUBLE DIAGNOSIS
BRC-85
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
Component Parts LocationNFS000TL
SFIA3386E

BRC-86
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

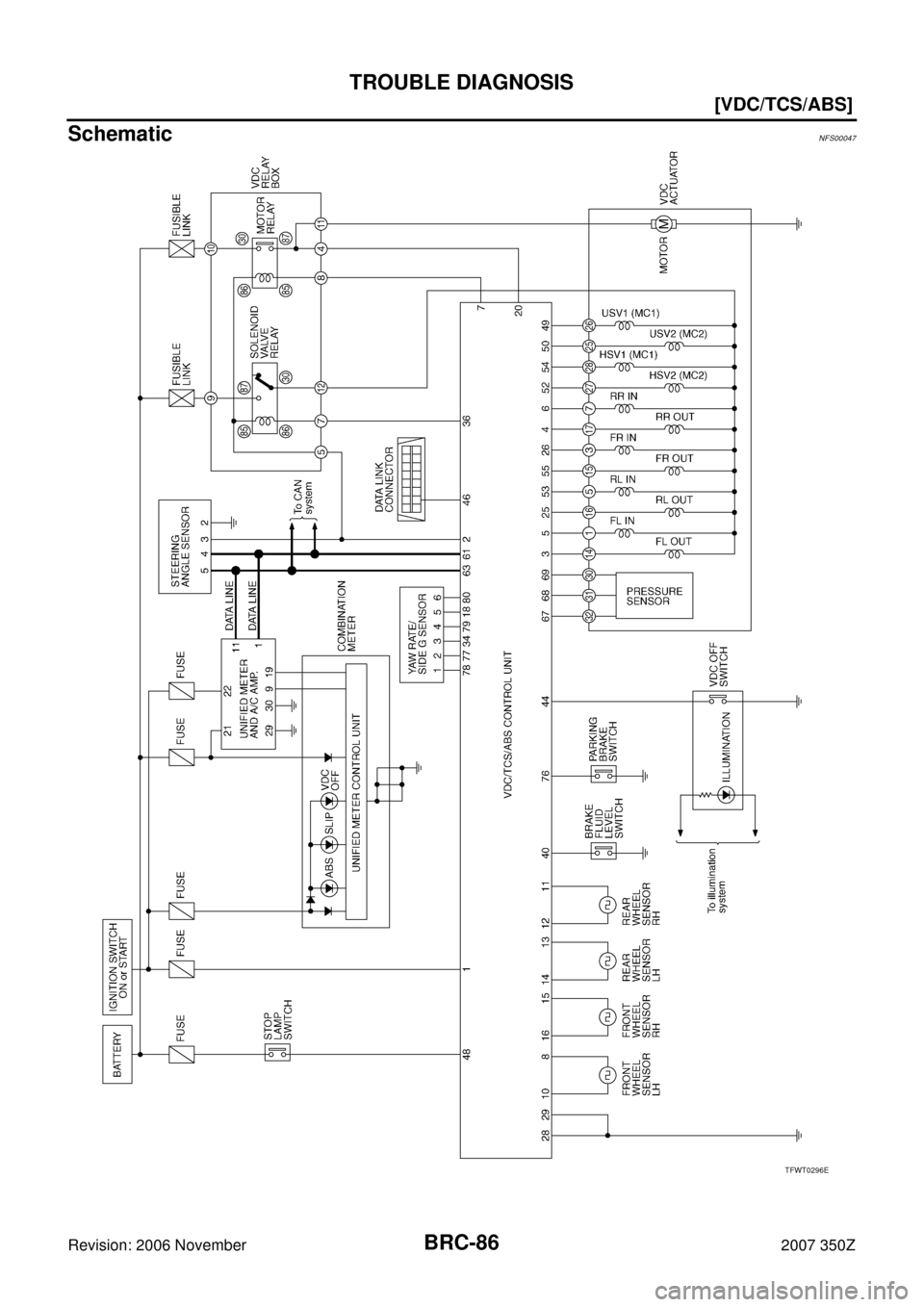

SchematicNFS00047
TFWT0296E

TROUBLE DIAGNOSIS
BRC-87
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z

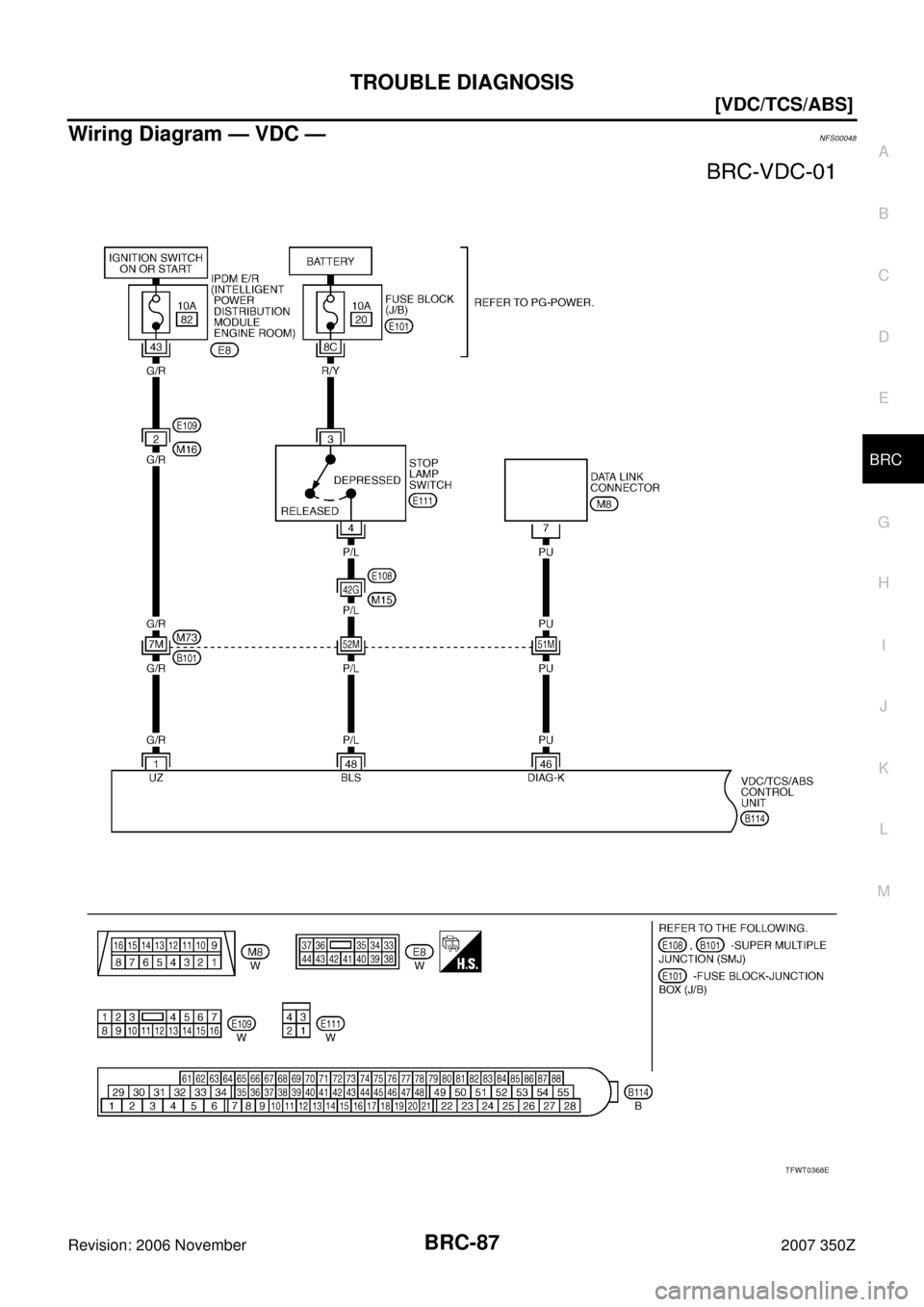

Wiring Diagram — VDC —NFS00048
TFWT0368E

BRC-88
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

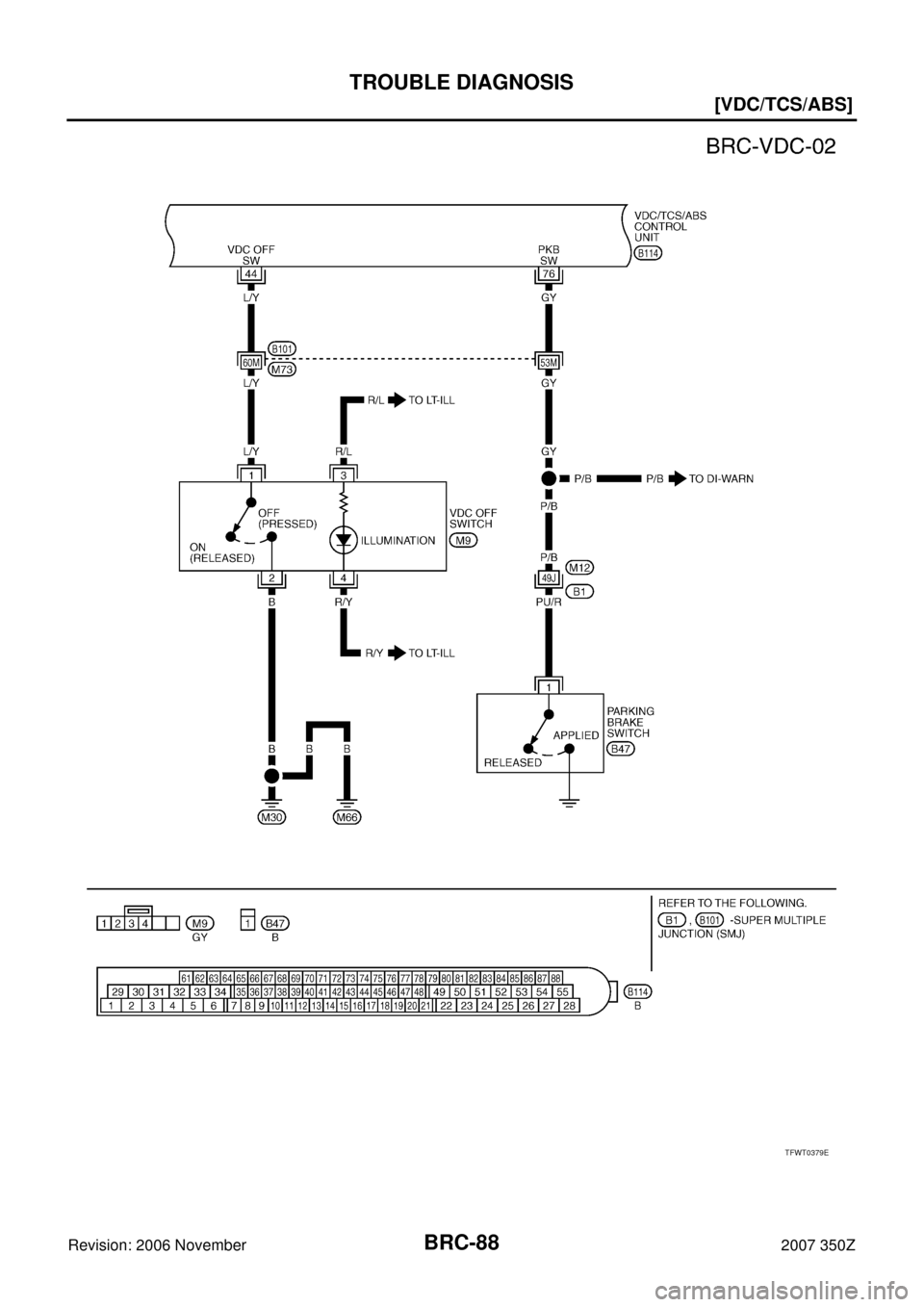

TFWT0379E
