WHEEL SENSORSPFP:47910
Removal and InstallationNFS0003N
COMPONENTS
REMOVAL
Pay attention to the following when removing sensor.
CAUTION:

As much as possible, avoid rotating sensor when removing it. Pull sensors out without pulling on
sensor harness.

Take care to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before
removing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor
function.
INSTALLATION
Pay attention to the following when installing sensor. Tighten installation bolts and nuts to specified torques.

When installing, check that there is no foreign material such as iron chips on pick-up and mounting hole of
the sensor. Check that no foreign material has been caught in the sensor rotor motor. Remove any foreign
material and clean the mount.

When installing front sensor, be sure to press rubber grommets in until they lock at the three locations
shown in diagram (2 at shock absorbers and 1 at body panel). When installed, harness must not be
twisted. White line on harness (shaded part) must be visible from front.
PFIA0241E

BRC-74
[TCS/ABS]
SENSOR ROTOR
Revision: 2006 November2007 350Z
SENSOR ROTORPFP:47970
Removal and InstallationNFS0003O
REMOVAL
Front
Sensor rotor cannot be disassembled. To replace sensor rotor, replace hub bearing assembly. Refer to FA X - 4 ,
"Removal and Installation" in “Front Axle/Drive Shaft” in “FAX” section.
Rear

Follow procedure below to remove rear sensor rotor.
–Remove side flange. Refer to RFD-15, "SIDE OIL SEAL" in “Rear Final Drive” in “RFD” section.
–Using a bearing replacer (special service tool) and puller (commercial service tool), remove sensor rotor
from the side flange.
INSTALLATION
Front
Sensor rotor cannot be disassembled. To replace sensor rotor, replace hub bearing assembly. Refer to FA X - 4 ,
"Removal and Installation" in “Front Axle/Drive Shaft” in “FAX” section.
Rear

Follow procedure below to install rear sensor rotor.
–Using a drift (special service tool), press rear sensor rotor onto
the side flange.
–Install side flange. Refer to RFD-15, "SIDE OIL SEAL" in “Rear
Final Drive” in “RFD” section.Tool number A: ST30720000 (J-25405)
B: ST27863000 ( — )
C: KV40104710 ( — )
SFIA3387E

ABS ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
BRC-75
[TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
ABS ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)PFP:47660
Removal and InstallationNFS0003P

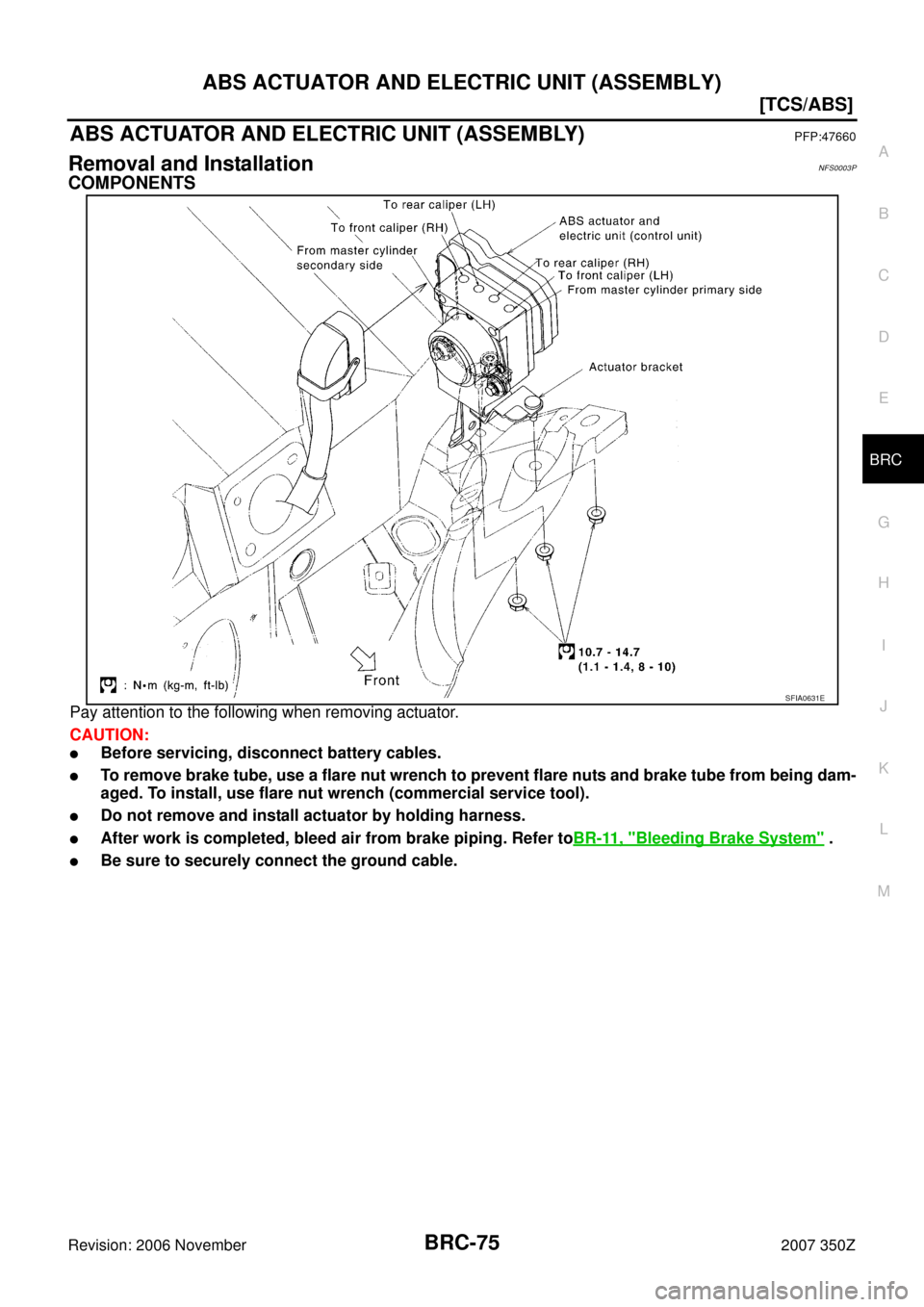

COMPONENTS
Pay attention to the following when removing actuator.
CAUTION:

Before servicing, disconnect battery cables.

To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-
aged. To install, use flare nut wrench (commercial service tool).

Do not remove and install actuator by holding harness.

After work is completed, bleed air from brake piping. Refer toBR-11, "Bleeding Brake System" .

Be sure to securely connect the ground cable.
SFIA0631E

BRC-76
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2006 November2007 350Z
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000TP
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Battery ServiceNFS0003R
Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.
Precautions for Brake SystemNFS0003S

Recommended fluid is brake fluid “DOT 3”. Refer to MA-11, "RECOMMENDED FLUIDS AND LUBRI-
CANTS" .

Never reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.

Never use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.

Use a flare nut wrench when removing flare nuts, and use a flare
nut crowfoot and torque wrench when tighten brake tube flare
nuts.

When installing brake tubes, be sure to check torque.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect electri-
cal connector of VDC/TCS/ABS control unit or the battery nega-
tive terminal.
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.
SBR686C

PRECAUTIONS
BRC-77
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
Precautions for Brake ControlNFS0003T

During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

Just after starting vehicle after ignition switch ON, brake pedal may vibrate or motor operating noise may
be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
oil leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.

If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, ABS function
may have a malfunction or error.

If aftermarket parts (car stereo, CD player, etc.) Have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.

If the following components are replaced with non-genuine components or converted, the VDC OFF indi-
cator lamp and SLIP indicator lamp may turn on or the VDC system may not operate properly. Compo-
nents related to suspension (Shock Absorber, Strut, Spring, Bush, etc.), Tires, wheels (exclude specified
size), components related to brake (Pad, Rotor, Caliper, etc.), Components related to engine (Muffler,
ECM, etc.), Components related to body reinforcement (Roll bar, Tower bar, etc.).

Driving in the condition of breakage or excessive wear of the suspension, tires or components related to
the brakes may cause the VDC OFF indicator lamp and the SLIP indicator lamp to turn on, and the VDC
system may not operate properly.

When the TCS or VDC is activated by sudden acceleration or sudden turn, some noise may occur if the
brake pedal is used. The noise is a result of the normal operation of the TCS and VDC.

When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as
sharp carves on a freeway), the VDC may not operate normally, or the VDC warning lamp may turn on.
However, this is not a problem if normal operation can be resumed after restarting the engine.

Sudden turns (such as spin turns, acceleration turns), drifting, etc. When VDC function is OFF (VDC SW
ON) may cause the yaw rate/side G -sensor system indicate a problem. However this is not a problem if
normal operation can be resumed after restarting the engine.
