2007 NISSAN 350Z Brake Control System Workshop Manual

TROUBLE DIAGNOSIS
BRC-9
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSISPFP:00004
Fail-Safe FunctionNFS000II
ABS, EBD SYSTEM
In case of electrical problems with the ABS, the ABS warning lamp will turn on. In case of electrical problems
with the EBD, brake warning lamp, ABS warning lamp will turn on. Simultaneously, the ABS become one of
the following conditions of the Fail-Safe function.

For ABS trouble, only the EBD is activated and the condition of the vehicle is the same condition of vehi-
cle without ABS equipment.
NOTE:
ABS self diagnosis sound may be heard. That is a normal condition because a self diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

For EBD trouble, The EBD and ABS become inoperative, are the condition of the vehicle is the same as
the condition of vehicles without ABS, EBD equipment.
How to Proceed with DiagnosisNFS0001Y
BASIC CONCEPT

Most important point to perform diagnosis is to understand systems (control and mechanism) in vehicle
thoroughly.

It is also important to clarify customer complaints before inspec-
tion.
First of all, reproduce symptom, and understand it fully.
Ask customer about his/her complaints carefully. In some cases,
it will be necessary to check symptom by driving vehicle with
customer.
NOTE:
Customers are not professionals. Do not assume “maybe cus-
tomer means...” or “maybe customer mentioned this symptom”.

It is essential to check symptoms right from beginning in order to
repair a malfunction completely.
For an intermittent malfunction, it is important to reproduce
symptom based on interview with customer and past examples.
Do not perform inspection on ad hoc basis. Most intermittent
malfunctions are caused by poor contacts. In this case, it will be
effective to shake suspected harness or connector by hand.
When repairs are performed without any symptom check, no
one can judge if malfunction has actually been eliminated.

After diagnosis, make sure to carry out “erase memory”. Refer to
BRC-19, "
HOW TO ERASE SELF-DIAGNOSIS RESULTS" .

For an intermittent malfunction, move harness or harness con-
nector by hand to check poor contact or false open circuit.

Always read “GI General Information” to confirm general precautions. Refer to GI-3, "General Precau-
tions" .
EFJ0028D
SEF233G

BRC-10
[ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

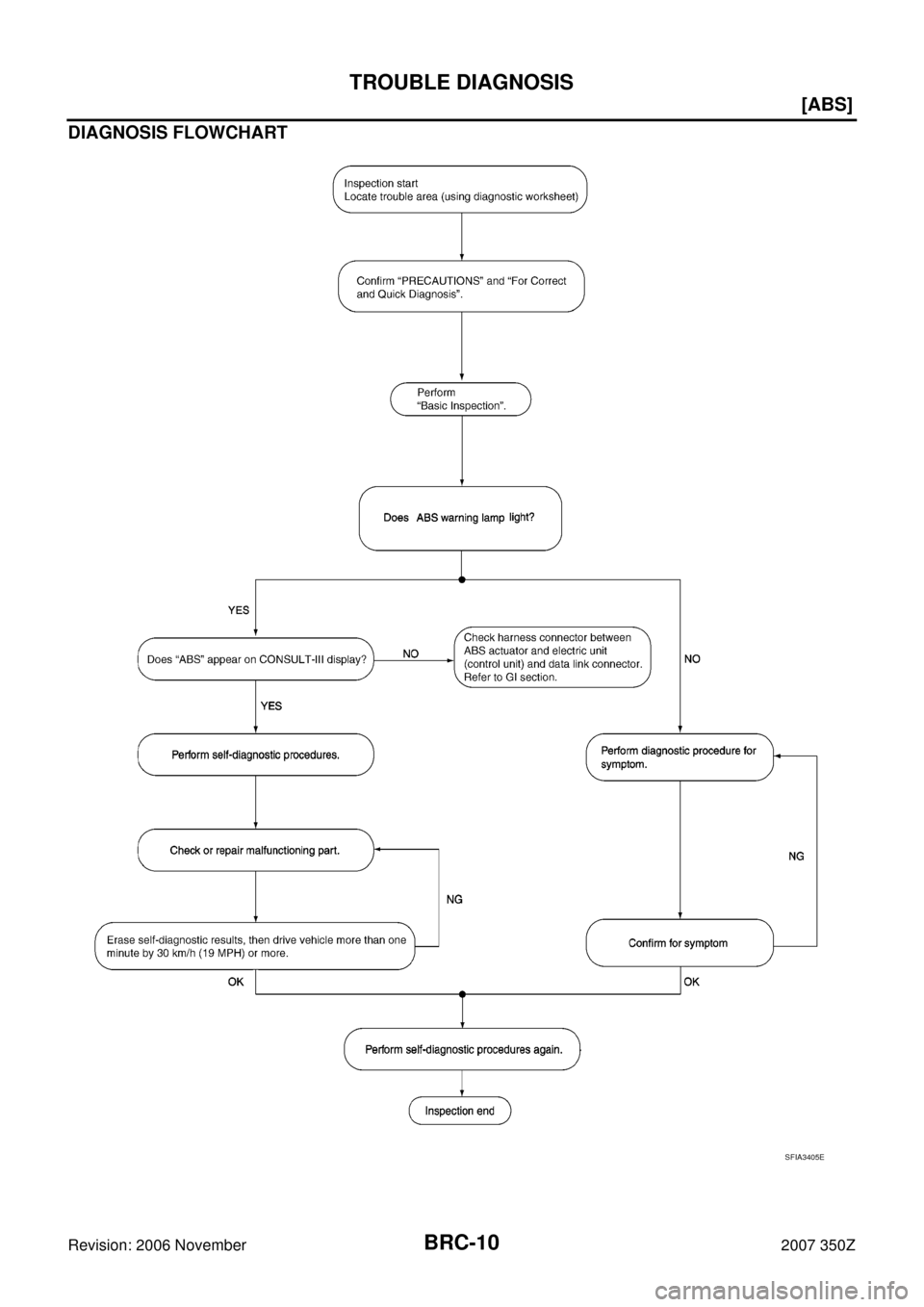

DIAGNOSIS FLOWCHART
SFIA3405E

TROUBLE DIAGNOSIS
BRC-11
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
ASKING COMPLAINTS

Complaints against malfunction vary depending on each person.
It is important to clarify customer complaints.

Ask customer about what symptoms are present and under
what conditions. Use information to reproduce symptom while
driving.

It is also important to use diagnosis sheet so as not to miss infor-
mation.

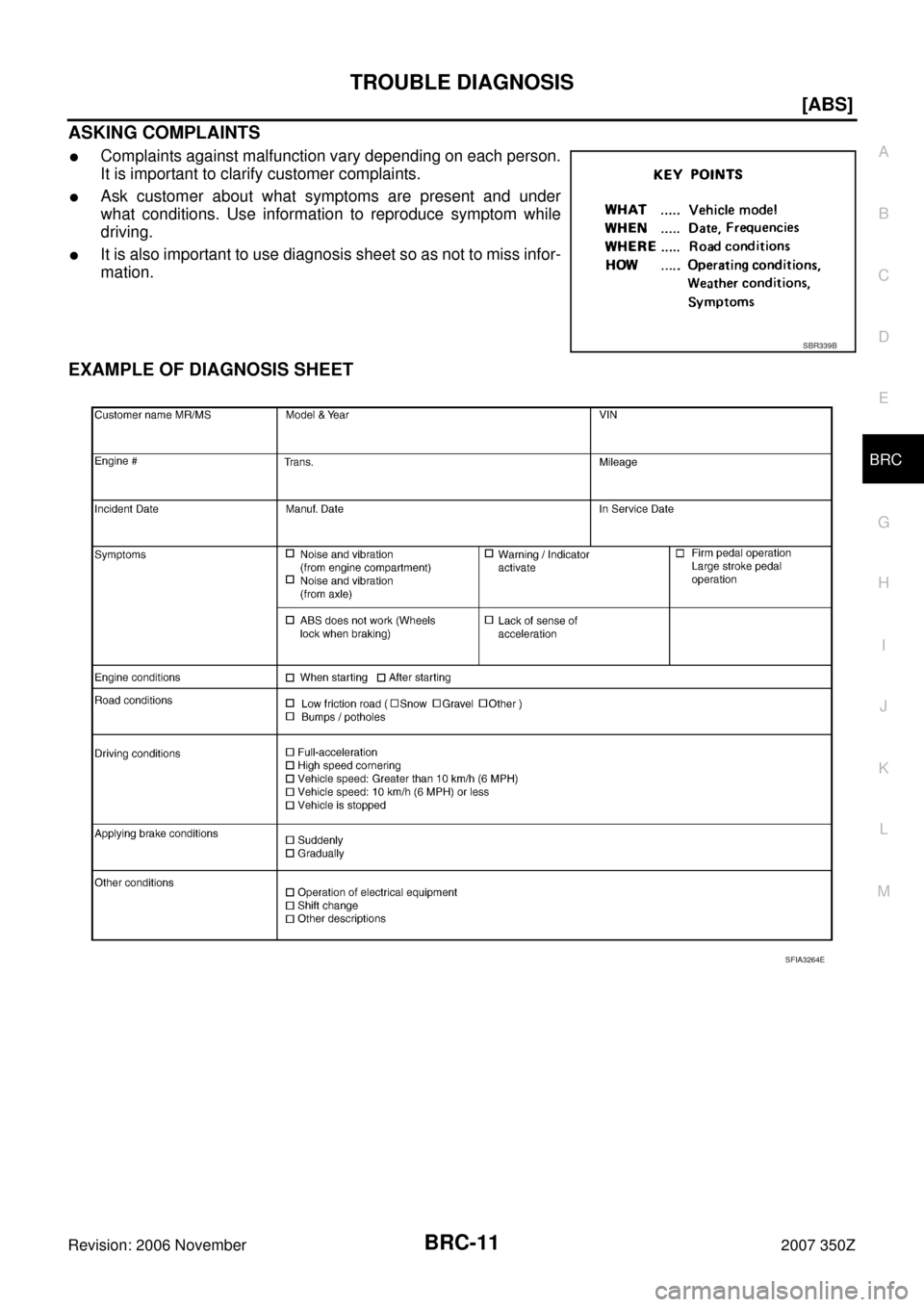

EXAMPLE OF DIAGNOSIS SHEET
SBR339B
SFIA3264E

BRC-12
[ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

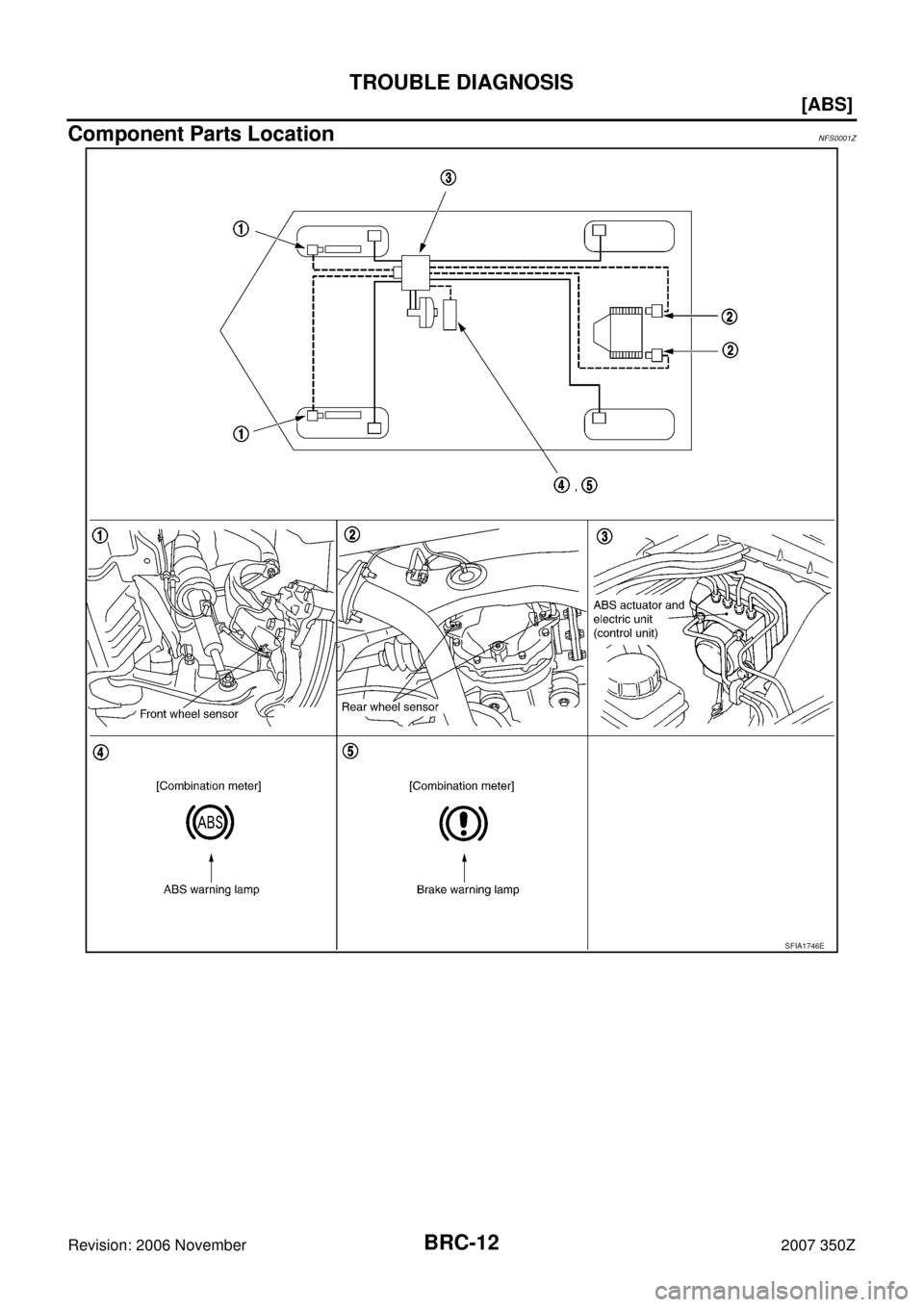

Component Parts LocationNFS0001Z
SFIA1746E

TROUBLE DIAGNOSIS
BRC-13
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z

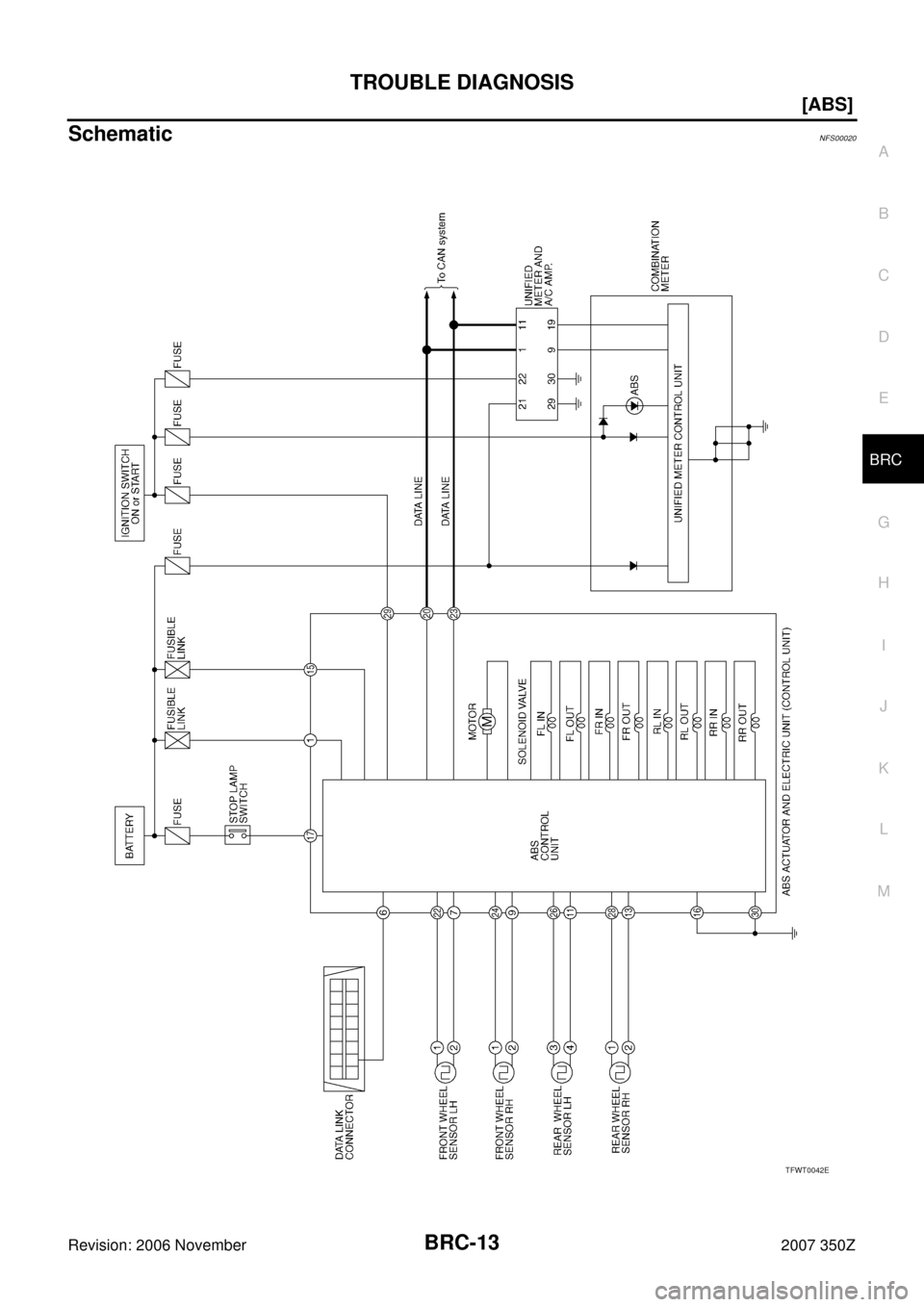

SchematicNFS00020
TFWT0042E

BRC-14
[ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

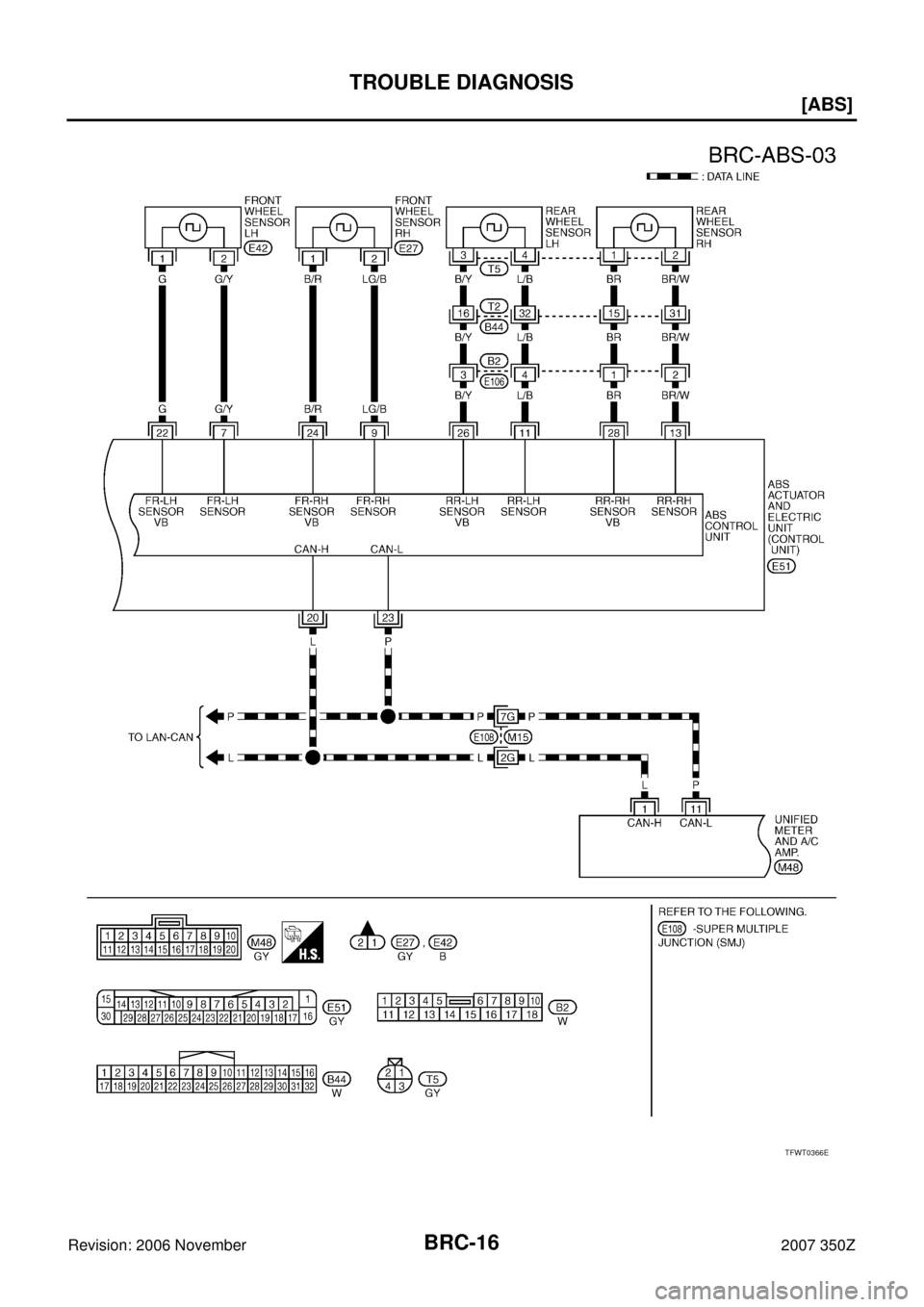

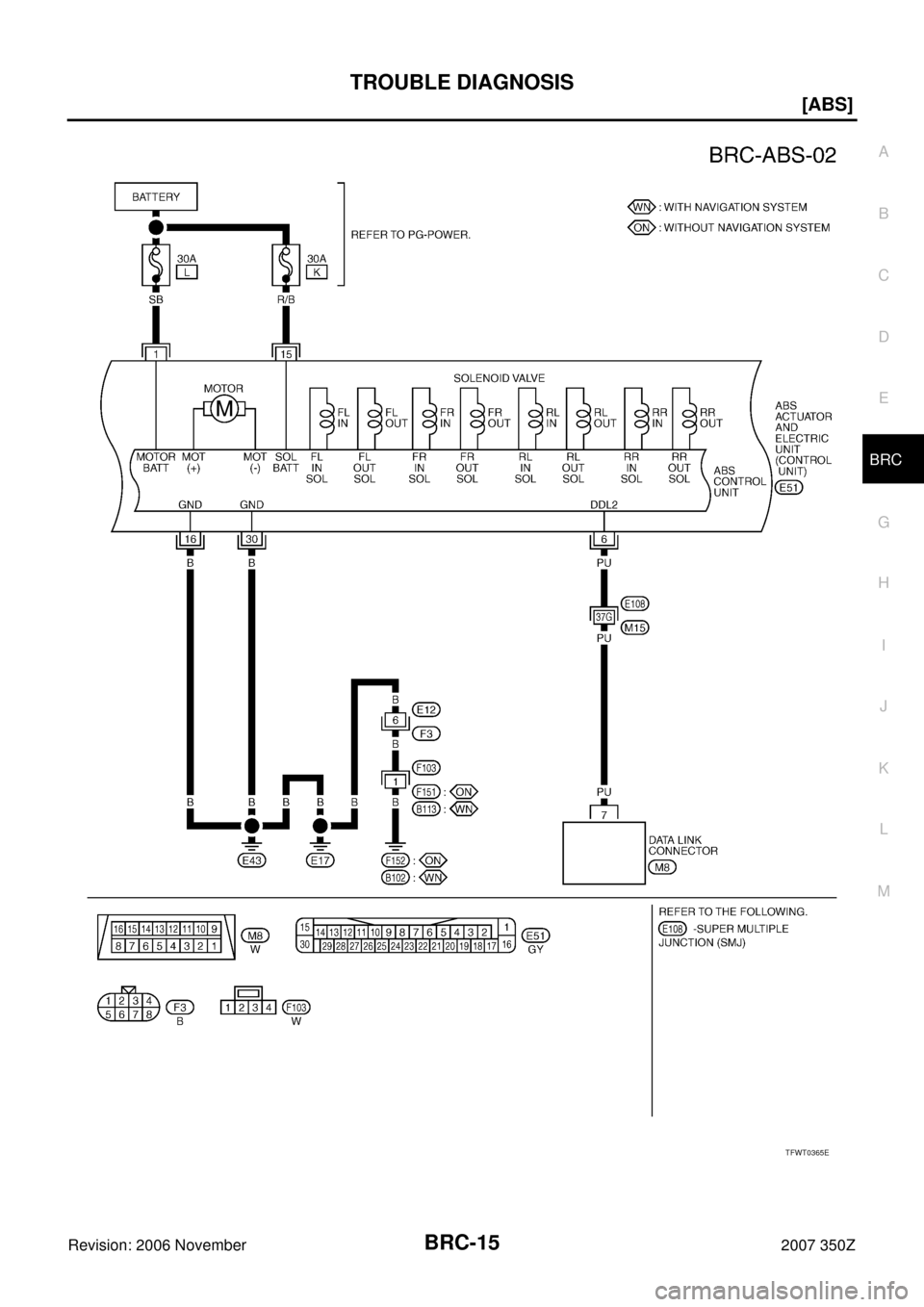

Wiring Diagram — ABS —NFS00021
TFWT0376E

TROUBLE DIAGNOSIS
BRC-15
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
TFWT0365E

BRC-16
[ABS]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
TFWT0366E
