256 Controls in detailDriving systems1Setting current or higher speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
2Setting current or lower speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
3Deactivating Distronic
4Activating Distronic or resuming to last
set speedActivating Distronic
You can activate Distronic when the vehi-
cle speed is between 20 mph (30 km/h)
and 110 mph (180 km/h).
When Distronic is activated the multifunc-
tion display will show a message such as
DISTRONIC 55 mph
.
If Distronic has not been activated after
pressing the cruise control lever, you will
see the message DISTRONIC Off
in the
multifunction display.
In the following cases you cannot activate
Distronic:


up to 2 minutes after starting the
engine


when you brake


when you have set the parking brake


when the automatic transmission is set
to positionP, R, or N


if the ESP
® is switched off


if the ESP
® has switched off due to a
malfunctionSetting the current speed

Accelerate or decelerate to the desired
speed.

Briefly lift the cruise control lever in
direction of arrow1 or depress in
direction of arrow2 (
page 255).
Distronic is activated and the current
speed is set.

Remove your foot from the accelerator
pedal.
i
If you do not take your foot off of the accel-
erator pedal and continue to accelerate past the
set speed, the following message will appear in
the multifunction display:
DISTRONIC OverrideThe distance to a slower moving vehicle in front
of you will not be set. Your vehicle speed will
then be determined only by the accelerator
pedal position.

257 Controls in detail
Driving systems
Setting a higher speed
You can increase the set speed in two
ways.
Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly lift the cruise control lever up to
the resistance point in direction of
arrow1 (
page 255).

Release the cruise control lever.
The vehicle speed increases in incre-
ments of 1 mph (Canada: 1 km/h).Adjustment in 5 mph
(Canada: 10 km/h) increments

Briefly lift the cruise control lever up
past the resistance point in direction of
arrow1 (
page 255).

Release the cruise control lever.
The vehicle speed increases in incre-
ments of 5 mph (Canada: 10 km/h).
i
The set value is increased in 1 mph
(Canada: 1 km/h) increments each time you lift
the cruise control lever up to the resistance
point.
Warning!
G
You can increase the vehicle speed in 5 mph
(Canada 10 km/h) increments. When using
this feature, keep in mind that it may take a
brief moment until the vehicle has reached
the set speed.
Increase the vehicle speed to a value that
the prevailing road conditions permit. Other-
wise, sudden and unexpected acceleration
of the vehicle could cause an accident
and/or serious injury to you and others.i
The set value is increased in 5 mph
(Canada: 10 km/h) increments each time you lift
the cruise control lever up past the resistance
point.
i
The new speed is set and the vehicle will
accelerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.

258 Controls in detailDriving systemsSetting a lower speed
You can reduce the set speed in two ways.
Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly press the cruise control lever
down to the resistance point in direc-
tion of arrow2 (
page 255).

Release the cruise control lever.
The vehicle speed decreases in incre-
ments of 1 mph (Canada: 1 km/h).Adjustment in 5 mph
(Canada: 10 km/h) increments

Briefly press the cruise control lever
down past the resistance point in direc-
tion of arrow2 (
page 255).

Release the cruise control lever.
The vehicle set speed decreases in
increments of 5 mph
(Canada: 10 km/h).
i
When you use the cruise control lever to
decelerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
i
The set value is decreased in 1 mph
(Canada: 1 km/h) increments each time you
press the cruise control lever down to the resis-
tance point.
Warning!
G
You can decrease the vehicle speed in
5 mph (Canada 10 km/h) increments. When
using this feature, keep in mind that it may
take a brief moment until the vehicle has
reached the set speed.
Decelerate the vehicle speed to a value that
the prevailing road conditions permit. Other-
wise, sudden and unexpected deceleration
of the vehicle could cause an accident
and/or serious injury to you and others.i
The set speed value is decreased in 5 mph
(Canada: 10 km/h) increments each time you
press the cruise control lever down past the
resistance point.
i
The new speed is set and the vehicle will
decelerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.

259 Controls in detail
Driving systems
Setting to last stored speed
(“Resume” function)
Briefly pull the cruise control lever in
direction of arrow4 (
page 255).
The Distronic resumes to the last set
speed.

Remove your foot from the accelerator
pedal.
The last set speed or, if no speed is stored,
the current set speed appears in the
multifunction display for approximately
5seconds.Deactivating Distronic
There are several ways to deactivate the
Distronic system:

Step on the brake pedal.
or

Briefly tip the cruise control lever in
direction of arrow3 (
page 256).
Distronic will be deactivated. The last set
speed will be stored in memory.
Warning!
G
The set speed stored in memory should only
be set again if prevailing road conditions
permit. Possible acceleration or decelera-
tion differences arising from returning to the
preset speed could cause an accident
and/or serious injury to you and others.
i
The following message appears in the multi-
function display for approximately 5 seconds:
DISTRONIC Off
.
The last stored set speed is deleted when the
engine is turned off.
i
The Distronic switches off automatically
when


you step on the brake pedal


you depress the parking brake pedal
In this case, the Distronic speed segments in the
speedometer (
page 253) will go out.


the vehicle speed falls below 20 mph
(30 km/h)


the ESP
® is in operation


the ESP
® is switched off with the ESP
®
switch (
page 99)


the ESP
® has switched off due to a
malfunction (
page 419)


you set the automatic transmission toN
while driving
The Distronic speed segments in the
speedometer (
page 253) will go out and an
acoustic warning will sound.

260 Controls in detailDriving systems
Setting the following distance in
Distronic
You can set the specified following
distance for Distronic by varying the time
setting between 1.0 and 2.0 seconds. Us-
ing this time setting and the current speed
of your vehicle, Distronic calculates and
sets the required following distance to the
preceding vehicle. The set distance will be
shown in the multifunction display
(page 255).
The distance setting switch for the time
setting is located on the cruise control le-
ver on the left-hand side of the steering
column.1Distance setting switch
2To decrease distance
3To increase distance
Increasing distance
Increasing the distance setting tells
Distronic to maintain a greater following
distance to the preceding vehicle.

Turn distance setting switch1 in
direction of arrow3.
Warning!
G
Distronic switches off and releases the
brakes when the vehicle decelerates below
the minimum speed of 20 mph (30 km/h)
by operation of the system. At that time the
driver must apply the brakes in order to
reduce vehicle speed further or bring it to a
stop.!
Setting the automatic transmission toN
while driving cancels the Distronic. However, the
automatic transmission should not be set toN
while driving except to coast when the vehicle is
in danger of skidding (e.g. on icy roads).
i
Depressing the accelerator pedal does not
deactivate the Distronic. After a brief accelera-
tion (e.g. for passing), the Distronic will resume
the last set speed.
Warning!
G
It is up to the driver to exercise discretion to
select the appropriate setting given road
conditions, traffic, driver’s preferred driving
style and applicable laws and driving recom-
mendations for safe following distance.

261 Controls in detail
Driving systems
Decreasing distance
Decreasing the distance setting tells
Distronic to maintain a smaller following
distance to the preceding vehicle.
Turn distance setting switch1 in
direction of arrow2.
Driving with Distronic
This section describes a number of driving
situations where special precaution is re-
quired on the part of the driver. Be pre-
pared to brake in such situations. Braking
will deactivate the Distronic system.The most likely cause for a malfunctioning
system is a dirty sensor (located behind
the hood grille), especially at times of snow
and ice or heavy rain. In such a case,
Distronic will switch off, and the message
DISTRONIC currently unavailable
– See
Operator’s Manual
appears in the multi-
function display.
For cleaning and care of the Distronic sen-
sor, see “Cleaning the Distronic* system
sensor cover” (
page 408).
Warning!
G
Distronic works to maintain the speed se-
lected by the driver unless a moving obsta-
cle proceeding directly ahead of it in the
same travel direction is detected (e.g. fol-
lowing another vehicle ahead of you at your
set distance).
This means that:

Your vehicle can pass another vehicle
after you have changed lanes.


While in a sharp turn or if the preceding
vehicle is in a sharp turn, Distronic could
lose sight of the preceding vehicle. Your
vehicle could then accelerate to the
previously selected speed.
Distronic regulates only the distance be-
tween your vehicle and those directly ahead
of it, but does not register stationary objects
in the road, e.g.:


a stopped vehicle in a traffic jam


a disabled vehicle


an oncoming vehicle
The driver must always be alert, observe all
traffic and intercede as required by means
of steering or braking the vehicle.
Warning!
G
Distronic should not be used in snowy or icy
road conditions.
i
If the message
DISTRONIC available
again
appears during driving the dirt (e.g.
slush) has dissolved; Distronic works again, if
you reactivate it (
page 256).

262 Controls in detailDriving systemsTurns and bends
In turns or bends, Distronic may not detect
a moving vehicle in front, or it may detect
one too soon. This may cause your vehicle
to brake late or unexpectedly.Offset driving
A vehicle traveling in your lane but offset
from your direct line of travel may not be
detected by Distronic. There will be insuffi-
cient distance to the vehicle ahead.Lane changing
Distronic has not yet detected the vehicle
changing lanes. There will be insufficient
distance to the lane-changing vehicle.

263 Controls in detail
Driving systems

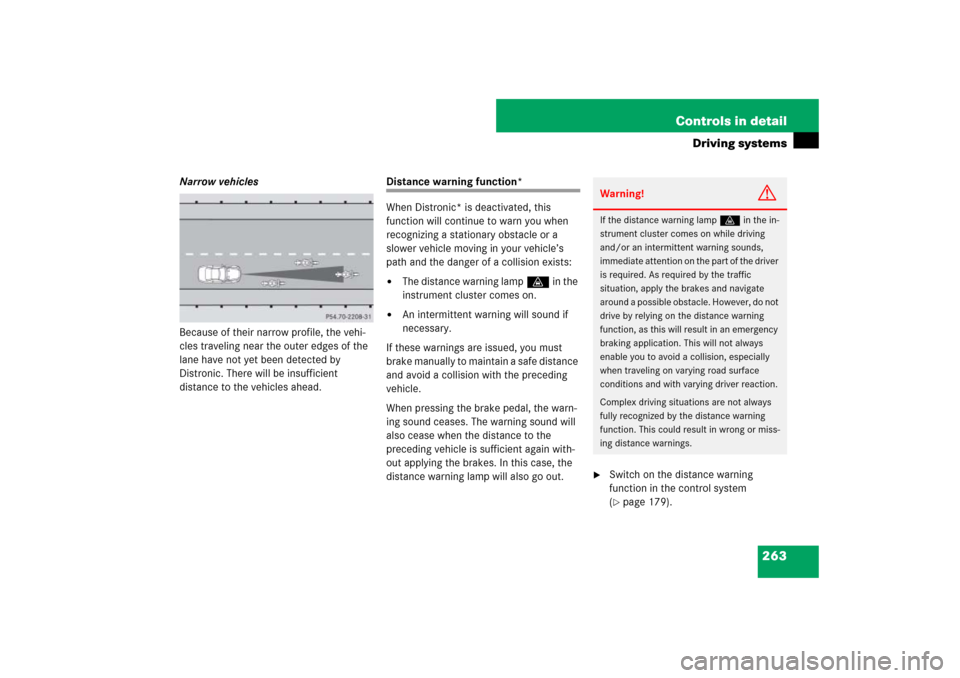

Narrow vehicles
Because of their narrow profile, the vehi-
cles traveling near the outer edges of the
lane have not yet been detected by
Distronic. There will be insufficient
distance to the vehicles ahead.
Distance warning function*
When Distronic* is deactivated, this
function will continue to warn you when
recognizing a stationary obstacle or a
slower vehicle moving in your vehicle’s
path and the danger of a collision exists:

The distance warning lampl in the
instrument cluster comes on.


An intermittent warning will sound if
necessary.
If these warnings are issued, you must
brake manually to maintain a safe distance
and avoid a collision with the preceding
vehicle.
When pressing the brake pedal, the warn-
ing sound ceases. The warning sound will
also cease when the distance to the
preceding vehicle is sufficient again with-
out applying the brakes. In this case, the
distance warning lamp will also go out.

Switch on the distance warning
function in the control system
(page 179).
Warning!
G
If the distance warning lampl in the in-
strument cluster comes on while driving
and/or an intermittent warning sounds,
immediate attention on the part of the driver
is required. As required by the traffic
situation, apply the brakes and navigate
around a possible obstacle. However, do not
drive by relying on the distance warning
function, as this will result in an emergency
braking application. This will not always
enable you to avoid a collision, especially
when traveling on varying road surface
conditions and with varying driver reaction.
Complex driving situations are not always
fully recognized by the distance warning
function. This could result in wrong or miss-
ing distance warnings.
