464 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
L
Tele Aid
inoperative
One or more main functions of the
Tele Aid* system are malfunctioning.

Have the Tele Aid* system checked
by an authorized Mercedes-Benz Light
Truck Center.
Tele Aid
battery
The emergency power battery for the
Tele Aid* system is malfunctioning. If the
vehicle battery is also malfunctioning or
drained, Tele Aid* will not be operational.

Have the Tele Aid* system checked
by an authorized Mercedes-Benz Light
Truck Center.
t
Function
unavailable
This display appears if buttont
ors on the multifunction steering
wheel is pressed and the vehicle is not
equipped with a telephone.
W
Top up
washer fluid
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 363).

465 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
H
Tire pressure
Check tires
The pressure is too low in one or
more tires.

Check and correct tire inflation pressure as
required.
Tire pressure
Caution - tire defect
One or more tires are deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

If necessary, change the wheel.
Caution - tire defect
Vehicles with Advanced TPMS*:
One or more tires are deflating.
The respective tire is shown in the
multifunction display.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

If necessary, change the wheel.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

466 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
H
Tire pressure
Check tires
The tire pressure in one or more tires is
already below the minimum value.

Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers.

Check and adjust tire pressure as
required.

If necessary, change the wheel.
Check tires
Vehicles with Advanced TPMS*:
The tire pressure in one or more tires is
already below the minimum value.
The respective tire is shown in the
multifunction display.

Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers.

Check and adjust tire pressure as
required.

If necessary, change the wheel.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

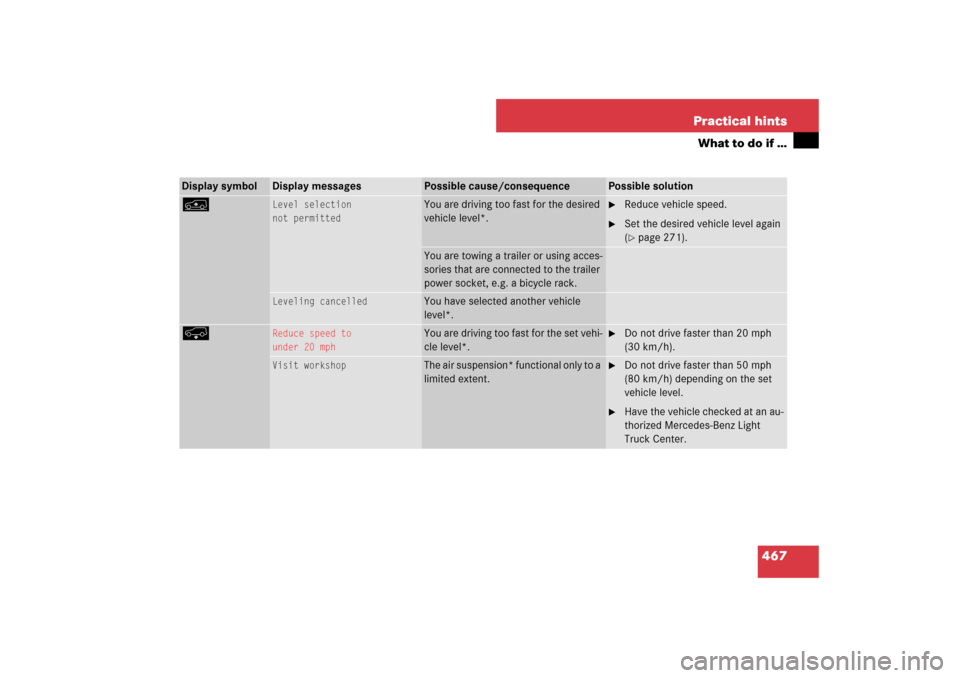

467 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
n
Level selection
not permitted
You are driving too fast for the desired
vehicle level*.

Reduce vehicle speed.

Set the desired vehicle level again
(page 271).
You are towing a trailer or using acces-
sories that are connected to the trailer
power socket, e.g. a bicycle rack.
Leveling cancelled
You have selected another vehicle
level*.
p
Reduce speed to
under 20 mph
You are driving too fast for the set vehi-
cle level*.

Do not drive faster than 20 mph
(30 km/h).
Visit workshop
The air suspension* functional only to a
limited extent.

Do not drive faster than 50 mph
(80 km/h) depending on the set
vehicle level.

Have the vehicle checked at an au-
thorized Mercedes-Benz Light
Truck Center.

468 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
Visit workshop
The air suspension* is malfunctioning.

Do not drive faster than 50 mph
(80 km/h) depending on the set vehi-
cle level.

Have the vehicle checked at an autho-
rized Mercedes-Benz Light Truck
Center.
Compressor
cooling down
You have selected a higher vehicle level*.
Due to frequent level changes within a
short period, the compressor must first
cool down.

Let the compressor cool until the
message disappears.
The selected level will be set once the
compressor has cooled.
!
When the message
Compressor cooling
down
appears in the multifunction display,
driving is still possible. Keep in mind that the ride
height of the vehicle is not yet reached, so you
can damage the underbody of the vehicle. The
selected level will be set once the compressor
has cooled.

469 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is located on the driver’s
side in the cargo compartment behind the
cover.
1Cover in left side trim panel
2Lock
Turn lock2 90°.

Fold down cover1.
The first aid kit can be removed.
Vehicle tool kit
The vehicle tool kit is stored under the
cargo compartment floor.
The vehicle tool kit includes:

Towing eye bolt


Wheel wrench


Alignment bolt


Vehicle jack


Fuse chart


Spare fuses


Fuse extractor


Collapsible wheel chock


Wheel bolts for spare wheel1Cargo compartment floor, lowered
2Handle cover

Open the tailgate (
page 119).

Push in handle cover2 and pull han-
dle in direction of arrow.

Lift cargo compartment floor1.
i
Check expiration dates and contents for
completeness at least once a year and replace
missing/expired items.


470 Practical hintsWhere will I find ...?3Securing hook
Release securing hook3 (located be-
low the floor handle) from holder.3Securing hook
4Cargo compartment floor, raised
5Upper cargo compartment lip

Engage securing hook3 on upper
cargo compartment lip5.

Remove the Minispare wheel
(page 473).
orML 63 AMG:

Remove the collapsible tire
(page 474).
You can now access the vehicle tool kit.
6Wheel bolt wrench
7Vehicle jack
8Collapsible wheel chock
9Spare fuses, fuse chart, fuse extractor
aTowing eye bolt
bAlignment bolt
cSpare wheel bolts
!
With the cargo compartment cover blind
installed behind the rear seats (
page 286),
disengage cargo compartment cover blind and
flip it forward. Otherwise the strap of the
securing hook could damage the cargo compart-
ment cover blind.


471 Practical hints
Where will I find ...?
Vehicle jackThe vehicle jack is located underneath the
cargo compartment floor.
Storage position
Remove vehicle jack from its storage
compartment (
page 470).

Turn crank handle in the direction of ar-
row as far as it will go.
!
Vehicles with factory-mounted
running-boards*:
Your vehicle is equipped with a scissors-type
jack (located under the cargo compartment
floor) designed for use with factory-mounted
running boards. Only use this jack when jacking
up vehicles with factory-mounted running boards
as otherwise the vehicle’s underbody can be
damaged. See separate instructions for scis-
sors-type jack.
!
To prevent damage, always disengage the
strap of the securing hook and lower the cargo
compartment floor (
page 469) before closing
the tailgate.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage the parking brake while
the vehicle is raised. Be certain that the jack
is always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on a level surface.
Make sure that the jack arm is fully seated
in the jack take-up bracket. Always lower
the vehicle onto jackstands of sufficient
capacity before working under the vehicle.
