2007 MERCEDES-BENZ CLK63AMG Owner's Manual

424 Practical hints
Resetting activated head restraints
Resetting activated head restraints
If the active head restraints have been trig-
gered in a rear-end collision, the active
head restraints must be reset. Otherwise,
the active head restraints cannot offer any
additional protection in the event of anoth-
er rear-end collision.
You can tell that the head restraints have
been triggered when they have been
moved forward and cannot be adjusted.
1Head restraint cushion
2Head restraint cover
3Reset tool
4Hole
Take the reset tool3 out of the
Mercedes-Benz vehicle literature
pouch.
Guide reset tool3 into the hole4 be-
tween the rear head restraint cover2
and the head restraint cushion1.
Press the reset tool3 downward until
you hear the active head restraint re-
lease mechanism audibly engage.
Pull out reset tool3.
Firmly press the head restraint
cushion1 back toward the rear head
restraint cover2 until it engages.
Repeat this procedure on the active
head restraint for the second seat.
After resetting the active head re-
straints store the reset tool3 in the
Mercedes-Benz vehicle literature
pouch.
For information on active head restraints,
see “Active head restraints” (
page 80).
For information on head restraint adjust-
ment, see “Seats” (
page 39).
iFor your convenience, we recommend that
you have this work carried out by an authorized
Mercedes-Benz Center.
You will find the reset tool for manually operating
the active head restraints in the Mercedes-Benz
vehicle literature pouch.
Warning!G
For safety reasons, have the active head re-
straints checked by an authorized
Mercedes-Benz Center after a rear-end
collision.
Warning!G
When pushing back the head restraint cush-
ion, take care that your fingers do not be-
come caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.!Be careful not to damage upholstery.

425 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an
authorized Mercedes-Benz Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
Warning!G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen inserting the batteries, make sure
they are clean and free of lint.
iWhen changing batteries, always replace
both batteries.
The required replacement batteries are available
at any Mercedes-Benz Center.

426 Practical hints
Replacing SmartKey batteries
SmartKey / SmartKey with
KEYLESS-GO*
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key from the
SmartKey or SmartKey with
KEYLESS-GO* (
page 410).
1Mechanical key
2Battery compartment
Insert mechanical key1 into the
opening.
Press mechanical key1 in direction of
arrow.
The battery compartment2 is un-
latched.
Pull battery compartment2 out of the
housing.
3Batteries
4Contact spring
Remove the batteries3.
Using a lint-free cloth, insert new
batteries3 under the contact
springs4 with the positive terminal
(+) side facing up.
Return battery compartment2 into
housing until it locks into place.
Slide mechanical key 1 back into the
SmartKey.
Check the operation of the SmartKey.

427 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp
assemblies are in good working order at all
times.Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp
adjustment.iIf the headlamps or front fog lamps are
fogged up on the inside as a result of high
humidity, driving the vehicle a distance with the
lights on should clear up the fogging.
iBack-up bulbs will be brought into use when
lamps malfunction. Read and observe the
messages in the multifunction display
(
page 397).

428 Practical hints
Replacing bulbs
Bulbs Front lamps Rear lamps
LampType
1Additional turn signal
lampLED
2Turn signal lamp1156 NA
3Halogen headlamp:
Low beam
Bi-Xenon* headlamp:
Low and high beam
1
1Vehicles with Bi-Xenon headlamps* do not replace
the Bi-Xenon bulbs yourself.
H7 (55 W)
D2S-35 W
4Halogen headlamp:
High beam/high beam
flasher
Bi-Xenon* headlamp:
High beam flasher
H7 (55 W)
H7 (55 W)
Parking and standing
lampW 5 W
5Front fog lamp
Corner-illuminating
front fog lamp*HB4 (51 W)
H7 (55 W)
6Side marker lampW 5 W
LampType
7High mounted brake
lampLED
8Brake lampP 21 W
9Turn signal lampP 21 W
aTail, parking and stand-
ing lamp, side markerP 21/4 W
W 5 W
bBackup lampP 21 W
cLicense plate lampsC 5 W
dRear fog lamp
(driver’s side only)P 21/4 W

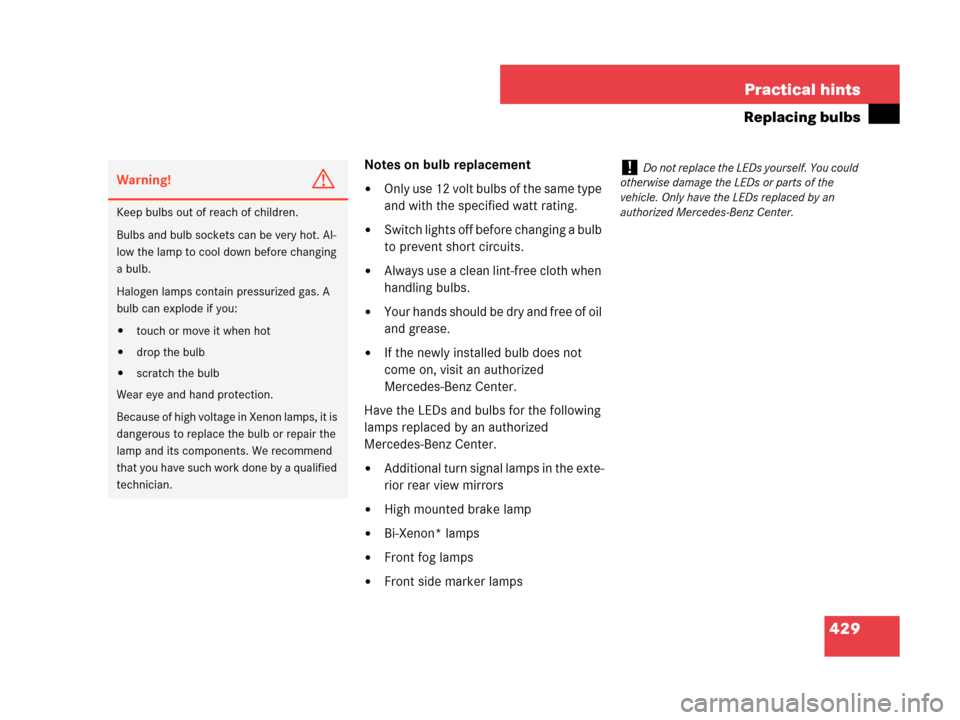

429 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12 volt bulbs of the same type
and with the specified watt rating.

Switch lights off before changing a bulb
to prevent short circuits.

Always use a clean lint-free cloth when
handling bulbs.

Your hands should be dry and free of oil
and grease.

If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center.

Additional turn signal lamps in the exte-
rior rear view mirrors

High mounted brake lamp

Bi-Xenon* lamps

Front fog lamps

Front side marker lamps
Warning!G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot

drop the bulb

scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
!Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the
vehicle. Only have the LEDs replaced by an
authorized Mercedes-Benz Center.

430 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 126).
Open the hood (page 315).
Front lamps halogen-type
1Housing cover for low beam headlamp
2Housing cover for high beam head-
lamp, parking and standing lamp3Bulb socket for turn signal lamp bulb
4Bulb holder of low beam bulb
5Bulb holder of high beam bulb
6Bulb socket for parking and standing
lamp bulb
Low beam bulb
Turn housing cover1 counterclock-
wise and remove it.
Turn bulb holder4 with the bulb coun-
terclockwise and remove it.
Pull the bulb at its socket out of bulb
holder4.
Insert the new bulb so that its socket
locates in the recess of bulb holder4
and is level to it.
Reinsert bulb holder4 with the bulb in
the lamp and turn clockwise.
Align housing cover1 and turn it
clockwise.
High beam bulb
Turn housing cover2 counterclock-
wise and remove it.
Turn bulb holder5 with the bulb coun-
terclockwise and remove it.
Pull the bulb at its socket out of bulb
holder5.
Insert the new bulb so that its socket
locates in the recess of bulb holder5
and is level to it.
Reinsert bulb holder5 with the bulb in
the lamp and turn clockwise.
Align housing cover2 and turn it
clockwise.

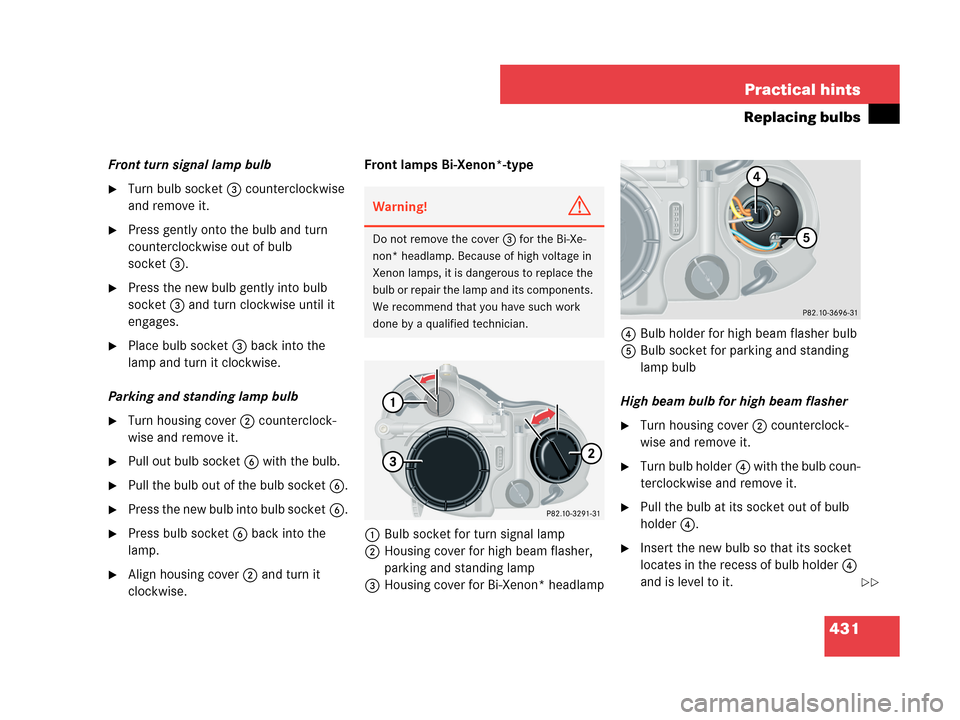

431 Practical hints
Replacing bulbs
Front turn signal lamp bulb
Turn bulb socket3 counterclockwise
and remove it.
Press gently onto the bulb and turn
counterclockwise out of bulb
socket3.
Press the new bulb gently into bulb
socket3 and turn clockwise until it
engages.
Place bulb socket3 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb
Turn housing cover2 counterclock-
wise and remove it.
Pull out bulb socket6 with the bulb.
Pull the bulb out of the bulb socket6.
Press the new bulb into bulb socket6.
Press bulb socket6 back into the
lamp.
Align housing cover2 and turn it
clockwise.Front lamps Bi-Xenon*-type
1Bulb socket for turn signal lamp
2Housing cover for high beam flasher,
parking and standing lamp
3Housing cover for Bi-Xenon* headlamp4Bulb holder for high beam flasher bulb
5Bulb socket for parking and standing
lamp bulb
High beam bulb for high beam flasher
Turn housing cover2 counterclock-
wise and remove it.
Turn bulb holder4 with the bulb coun-
terclockwise and remove it.
Pull the bulb at its socket out of bulb
holder4.
Insert the new bulb so that its socket
locates in the recess of bulb holder4
and is level to it.
Warning!G
Do not remove the cover 3 for the Bi-Xe-
non* headlamp. Because of high voltage in
Xenon lamps, it is dangerous to replace the
bulb or repair the lamp and its components.
We recommend that you have such work
done by a qualified technician.
