2007 MERCEDES-BENZ CLK63AMG Owner's Manual

288 Controls in detail
Useful features
Emergency calls
An emergency call is initiated
automatically following an accident in
which the emergency tensioning devices
(ETDs) or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 289) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call
appears in the multifunction display and
the audio system is muted. When the
connection is established, the message
Call connected appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the
vehicle (determined by the GPS satellite
location system), vehicle model, identifica-
tion number and color are generated.A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if:

it has been activated and is
operational. Activation requires a
subscription for monitoring services,
connection and cellular air time

the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
Warning!G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button remain illuminated
constantly in red and/or message
Tele Aid inoperative is displayed in the
multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
iLocation of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.

289 Controls in detail
Useful features
Initiating an emergency call manually
1Cover
2SOS button
Briefly press on cover1.
The cover will open.
Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.
Wait for a voice connection to the
Response Center.
Close cover1 after the emergency
call is concluded.
Warning!G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed appears in the
multifunction display for approximately
ten seconds.
Should this occur, assistance must be
summoned by other means.
Warning!G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they
receive an automatic SOS signal and cannot
make voice contact with the vehicle
occupants.

290 Controls in detail
Useful features
Roadside Assistance button•
The Roadside Assistance button• is
located below the center armrest cover.
Press and hold the •button (for
longer than two seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The •button will flash while the call
is in progress. The message
Connecting call will appear in the
multifunction display and the audio
system is muted.
When the connection is established, the
message
Call connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for as-
sistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may
apply. Refer to the Roadside Assistance
manual for more information.
The following is only available in the USA:

Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp on the Roadside
Assistance button• remains illuminated in
red for approximately ten seconds during the
system self-check after switching on the ignition
(together with the SOS button and the Informa-
tion button¡).See system self-check (
page 287) when the
indicator lamp does not come on in red or stays
on longer than approximately ten seconds.
If the indicator lamp on the Roadside Assistance
button• is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate a Roadside Assistance call (e.g. the rele-
vant cellular phone network is not available). The
message
Call failed appears in the multi-
function display.
Roadside Assistance calls can be terminated us-
ing the tbutton on the multifunction steer-
ing wheel or the respective button for ending a
telephone call on the audio system or the
COMAND* headunit.

291 Controls in detail
Useful features

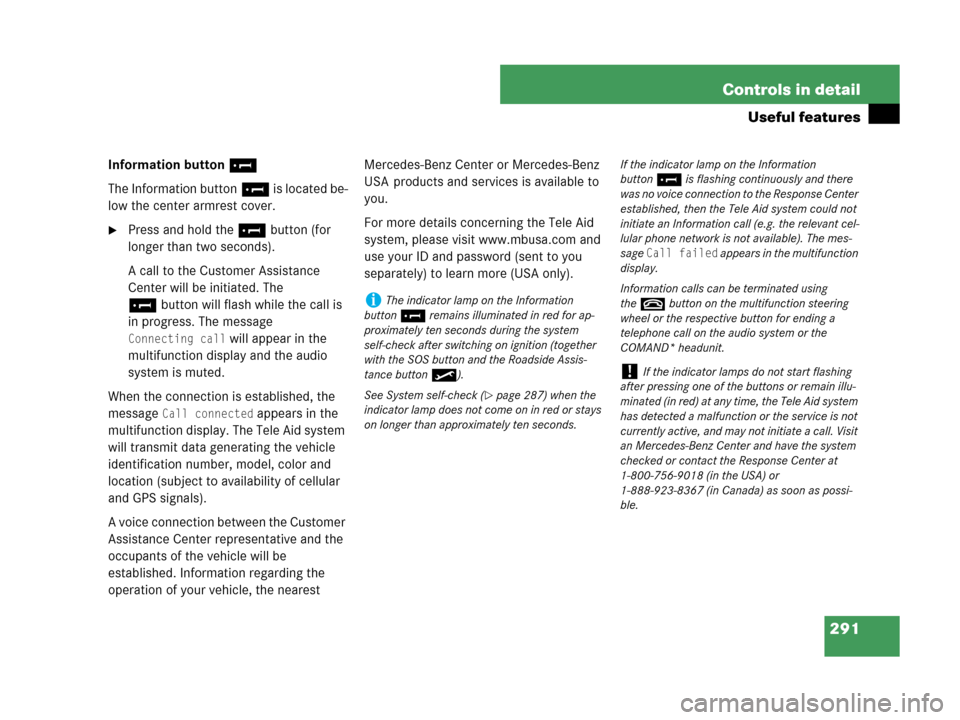

Information button¡
The Information button¡ is located be-
low the center armrest cover.
Press and hold the ¡button (for
longer than two seconds).
A call to the Customer Assistance
Center will be initiated. The
¡button will flash while the call is
in progress. The message
Connecting call will appear in the
multifunction display and the audio
system is muted.
When the connection is established, the
message
Call connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be
established. Information regarding the
operation of your vehicle, the nearest Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you
separately) to learn more (USA only).
iThe indicator lamp on the Information
button¡ remains illuminated in red for ap-
proximately ten seconds during the system
self-check after switching on ignition (together
with the SOS button and the Roadside Assis-
tance button•).
See System self-check (
page 287) when the
indicator lamp does not come on in red or stays
on longer than approximately ten seconds.If the indicator lamp on the Information
button¡ is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate an Information call (e.g. the relevant cel-
lular phone network is not available). The mes-
sage
Call failed appears in the multifunction
display.
Information calls can be terminated using
thet button on the multifunction steering
wheel or the respective button for ending a
telephone call on the audio system or the
COMAND* headunit.
!If the indicator lamps do not start flashing
after pressing one of the buttons or remain illu-
minated (in red) at any time, the Tele Aid system
has detected a malfunction or the service is not
currently active, and may not initiate a call. Visit
an Mercedes-Benz Center and have the system
checked or contact the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada) as soon as possi-
ble.

292 Controls in detail
Useful features
Call priority
If other service calls such as a Roadside
Assistance call or Information call are ac-
tive, an Emergency call is still possible. In
this case, the Emergency call will take pri-
ority and override all other active calls.Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve SmartKey is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.
Then return to your vehicle and pull the
trunk recessed handle for a minimum
of 20 seconds until the SOS button is
flashing.
The message
Connecting call ap-
pears in the multifunction display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.
iThe indicator lamp in the respective button
flashes until the call is concluded. Calls can only
be terminated by a Response Center or Custom-
er Assistance Center representative except
Roadside Assistance and Information calls,
which can also be terminated by pressing
buttont on the multifunction steering wheel
or the respective button for ending a telephone
call on the audio system or the COMAND* head
unit.
!If the indicator lamp continues to flash or
the system does not reset, contact the Response
Center at 1-800-756-9018 (in the USA), or
1-888-923-8367 (in Canada), or Mercedes-Benz
Customer Assistance at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA, or Customer Ser-
vice at 1-800-387-0100 in Canada.
iWhen a Tele Aid call has been initiated, the
audio system or the COMAND* system audio is
muted and the selected mode (radio or CD)
pauses. The optional cellular phone (if installed)
switches off. If you must use this phone, the ve-
hicle must be parked. Disconnect the coiled cord
and place the call. The COMAND* navigation
system (if engaged) will continue to run. The dis-
play in the instrument cluster is available for use,
and spoken commands are only available by
pressing the RPT button on the COMAND* head-
unit. A pop-up window will appear in the
COMAND* display to indicate that a Tele Aid call
is in progress.

293 Controls in detail
Useful features
Stolen Vehicle Recovery services
In the event your vehicle was stolen:
Report the incident to the police.
The police will issue a numbered
incident report.
Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is
located, the Response Center will
contact the local law enforcement and
you. The vehicle’s location will only be
provided to law enforcement.
Garage door opener*
The integrated remote control is capable of
operating up to three separately controlled
devices. It provides a convenient way to re-
place up to three hand-held remote con-
trols used to operate devices such as
garage door openers, gate openers, or oth-
er devices compatible with HomeLink
® or
some other systems.
Before the integrated remote control can
be used, it must be programmed to the ga-
rage door opener, gate operator or other
device you wish to operate. See the follow-
ing instructions for programming informa-
tion.
iThe remote door unlock feature is available
if the relevant cellular phone network is avail-
able.
The SOS button will flash and the message
Con-
necting call
will appear in the multifunction
display to indicate receipt of the door unlock
command.
Once the vehicle is unlocked, a Response Center
specialist will attempt to establish voice contact
with the vehicle occupants.
If the trunk recessed handle was pulled for more
than 20 seconds before door unlock authoriza-
tion was received by the Response Center, you
must wait 15 minutes before pulling the trunk
recessed handle again.
iWhen the anti-theft alarm stays on for more
than 30 seconds, a call is initiated automatically
to the Response Center, see “Anti-theft alarm
system” (
page 95).

294 Controls in detail
Useful features
Interior rear view mirror with integrated re-
mote control
1Indicator lamp
2 3 4Signal transmitter button
Needed for programming (not part of vehi-
cle equipment):
5Hand-held remote control of ga-
rage door opener, gate operator
or other device
6Hand-held remote control but-
tonProgramming the integrated remote
control
Step 1:
Switch on the ignition (page 38).
Step 2:
If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when indicator lamp1 be-
Warning!G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
– signaling the door to stop and reverse –
does not meet current U.S. federal safety
standards.
When programming a garage door opener,
park outside the garage.
Do not run the engine while programming
the integrated remote control. Inhalation of
exhaust gas is hazardous to your health. All
exhaust gas contains carbon monoxide
(CO), and inhaling it can cause unconscious-
ness and possible death.

295 Controls in detail
Useful features

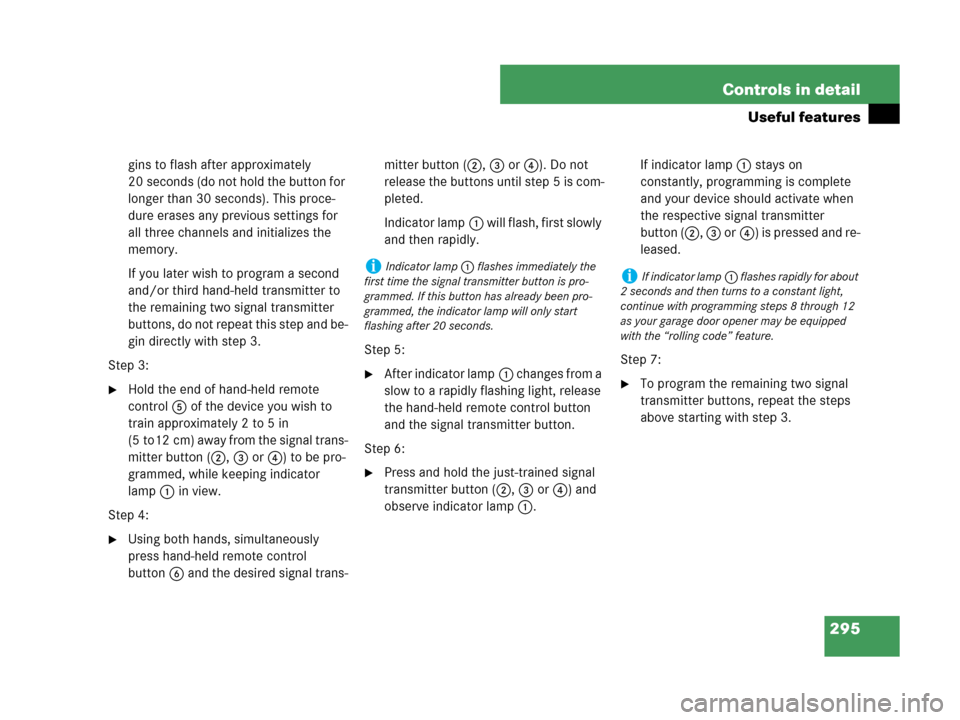

gins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and be-
gin directly with step 3.
Step 3:
Hold the end of hand-held remote
control5 of the device you wish to
train approximately 2 to 5 in
(5 to12 cm) away from the signal trans-
mitter button (2, 3 or4) to be pro-
grammed, while keeping indicator
lamp1 in view.
Step 4:
Using both hands, simultaneously
press hand-held remote control
button6 and the desired signal trans-mitter button (2, 3 or4). Do not
release the buttons until step 5 is com-
pleted.
Indicator lamp1 will flash, first slowly
and then rapidly.
Step 5:
After indicator lamp1 changes from a
slow to a rapidly flashing light, release
the hand-held remote control button
and the signal transmitter button.
Step 6:
Press and hold the just-trained signal
transmitter button (2, 3 or4) and
observe indicator lamp1.If indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button (2, 3 or4) is pressed and re-
leased.
Step 7:
To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
iIndicator lamp1 flashes immediately the
first time the signal transmitter button is pro-
grammed. If this button has already been pro-
grammed, the indicator lamp will only start
flashing after 20 seconds.iIf indicator lamp1 flashes rapidly for about
2 seconds and then turns to a constant light,
continue with programming steps 8 through 12
as your garage door opener may be equipped
with the “rolling code” feature.
