24 At a glance
Cockpit

25 At a glance
Cockpit
ItemPage
1Steering wheel gearshift
paddles*179
2Combination switch

Turn signals

Windshield wipers

High beam
55
55
54
3Cruise control lever263
4Multifunction steering
wheel28,
140
5Instrument cluster26,
136
6Starter switch36
7Front Parktronic* warning
indicator (CLK 63 AMG
(USA), Canada all vehicles)267
8Overhead control panel31
9Glove box276
ItemPage
aDepending on vehicle pro-
duction date:
Storage box
Cup holder
276
279
bCenter console29, 30
cHood lock release316
dHorn
eSteering wheel adjustment
stalk43
fParking brake pedal52
gDoor control panel32
hParking brake release52
jExterior lamp switch54,
126
kExterior rear view mirror ad-
justment45
lHeadlamp washer switch*184

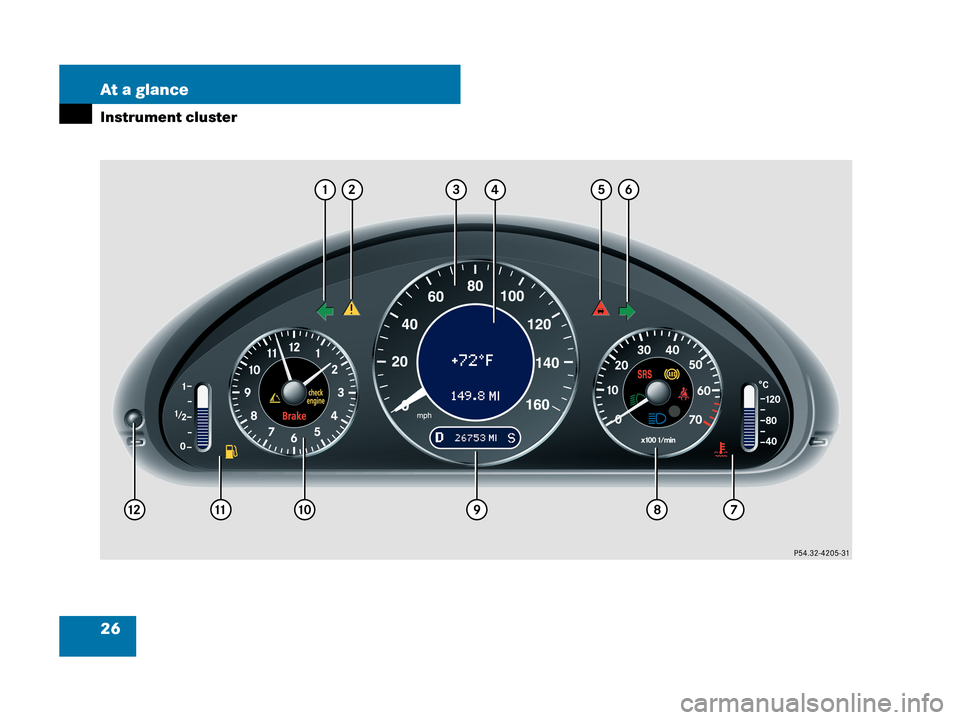

26 At a glance
Instrument cluster

27 At a glance
Instrument cluster
ItemPage
1LLeft turn signal indica-
tor lamp55
2vESP® warning lamp372
3Speedometer
4Multifunction display139
5lDistance warning
lamp
Warning lamp without func-
tion. It illuminates with the ig-
nition on. It should go out
when the engine is running.
6KRight turn signal indi-
cator lamp55
7Coolant temperature
indicator with:137
•Coolant temperature
warning lamp371,
391
ItemPage
8Tachometer with:138
1Supplemental
Restraint System
(SRS) indicator lamp64,
375,
375
-Antilock Brake Sys-
tem (ABS) indicator
lamp366
373
AHigh beam headlamp
indicator lamp131
BLow beam headlamp
indicator lamp131
9Main odometer with:

Gear selector lever
position139

Program mode139
ItemPage
aClock with:158
;Brake warning lamp,
USA only368
3Brake warning lamp,
Canada only368
úEngine malfunction in-
dicator lamp,
USA only369
±Engine malfunction in-
dicator lamp,
Canada only369
CRoll bar warning lamp
bFuel display with:
AFuel reserve warning
lamp373
cReset button for:

Resetting trip odometer136

Adjusting instrument
cluster illumination136

Confirming new time set-
tings158

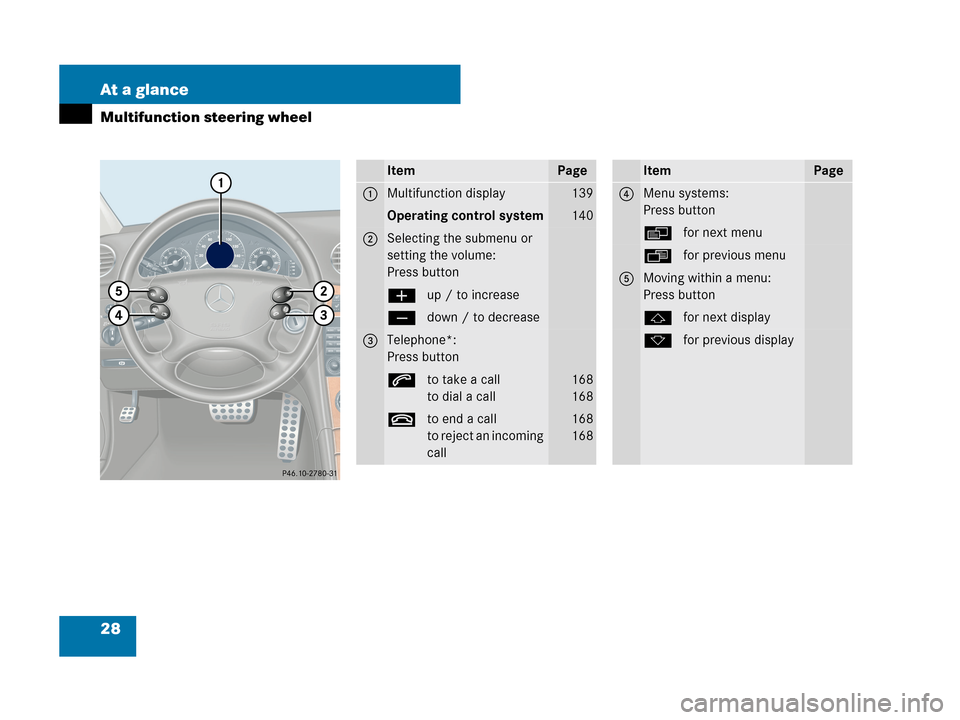

28 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display139
Operating control system140
2Selecting the submenu or
setting the volume:
Press button
æup / to increase
çdown / to decrease
3Telephone*:
Press button
sto take a call
to dial a call168
168
tto end a call
to reject an incoming
call168
168
ItemPage
4Menu systems:
Press button
èfor next menu
ÿfor previous menu
5Moving within a menu:
Press button
jfor next display
kfor previous display

29 At a glance

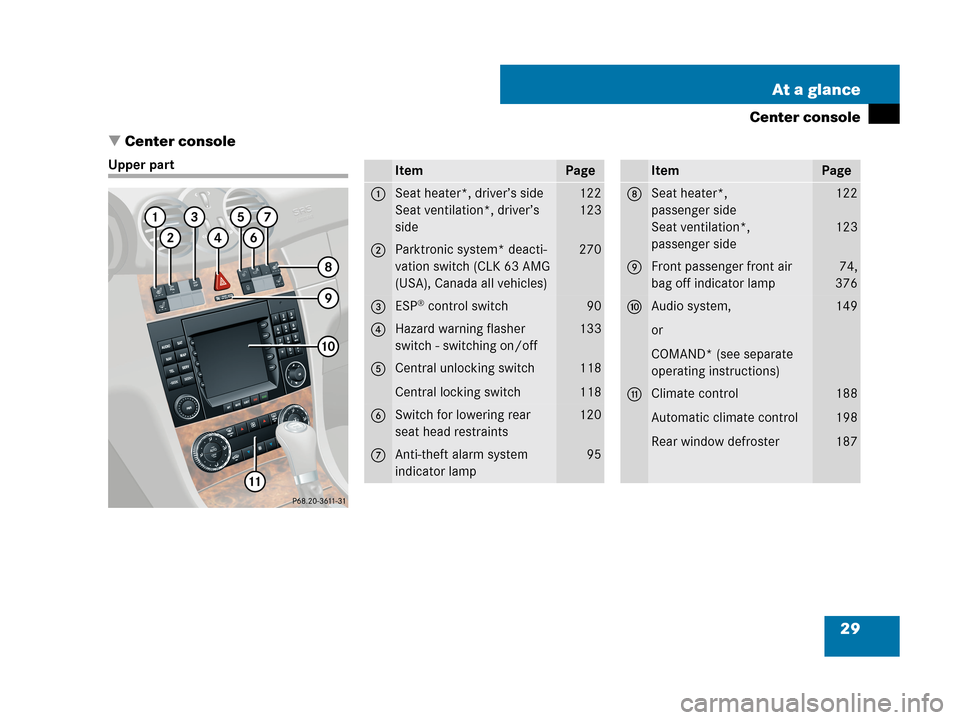

Center console
Center console
Upper partItemPage
1Seat heater*, driver’s side
Seat ventilation*, driver’s
side122
123
2Parktronic system* deacti-
vation switch (CLK 63 AMG
(USA), Canada all vehicles)270
3ESP® control switch90
4Hazard warning flasher
switch - switching on/off133
5Central unlocking switch
Central locking switch118
118
6Switch for lowering rear
seat head restraints120
7Anti-theft alarm system
indicator lamp95
ItemPage
8Seat heater*,
passenger side
Seat ventilation*,
passenger side122
123
9Front passenger front air
bag off indicator lamp74,
376
aAudio system,
or
COMAND* (see separate
operating instructions)149
bClimate control
Automatic climate control
Rear window defroster 188
198
187

30 At a glance
Center console
Lower partItemPage
1Ashtray
Cigarette lighter280
282
2KEYLESS-GO* start/stop
button37
3Cup holder279
4Storage compartment
with cup holder
and
telephone* compartment
in center armrest278
279
278
5Soft top switch256
6Program mode selector
switch for automatic trans-
mission

Automatic shift program

Manual shift program
(CLK 63 AMG)
176
181
7Gear selector lever for
automatic transmission170

31 At a glance
Overhead control panel
Overhead control panel
ItemPage
1Tele Aid (emergency call
system) button287
2Right reading lamp on/off135
3Interior lighting control134
4Interior rear view mirror45,
184
5Garage door opener*293
6Hands-free microphone for
Tele Aid (emergency call
system) and telephone*284
7Left reading lamp on/off135
