2007 MERCEDES-BENZ CLK63AMG Owner's Manual

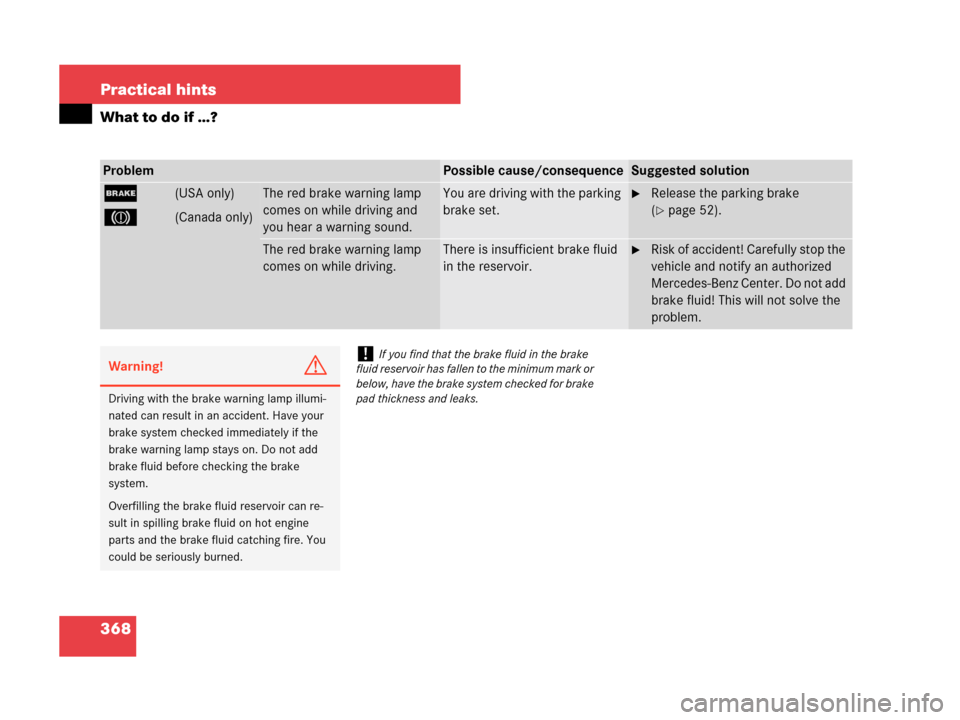

368 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
;
3 (USA only)
(Canada only)The red brake warning lamp
comes on while driving and
you hear a warning sound.You are driving with the parking
brake set.Release the parking brake
(
page 52).
The red brake warning lamp
comes on while driving.There is insufficient brake fluid
in the reservoir.Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
could be seriously burned.
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

369 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
ú
±(USA only)
(Canada only)The yellow engine
malfunction indi-
cator lamp comes
on while driving.There is a malfunction in:

The fuel management system

The ignition system

The emission control system

Systems which affect emissions
Such malfunctions may result in ex-
cessive emissions values and may
switch the engine to its Limp-Home
Mode (emergency operation).
Have the vehicle checked as soon as possi-
ble by an authorized Mercedes-Benz Center.
An on-board diagnostic connector is used by
the service station to link the vehicle to the
shop diagnostics system. It allows the accu-
rate identification of system malfunctions
through the readout of diagnostic trouble
codes. It is located in the front left area of the
footwell next to the parking brake pedal.
iIn some states you may be required by law
to have the vehicle serviced immediately as soon
as the engine malfunction indicator lamp comes
on. Check local requirements.

370 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
ú
±(USA only)
(Canada only)The yellow engine
malfunction indi-
cator lamp comes
on while driving.A loss of pressure has been
detected in the fuel system. The fuel
cap may not be closed properly or
the fuel system may be leaky.Check the fuel cap (page 312).
If it is not closed properly:
Close the fuel cap.
If it is closed properly:
Have the fuel system checked by an autho-
rized Mercedes-Benz Center.
Your fuel tank is empty.After refuelling, start, turn off, and restart the
engine three or four times in succession.
The Limp-Home Mode is canceled. You do not
need to have your vehicle checked.

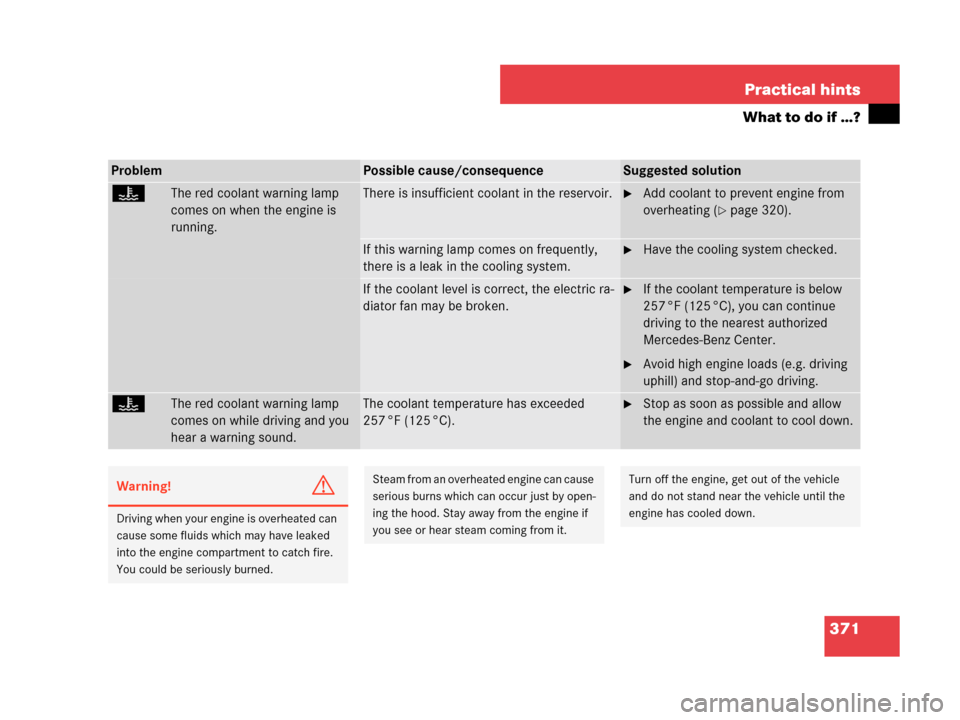

371 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
•The red coolant warning lamp
comes on when the engine is
running.There is insufficient coolant in the reservoir.Add coolant to prevent engine from
overheating (
page 320).
If this warning lamp comes on frequently,
there is a leak in the cooling system.Have the cooling system checked.
If the coolant level is correct, the electric ra-
diator fan may be broken.If the coolant temperature is below
257 °F (125 °C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.
Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
•The red coolant warning lamp
comes on while driving and you
hear a warning sound.The coolant temperature has exceeded
257 °F (125 °C).Stop as soon as possible and allow
the engine and coolant to cool down.
Warning!G
Driving when your engine is overheated can
cause some fluids which may have leaked
into the engine compartment to catch fire.
You could be seriously burned.
Steam from an overheated engine can cause
serious burns which can occur just by open-
ing the hood. Stay away from the engine if
you see or hear steam coming from it.Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

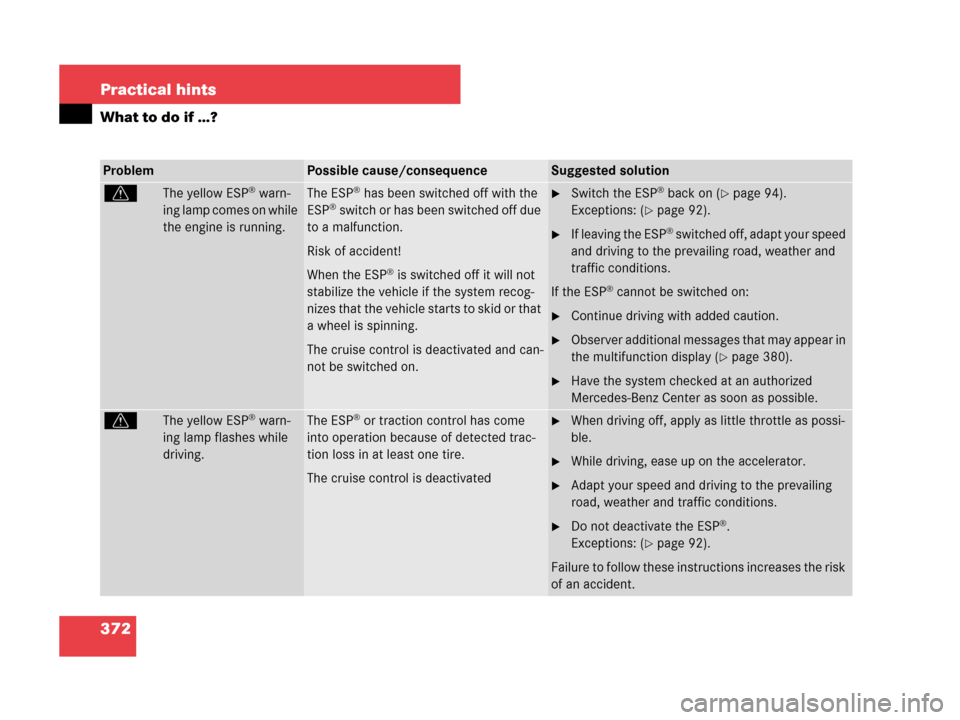

372 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
vThe yellow ESP® warn-
ing lamp comes on while
the engine is running.The ESP® has been switched off with the
ESP® switch or has been switched off due
to a malfunction.
Risk of accident!
When the ESP
® is switched off it will not
stabilize the vehicle if the system recog-
nizes that the vehicle starts to skid or that
a wheel is spinning.
The cruise control is deactivated and can-
not be switched on.
Switch the ESP® back on (page 94).
Exceptions: (
page 92).
If leaving the ESP® switched off, adapt your speed
and driving to the prevailing road, weather and
traffic conditions.
If the ESP
® cannot be switched on:
Continue driving with added caution.
Observer additional messages that may appear in
the multifunction display (
page 380).
Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
vThe yellow ESP® warn-
ing lamp flashes while
driving.The ESP® or traction control has come
into operation because of detected trac-
tion loss in at least one tire.
The cruise control is deactivatedWhen driving off, apply as little throttle as possi-
ble.
While driving, ease up on the accelerator.
Adapt your speed and driving to the prevailing
road, weather and traffic conditions.
Do not deactivate the ESP®.
Exceptions: (
page 92).
Failure to follow these instructions increases the risk
of an accident.

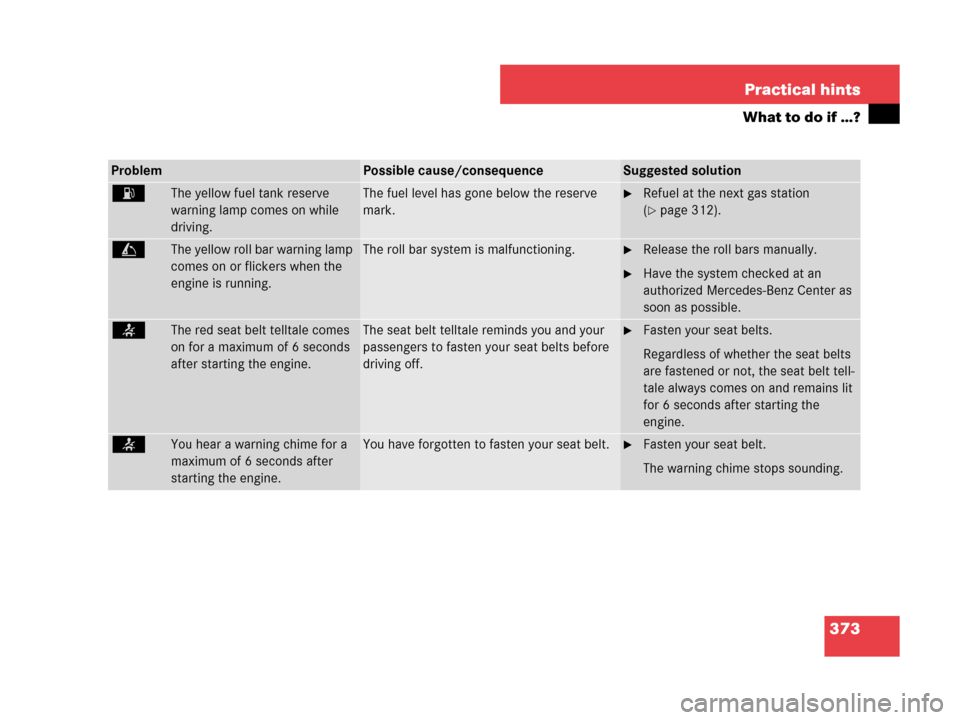

373 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
AThe yellow fuel tank reserve
warning lamp comes on while
driving.The fuel level has gone below the reserve
mark.Refuel at the next gas station
(
page 312).
CThe yellow roll bar warning lamp
comes on or flickers when the
engine is running.The roll bar system is malfunctioning.Release the roll bars manually.
Have the system checked at an
authorized Mercedes-Benz Center as
soon as possible.
on for a maximum of 6 seconds
after starting the engine.The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.Fasten your seat belts.
Regardless of whether the seat belts
are fastened or not, the seat belt tell-
tale always comes on and remains lit
for 6 seconds after starting the
engine.
maximum of 6 seconds after
starting the engine.You have forgotten to fasten your seat belt.Fasten your seat belt.
The warning chime stops sounding.

374 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
on while the vehicle is standing
still and the engine is running or
during driving.You and/or your front passenger have for-
gotten to fasten your seat belts.Fasten your seat belts.
The seat belt telltale goes out.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out.
telltale flashes and you addition-
ally hear an intermittent warning
chime with increasing intensity.The vehicle’s speed once exceeded 15 mph
(25 km/h) and you and/or your front pas-
senger have forgotten to fasten your seat
belts.Fasten your seat belts.
The seat belt telltale goes out and the
warning chime stops sounding.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out and the
warning chime stops sounding.
iAfter 60 seconds with an unfastened seat
belt the warning chime stops sounding and the
seat belt telltale illuminates continuously. The
seat belt telltale will only go out if both,the driver’s and the front passenger’s seat belt
are fastened, or the vehicle is standing still and a
door is opened.

375 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
1The red SRS indicator lamp
comes on while driving.There is a malfunction in the restraint sys-
tems. The air bags or emergency tensioning
devices (ETDs) could deploy unexpectedly or
fail to deploy in an accident.Drive with added caution to the near-
est authorized Mercedes-Benz
Center.
Warning!G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be deployed when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in an
accident and / or injury to you or to others.
