2007 MERCEDES-BENZ CLK63AMG Owner's Manual

464 Technical data
Layout of poly-V-belt drive
CLK 350 / CLK 550
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)CLK 63 AMG
1Idler pulley
2Idler pulley
3Idler pulley
4Automatic belt tensioner
5Power steering pump
6Air conditioning compressor
7Crankshaft
8Coolant pump
9Generator (alternator)

465 Technical data
Engine
Engine
ModelCLK 350 (209.456)1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 550 (209.472)1CLK 63 AMG (209.477)1
Engine272273156
Mode of operation4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection
No. of cylinders688
Bore3.66 in (92.90 mm)3.85 in (98.00 mm)4.02 in (102.20 mm)
Stroke3.39 in (86.00 mm)3.56 in (90.50 mm)3.72 in (94.60 mm)
Total piston displacement213.5 cu in (3 498 cm3)333.25 cu in (5 461 cm3)378.8 cu in (6 208 cm3)
Compression ratio10.5:110.5:111.3:1
Output acc. to SAE J 1349268 hp / 6 000 rpm2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
382 hp / 6 000 rpm2
(285 kW / 6 000 rpm)
475 hp / 6 800 rpm2
(354 kW / 6 800 rpm)
Maximum torque acc. to SAE J
1349258 lb-ft/ 2 400 - 5 000 rpm
(350 Nm / 2 400 - 5 000 rpm)391 lb-ft / 2 800 - 4 800 rpm
(530 Nm /2 800 - 4 800 rpm)465 lb-ft / 5 000 rpm
(630 Nm / 5 000 rpm)
Maximum engine speed6300 rpm6500 rpm7200 rpm
Firing order1-4-3-6-2-51-5-4-2-6-3-7-81-5-4-2-6-3-7-8
Poly-V-belt2404 mm2380 mm2369 mm

466 Technical data
Rims and tires
!Only use tires which have been tested and
approved by Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to provide best
possible performance in conjunction with the
driving safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed for your
vehicle and tested and approved by Mer-
cedes-Benz can be identified by finding the fol-
lowing on the tire’s sidewall:

MO = Mercedes-Benz Original equipment
tires
AMG vehicles:
Does not apply to all approved tires on AMG
vehicles. For information on tested and ap-
proved tires for AMG vehicles, contact an au-
thorized Mercedes-Benz Center.

MOE = Mercedes-Benz Original Extended
(tires with limited run-flat characteristics)
original equipment tires. Using tires other
than those approved by Mercedes-Benz may
result in damage that is not covered by the
Mercedes-Benz Limited Warranty.
iFor information on driving with MOExtended
tires, see “MOExtended system*” (
page 336).
!Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as

poor handling characteristics

increased noise

increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
Damage to the tires or the vehicle may be the
result.
iFurther information on tires and rims is
available at any authorized Mercedes-Benz Cen-
ter. A placard with the recommended tire infla-
tion pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire inflation pressure information for driving at
high speeds (
page 332) or for vehicle loads
less than the maximum loaded vehicle condition
(
page 331).If such information is provided, it can be found
on the placard located on the inside of the fuel
filler flap. The tire inflation pressure should be
checked regularly and should only be adjusted
on cold tires. Follow tire manufacturer’s mainte-
nance recommendation included with vehicle.
iThe following pages also list the approved
wheel rim and tire sizes for equipping your vehi-
cles with winter tires. Winter tires are not avail-
able as standard or optional factory equipment,
but can be purchased from an authorized
Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Appearance Package,
Sport Package etc.), equipping your vehicle with
winter tires approved for your vehicle model may
also require the purchase of two or four wheel
rims of the recommended size for use with these
winter tires. See an authorized Mercedes-Benz
Center for more information.

467 Technical data
Rims and tires
Same size tires
ModelCLK 350CLK 550
Rims (light alloy)7.5 J x 17 H27.5 J x 17 H2
Wheel offset1.42 in (36 mm)1.45 in (37 mm)
Winter tires1,3
1Radial-ply tires
225/45 R17 91 H M+S.225/45 R17 91 H M+S.
Winter tires1,2,3
2Must be used in conjunction with Run Flat Indicator* only. 3Not available as factory equipment.
225/45 R17 91 H M+S.MOExtended225/45 R17 91 H M+S.MOExtended
ModelCLK 63 AMG
Rims (light alloy)8 J x 18 H2
Wheel offset1.34 in (34 mm)
Winter tires1,2,3225/40 R18 92 V XL (Extra Load) M+S.
1Radial-ply tires2Not available as factory equipment.3For use with snow chains contact an authorized Mercedes-Benz Center.

468 Technical data
Rims and tires

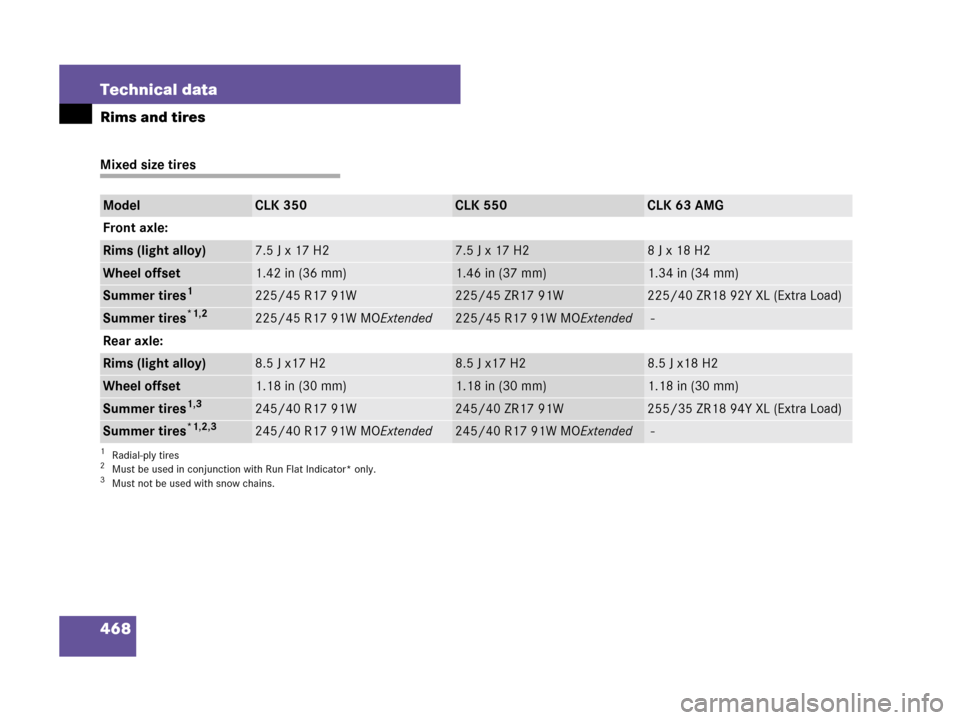

Mixed size tires
ModelCLK 350CLK 550CLK 63 AMG
Front axle:
Rims (light alloy)7.5 J x 17 H27.5 J x 17 H28 J x 18 H2
Wheel offset1.42 in (36 mm)1.46 in (37 mm)1.34 in (34 mm)
Summer tires1
1Radial-ply tires
225/45 R17 91W225/45 ZR17 91W225/40 ZR18 92Y XL (Extra Load)
Summer tires*1,2
2Must be used in conjunction with Run Flat Indicator* only.
225/45 R17 91W MOExtended225/45 R17 91W MOExtended -
Rear axle:
Rims (light alloy)8.5 J x17 H28.5 J x17 H28.5 J x18 H2
Wheel offset1.18 in (30 mm)1.18 in (30 mm)1.18 in (30 mm)
Summer tires1,3
3Must not be used with snow chains.
245/40 R17 91W245/40 ZR17 91W255/35 ZR18 94Y XL (Extra Load)
Summer tires*1,2,3245/40 R17 91W MOExtended245/40 R17 91W MOExtended -

469 Technical data
Rims and tires
Minispare wheel
ModelAll Models (except CLK 63 AMG)
Rim3.5 B x 17 H2
Wheel offset0.67 in (17 mm)
Tire1
1Must not be used with snow chains.
T 125/80 R 17 99M
!Please compare the recommended tire in-
flation pressure for your vehicle with the tire in-
flation pressure on the yellow label located on
the spare wheel rim.
If the tire inflation pressure on the yellow label
on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the spare
wheel tire to the recommended tire inflation
pressure given on the yellow label on the spare
wheel rim.
iPlease note that the tire inflation pressure of
the Minispare tire differs from the tire inflation
pressure of the road tires.
Make sure the Minispare tire is inflated to
approximately 61 psi (4.2 bar).
iThe CLK 63 AMG does not have a spare
wheel. The CLK 63 AMG is equipped with
TIREFIT, see “Sealing tires with TIREFIT
(CLK 63 AMG only)” (
page 436).

470 Technical data
Electrical system
ModelCLK 350CLK 550CLK 63 AMG
Generator (alternator)14 V/150 A14 V/180 A14 V/180 A
Starter motor14 V/1.4 KW14 V/1.7 KW14 V/2.2 KW
Battery12 V/100 Ah12 V/100 Ah12 V/100 Ah
Spark plugsBosch Platin Y 7 MPP 33
NGK PLKR 6ABosch F8 DPP 332
NGK PFR 5R-11NGK T 20036N
Electrode gap0.031 in (0.80 mm)0.039 in (1.00 mm)0.039 in (1.0 mm)
Tightening torque15 - 22 lb-ft (20 - 30 Nm)18.5 - 22 lb-ft (25 - 30 Nm)14.75 - 18.5 lb-ft (20 - 25 Nm)

471 Technical data

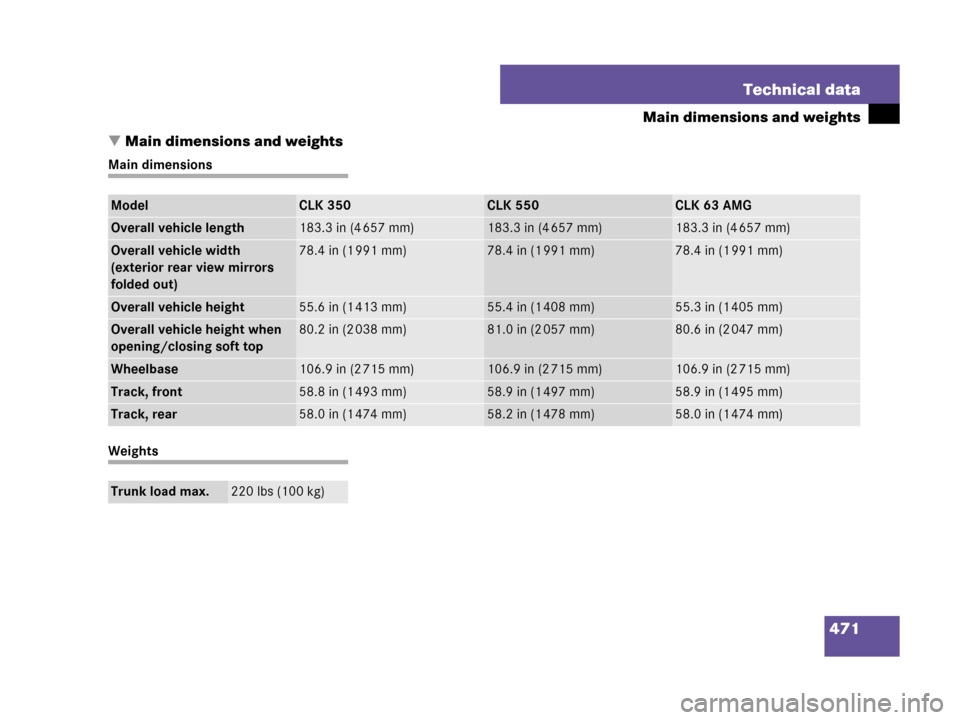

Main dimensions and weights
Main dimensions and weights
Main dimensions
Weights
ModelCLK 350CLK 550CLK 63 AMG
Overall vehicle length183.3 in (4 657 mm)183.3 in (4 657 mm)183.3 in (4 657 mm)
Overall vehicle width
(exterior rear view mirrors
folded out) 78.4 in (1 991 mm)78.4 in (1 991 mm)78.4 in (1 991 mm)
Overall vehicle height55.6 in (1 413 mm)55.4 in (1 408 mm)55.3 in (1 405 mm)
Overall vehicle height when
opening/closing soft top80.2 in (2 038 mm)81.0 in (2 057 mm)80.6 in (2 047 mm)
Wheelbase106.9 in (2 715 mm)106.9 in (2 715 mm)106.9 in (2 715 mm)
Track, front58.8 in (1 493 mm)58.9 in (1 497 mm)58.9 in (1 495 mm)
Track, rear58.0 in (1 474 mm)58.2 in (1 478 mm)58.0 in (1 474 mm)
Trunk load max.220 lbs (100 kg)
