2007 MERCEDES-BENZ CLK63AMG Owner's Manual

264 Controls in detail
Driving systems
1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume to last set speedSetting current speed
Accelerate or decelerate to the desired
speed.
Briefly lift1 or depress2 the cruise
control lever (
page 264).
The current speed is set.
Remove your foot from the accelerator
pedal.
Cruise control is activated.
The selected speed appears in the multi-
function display for approximately five sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated.
Warning!G
Cruise control brakes automatically so that
the set speed is not exceeded. The brake
pedal depresses when the cruise control en-
gages the brakes.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
- your foot could become caught.
Keep in mind that cruise control is a conve-
nience system designed to assist the driver
during vehicle operation. The driver is and
must always remain responsible for the ve-
hicle’s speed and for safe brake operation.
iOn uphill or downhill grades, cruise control
may not be able to maintain the set speed. Once
the grade eases, the set speed will be resumed.
On downhill grades, the cruise control will hold
the set speed with braking from the vehicle’s
brake system.
In addition, on longer downhill grades the auto-
matic transmission will automatically downshift.

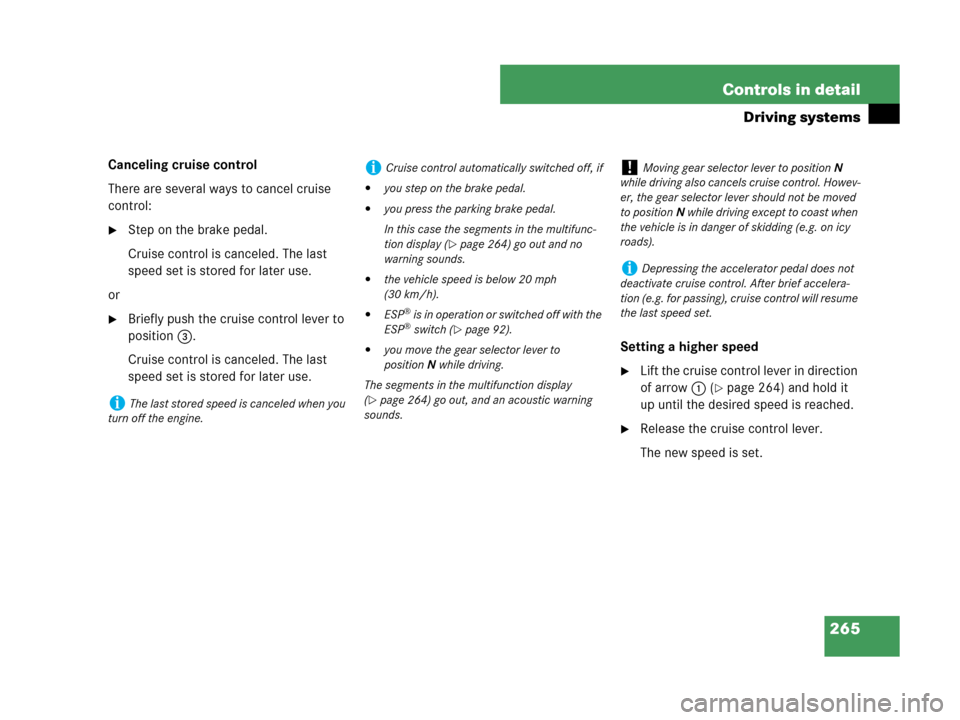

265 Controls in detail
Driving systems
Canceling cruise control
There are several ways to cancel cruise
control:
Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored for later use.
or
Briefly push the cruise control lever to
position3.
Cruise control is canceled. The last
speed set is stored for later use.Setting a higher speed
Lift the cruise control lever in direction
of arrow1 (
page 264) and hold it
up until the desired speed is reached.
Release the cruise control lever.
The new speed is set.
iThe last stored speed is canceled when you
turn off the engine.
iCruise control automatically switched off, if

you step on the brake pedal.

you press the parking brake pedal.
In this case the segments in the multifunc-
tion display (
page 264) go out and no
warning sounds.

the vehicle speed is below 20 mph
(30 km/h).

ESP® is in operation or switched off with the
ESP® switch (page 92).

you move the gear selector lever to
positionN while driving.
The segments in the multifunction display
(
page 264) go out, and an acoustic warning
sounds.
!Moving gear selector lever to positionN
while driving also cancels cruise control. Howev-
er, the gear selector lever should not be moved
to positionN while driving except to coast when
the vehicle is in danger of skidding (e.g. on icy
roads).
iDepressing the accelerator pedal does not
deactivate cruise control. After brief accelera-
tion (e.g. for passing), cruise control will resume
the last speed set.

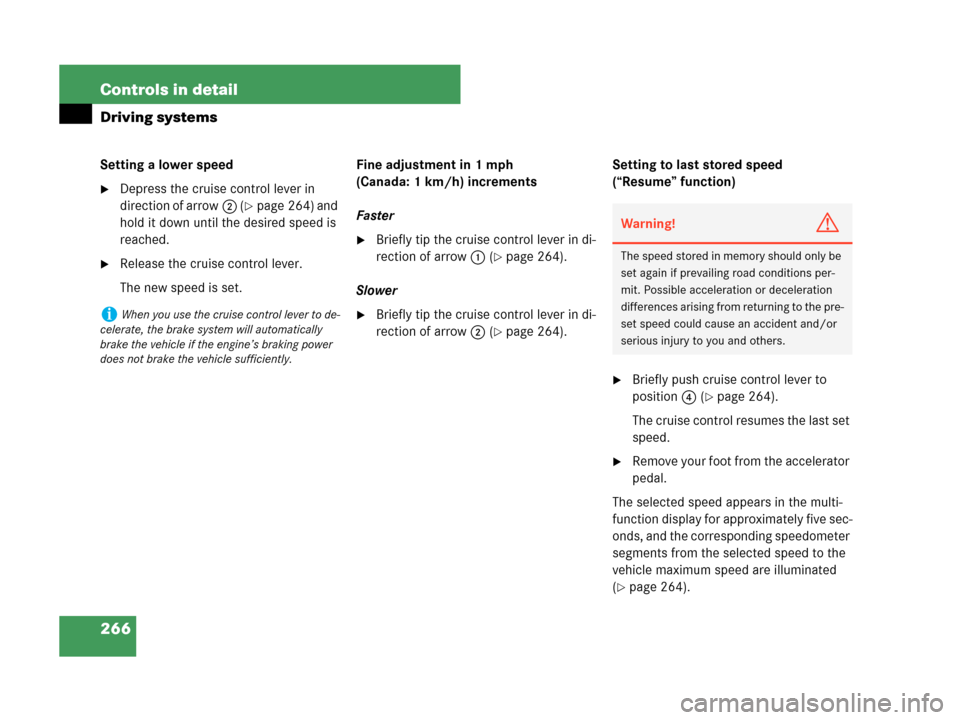

266 Controls in detail
Driving systems
Setting a lower speed
Depress the cruise control lever in
direction of arrow2 (
page 264) and
hold it down until the desired speed is
reached.
Release the cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster
Briefly tip the cruise control lever in di-
rection of arrow1 (
page 264).
Slower
Briefly tip the cruise control lever in di-
rection of arrow2 (
page 264).Setting to last stored speed
(“Resume” function)
Briefly push cruise control lever to
position4 (
page 264).
The cruise control resumes the last set
speed.
Remove your foot from the accelerator
pedal.
The selected speed appears in the multi-
function display for approximately five sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated
(
page 264).
iWhen you use the cruise control lever to de-
celerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
Warning!G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.

267 Controls in detail
Driving systems
Parktronic system (Parking assist)*,
CLK 63 AMG (USA), Canada all vehicles
The Parktronic system is an electronic aid
designed to assist the driver during park-
ing maneuvers. It visually and audibly indi-
cates the relative distance between the
vehicle and an obstacle.
The Parktronic system is automatically ac-
tivated when you switch on the ignition
(
page 36) and placed the gear selector
lever in positionD,R,orN.The Parktronic system deactivates at
speeds over approximately 11 mph
(18 km/h). At lower speeds the Parktronic
system turns on again.
The Parktronic system also deactivates
when you place the gear selector lever in
positionP.
The Parktronic system monitors the sur-
roundings of your vehicle with six sensors
in the front bumper and four sensors in the
rear bumper.
1Sensors in the front bumper
Warning!G
Parktronic is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always rests with the driver.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts or road
curbs). Such objects may not be detected by
the system and can damage the vehicle.
The operational function of the Parktronic
system can be affected by dirty sensors, es-
pecially at times of snow and ice, see
“Cleaning the Parktronic system* sensors
(CLK 63 AMG (USA), Canada all vehicles)”
(
page 361).
Interference caused by other ultrasonic sig-
nals (e.g. working jackhammers, car wash,
or the air brakes of trucks) can cause the
system to send erratic indications, and
should be taken into consideration.
Warning!G
Make sure no persons or animals are in the
area in which you are maneuvering. You
could otherwise injure them.

268 Controls in detail
Driving systems
Range of the sensors
To function properly, the sensors must be
free of dirt, ice, snow and slush. Clean the
sensors regularly, being careful not to
scratch or damage the sensors, see
“Cleaning the Parktronic system* sensors
(CLK 63 AMG (USA), Canada all vehicles)”
(
page 361).
Front sensors
Rear sensorsMinimum distance
If the system detects an obstacle in this
range, all the distance warning segments
illuminate and you hear a warning signal. If
the obstacle is closer than the minimum
distance, the actual distance may no long-
er be indicated by the system.
Centerapprox. 40 in (100 cm)
Cornersapprox. 24 in (60 cm)
Centerapprox. 48 in (120 cm)
Cornersapprox. 32 in (80 cm)
!During parking maneuvers, pay special at-
tention to objects located above or below the
height of the sensors (e.g. planters or trailer
hitches). The Parktronic system will not detect
such objects at close range and damage to your
vehicle or the object may result.
Ultrasonic signals from outside sources (e.g.
truck air brakes, car wash, or jackhammers) may
impair the operation of the Parktronic system.
Centerapprox. 8 in (20 cm)
Cornersapprox. 6 in (15 cm)

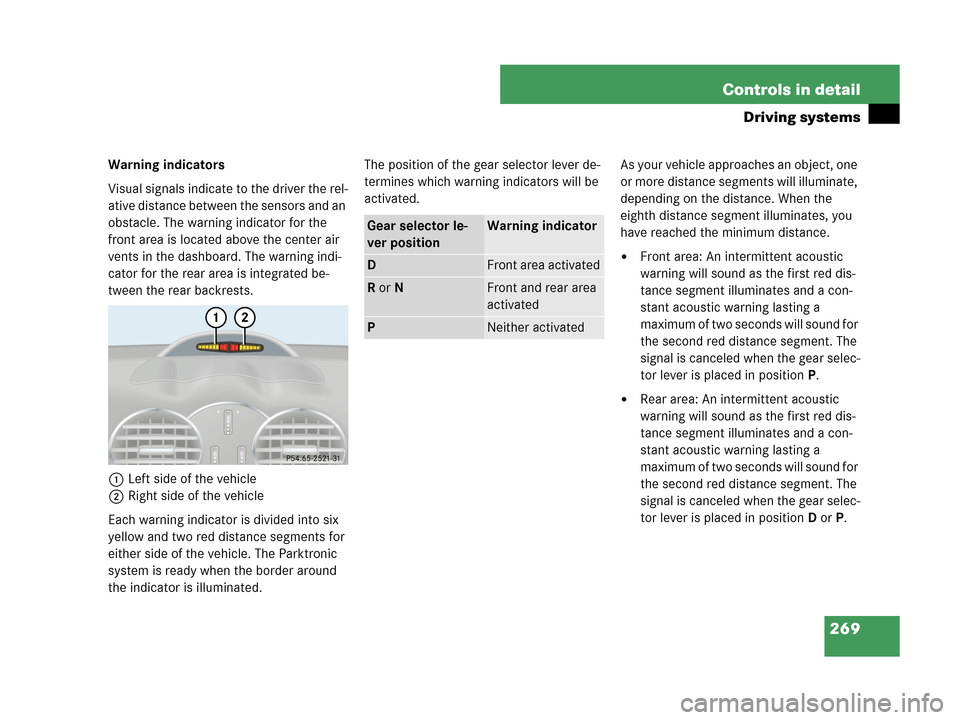

269 Controls in detail
Driving systems
Warning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle. The warning indicator for the
front area is located above the center air
vents in the dashboard. The warning indi-
cator for the rear area is integrated be-
tween the rear backrests.
1Left side of the vehicle
2Right side of the vehicle
Each warning indicator is divided into six
yellow and two red distance segments for
either side of the vehicle. The Parktronic
system is ready when the border around
the indicator is illuminated.The position of the gear selector lever de-
termines which warning indicators will be
activated.As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the
eighth distance segment illuminates, you
have reached the minimum distance.

Front area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of two seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in positionP.

Rear area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of two seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in position DorP.
Gear selector le-
ver positionWarning indicator
DFront area activated
R or NFront and rear area
activated
PNeither activated

270 Controls in detail
Driving systems
Switching the Parktronic system
on/off
The Parktronic system can be switched off
manually.
The Parktronic switch is located in the up-
per part of the center console.
1Parktronic switch
2Indicator lamp
Switching off the Parktronic system
Press Parktronic switch1.
Indicator lamp2 comes on.Switching on the Parktronic system
Press Parktronic switch1 again.
Indicator lamp2 goes out.
Parktronic system malfunction
If only the red distance segments illumi-
nate and a acoustic warning sounds,
there is a malfunction in the Parktronic
system. The Parktronic system will auto-
matically switch off after 20 seconds and
the indicator lamp in the Parktronic switch
comes on.
Have the Parktronic system checked
by an authorized Mercedes-Benz
Center as soon as possible.If only the red distance segments illumi-
nate and no acoustic warning sounds, the
Parktronic system sensors are dirty or
there is an interference from other radio or
ultrasonic signals. The Parktronic system
will automatically switch off after 20 sec-
onds and the indicator lamp in the Park-
tronic switch comes on.
Switch off the ignition (page 36).
Clean the Parktronic system sensors
(
page 361).
Switch on the ignition.
or
Check the Parktronic system operation
at another location to rule out interfer-
ence from outside radio or ultrasonic
signals.
iThe Parktronic system is automatically
switched on when the ignition is switched on
(
page 36).

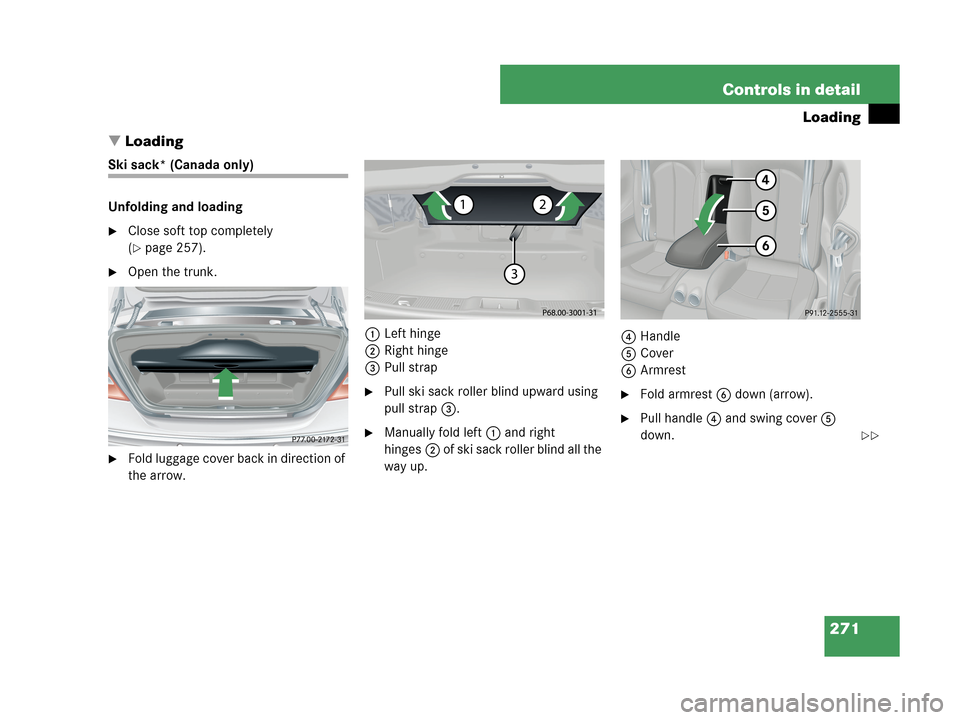

271 Controls in detail
Loading
Loading
Ski sack* (Canada only)
Unfolding and loading
Close soft top completely
(
page 257).
Open the trunk.
Fold luggage cover back in direction of
the arrow.1Left hinge
2Right hinge
3Pull strap
Pull ski sack roller blind upward using
pull strap3.
Manually fold left1 and right
hinges2 of ski sack roller blind all the
way up.4Handle
5Cover
6Armrest
Fold armrest6 down (arrow).
Pull handle4 and swing cover5
down.
