2007 MERCEDES-BENZ CLK63AMG Owner's Manual

248 Controls in detail
Audio system
Press OK soft key or sbutton for
dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency.
Placing a “911” emergency call using
audio head unit with the phone un-
locked
Press hbutton to switch to tele-
phone operation.
Enter 911 using the number keypad on
the audio head unit.
Press sbutton for dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency. TDMA/CDMA network phones
Placing a “911” emergency call using
audio head unit with the phone locked
Press hbutton to switch to tele-
phone operation.
CODE? appears in the audio display.
Enter 911 using the number keypad on
the audio head unit.
Press OK soft key or sbutton for di-
aling to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency. Placing a “911” emergency call using
audio head unit with the phone un-
locked
Press hbutton to switch to tele-
phone operation.
Enter 911 using the number keypad on
the audio head unit.
Press sbutton for dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency.
iIf no SIM card is in the mobile phone, NO
SERVICE
appears in the audio display. In that
case, you only can make an emergency call on
the mobile phone itself, without the use of the
head unit.


249 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows are opened and closed
electrically. The switches for all the side
windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
side trim panels.
1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 86)
Warning!G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
The closing of the rear side windows can be
immediately halted by releasing the switch.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If a door window encounters an
obstruction that blocks its path in a circum-
stance where you pulled the switch past the
resistance point and released it to close the
window, the automatic reversal function will
stop the window and open it slightly.
If a door window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button ‹on the SmartKey, by pressing
and holding the lock button (vehicles with
KEYLESS-GO*) on an outside door handle,
by operating the soft top switch, or by press-
ing and holding button, ore on the
climate control panel, the automatic rever-
sal function will not operate.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.

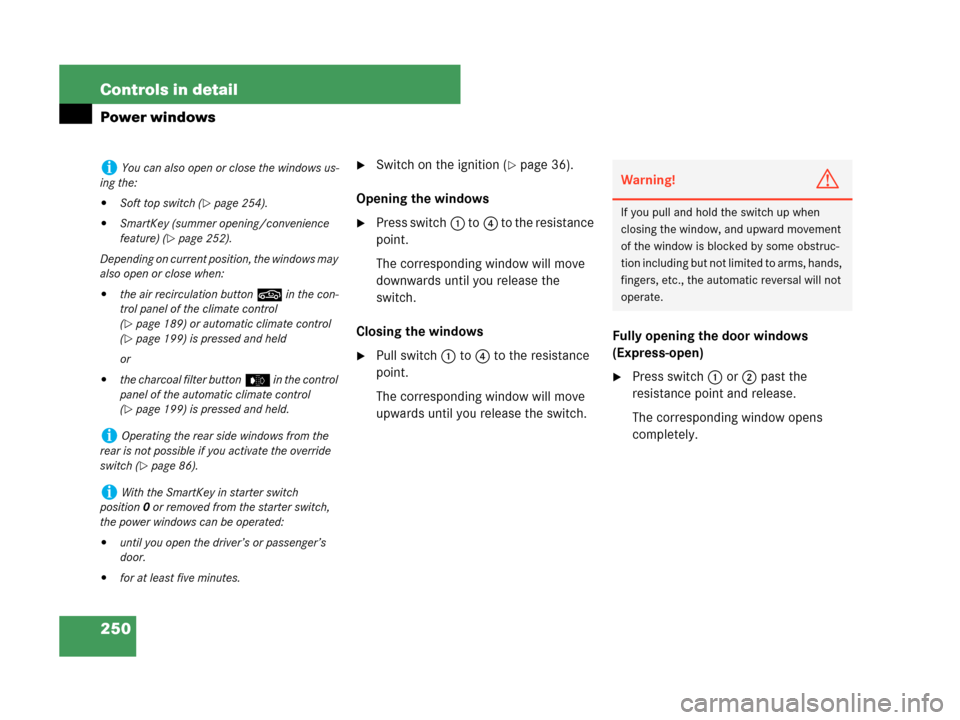

250 Controls in detail
Power windows
Switch on the ignition (page 36).
Opening the windows
Press switch1 to4 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows
Pull switch1 to4 to the resistance
point.
The corresponding window will move
upwards until you release the switch.Fully opening the door windows
(Express-open)
Press switch1 or2 past the
resistance point and release.
The corresponding window opens
completely.
iYou can also open or close the windows us-
ing the:

Soft top switch (page 254).

SmartKey (summer opening/convenience
feature) (
page 252).
Depending on current position, the windows may
also open or close when:

the air recirculation button, in the con-
trol panel of the climate control
(
page 189) or automatic climate control
(
page 199) is pressed and held
or

the charcoal filter buttone in the control
panel of the automatic climate control
(
page 199) is pressed and held.
iOperating the rear side windows from the
rear is not possible if you activate the override
switch (
page 86).
iWith the SmartKey in starter switch
position0 or removed from the starter switch,
the power windows can be operated:

until you open the driver’s or passenger’s
door.

for at least five minutes.
Warning!G
If you pull and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.

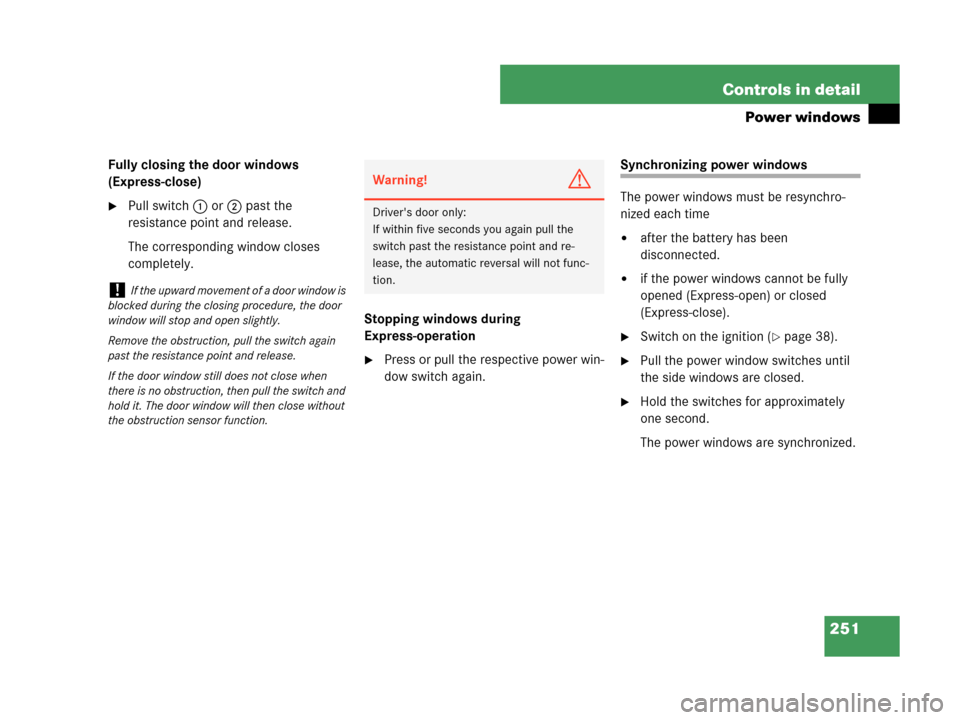

251 Controls in detail
Power windows
Fully closing the door windows
(Express-close)
Pull switch1 or2 past the
resistance point and release.
The corresponding window closes
completely.
Stopping windows during
Express-operation
Press or pull the respective power win-
dow switch again.
Synchronizing power windows
The power windows must be resynchro-
nized each time

after the battery has been
disconnected.

if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).
Switch on the ignition (page 38).
Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
one second.
The power windows are synchronized.
!If the upward movement of a door window is
blocked during the closing procedure, the door
window will stop and open slightly.
Remove the obstruction, pull the switch again
past the resistance point and release.
If the door window still does not close when
there is no obstruction, then pull the switch and
hold it. The door window will then close without
the obstruction sensor function.
Warning!G
Driver's door only:
If within five seconds you again pull the
switch past the resistance point and re-
lease, the automatic reversal will not func-
tion.

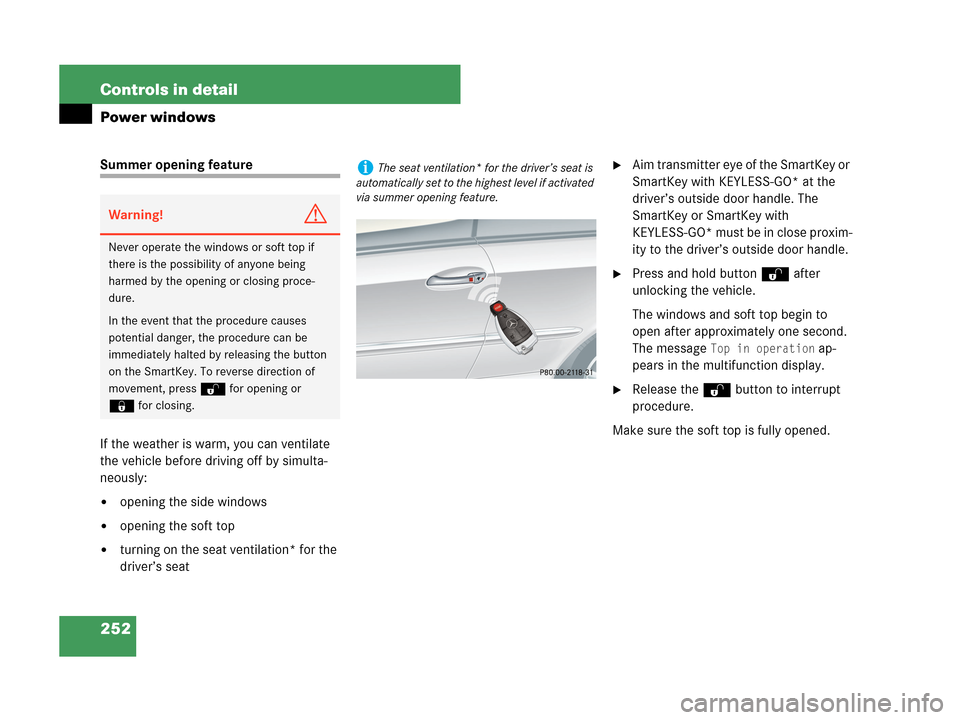

252 Controls in detail
Power windows
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows

opening the soft top

turning on the seat ventilation* for the
driver’s seat
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s outside door handle.
Press and hold button Πafter
unlocking the vehicle.
The windows and soft top begin to
open after approximately one second.
The message
Top in operation ap-
pears in the multifunction display.
Release the Πbutton to interrupt
procedure.
Make sure the soft top is fully opened.
Warning!G
Never operate the windows or soft top if
there is the possibility of anyone being
harmed by the opening or closing proce-
dure.
In the event that the procedure causes
potential danger, the procedure can be
immediately halted by releasing the button
on the SmartKey. To reverse direction of
movement, press Πfor opening or
‹for closing.
iThe seat ventilation* for the driver’s seat is
automatically set to the highest level if activated
via summer opening feature.

253 Controls in detail
Power windows
Convenience closing feature
When you lock the vehicle, you can close
the windows and soft top simultaneously.
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle
(
page 252). The SmartKey or
SmartKey with KEYLESS-GO* must be
in close proximity to the driver’s out-
side door handle.
Press and hold button ‹until the
windows and soft top are completely
closed.
The windows and soft top begin to
close after approximately one second.
The message
Top in operation ap-
pears in the multifunction display.
Release button ‹to interrupt pro-
cedure.Vehicles with KEYLESS-GO*:
Press and hold the lock button on an
outside door handle (
page 62) until
the side windows are completely
closed.
Release the lock button on the outside
door handle to interrupt procedure.
Make sure all side windows and the
soft top are properly closed before leaving
the vehicle.
Warning!G
When closing the side windows and the
soft top, make sure that there is no danger
of anyone being harmed by the closing pro-
cedure.
The windows will not automatically re-open
if blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:

Release button ‹to stop the closing
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button ‹.
Vehicles with KEYLESS-GO*:

Release the lock button (page 62) on
exterior door handle to stop the closing
procedure.

Immediately pull on the same outside
door handle and hold firmly. The side
windows and the soft top will open for as
long as the door handle is held but the
door is not opened.

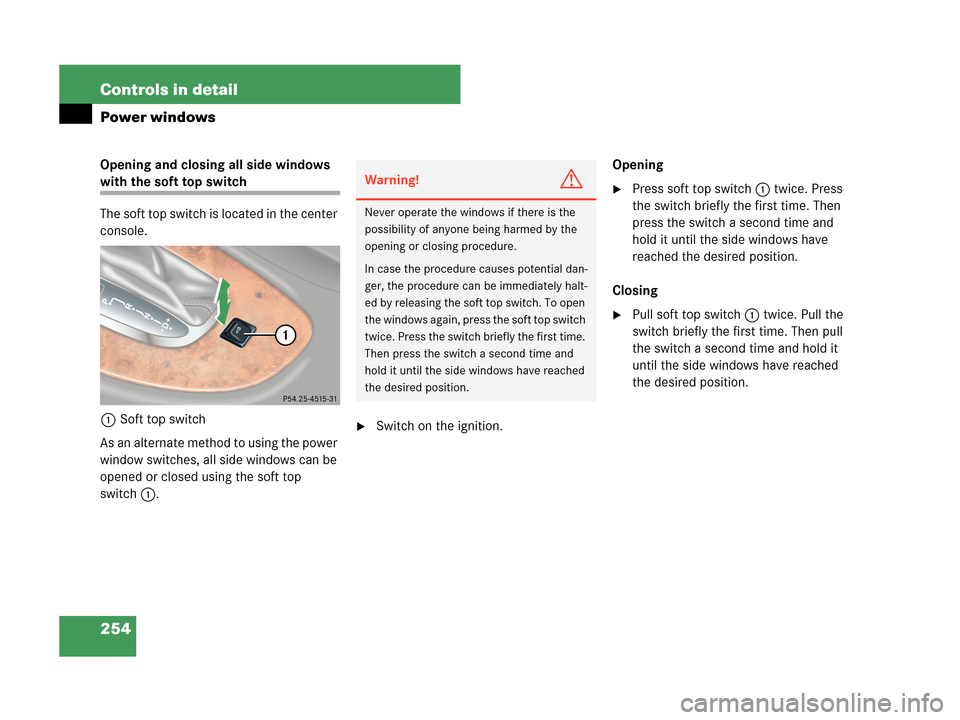

254 Controls in detail
Power windows
Opening and closing all side windows
with the soft top switch
The soft top switch is located in the center
console.
1Soft top switch
As an alternate method to using the power
window switches, all side windows can be
opened or closed using the soft top
switch1.
Switch on the ignition.Opening
Press soft top switch1 twice. Press
the switch briefly the first time. Then
press the switch a second time and
hold it until the side windows have
reached the desired position.
Closing
Pull soft top switch1 twice. Pull the
switch briefly the first time. Then pull
the switch a second time and hold it
until the side windows have reached
the desired position.
Warning!G
Never operate the windows if there is the
possibility of anyone being harmed by the
opening or closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the soft top switch. To open
the windows again, press the soft top switch
twice. Press the switch briefly the first time.
Then press the switch a second time and
hold it until the side windows have reached
the desired position.

255 Controls in detail
Soft top
Soft top
Opening and closing the soft top
For safety reasons, the soft top can only be
opened and closed when the vehicle is
standing still.
Warning!G
Before operating the switch for the soft top,
make sure no persons can be injured by the
moving parts (roll bars, soft top frame, and
soft top compartment cover).
Hands must never be placed near the roll
bar, soft top frame, upper windshield area,
shelf behind roll bar, or soft top storage
compartment while the soft top is being
raised or lowered. Serious personal injury
may occur.
If potential danger exists, release the soft
top switch. This immediately interrupts the
raising or lowering procedure. You then can
operate the soft top switch to raise or lower
the soft top away from the danger zone.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
!Never sit or place heavy objects on the rear
shelf. Doing so could cause damage to the soft
top and the rear shelf.
!When opening and closing the soft top,
make sure:

there is sufficient clearance for the soft top
to move up

the luggage cover is engaged in place
(
page 260)

the trunk is only loaded to the height of the
luggage cover

the luggage/cargo does not push the closed
luggage cover up

the trunk lid is closed

nothing is placed on the soft top compart-
ment cover

the outside temperature is above +5°F
(-15°C)
Otherwise the soft top and other parts of the ve-
hicle could be damaged.
