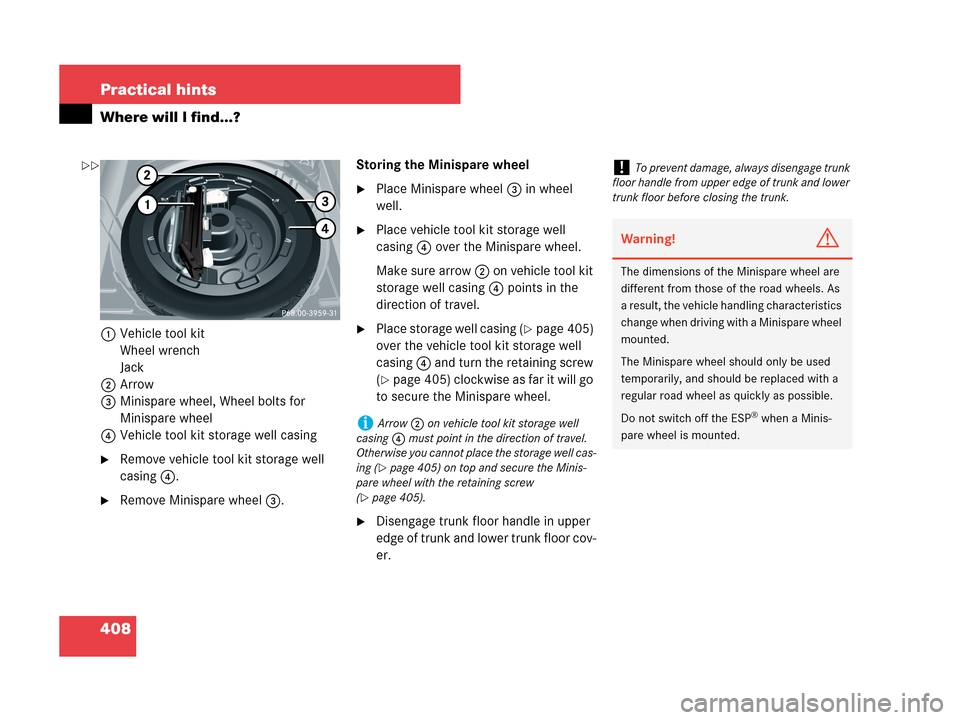

2007 MERCEDES-BENZ CLK63AMG Owner's Manual

408 Practical hints
Where will I find...?
1Vehicle tool kit
Wheel wrench
Jack
2Arrow
3Minispare wheel, Wheel bolts for
Minispare wheel
4Vehicle tool kit storage well casing
Remove vehicle tool kit storage well
casing4.
Remove Minispare wheel3.Storing the Minispare wheel
Place Minispare wheel3 in wheel
well.
Place vehicle tool kit storage well
casing4 over the Minispare wheel.
Make sure arrow 2 on vehicle tool kit
storage well casing4 points in the
direction of travel.
Place storage well casing (page 405)
over the vehicle tool kit storage well
casing 4 and turn the retaining screw
(
page 405) clockwise as far it will go
to secure the Minispare wheel.
Disengage trunk floor handle in upper
edge of trunk and lower trunk floor cov-
er.
iArrow2 on vehicle tool kit storage well
casing4 must point in the direction of travel.
Otherwise you cannot place the storage well cas-
ing (
page 405) on top and secure the Minis-
pare wheel with the retaining screw
(
page 405).
!To prevent damage, always disengage trunk
floor handle from upper edge of trunk and lower
trunk floor before closing the trunk.
Warning!G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The Minispare wheel should only be used
temporarily, and should be replaced with a
regular road wheel as quickly as possible.
Do not switch off the ESP
® when a Minis-
pare wheel is mounted.


409 Practical hints
Where will I find...?
In case of a flat tire, you may temporarily
use the Minispare wheel when observing
the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).

Drive to the nearest tire repair facility
to have the flat tire repaired or
replaced as appropriate.

Do not operate vehicle with more than
one Minispare wheel mounted.
For more information, see “Rims and tires”
(
page 466).
Spare wheel bolts
The spare wheel bolts are fixed at the
Minispare wheel.
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel
(located in trunk with spare wheel)!Wheel bolts2 must be used when mount-
ing the Minispare wheel. The use of any wheel
bolts other than wheel bolts2 for the Minispare
wheel will physically damage the vehicle’s
brakes.
Warning!G
Make sure to use the original length wheel
bolts when remounting the original wheel
after it has been repaired.

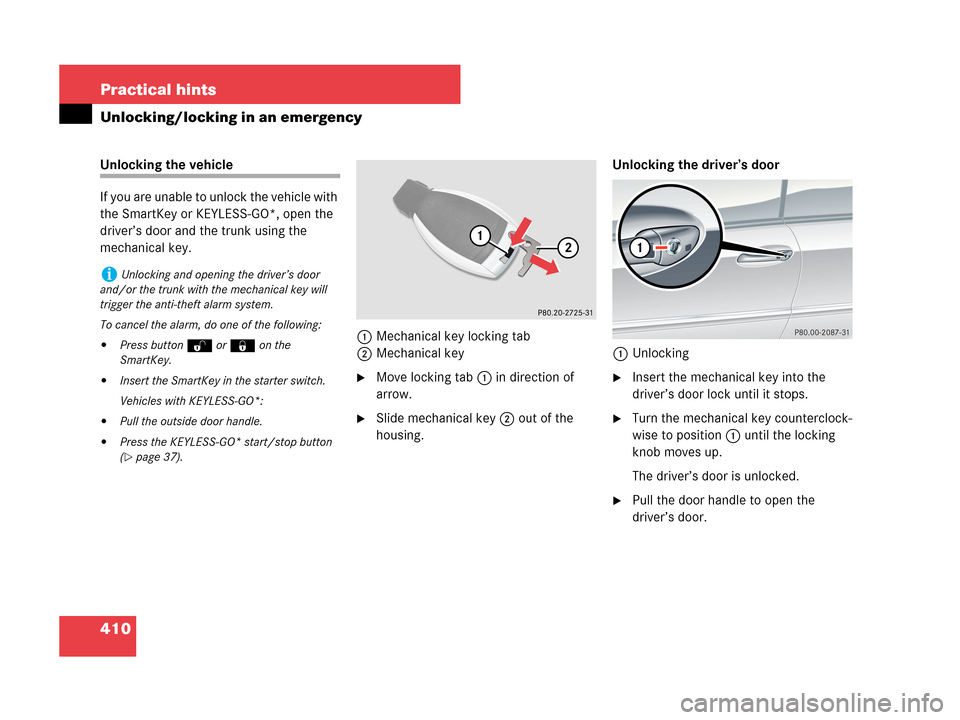

410 Practical hints
Unlocking/locking in an emergency
Unlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey or KEYLESS-GO*, open the
driver’s door and the trunk using the
mechanical key.
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.
Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking
Insert the mechanical key into the
driver’s door lock until it stops.
Turn the mechanical key counterclock-
wise to position1 until the locking
knob moves up.
The driver’s door is unlocked.
Pull the door handle to open the
driver’s door.
iUnlocking and opening the driver’s door
and/or the trunk with the mechanical key will
trigger the anti-theft alarm system.
To cancel the alarm, do one of the following:

Press button Œ or ‹on the
SmartKey.

Insert the SmartKey in the starter switch.
Vehicles with KEYLESS-GO*:

Pull the outside door handle.

Press the KEYLESS-GO* start/stop button
(
page 37).

411 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
A minimum height clearance of 5.41 ft
(1.65 m) is required to open the trunk lid.
The trunk lid lock is located next to the
handle above the rear license plate recess.
1Unlocking in an emergency
2Handle
Insert the mechanical key into the
trunk lid lock until it stops.
Turn the mechanical key
counterclockwise to position1 and
hold it in this position.
Pull the trunk lid handle2 and lift the
trunk lid.
The trunk opens.
Turn the mechanical key back and
remove it from the trunk lid lock.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey or SmartKey with
KEYLESS-GO*, do the following:
Close the passenger door and the
trunk.
Press the central locking switch in the
center console (
page 118).
Check to see whether the locking knob
on the passenger door has moved
down.
If necessary, push it down manually.
Remove the mechanical key out of the
SmartKey (
page 410).
Check whether the trunk is locked.
If necessary, lock the trunk with the
mechanical key (
page 117).
Except for the driver’s door, the vehicle
should now be locked.
!The trunk lid swings open upwards
automatically. Always make sure there is suffi-
cient overhead clearance.

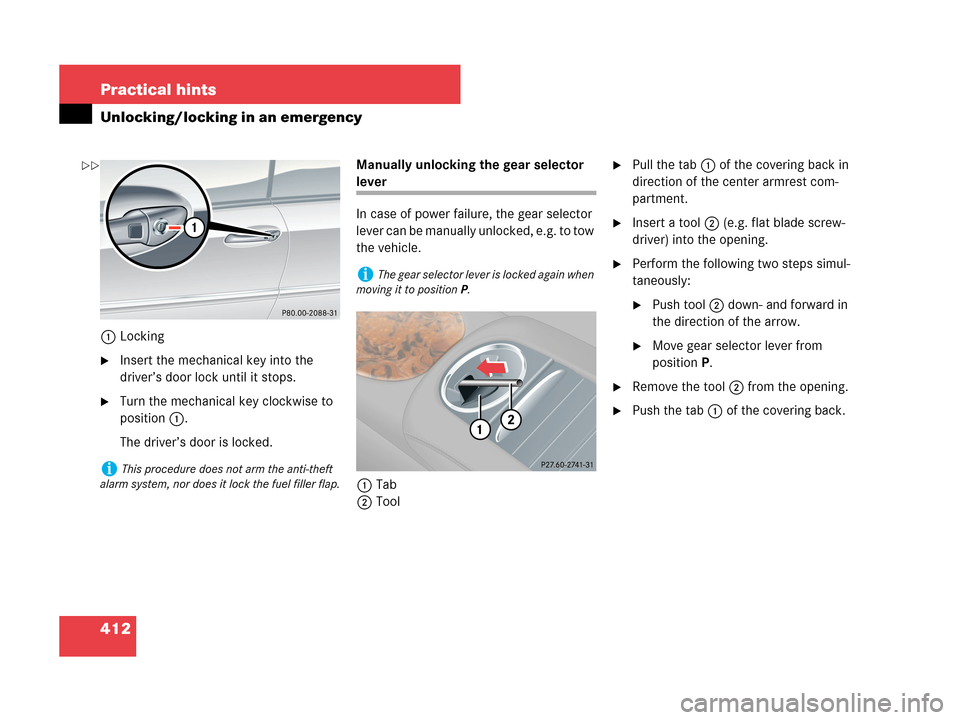

412 Practical hints
Unlocking/locking in an emergency
1Locking
Insert the mechanical key into the
driver’s door lock until it stops.
Turn the mechanical key clockwise to
position1.
The driver’s door is locked.Manually unlocking the gear selector
lever
In case of power failure, the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
1Tab
2Tool
Pull the tab1 of the covering back in
direction of the center armrest com-
partment.
Insert a tool2 (e.g. flat blade screw-
driver) into the opening.
Perform the following two steps simul-
taneously:
Push tool2 down- and forward in
the direction of the arrow.
Move gear selector lever from
positionP.
Remove the tool2 from the opening.
Push the tab1 of the covering back.
iThis procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.
iThe gear selector lever is locked again when
moving it to positionP.

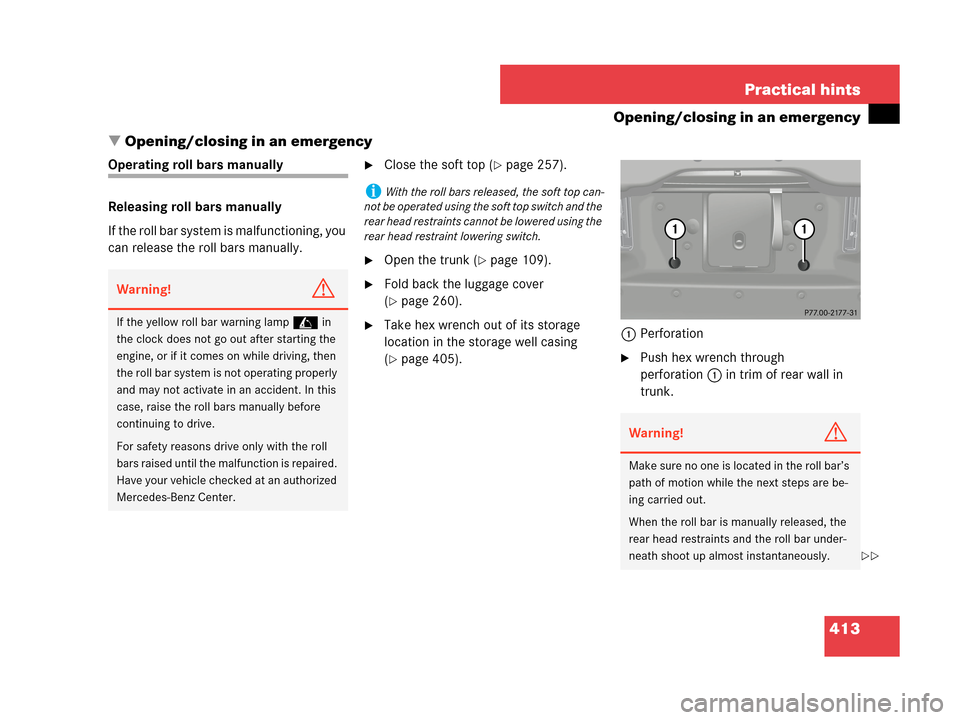

413 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Operating roll bars manually
Releasing roll bars manually
If the roll bar system is malfunctioning, you
can release the roll bars manually.Close the soft top (page 257).
Open the trunk (page 109).
Fold back the luggage cover
(
page 260).
Take hex wrench out of its storage
location in the storage well casing
(
page 405).1PerforationPush hex wrench through
perforation1 in trim of rear wall in
trunk.
Warning!G
If the yellow roll bar warning lamp in
the clock does not go out after starting the
engine, or if it comes on while driving, then
the roll bar system is not operating properly
and may not activate in an accident. In this
case, raise the roll bars manually before
continuing to drive.
For safety reasons drive only with the roll
bars raised until the malfunction is repaired.
Have your vehicle checked at an authorized
Mercedes-Benz Center.
iWith the roll bars released, the soft top can-
not be operated using the soft top switch and the
rear head restraints cannot be lowered using the
rear head restraint lowering switch.
Warning!G
Make sure no one is located in the roll bar’s
path of motion while the next steps are be-
ing carried out.
When the roll bar is manually released, the
rear head restraints and the roll bar under-
neath shoot up almost instantaneously.

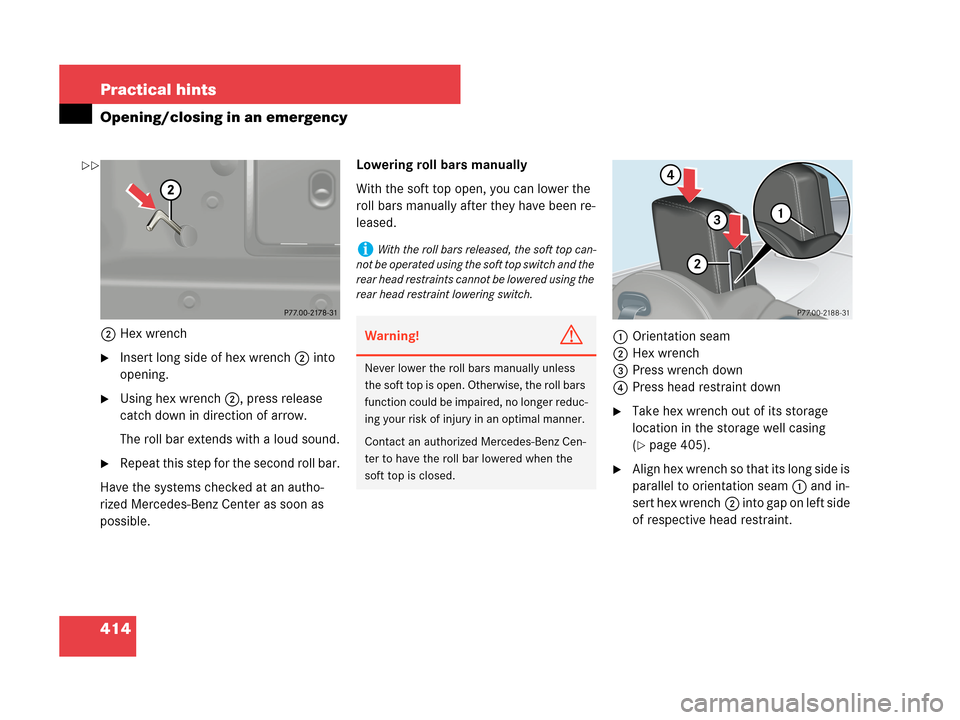

414 Practical hints
Opening/closing in an emergency
2Hex wrench
Insert long side of hex wrench2 into
opening.
Using hex wrench 2, press release
catch down in direction of arrow.
The roll bar extends with a loud sound.
Repeat this step for the second roll bar.
Have the systems checked at an autho-
rized Mercedes-Benz Center as soon as
possible.Lowering roll bars manually
With the soft top open, you can lower the
roll bars manually after they have been re-
leased.
1Orientation seam
2Hex wrench
3Press wrench down
4Press head restraint down
Take hex wrench out of its storage
location in the storage well casing
(
page 405).
Align hex wrench so that its long side is
parallel to orientation seam1 and in-
sert hex wrench2 into gap on left side
of respective head restraint.
iWith the roll bars released, the soft top can-
not be operated using the soft top switch and the
rear head restraints cannot be lowered using the
rear head restraint lowering switch.
Warning!G
Never lower the roll bars manually unless
the soft top is open. Otherwise, the roll bars
function could be impaired, no longer reduc-
ing your risk of injury in an optimal manner.
Contact an authorized Mercedes-Benz Cen-
ter to have the roll bar lowered when the
soft top is closed.

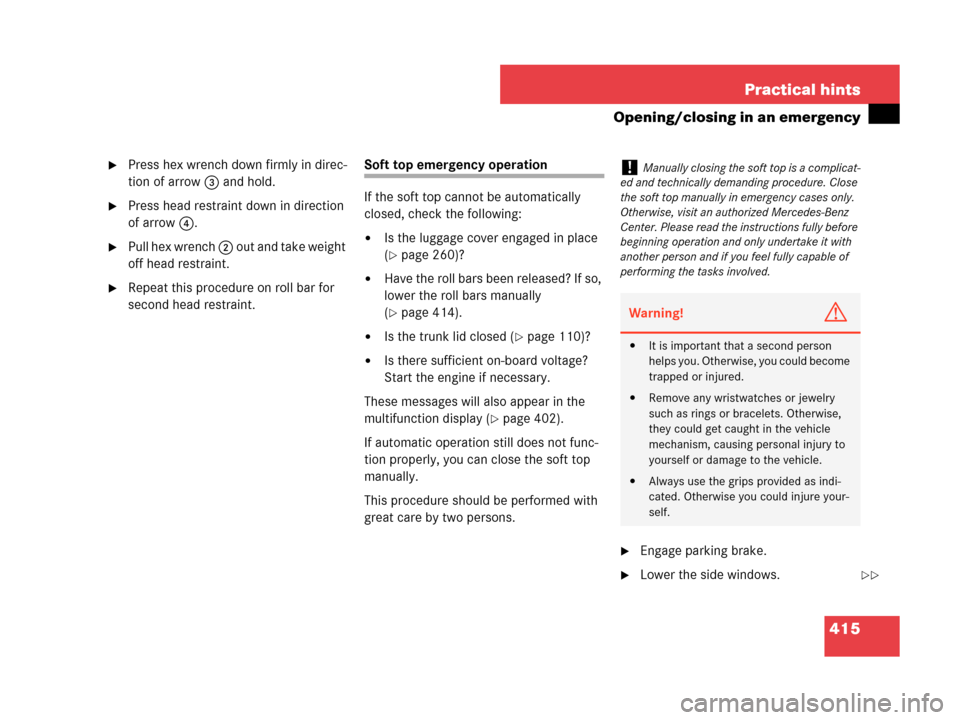

415 Practical hints
Opening/closing in an emergency
Press hex wrench down firmly in direc-
tion of arrow3 and hold.
Press head restraint down in direction
of arrow4.
Pull hex wrench 2 out and take weight
off head restraint.
Repeat this procedure on roll bar for
second head restraint.
Soft top emergency operation
If the soft top cannot be automatically
closed, check the following:

Is the luggage cover engaged in place
(
page 260)?

Have the roll bars been released? If so,
lower the roll bars manually
(
page 414).

Is the trunk lid closed (page 110)?

Is there sufficient on-board voltage?
Start the engine if necessary.
These messages will also appear in the
multifunction display (
page 402).
If automatic operation still does not func-
tion properly, you can close the soft top
manually.
This procedure should be performed with
great care by two persons.
Engage parking brake.
Lower the side windows.
!Manually closing the soft top is a complicat-
ed and technically demanding procedure. Close
the soft top manually in emergency cases only.
Otherwise, visit an authorized Mercedes-Benz
Center. Please read the instructions fully before
beginning operation and only undertake it with
another person and if you feel fully capable of
performing the tasks involved.
Warning!G

It is important that a second person
helps you. Otherwise, you could become
trapped or injured.

Remove any wristwatches or jewelry
such as rings or bracelets. Otherwise,
they could get caught in the vehicle
mechanism, causing personal injury to
yourself or damage to the vehicle.

Always use the grips provided as indi-
cated. Otherwise you could injure your-
self.
