Contents
Safety and Security........................... 63
Occupant safety................................... 64
Air bags .......................................... 65
Occupant Classification System ..... 71
Seat belts ....................................... 75
Active head restraints .................... 80
Roll bars ......................................... 81
Children in the vehicle .................... 82
Blocking of rear
side window operation ................... 86
Panic alarm .......................................... 87
Activating ....................................... 87
Deactivating ................................... 87
Driving safety systems ......................... 88
ABS ................................................ 88
BAS ................................................ 90
ESP
®............................................... 90
Anti-theft systems................................ 95
Immobilizer..................................... 95
Anti-theft alarm system .................. 95
Controls in detail............................... 97
Locking and unlocking ......................... 98
SmartKey ....................................... 98
SmartKey with KEYLESS-GO* ...... 101
Checking the batteries in the
SmartKey or
SmartKey with KEYLESS-GO* ...... 107
Loss of the
SmartKey or
SmartKey with KEYLESS-GO* ...... 107
Opening the doors
from the inside ............................. 108
Opening the trunk ........................ 109
Closing the trunk.......................... 110
Trunk emergency release ............. 116
Valet locking ................................ 117
Automatic central locking ............ 117
Locking and unlocking
from the inside ............................. 118
Seats ................................................. 119
Front seat active head restraints . 119
Rear seat head restraints ............. 119
Multicontour seat* ....................... 121
Seat heating* ............................... 122
Seat ventilation* .......................... 123Memory function ............................... 124
Storing positions into memory ..... 125
Recalling positions from memory. 125
Lighting ............................................. 126
Exterior lamp switch .................... 126
Combination switch ..................... 130
Corner-illuminating front
fog lamps* (With Bi-Xenon*
headlamps only)........................... 131
Hazard warning flasher ................ 133
Interior lighting ............................ 134
Door entry lamps ......................... 135
Trunk lamp ................................... 135
Instrument cluster ............................. 136
Adjusting
instrument cluster illumination .... 136
Coolant temperature indicator ..... 137
Resetting trip odometer ............... 137
Tachometer.................................. 138
Clock............................................ 138
Outside temperature indicator ..... 138
Control system .................................. 139
Multifunction display.................... 139
Multifunction steering wheel........ 140
Menus .......................................... 142
Standard display menu ................ 145

61 Getting started
Parking and locking
Releasing seat belts
Press the seat belt release button
(
page 48).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
LockingExit the vehicle, take the SmartKey or
the SmartKey with KEYLESS-GO* with
you, and close all doors and the trunk
lid.
!M a k e s u r e t h e s e a t b e l t r e t r a c t s f u l l y s o t h a t
the seat belt and/or latch plate cannot get
caught or pinched in the door or in the seat
mechanism. This can damage the seat belt and
impair the effectiveness of the seat belt, and/or
cause damage to the door and/or door trim pan-
el. Such damage is not covered by the
Mercedes-Benz Limit Warranty.
Damaged seat belts must be replaced. Contact
an authorized Mercedes-Benz Center.
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
iIf you hear a warning signal you have
forgotten to switch off the headlamps before
opening the driver’s door.
In addition the message
Turn off lamps
appears in the multifunction display. Vehicles
with KEYLESS-GO*, this message is only dis-
played for approximately 1 second. It is then
overwritten by the message,
Please do not
forget key
.
Switch off the headlamps.
iOpening a door causes the windows on that
side of the car to open slightly. They will return to
the up position when the door is closed.

82 Safety and Security
Occupant safety
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:
Secure the child using an infant or child
restraint appropriate to the age and
size of the child.
Make sure that the infant or child is
properly secured at all times while the
vehicle is in motion.Infant and child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child
restraint instructions for mounting. Then
pull the shoulder belt out completely and
let it retract. During seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual
manner.
Warning!G
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system. The children could

injure themselves on parts of the vehicle

be seriously or fatally injured through
excessive exposure to extreme heat or
cold
If children open a door, they could

injure other persons

get out of the car and injure themselves
or be injured by oncoming traffic
Do not expose the child restraint system to
direct sunlight. The child restraint system’s
metal parts, for example, could become very
hot, and the child could be burned on these
parts.
Do not carry heavy or hard objects in the
passenger compartment or trunk unless
they are firmly secured in place. For more in-
formation, see “Loading” (
page 271), and
see “Useful features” (
page 276) in the
“Controls in detail” chapter.
Unsecured or improperly positioned cargo
increases a child’s risk of injury in the event
of

strong braking maneuvers

sudden changes of direction

an accident

95 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*
Turn off the engine by means of the
start/stop button (
page 37) on the
gear selector lever.
Open the driver’s door.
Deactivating
With the SmartKey
Insert the SmartKey in the starter
switch.With KEYLESS-GO*
Switch on the ignition (page 38).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door

the trunk

the hood.
The alarm will stay on even if the activating
element (e.g. a door) is immediately
closed.The alarm system will also be triggered
when

the vehicle is opened with the
mechanical key.

someone opens a door from the inside.

someone opens the trunk with the
emergency release button.
iStarting the engine will also deactivate the
immobilizer.
In case the engine cannot be started (yet the ve-
hicle’s battery is charged), the system is not op-
erational. Contact an authorized Mercedes-Benz
Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).
iIf the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 287) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.

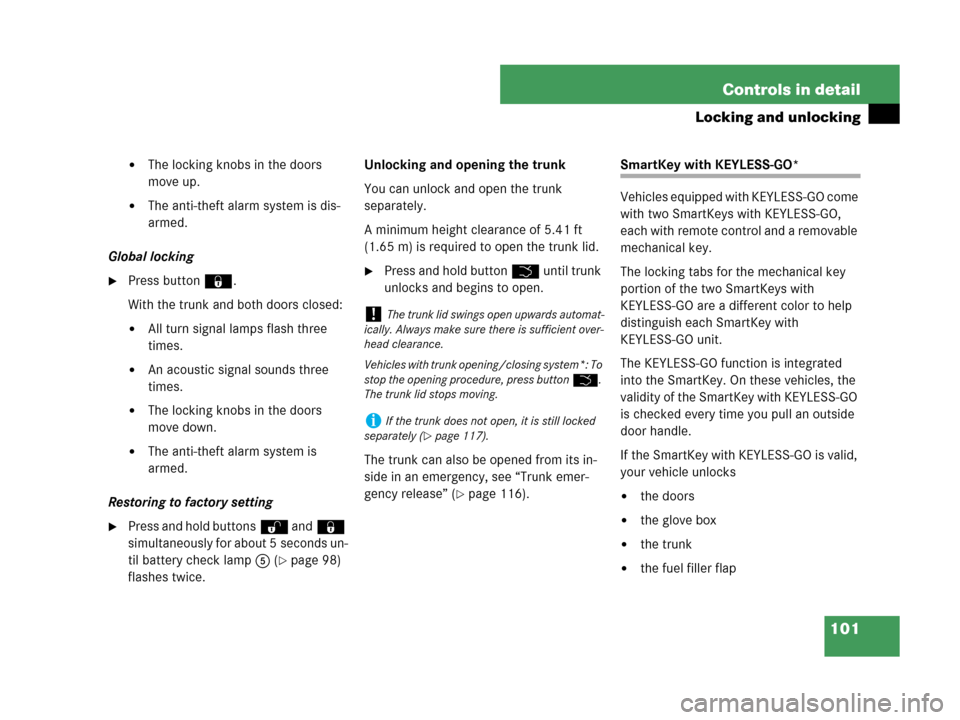

101 Controls in detail
Locking and unlocking

The locking knobs in the doors
move up.

The anti-theft alarm system is dis-
armed.
Global locking
Press button‹.
With the trunk and both doors closed:

All turn signal lamps flash three
times.

An acoustic signal sounds three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed.
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 98)
flashes twice.Unlocking and opening the trunk
You can unlock and open the trunk
separately.
A minimum height clearance of 5.41 ft
(1.65 m) is required to open the trunk lid.
Press and hold button Š until trunk
unlocks and begins to open.
The trunk can also be opened from its in-
side in an emergency, see “Trunk emer-
gency release” (
page 116).
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys with
KEYLESS-GO are a different color to help
distinguish each SmartKey with
KEYLESS-GO unit.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you pull an outside
door handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks

the doors

the glove box

the trunk

the fuel filler flap
!The trunk lid swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.

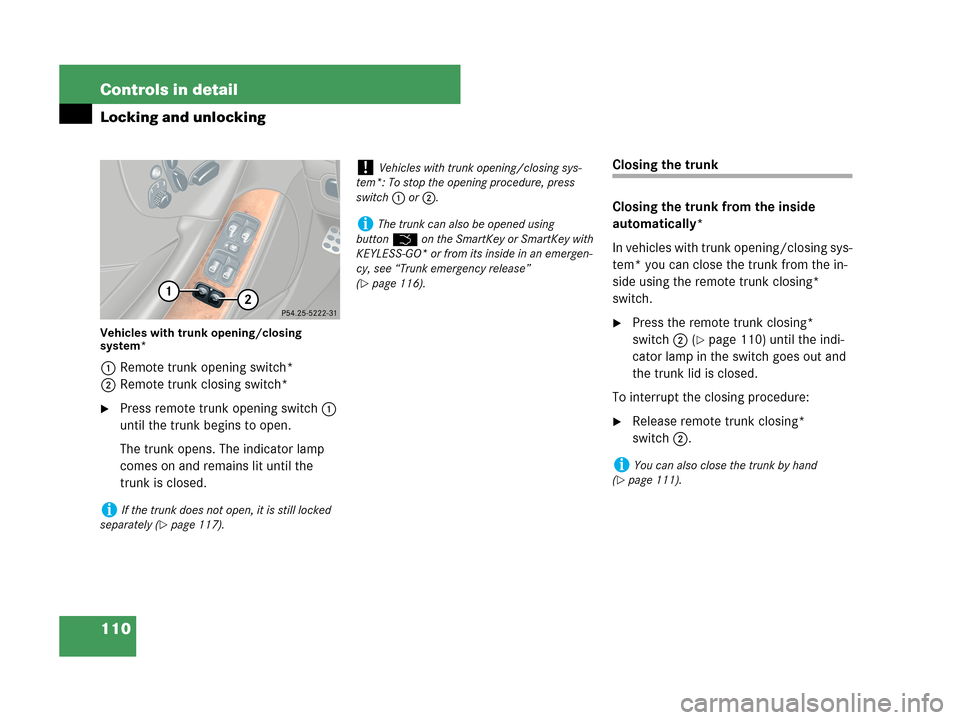

Vehicles with trunk opening/closing system*: To
stop the opening procedure, press button Š.
The trunk lid stops moving.
iIf the trunk does not open, it is still locked
separately (
page 117).

107 Controls in detail
Locking and unlocking
Unlocking and opening the trunk
You can unlock and open the trunk sepa-
rately.
A minimum height clearance of 5.41 ft
(1.65 m) is required to open the trunk lid.
Press and hold button Š until trunk
unlocks and begins to open.
The trunk can also be opened from its in-
side in an emergency, see “Trunk emer-
gency release” (
page 116).Checking the batteries in the SmartKey
or SmartKey with KEYLESS-GO*
Press button‹orŒ.
The battery check lamp (
page 98) or
(
page 102) comes on briefly to indi-
cate that the SmartKey or SmartKey
with KEYLESS-GO batteries are in or-
der.Loss of the SmartKey or SmartKey with
KEYLESS-GO*
If you lose your SmartKey, SmartKey with
KEYLESS-GO, or mechanical key, you
should do the following:
Have the SmartKey or SmartKey with
KEYLESS-GO deactivated by an autho-
rized Mercedes-Benz Center.
Report the loss of the SmartKey,
SmartKey with KEYLESS-GO, or the
mechanical key immediately to your
car insurance company.
Have the mechanical lock replaced if
necessary.
Your authorized Mercedes-Benz Center
will be glad to supply you with a
replacement.
!The trunk lid swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.
Vehicles with trunk opening/closing system*: To
stop the opening procedure, press button Š.
The trunk lid stops moving.
iIf the trunk does not open, it is still locked
separately (
page 117).
!If the battery check lamp does not come on
briefly during check, the SmartKey or SmartKey
with KEYLESS-GO batteries are discharged.
Replace the batteries (
page 425).
You can obtain the required batteries at any au-
thorized Mercedes-Benz Center.
iIf the batteries are checked within signal
range of the vehicle, pressing the‹ orŒ
button will lock or unlock the vehicle according-
ly.

110 Controls in detail
Locking and unlocking
Vehicles with trunk opening/closing
system*
1Remote trunk opening switch*
2Remote trunk closing switch*
Press remote trunk opening switch1
until the trunk begins to open.
The trunk opens. The indicator lamp
comes on and remains lit until the
trunk is closed.
Closing the trunk
Closing the trunk from the inside
automatically*
In vehicles with trunk opening/closing sys-
tem* you can close the trunk from the in-
side using the remote trunk closing*
switch.
Press the remote trunk closing*
switch2 (
page 110) until the indi-
cator lamp in the switch goes out and
the trunk lid is closed.
To interrupt the closing procedure:
Release remote trunk closing*
switch2.
iIf the trunk does not open, it is still locked
separately (
page 117).
!Vehicles with trunk opening/closing sys-
tem*: To stop the opening procedure, press
switch1 or2.
iThe trunk can also be opened using
buttonŠ on the SmartKey or SmartKey with
KEYLESS-GO* or from its inside in an emergen-
cy, see “Trunk emergency release”
(
page 116).
iYou can also close the trunk by hand
(
page 111).

111 Controls in detail
Locking and unlocking
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), in the sequence, the
upper motion the closing procedure is
stopped and the trunk reopens slightly.Closing the trunk from the outside
manually
1Handle
2Handles
Lower trunk lid by pulling firmly on
handle1 or handles2.
Close trunk from the outside with
hands placed flat on the trunk lid.
Warning!G
Maintain sight of trunk area while operating
the door mounted remote trunk closing*
switch. Monitor the closing procedure care-
fully to ensure that no one is in danger of be-
ing injured.
To interrupt the closing procedure, release
the door mounted remote trunk closing
switch.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the start-
er switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the remote trunk opening/closing* switch
can be operated. Therefore, do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Warning!G
Only drive with the trunk closed as, among
other dangers such as blocked visibility,
exhaust fumes may enter the vehicle
interior.
