2007 MERCEDES-BENZ C-CLASS SALOON Owners Manual

Troubleshooting
29
4 Headlamps and turn signals
Problem Possible cause/consequence Suggested solutions
The headlamps or the turn signals
in the exterior mirrors are misted
up on the inside. Air humidity is very high
. X
Drive with the headlamps switched on.
The headlamps are demisted after a short distance. The headlamp housing is not
sealed and moisture has been
able to enter. X
Have the headlamps checked at a qualified specialist workshop .Windscreen wipers
Problem Possible cause/consequence Suggested solutions
The windscreen wipers are jam-
med. Leaves or snow, for example, may
be obstructing the windscreen
wiper movement. The wiper
motor has been deactivated. X
For safety reasons, you should remove the key from the ignition
lock.
X Remove the cause of the obstruction .
X Switch the windscreen wipers back on. The windscreen wipers fail com-
pletely. The windscreen wiper drive is
malfunctioning. X
Select another wiper speed on the combination switch.
X Have the windscreen wipers checked at a qualified specialist work-
shop . Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 294

Troubleshooting
29

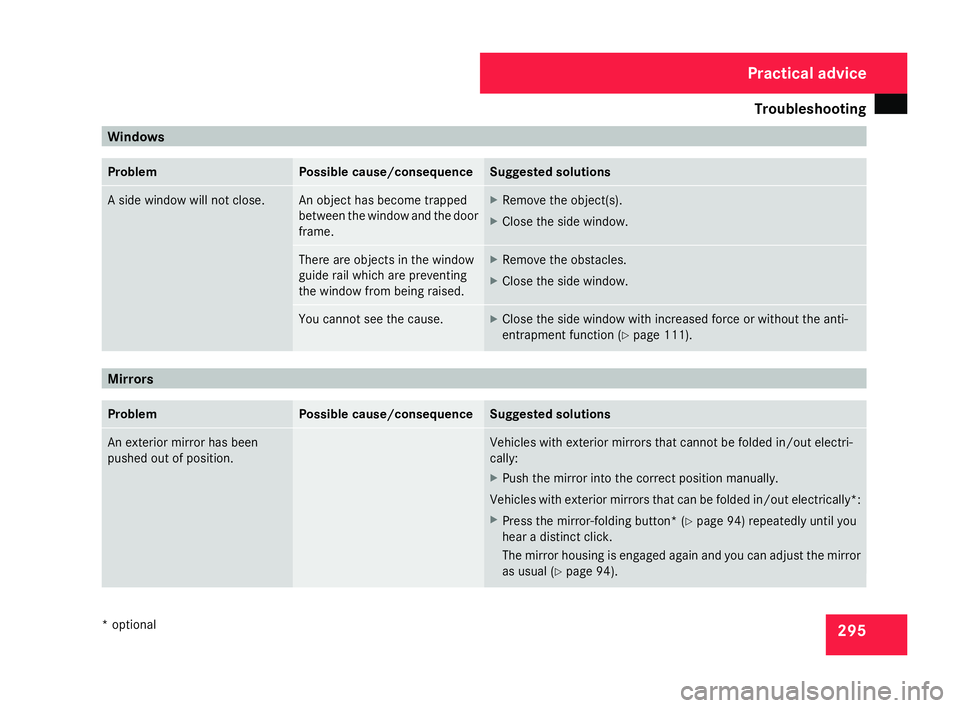

5 Windows
Problem Possible cause/consequence Suggested solutions
A side window will not close
. An object has become trapped
between the window and the door
frame. X
Remove the object(s).
X Close the side window. There are objects in the window
guide rail which are preventing
the window from being raised. X
Remove the obstacles.
X Close the side window. You cannot see the cause. X
Close the side window with increased force or without the anti-
entrapment function (Y page 111). Mirrors
Problem Possible cause/consequence Suggested solutions
An exterior mirror has been
pushed out of position
. Vehicles with exterior mirrors that cannot be folded in/out electri-
cally:
X Push the mirror into the correct position manually.
Vehicles with exterior mirrors that can be folded in/out electrically*:
X Press the mirror-folding button* (Y page 94) repeatedly until you
hear a distinct click .
The mirror housing is engaged again and you can adjust the mirror
as usual (Y page 94). Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 295

Troubleshooting
29
6 Key
Problem Possible cause/consequence Suggested solutions
You cannot lock or unlock th
e
vehicle using the key. The key batteries are discharged
or nearly discharged. X
Point the tip of the key at the driver's door handle from close range
and try to open the vehicle again.
If this does not work:
X Lock or unlock the vehicle using the emergency key element
(Y page 300).
X Check the key batteries (Y page 304) and replace them if neces-
sary (Y page 304). The key is faulty. X
Lock or unlock the vehicle using the emergency key element
(Y page 300).
X Have the key checked at a qualified specialist workshop .The battery charge indicator lamp
of the key does not go on during
the test. The key batteries are discharged. X
Change the batteries (Y page 304). You have lost a key. X
Have the key cancelled at a Mercedes-Benz Service Centre.
X Report the loss immediately to the vehicle insurers .
X If necessary, have the manual locks changed too. You have lost the emergency key
element. X
Report the loss immediately to the vehicle insurers .
X If necessary, have the manual locks changed too. Practical advice
204_AKB; 2; 3, en-GB
mkalafa
, 2007-06-26T23:11:51+02:00 - Seite 296

Troubleshooting
29
7 Problem Possible cause/consequence Suggested solutions
The engine cannot be started
using the key. The on-board voltage is too low. X
Switch off non-essential consumers, e.g. seat heating* or interio r
lighting, and try to start the engine again.
If this does not work :
X Check the starter battery and recharge it if necessary
(Y page 326).
or
X Jump-start the vehicle (Y page 328).
or
X Consult a qualified specialist workshop. The engine cannot be started
using the key. The steering lock is mechanically
blocked. X
Remove the key and reinsert it into the ignition lock. At the sam e
time, turn the steering wheel in both directions. Practical advice
* optional
204_AKB; 2; 3, en-G
B
mkalafa , 2007-06-26T23:11:51+02:00 - Seite 297

Troubleshooting
29
8 KEYLESS GO*
Problem Possible cause/consequence Suggested solutions
You cannot lock or unlock th
e
vehicle using the KEYLESS GO
key. The KEYLESS GO key batterie
s
are discharged or nearly dis-
charged. X
Lock or unlock the vehicle using the remote control function of the
key. Point the tip of the key at the driver's door handle from close
range and try to open the vehicle again.
If this does not work:
X Lock or unlock the vehicle using the emergency key element
(Y page 300).
X Check the KEYLESS GO key batteries (Y page 304) and replace
them if necessary (Y page 304). There is a fault with KEYLESS GO. X
Lock or unlock the vehicle using the remote control function of the
key. To do this, point the tip of the key at the driver's door handle
from close range and try to open the vehicle again.
X Have the KEYLESS GO key checked at a qualified specialist work-
shop . There is interference from a pow-
erful source of radio waves. X
Lock or unlock the vehicle using the emergency key element
(Y page 300). The battery check lamp in the
KEYLESS GO key does not light
up when tested. The KEYLESS GO key batteries
are discharged. X
Change the batteries (Y page 304). Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 298

Troubleshooting
29
9 Problem Possible cause/consequence Suggested solutions
The vehicle cannot be started
using the KEYLESS GO key and
the KEYLESS GO button. The KEY-
LESS GO key is in the vehicle. A door is open. The key therefore
cannot be detected so easily. X
Close the door and try to start the vehicle again . You did not depress the brak
e
when starting the engine. X
Depress the brake pedal and press the KEYLESS GO button. There is interference from a pow-
erful source of radio waves
. X
Start your vehicle using the KEYLESS GO key in the ignition lock. You have lost the KEYLESS GO
key
. X
Have the KEYLESS GO key cancelled at a Mercedes-Benz Service
Centre.
X Report the loss immediately to the vehicle insurers .
X If necessary, have the manual locks changed too. Parking up the vehicle
Proble
m Possible cause/consequence Suggested solutions
The vehicle is to be left parked up
for longer than six weeks. X
Visit a qualified specialist workshop and seek advice.
X Disconnect the battery (Y page 326). Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 299

Locking/unlocking in an emergency
300 Locking/unlocking in an emergency
Emergency key
If the vehicle can no longer be unlocked or
locked with the key or the KEYLESS GO
key*, use the emergency key element.
If you use the emergency key element to
unlock and open the driver's door or the boot
lid, the anti-theft alarm system* will be trig-
gered (Y page 71).
There are several ways to turn off the alarm:
X Press the korj button on the key.
or
X Insert the key into the ignition lock.
or
X Press the KEYLESS GO but-
ton* (Y page 85).
or
X Lock or unlock the vehicle using KEYLESS
GO*.
If you unlock the vehicle using the emergency
key element, the fuel filler flap will not be
unlocked automatically.
X To unlock the fuel filler flap: insert the
key in the ignition lock. Releasing and removing the emergenc
y
key element 1
Release catch
2 Emergency key element
X Push release catch 1in the direction of
the arrow and at the same time remove
emergency key element 2from the key. Unlocking the vehicle
If the vehicle can no longer be unlocked cen-
trally with the key or the KEYLESS GO key*:
X Remove the emergency key element from
the key (Y page 300). $
To unlock
X Insert the emergency key element fully into
the lock of the driver's door.
X Turn the emergency key element anti-
clockwise to position $.
The door is unlocked.
i On right-hand-drive vehicles, turn the
emergency key element clockwise.
X Turn the emergency key element back and
remove it. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 300

Locking/unlocking in an emergency
301Locking the vehicle
If the vehicle can no longer be locked cen -
trally with the key or the KEYLESS GO key*:
X Open the driver's door.
X Close the front-passenger door, the rear
doors and the boot lid/tailgate.
X Press the central locking button
(Y page 80).
X Check whether the locking knobs on th e
doors are still visible. Press the locking
knobs down by hand if necessary.
X Remove the emergency key element from
the key (Y page 300). $
To lock X
Insert the emergency key element fully into
the lock of the driver's door.
X Turn the emergency key element clockwise
as far as it will go to position $.
i On right-hand-drive vehicles, turn the
emergency key element anti-clockwise.
X Turn the emergency key element back and
remove it.
X Check whether the doors and the boot lid/
tailgate are locked. Opening the boot
! The boot lid swings upwards when
opened. Therefore, make sure that there is
enough space above the boot lid.
If the boot can no longer be unlocked with th e
key or the KEYLESS GO key *:
X Remove the emergency key element from
the key (Y page 300). Boot lock
$ Basic position
% Unlocking the boot
X Insert the emergency key element fully into
the boot lock.
X Turn the emergency key element anti-
clockwise as far as it will go to position
% .
The boot is unlocked.
X Turn the emergency key element back to
basic position $and remove it. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa
, 2007-06-26T23:11:51+02:00 - Seite 301
