2007 MERCEDES-BENZ C-CLASS SALOON Owners Manual

Locking/unlocking in an emergency
302 Opening the tailgate
If the tailgate cannot be opened, use th e
emergency release on the inside of the tail-
gate.
X Take the emergency key element out of the
key (Y page 300). 1
Opening in trim
2 Emergency key element
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and
behind the tailgate .
X Insert emergency key element 2into
opening in trim 1. X
Turn emergency key element 290° clock-
wise.
X Push emergency key element 2in the
direction of arrow and open the tailgate. Emergency fuel filler flap release
G
Risk of injury
The corners of the vehicle walls may be
sharp-edged. You could injure yoursel f
while carrying out an emergency release of
the fuel filler flap. Avoid contact with th e
edges of the vehicle walls.
The emergency release is located in the
boot/luggage compartment, behind the fuse
box on the right-hand side when viewed in the
direction of travel.
X Open the tailgate/boot lid.
X Open the fuse box in the boot/luggage
compartment (Y page 334). 1
Release cord (example illustration from a
Saloon)
X Pull release cord 1.
The fuel filler flap is unlocked.
X Open the fuel filler flap. Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 302

Resetting triggered NECK-PRO head restraints
30

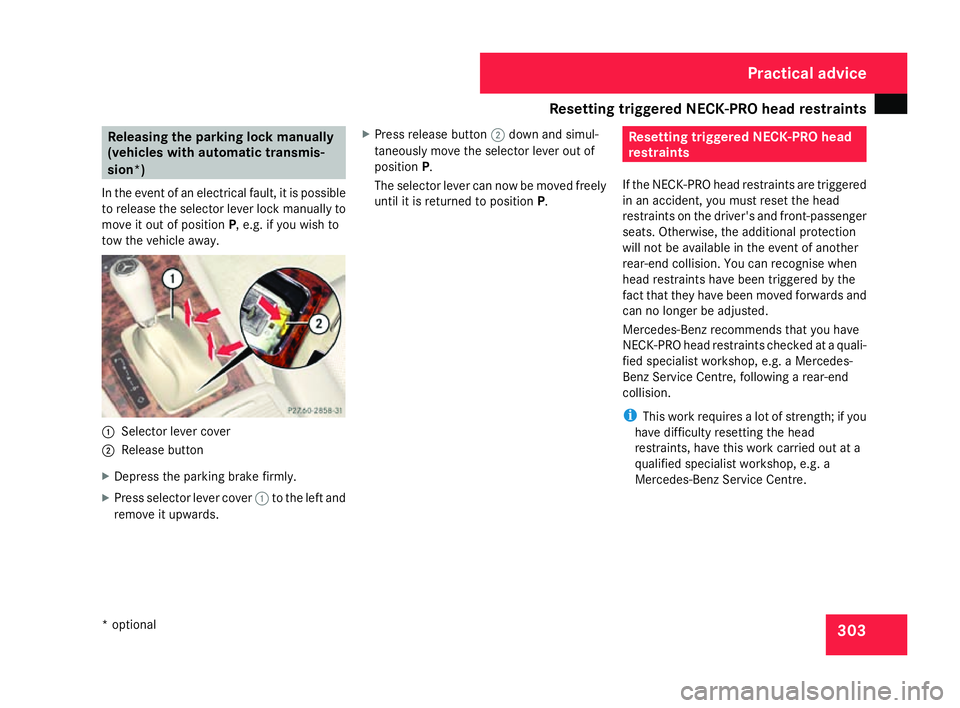

3 Releasing the parking lock manually
(vehicles with automatic transmis-
sion*)
In the event of an electrical fault, it is possible
to release the selector lever lock manually to
move it out of position P, e.g. if you wish to
tow the vehicle away. 1
Selector lever cove r
2 Release butto n
X Depress the parking brake firmly.
X Press selector lever cover 1to the left and
remove it upwards . X
Press release button 2down and simul-
taneously move the selector lever out of
position P.
The selector lever can now be moved freely
until it is returned to position P. Resetting triggered NECK-PRO head
restraints
If the NECK-PRO head restraints are triggered
in an accident, you must reset the hea d
restraints on the driver's and front-passenge r
seats. Otherwise, the additional protection
will not be available in the event of another
rear-end collision. You can recognise when
head restraints have been triggered by the
fact that they have been moved forwards and
can no longer be adjusted.
Mercedes-Benz recommends that you have
NECK-PRO head restraints checked at a quali-
fied specialist workshop, e.g. a Mercedes-
Benz Service Centre, following a rear-end
collision.
i This work requires a lot of strength; if you
have difficulty resetting the head
restraints, have this work carried out at a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 303

Changing the batteries
3041
To fold back
2 To push back
3 To push down
X Push the head restraint cushion backwards
by the lower part as far as it will go 2.
X Push the head restraint cushion down into
the guide as far as it will go 3.
X Firmly press back the head restraint cush -
ion until it engages 1. Changing the batteries
Notes
It is advisable to have the batteries replaced
at a qualified specialist workshop, e.g. at a
Mercedes-Benz Service Centre. G
Risk of poisoning
Batteries contain toxic and caustic sub-
stances. For this reason, keep batteries
away from children.
If a battery is swallowed, consult a docto r
immediately. H
Environmental not
e
Do not dispose of batteries with the house-
hold rubbish. They contain highly toxic sub-
stances .
Take discharged batteries to a qualified
specialist workshop, e.g. a Mercedes-Benz
Service Centre, or to a special collection
point for old batteries. Key or KEYLESS GO key*
Checking the batteries X
Press the jork button.
The batteries are in order if the battery
charge indicator lamp goes on briefly.
Changing the batteries You require two CR 2025 3V cell batteries.
X
Remove the emergency key element from
the key (Y page 300). 1
Emergency key element
2 Battery tray Practical advic
e
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 304

Changing the bulbs
305
X
Insert emergency key element 1into the
opening in the key and push in the direction
of the arrow.
Battery tray 2is released .
X Pull battery tray 2out of the key. 1
Batterie s
X Remove old batteries 1from the battery
tray.
X Insert the new batteries beneath the con-
tact spring with the positive terminal facing
upwards. Use a lint-free cloth to do so.
X Push the battery tray back into the key
housing until the battery tray engages.
X Check the function of all key buttons on th e
vehicle. Changing the bulbs
Notes on changing bulbs
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that all bulbs function correctly at all times. G
Risk of injury
Bulbs and lamps can be very hot. Yo u
should therefore allow them to cool down
before you change them. Otherwise, you
could be burned if you touch them.
Keep bulbs out of the reach of children.
Otherwise, they could damage them, for
example, and injure themselves.
Never use a bulb which has been dropped.
Such a bulb may explode and injure you.
H7 bulbs are pressurised and could explode
when you change them, particularly if they
are very hot. You should therefore wear eye
protection and gloves when you are chang-
ing them. G
Risk of injury
Xenon bulbs carry a high voltage. You could
get an electric shock and be seriously or
even fatally injured if you touch the electri c
contacts on xenon bulbs. Therefore, neve r
remove the cover from xenon bulbs. Do not change xenon bulbs yourself, but
have them replaced at a qualified specialist
workshop which has the necessary special-
ist knowledge and tools to carry out the
work required .
Mercedes-Benz recommends that you use
a Mercedes-Benz Service Centre for this
purpose. In particular, work relevant to
safety or on safety-related systems must be
carried out at a qualified specialist work-
shop. Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 305

Changing the bulbs
306 Overview
Saloon Estat
e Front bulbs Bulb Type
1 Additional tur
n
signal lamp LED
2 Side lamp/park-
ing lamp 2 x W 5 W–BV
3 Turn signal lamp
(front
) PY 21
W 4 Dipped-bea
m
headlamp H7 55
W
or
D1S 35 W* 17 5 Main-beam
headlamp H7 55
W 6 Front foglamp H11 55
W 17
Vehicles with bi-xenon headlamps*: always have these bulbs changed at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 306

Changing the bulbs
307
Rear bulbs Bulb Type
7 Third brake lamp LED
8 Side marker
lamp
Rear foglamp W 5
W
P 21 W 9 Turn signal
(rear) PY 21
W
or
LED* 18 a Brake lamp/tail
lamp 2 x P 21
W b Reversing lamp P 21
W
or
W 16 W19
(Estate) c Licence plate
lighting W 5
W Before changing bulbs
R
Use only the bulb types specified here.
R To prevent a short-circuit, switch off the
lights before changing a bulb.
R Only hold bulbs with a clean, lint-free cloth.
R Do not work with wet or greasy fingers.
R If the new bulb still does not light up, con-
sult a qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre.
R Have the following bulbs changed at a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre:
- the additional turn signal lamps in the
exterior mirrors
- the turn signal lamp* (vehicles with ligh t
package*)
- the third brake lamp
- the front foglamps
- the bi-xenon bulb s
- the licence plate lighting
i Due to the location of the front head -
lamps, it is best to have the bulbs changed at a qualified specialist workshop, e.g.
a
Mercedes-Benz Service Centre.
i Have the headlamp setting checked reg-
ularly at a qualified specialist workshop ,
e.g. a Mercedes-Benz Service Centre. Changing the front bulbs
Halogen headlamps (left-hand side, right mirror
image)
1 Bulb holder for turn signal
2 Housing cover for parking lamp
3 Housing cover for parking lamp
4 Housing cover for main-beam headlamp
5 Housing cover for dipped-beam headlamp
18 Vehicles with light package*: always have the LEDs changed at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre.
19 Only vehicles without LED turn signal lamps are equipped with these bulb type s Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 307

Changing the bulbs
308Bi-xenon headlamp* (left-hand side, right mirror
image)
1
Bulb holder for turn signal
2 Housing cover for parking lamp
3 Housing cover for parking lamp
4 Housing cover for main-beam headlamp
5 Housing cover for dipped-beam headlamp
(bi-xenon headlamps) Halogen headlamps (left-hand side, right mirro
r
image)
6 Bulb holder for parking lamp
7 Bulb holder for parking lamp
8 Bulb holder for main-beam headlamp
9 Bulb holder for dipped-beam headlamp Bi-xenon headlamp* (left-hand side, right mirror
image)
6 Bulb holder for parking lamp
7 Bulb holder for parking lamp
8 Bulb holder for main-beam headlamp
Replacing dipped-beam headlamps
(vehicles with halogen headlamps) X
Switch off the lights .
X Open the bonnet.
X Turn housing cover 5anti-clockwise and
remove it.
X Disconnect the connector from the bulb .
X Gently push in retaining spring of lamp
holder 9and detach it downwards .Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 308

Changing the bulbs
309
X
Remove the bulb from the bulb holder,
holding the base (not the glass tube).
X Insert the new bulb so that the base fits flat
into the recess in the bulb holder.
X Clip in the retaining spring of bulb
holder 9.
X Attach the connector to the bulb .
X Put on the housing cover and turn it clock -
wise until it clips into place.
Replacing the bulbs in the main-beam
headlamp s 8
Bulb holder for main-beam headlamp
X Switch off the lights .
X Open the bonnet. X
Turn housing cover 4anti-clockwise and
remove it.
X Push down the lamp on the connector until
it is released.
X Remove the bulb from bulb holder 8, hold-
ing the base (not the glass tube).
X Disconnect the connector from the bulb .
X Attach the connector to the new bulb .
X Put the bulb in at the bottom and push it up
until it clips into place, so that the base fits
flush in the recess on the bulb holder.
X Put on the housing cover and turn it clock -
wise until it clips into place .
Changing the bulbs in the side lamps
and parking lamps X
Switch off the lights .
X Open the bonnet.
X Turn housing cover 2or3 anti-clockwis e
and remove it.
X Pull out bulb holder 6or7 with the bulb.
X Pull the bulb out of the bulb holder.
X Push the new bulb into the bulb holder. X
Insert the bulb holder into the headlamp
and push it in.
X Put on the housing cover and turn it clock -
wise until it clips into place.
Replacing the turn signal lamps X
Switch off the lights .
X Open the bonnet.
X Turn bulb holder 1anti-clockwise and
remove it along with the bulb.
X Turn the bulb anti-clockwise, applying
slight pressure, and remove it from the bulb
holder.
X Insert the new bulb into the bulb holder and
turn it clockwise. Practical advice
204_AKB; 2; 3, en-GB
mkalafa
, 2007-06-26T23:11:51+02:00 - Seite 309
