2007 GMC ACADIA Owner's Manual

The top tether anchors are located at the bottom
rear of the seatback for each seating position
in the second row. Open the trim cover to access
the anchors. Be sure to use an anchor located
on the same side of the vehicle as the seating
position where the child restraint will be placed.The third row has one top tether anchor located at
the bottom rear of the center seatback. This
anchor should be used for the center seating
position only. Never install two top tethers using
the same top tether anchor.
Do not secure a child restraint in the right front
passenger position or the third row outboard
seating positions, if a national or local law requires
that the top tether be attached, or if the
instructions that come with the child restraint say
that the top tether must be attached. There is
no place to attach the top tether in these positions.
Second Row — Bucket Shown, Bench SimilarThird Row Seat
65

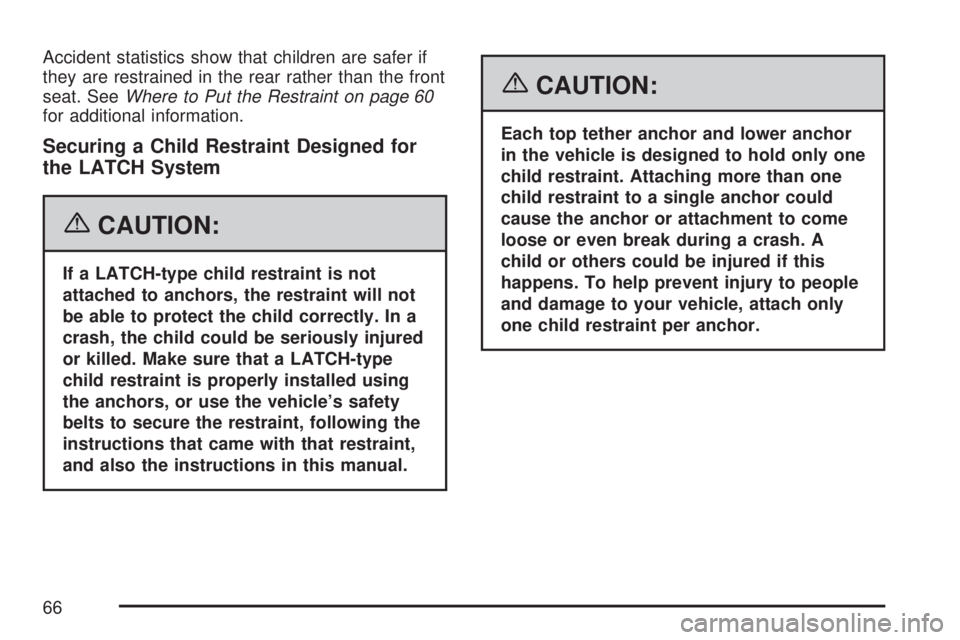

Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. SeeWhere to Put the Restraint on page 60
for additional information.
Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not
attached to anchors, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured
or killed. Make sure that a LATCH-type
child restraint is properly installed using
the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint,
and also the instructions in this manual.
{CAUTION:
Each top tether anchor and lower anchor
in the vehicle is designed to hold only one
child restraint. Attaching more than one
child restraint to a single anchor could
cause the anchor or attachment to come
loose or even break during a crash. A
child or others could be injured if this
happens. To help prevent injury to people
and damage to your vehicle, attach only
one child restraint per anchor.
66

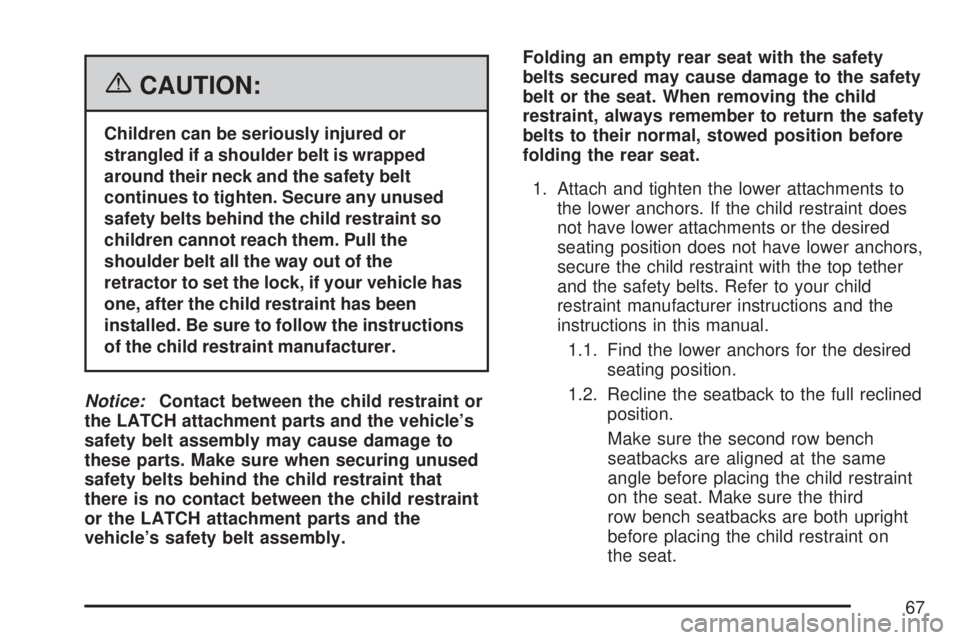

{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle has
one, after the child restraint has been
installed. Be sure to follow the instructions
of the child restraint manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Recline the seatback to the full reclined
position.
Make sure the second row bench
seatbacks are aligned at the same
angle before placing the child restraint
on the seat. Make sure the third
row bench seatbacks are both upright
before placing the child restraint on
the seat.
67

1.3. Put the child restraint on the seat.
1.4. Attach and tighten the lower
attachments on the child restraint to the
lower anchors.
2. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor,
if the vehicle has one. Refer to the child
restraint instructions and the following steps:
2.1. Find the top tether anchor.
2.2. If the anchor is covered, ip open the
trim cover to expose the anchor.2.3. Route, attach and tighten the top tether
according to your child restraint
instructions and the following
instructions:
If the position you are
using does not have a
head rest/restraint
and you are using a
single tether, route the
tether over the
seatback.
If the position you are
using does not have a
head rest/restraint
and you are using a
dual tether, route
the tether over the
seatback.
68

If the position you are
using has a xed head
rest/restraint and
you are using a dual
tether, route the
tether around the head
rest/restraint.
If the position you are
using has a xed head
rest/restraint and
you are using a single
tether, route the
tether over the head
rest/restraint.
3. Push and pull the child restraint in different
directions to be sure it is secure.Securing a Child Restraint in a Rear
Seat Position
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 61.
There are no top tether anchors in the third row
outboard seating positions. Do not secure a
child restraint in these positions if a national or
local law requires that a top tether be anchored or
if the instructions that come with the restraint
say that the top tether must be anchored.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder
belt to secure the child restraint in this position. Be
sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Recline the seatback to the full reclined
position to prevent the child seat from
contacting the head restraint. See Reclining
the Seatbacks underRear Seat Operation on
page 18.
2. Put the child restraint on the seat.
69

3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
70

6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.7. If your child restraint has a top tether, and the
position that you are using has a top tether
anchor, attach and tighten the top tether to the
top tether anchor. Refer to the instructions
that came with the child restraint and toLower
Anchors and Tethers for Children (LATCH)
on page 61.
8. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
When the safety belt is not in use, slide the latch
plate up the safety belt webbing. The latch
plate should rest on the stitching on the safety
belt, near the guide loop on the side wall.
71

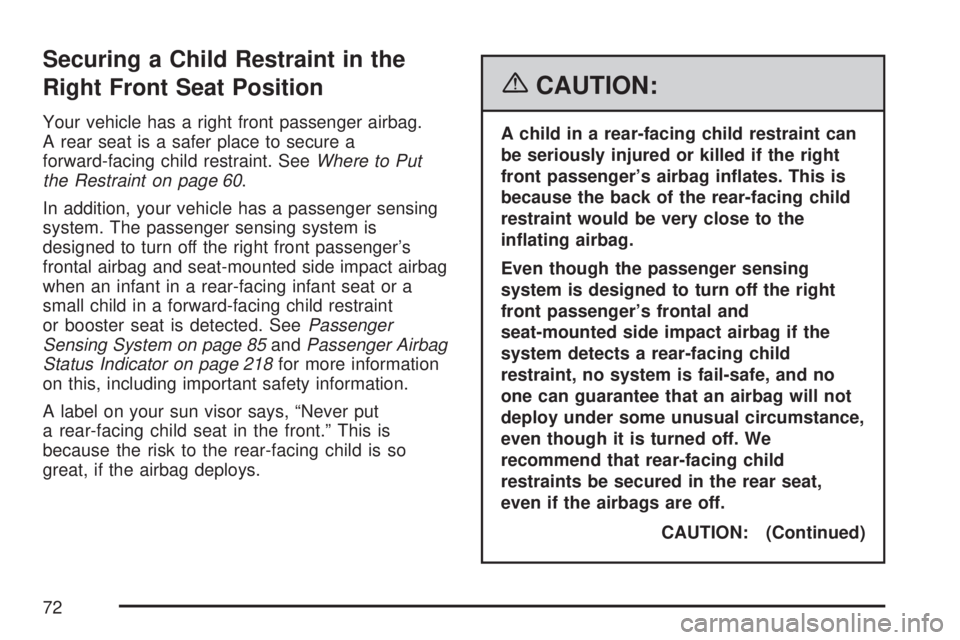

Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger airbag.
A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to Put
the Restraint on page 60.
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag and seat-mounted side impact airbag
when an infant in a rear-facing infant seat or a
small child in a forward-facing child restraint
or booster seat is detected. SeePassenger
Sensing System on page 85andPassenger Airbag
Status Indicator on page 218for more information
on this, including important safety information.
A label on your sun visor says, “Never put
a rear-facing child seat in the front.” This is
because the risk to the rear-facing child is so
great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal and
seat-mounted side impact airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and no
one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We
recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbags are off.
CAUTION: (Continued)
72
