2007 GMC ACADIA Owner's Manual

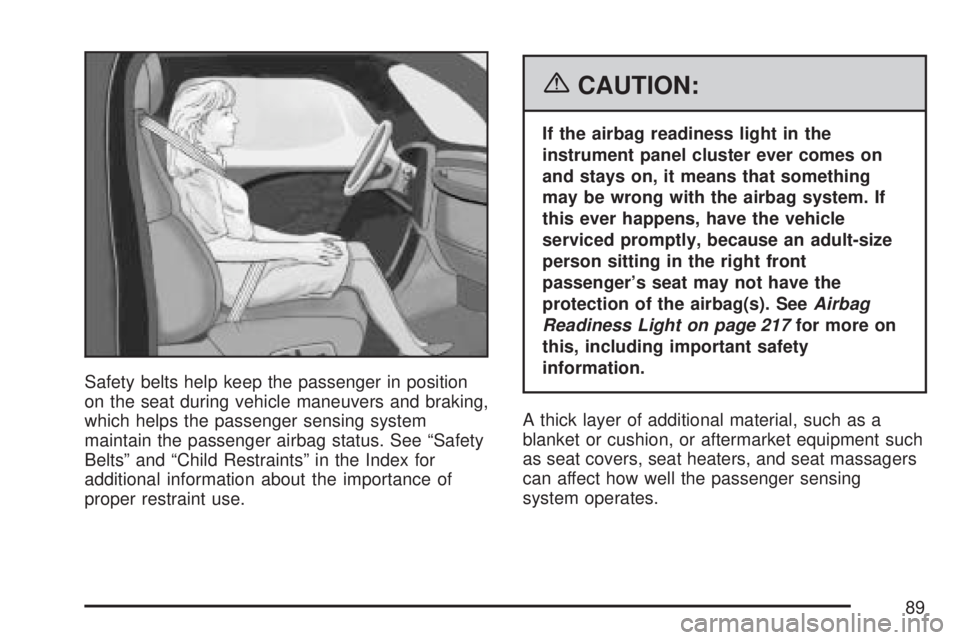

Safety belts help keep the passenger in position
on the seat during vehicle maneuvers and braking,
which helps the passenger sensing system
maintain the passenger airbag status. See “Safety
Belts” and “Child Restraints” in the Index for
additional information about the importance of
proper restraint use.
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system. If
this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the airbag(s). SeeAirbag
Readiness Light on page 217for more on
this, including important safety
information.
A thick layer of additional material, such as a
blanket or cushion, or aftermarket equipment such
as seat covers, seat heaters, and seat massagers
can affect how well the passenger sensing
system operates.
89

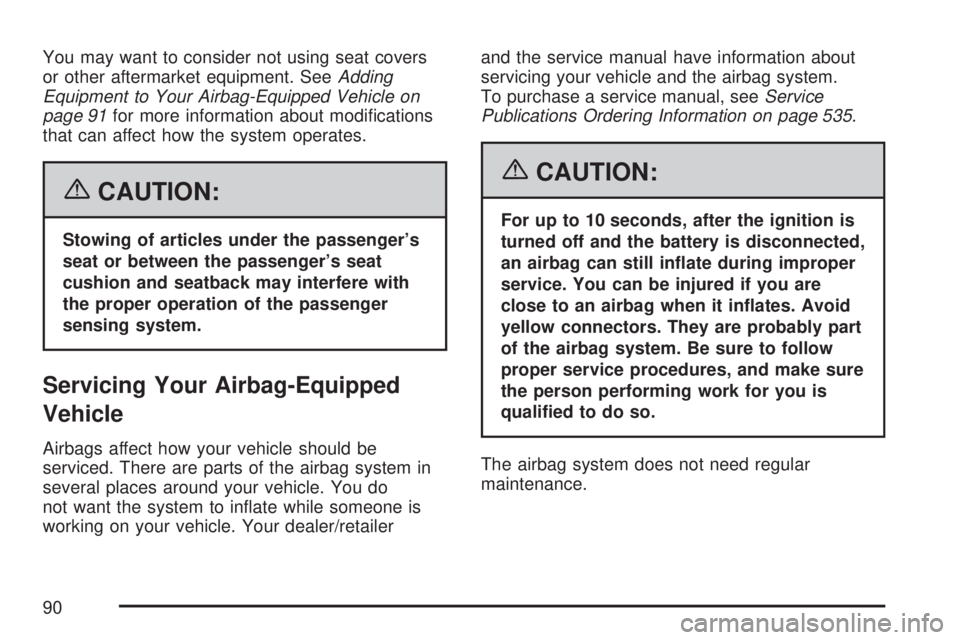

You may want to consider not using seat covers
or other aftermarket equipment. SeeAdding
Equipment to Your Airbag-Equipped Vehicle on
page 91for more information about modications
that can affect how the system operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your dealer/retailerand the service manual have information about
servicing your vehicle and the airbag system.
To purchase a service manual, seeService
Publications Ordering Information on page 535.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
90

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the
exterior of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. See Customer
Satisfaction Procedure.
If your vehicle has rollover roof-rail airbags,
seeDifferent Size Tires and Wheels on
page 452for additional important information.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, roof-rail airbag modules,
ceiling headliner, and pillar garnish trim, side
impact sensors, rollover sensor module,
or airbag wiring can affect the operation of the
airbag system. If you have questions, call
Customer Assistance. The phone numbers
and addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 518.
Your dealer/retailer and the service manual have
information about the location of the airbag
sensors, sensing and diagnostic module and
airbag wiring.
91

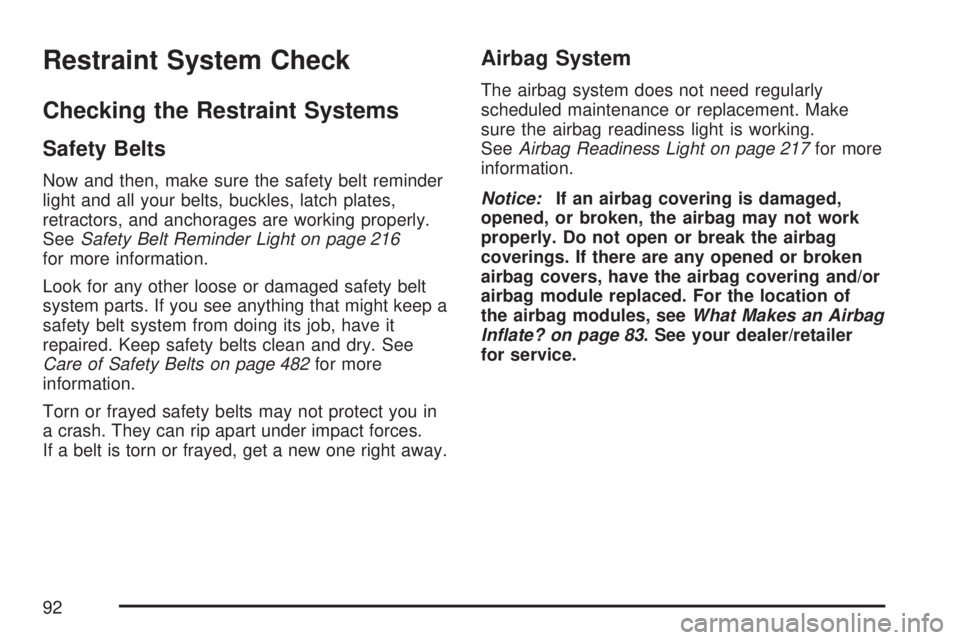

Restraint System Check
Checking the Restraint Systems
Safety Belts
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors, and anchorages are working properly.
SeeSafety Belt Reminder Light on page 216
for more information.
Look for any other loose or damaged safety belt
system parts. If you see anything that might keep a
safety belt system from doing its job, have it
repaired. Keep safety belts clean and dry. See
Care of Safety Belts on page 482for more
information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.
Airbag System
The airbag system does not need regularly
scheduled maintenance or replacement. Make
sure the airbag readiness light is working.
SeeAirbag Readiness Light on page 217for more
information.
Notice:If an airbag covering is damaged,
opened, or broken, the airbag may not work
properly. Do not open or break the airbag
coverings. If there are any opened or broken
airbag covers, have the airbag covering and/or
airbag module replaced. For the location of
the airbag modules, seeWhat Makes an Airbag
Inflate? on page 83. See your dealer/retailer
for service.
92

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make sure
your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made as
soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If any airbag inates, you will also need to replace
the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the
new retractor assembly will be there to help protect
you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after you
start your vehicle or while you are driving. See
Airbag Readiness Light on page 217.
93

✍NOTES
94

Keys.............................................................. 97
Remote Keyless Entry (RKE) System.......... 98
Remote Keyless Entry (RKE) System
Operation............................................... 100
Doors and Locks........................................ 106
Door Locks................................................ 106
Power Door Locks..................................... 107
Delayed Locking........................................ 107
Programmable Automatic Door Locks........ 107
Rear Door Security Locks......................... 108
Lockout Protection..................................... 108
Liftgate...................................................... 109
Power Liftgate........................................... 110
Windows...................................................... 114
Power Windows........................................ 115
Sun Visors................................................ 117Theft-Deterrent Systems............................. 118
Content Theft-Deterrent............................. 118
PASS-Key
®III+......................................... 120
PASS-Key®III+ Operation......................... 121
Starting and Operating Your Vehicle......... 123
New Vehicle Break-In................................ 123
Ignition Positions....................................... 124
Retained Accessory Power (RAP)............. 125
Starting the Engine.................................... 126
Engine Coolant Heater.............................. 127
Automatic Transmission Operation............. 129
Tow/Haul Mode......................................... 133
Parking Brake........................................... 134
Shifting Into Park (P)................................. 135
Shifting Out of Park (P)............................. 137
Parking Over Things That Burn................. 137
Engine Exhaust......................................... 138
Running the Engine While Parked............. 139

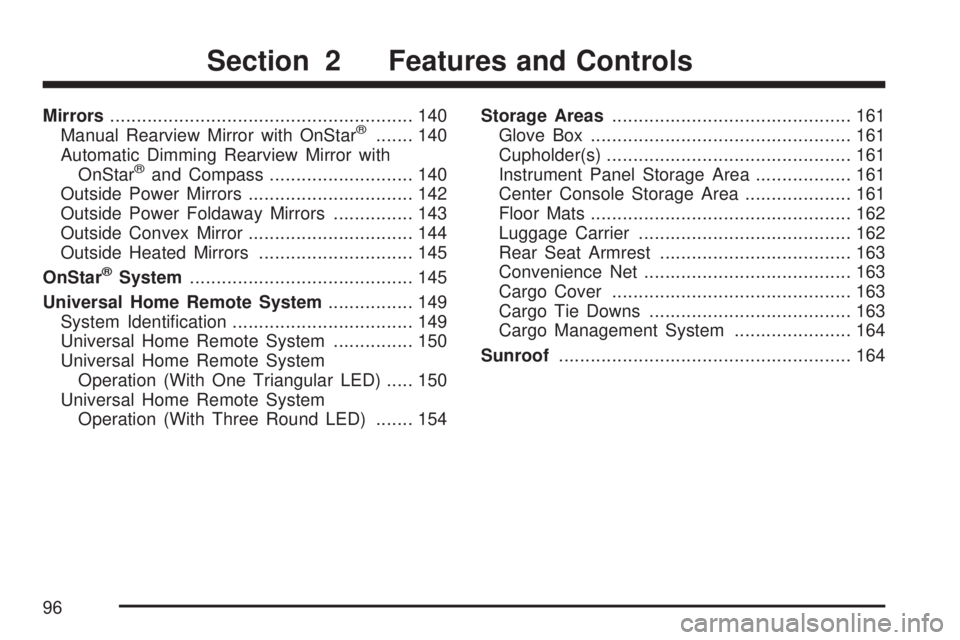

Section 2 Features and Controls
95

Mirrors......................................................... 140
Manual Rearview Mirror with OnStar®....... 140
Automatic Dimming Rearview Mirror with
OnStar
®and Compass........................... 140
Outside Power Mirrors............................... 142
Outside Power Foldaway Mirrors............... 143
Outside Convex Mirror............................... 144
Outside Heated Mirrors............................. 145
OnStar
®System.......................................... 145
Universal Home Remote System................ 149
System Identication.................................. 149
Universal Home Remote System............... 150
Universal Home Remote System
Operation (With One Triangular LED)..... 150
Universal Home Remote System
Operation (With Three Round LED)....... 154Storage Areas............................................. 161
Glove Box................................................. 161
Cupholder(s).............................................. 161
Instrument Panel Storage Area.................. 161
Center Console Storage Area.................... 161
Floor Mats................................................. 162
Luggage Carrier........................................ 162
Rear Seat Armrest.................................... 163
Convenience Net....................................... 163
Cargo Cover............................................. 163
Cargo Tie Downs...................................... 163
Cargo Management System...................... 164
Sunroof....................................................... 164
Section 2 Features and Controls
96
