2007 GMC ACADIA Owner's Manual

4. Slide the cable retainer through the center of
the wheel and start to raise the compact
spare tire.
Make sure the retainer is fully seated across
the underside of the wheel.
5. When the compact spare tire is almost in the
stored position, turn the tire so the valve is
toward the rear of the vehicle.
This position helps when checking the air
pressure in the compact spare tire.
6. Raise the tire fully against the underside of
the vehicle. Continue turning the lug wrench
until you feel more than two clicks. This
indicates that the compact spare tire is secure
and the cable is tight. The spare tire hoist
cannot be overtightened.
7. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire. If the
tire moves, use the lug wrench to tighten
the cable.
473

Storing the Flat Tire
Notice:Storing the full-size at tire in the
underbody hoist system can expose it to heat
from the exhaust system. This can damage
the tire and underbody hoist system. Do not
store the full-size at tire in the underbody
hoist system.
1. Remove the cable package from the jack
storage area.
2. Remove the small center cap by tapping the
back of the cap with the extension of the
shaft, if the vehicle has aluminum wheels.
3. Put the at tire in the rear storage area with
the valve stem pointing toward the rear of the
vehicle.4. Hook on end of the cable onto the outside
portion of the liftgate hinge opposite (B).
5. Pull the cable (A) through the door striker (E),
the center of the wheel (D), and the plastic
spare tire heat shield (C), as shown.
474

6. Hook the other end
of the cable onto the
outside portion of
the liftgate
hinge (B).
7. Pull on the cable to make sure it is secure.
8. Make sure the metal tube is centered at
the striker.9. Push the tube
toward the front of
the vehicle.
10. Close the liftgate and make sure it is latched
properly.
475

Storing the Tools
A. Tool Bag
B. Wing Bolt
C. JackPut back all tools as they were stored in the jack
storage compartment and put the compartment
cover back on.
1. Make that the bottom of the jack is facing
toward you.
2. Turn the jack (C) on its side and place it down
on the holding bracket.
3. Reinstall the wing bolt (B) by turning it
clockwise.
4. To replace the cover, line up the tabs on the
bottom of the cover with the slots in the cover
opening. Push the cover in place, insuring
that the upper front and rear tabs are in
the opening and push the cover closed. Make
sure that the center latch is fully engaged.
This secures the cover in place.
Store the center cap or the plastic bolt-on wheel
covers until a full size tire is put back on the
vehicle. When you replace the compact spare with
a full-size tire, reinstall the bolt-on wheel covers
or the center cap. Hand-tighten them over
the wheel nuts, using the lug wrench.
476

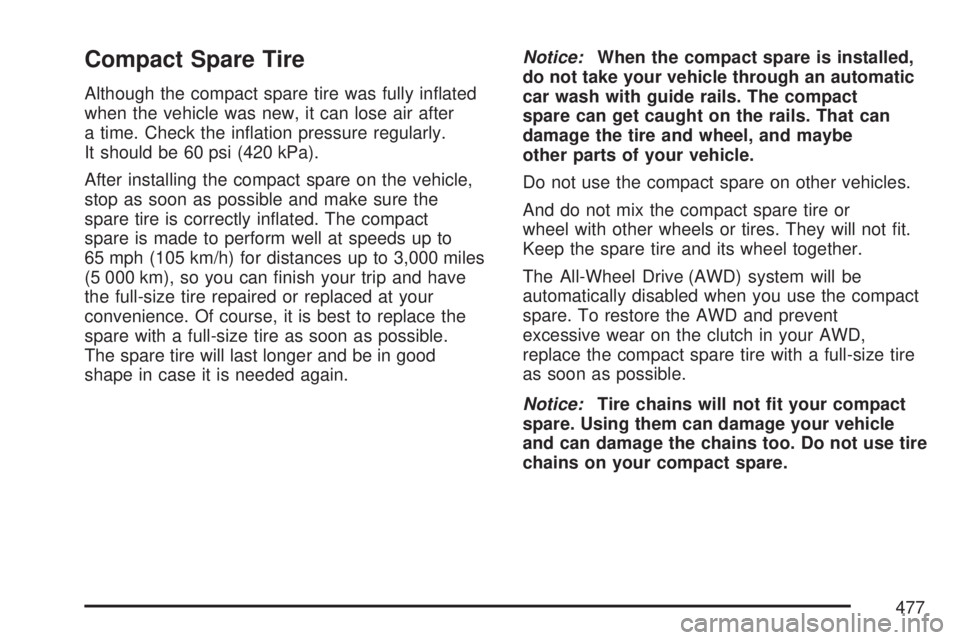

Compact Spare Tire
Although the compact spare tire was fully inated
when the vehicle was new, it can lose air after
a time. Check the ination pressure regularly.
It should be 60 psi (420 kPa).
After installing the compact spare on the vehicle,
stop as soon as possible and make sure the
spare tire is correctly inated. The compact
spare is made to perform well at speeds up to
65 mph (105 km/h) for distances up to 3,000 miles
(5 000 km), so you can nish your trip and have
the full-size tire repaired or replaced at your
convenience. Of course, it is best to replace the
spare with a full-size tire as soon as possible.
The spare tire will last longer and be in good
shape in case it is needed again.Notice:When the compact spare is installed,
do not take your vehicle through an automatic
car wash with guide rails. The compact
spare can get caught on the rails. That can
damage the tire and wheel, and maybe
other parts of your vehicle.
Do not use the compact spare on other vehicles.
And do not mix the compact spare tire or
wheel with other wheels or tires. They will not t.
Keep the spare tire and its wheel together.
The All-Wheel Drive (AWD) system will be
automatically disabled when you use the compact
spare. To restore the AWD and prevent
excessive wear on the clutch in your AWD,
replace the compact spare tire with a full-size tire
as soon as possible.
Notice:Tire chains will not t your compact
spare. Using them can damage your vehicle
and can damage the chains too. Do not use tire
chains on your compact spare.
477

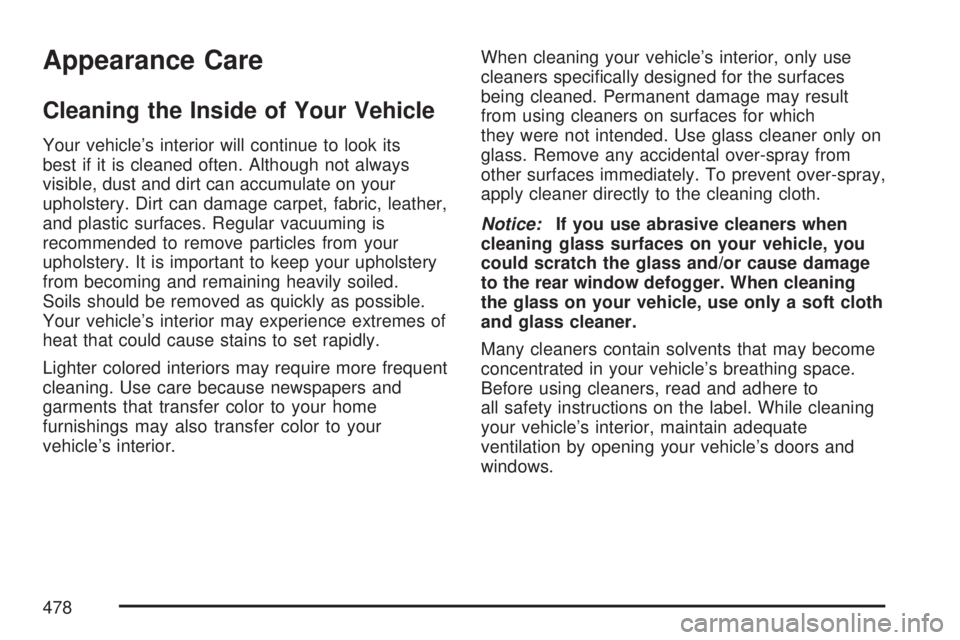

Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes of
heat that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and
garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.When cleaning your vehicle’s interior, only use
cleaners specically designed for the surfaces
being cleaned. Permanent damage may result
from using cleaners on surfaces for which
they were not intended. Use glass cleaner only on
glass. Remove any accidental over-spray from
other surfaces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass and/or cause damage
to the rear window defogger. When cleaning
the glass on your vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to
all safety instructions on the label. While cleaning
your vehicle’s interior, maintain adequate
ventilation by opening your vehicle’s doors and
windows.
478

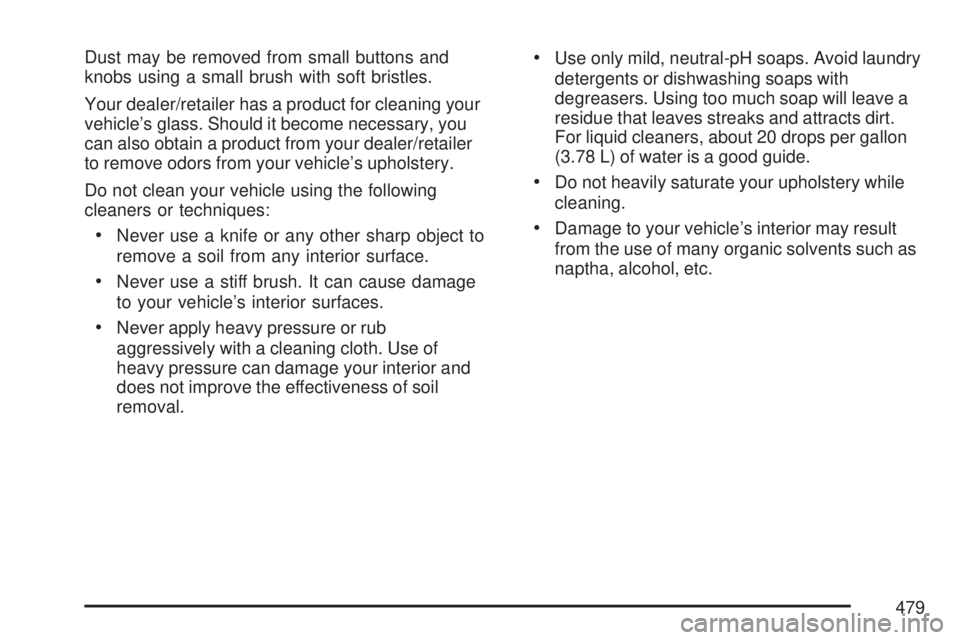

Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your dealer/retailer has a product for cleaning your
vehicle’s glass. Should it become necessary, you
can also obtain a product from your dealer/retailer
to remove odors from your vehicle’s upholstery.
Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid laundry
detergents or dishwashing soaps with
degreasers. Using too much soap will leave a
residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per gallon
(3.78 L) of water is a good guide.
Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such as
naptha, alcohol, etc.
479

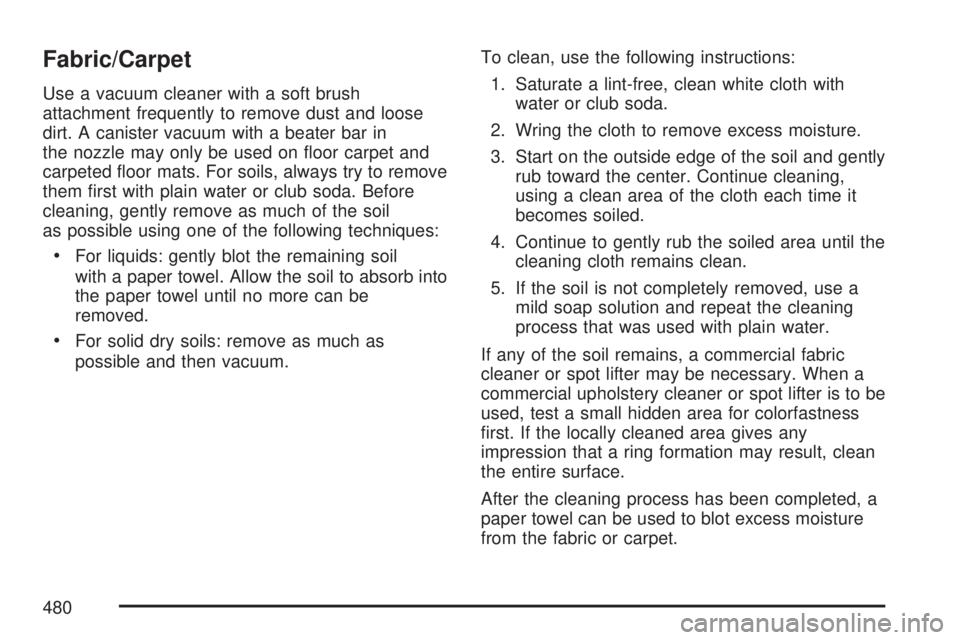

Fabric/Carpet
Use a vacuum cleaner with a soft brush
attachment frequently to remove dust and loose
dirt. A canister vacuum with a beater bar in
the nozzle may only be used on oor carpet and
carpeted oor mats. For soils, always try to remove
them rst with plain water or club soda. Before
cleaning, gently remove as much of the soil
as possible using one of the following techniques:
For liquids: gently blot the remaining soil
with a paper towel. Allow the soil to absorb into
the paper towel until no more can be
removed.
For solid dry soils: remove as much as
possible and then vacuum.To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.
3. Start on the outside edge of the soil and gently
rub toward the center. Continue cleaning,
using a clean area of the cloth each time it
becomes soiled.
4. Continue to gently rub the soiled area until the
cleaning cloth remains clean.
5. If the soil is not completely removed, use a
mild soap solution and repeat the cleaning
process that was used with plain water.
If any of the soil remains, a commercial fabric
cleaner or spot lifter may be necessary. When a
commercial upholstery cleaner or spot lifter is to be
used, test a small hidden area for colorfastness
rst. If the locally cleaned area gives any
impression that a ring formation may result, clean
the entire surface.
After the cleaning process has been completed, a
paper towel can be used to blot excess moisture
from the fabric or carpet.
480
