2007 GMC ACADIA Owner's Manual

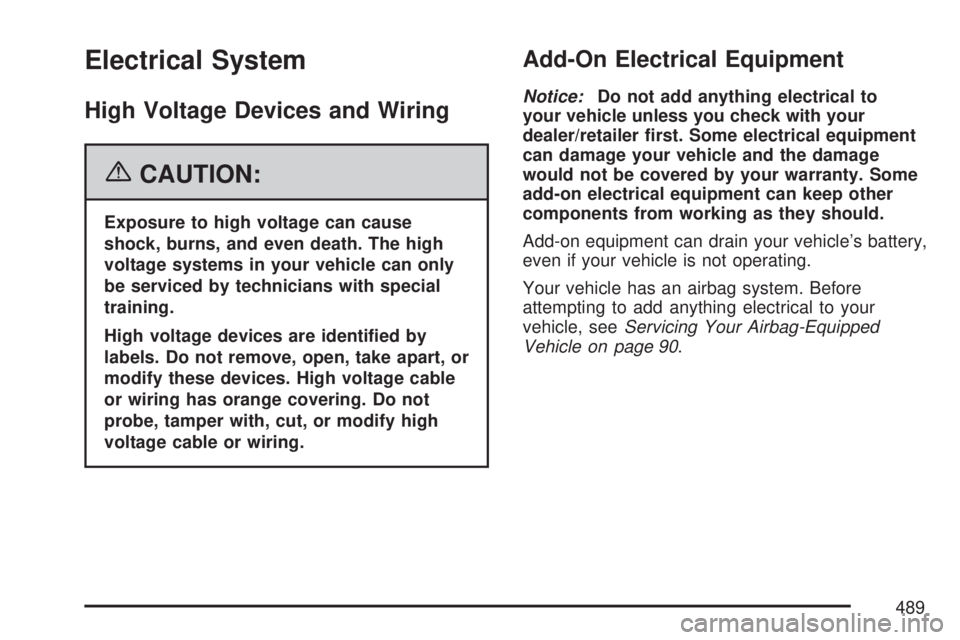

Electrical System
High Voltage Devices and Wiring
{CAUTION:
Exposure to high voltage can cause
shock, burns, and even death. The high
voltage systems in your vehicle can only
be serviced by technicians with special
training.
High voltage devices are identied by
labels. Do not remove, open, take apart, or
modify these devices. High voltage cable
or wiring has orange covering. Do not
probe, tamper with, cut, or modify high
voltage cable or wiring.
Add-On Electrical Equipment
Notice:Do not add anything electrical to
your vehicle unless you check with your
dealer/retailer rst. Some electrical equipment
can damage your vehicle and the damage
would not be covered by your warranty. Some
add-on electrical equipment can keep other
components from working as they should.
Add-on equipment can drain your vehicle’s battery,
even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 90.
489

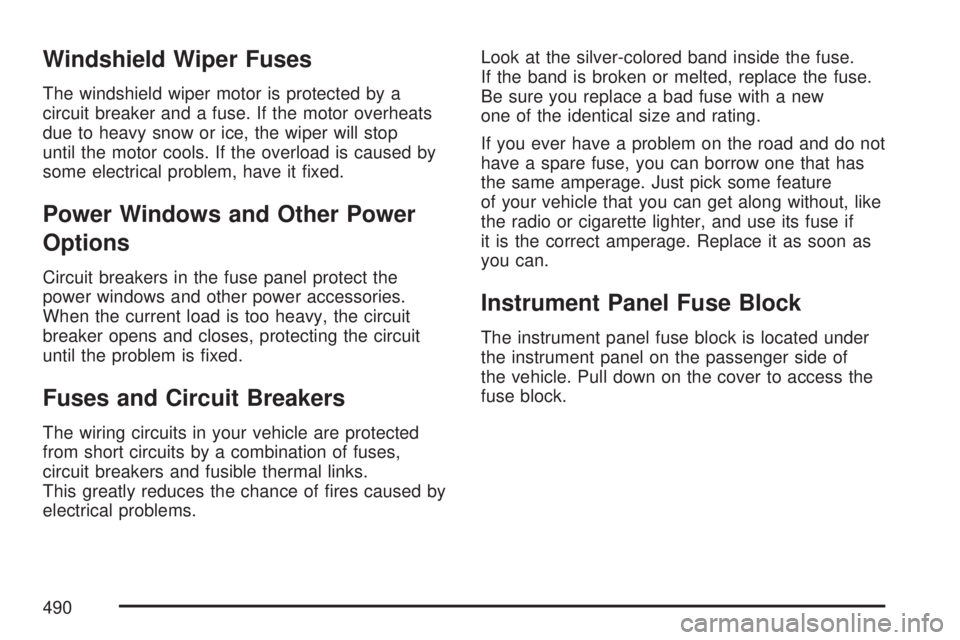

Windshield Wiper Fuses
The windshield wiper motor is protected by a
circuit breaker and a fuse. If the motor overheats
due to heavy snow or ice, the wiper will stop
until the motor cools. If the overload is caused by
some electrical problem, have it xed.
Power Windows and Other Power
Options
Circuit breakers in the fuse panel protect the
power windows and other power accessories.
When the current load is too heavy, the circuit
breaker opens and closes, protecting the circuit
until the problem is xed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses,
circuit breakers and fusible thermal links.
This greatly reduces the chance of res caused by
electrical problems.Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new
one of the identical size and rating.
If you ever have a problem on the road and do not
have a spare fuse, you can borrow one that has
the same amperage. Just pick some feature
of your vehicle that you can get along without, like
the radio or cigarette lighter, and use its fuse if
it is the correct amperage. Replace it as soon as
you can.
Instrument Panel Fuse Block
The instrument panel fuse block is located under
the instrument panel on the passenger side of
the vehicle. Pull down on the cover to access the
fuse block.
490

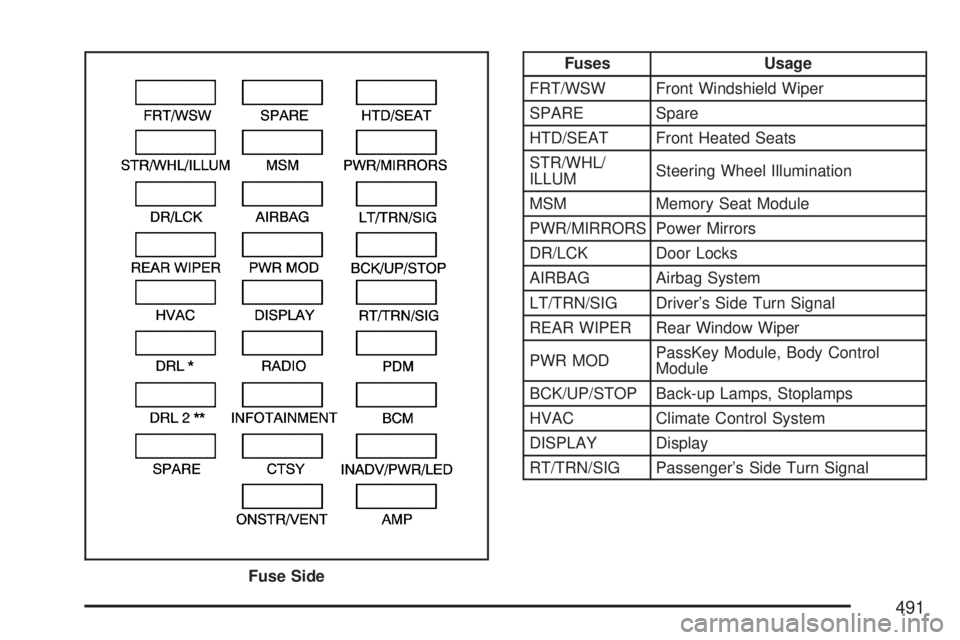

Fuses Usage
FRT/WSW Front Windshield Wiper
SPARE Spare
HTD/SEAT Front Heated Seats
STR/WHL/
ILLUMSteering Wheel Illumination
MSM Memory Seat Module
PWR/MIRRORS Power Mirrors
DR/LCK Door Locks
AIRBAG Airbag System
LT/TRN/SIG Driver’s Side Turn Signal
REAR WIPER Rear Window Wiper
PWR MODPassKey Module, Body Control
Module
BCK/UP/STOP Back-up Lamps, Stoplamps
HVAC Climate Control System
DISPLAY Display
RT/TRN/SIG Passenger’s Side Turn Signal
Fuse Side
491

Fuses Usage
DRL* Daytime Running Lamps
RADIO Radio
PDM Power Mirrors, Liftgate Release
DRL 2** Daytime Running Lamps 2
INFOTAINMENT Infotainment System
BCM Body Control Module
SPARE Spare
CTSY Dome Lamps
INADV/
PWR/LEDInterior Lamps
ONSTR/VENT Emissions
AMP Audio Amplier
Harness
ConnectorUsage
BODY Harness Connector
Relay Side
492

Relays Usage
LT/PWR/SEAT Driver’s Side Power Seat Relay
RT/PWR/SEAT Passenger’s Side Power Seat Relay
PWR/WNDW Power Windows Relay
PWR/COLUMN Power Steering Column Relay
L/GATE Liftgate Relay
LCK Power Lock Relay
REAR/WSW Rear Window Washer Relay
UNLCK Power Unlock Relay
DRL2 Daytime Running Lamps 2 Relay
LT/UNLCK Driver’s Side Unlock Relay
DRL Daytime Running Lamps Relay
SPARE Spare
FRT/WSW Front Windshield Washer RelayUnderhood Fuse Block
The underhood fuse block is located in the engine
compartment, on the passenger’s side of the
vehicle.
Lift the cover for access
to the fuse/relay block.
493

To remove fuses, hold the end of the fuse between your thumb and index nger and pull straight out.
494

Fuses Usage
LT PRK Left Parking Lamp
RT PRK Right Parking Lamp
TRLR PRK
LAMPTrailer Parking Lamps
AIRBAG Airbag System
PCM IGN Powertrain Control Module Ignition
AFS Adaptive Forward Lighting System
TRANS Transmission
REAR
CAMERARear Camera
EMISSION 1 Anti-lock Brakes System 2
TRLR BRK Trailer Brake
AWD All-Wheel-Drive System
TRLR PWR Trailer Power
EVEN COILS Even Injector Coils
RR HVAC Rear Climate Control System
SPARE Spare
ODD COILS Odd Injector Coils
SPARE Spare
LT HI BEAM Left High-Beam Headlamp
SPARE Spare
LT TRLR
STOP/TRNTrailer Left Stoplamp and Turn
Signal
EMISSION 2 Emission 2Fuses Usage
ECM Engine Control Module
RT HI BEAM Right High-Beam Headlamp
RVC SNSR Regulated Voltage Control Sensor
RT TRLR
STOP/TRNTrailer Right Stoplamp and Turn
Signal
ECM 1 Engine Control Module 1
SPARE Spare
WPR/WSW Windshield Wiper/Washer
SPARE Spare
PWR OUTLET Power Outlet
AUX POWER Auxiliary Power
RT LO BEAM Right Low-Beam Headlamp
RR APO Rear Accessory Power Outlet
LT LO BEAM Left Low-Beam Headlamp
TCM Transmission Control Module
TRLR BCK/UP Trailer Back-up Lamps
HTD MIR Heated Outside Rearview Mirror
ABS MTR Anti-lock Brake System Motor
FOG LAMP Fog Lamps
HORN Horn
A/C CLTCH Air Conditioning Clutch
FUEL PUMP Fuel Pump
SPARE Spare
495

J-Case Fuses Usage
FAN 2 Cooling Fan 2
PWR L/GATE Power Liftgate
FAN 1 Cooling Fan 1
HVAC BLWR Climate Control System Blower
STRTR Starter
BATT 2 Battery 2
HTD WASH Heated Windshield Washer System
BATT 1 Battery 1
BATT 3 Battery 3
ABS MTR Anti-lock Brake System Motor
RR DEFOG Rear Defogger
S/ROOF/
SUNSHADESunroof, Sunshade
Relays Usage
FAN 3 Cooling Fan 3
FAN 2 Cooling Fan 2
PRK LAMP Park Lamp
FAN 1 Cooling Fan 1
Relays Usage
RT TRLR
STOP/TRNTrailer Right Stoplamp and
Turn Signal
LT TRLR
STOP/TRNTrailer Left Stoplamp and
Turn Signal
IGN Ignition Main
CRNK Switched Power
PWR/TRN Powertrain
HI BEAM High-Beam Headlamps
WPR Windshield Wiper
WPR HI Windshield Wiper High Speed
RR DEFOG Rear Window Defogger
HID/LO BEAMHigh Intensity Discharge (HID)
Low-Beam Headlamps
SPARE Spare
FOG LAMP Fog Lamps
HORN Horn
A/C CMPRSR
CLTCHAir Conditioning Compressor Clutch
FUEL PUMP Fuel Pump
TRLR BCK/UP Trailer Back-up Lamps
496
