2007 CHEVROLET MALIBU MAXX Owners Manual

Securing a Child Restraint in a
Rear Seat Position
If your child restraint has the LATCH system,
seeLower Anchors and Tethers for Children
(LATCH) on page 56.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder
belt to secure the child restraint in this position.
Be sure to follow the instructions that came
with the child restraint. Secure the child in the
child restraint when and as the instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.3. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
65

4. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.5. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.
66

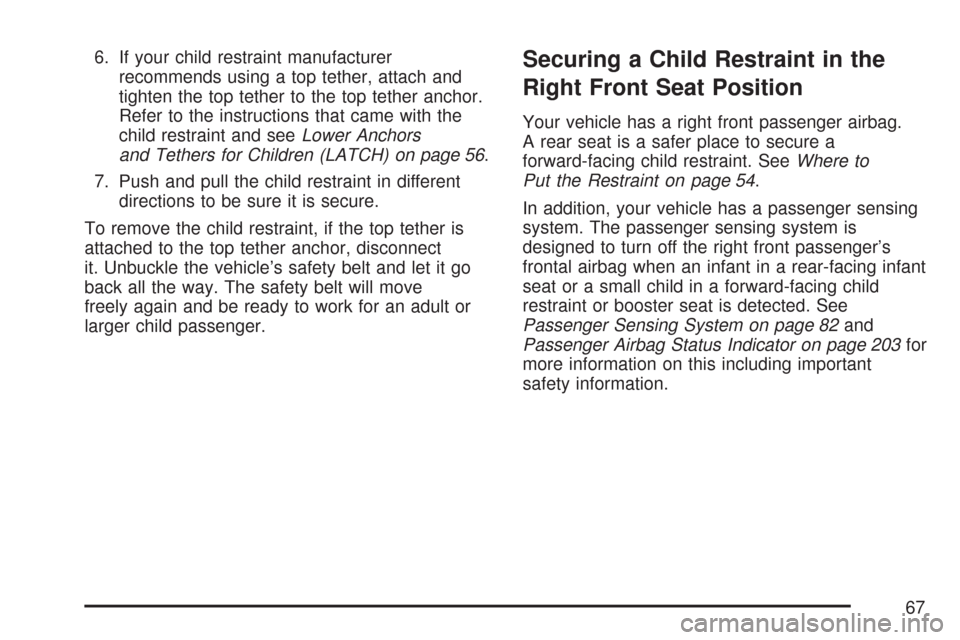

6. If your child restraint manufacturer
recommends using a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the
child restraint and seeLower Anchors
and Tethers for Children (LATCH) on page 56.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it go
back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger airbag.
A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to
Put the Restraint on page 54.
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag when an infant in a rear-facing infant
seat or a small child in a forward-facing child
restraint or booster seat is detected. See
Passenger Sensing System on page 82and
Passenger Airbag Status Indicator on page 203for
more information on this including important
safety information.
67

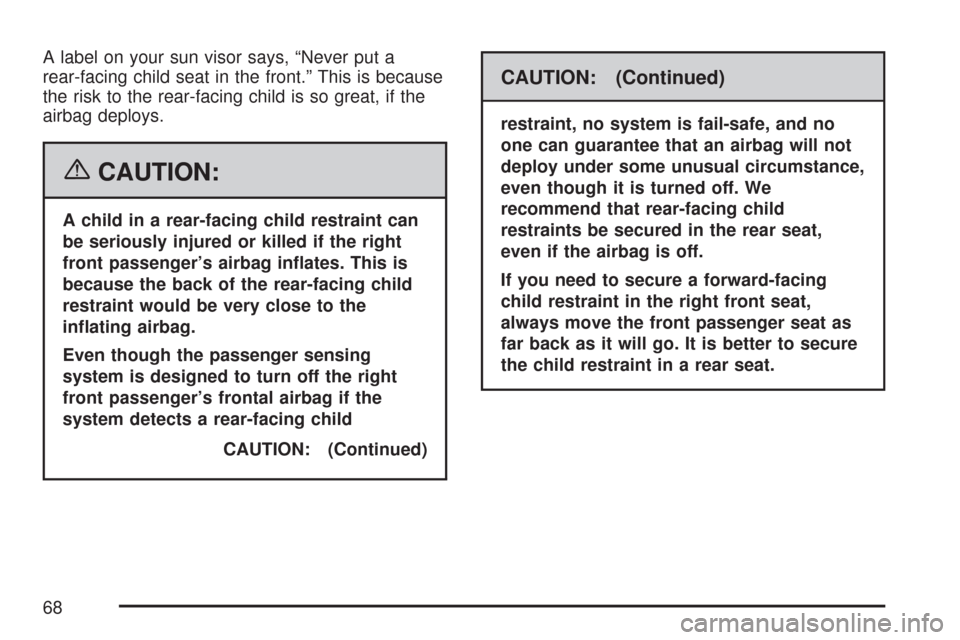

A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag if the
system detects a rear-facing child
CAUTION: (Continued)
CAUTION: (Continued)
restraint, no system is fail-safe, and no
one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We
recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
68

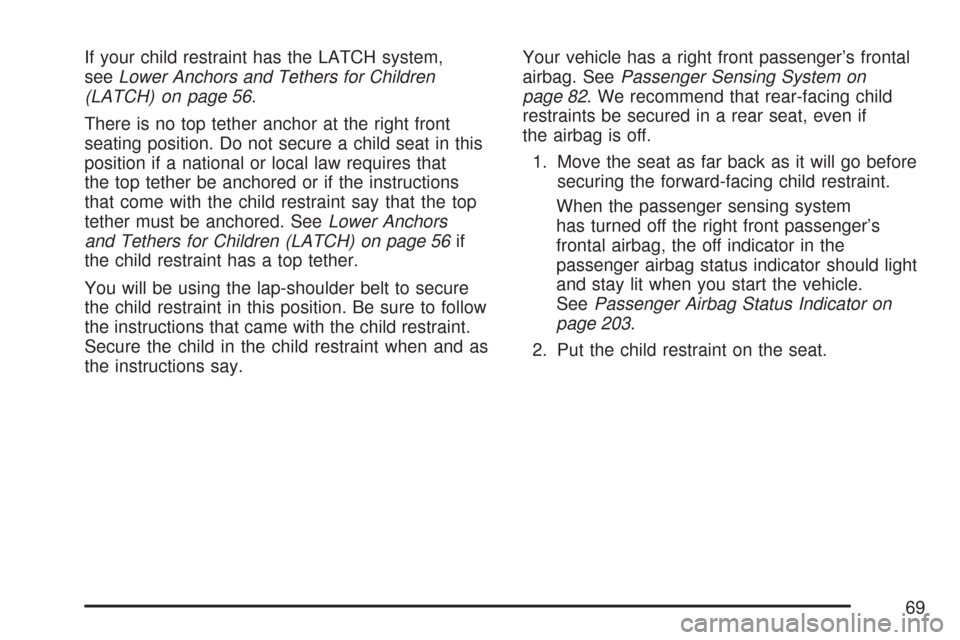

If your child restraint has the LATCH system,
seeLower Anchors and Tethers for Children
(LATCH) on page 56.
There is no top tether anchor at the right front
seating position. Do not secure a child seat in this
position if a national or local law requires that
the top tether be anchored or if the instructions
that come with the child restraint say that the top
tether must be anchored. SeeLower Anchors
and Tethers for Children (LATCH) on page 56if
the child restraint has a top tether.
You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.Your vehicle has a right front passenger’s frontal
airbag. SeePassenger Sensing System on
page 82. We recommend that rear-facing child
restraints be secured in a rear seat, even if
the airbag is off.
1. Move the seat as far back as it will go before
securing the forward-facing child restraint.
When the passenger sensing system
has turned off the right front passenger’s
frontal airbag, the off indicator in the
passenger airbag status indicator should light
and stay lit when you start the vehicle.
SeePassenger Airbag Status Indicator on
page 203.
2. Put the child restraint on the seat.
69

3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
70

6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.If the airbag is off, the off indicator will be lit and
stay lit when you start the vehicle.
If a child restraint has been installed and the
on indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall
the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in
the child restraint in a rear seat position in
the vehicle and check with your dealer/retailer.
To remove the child restraint, unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
71

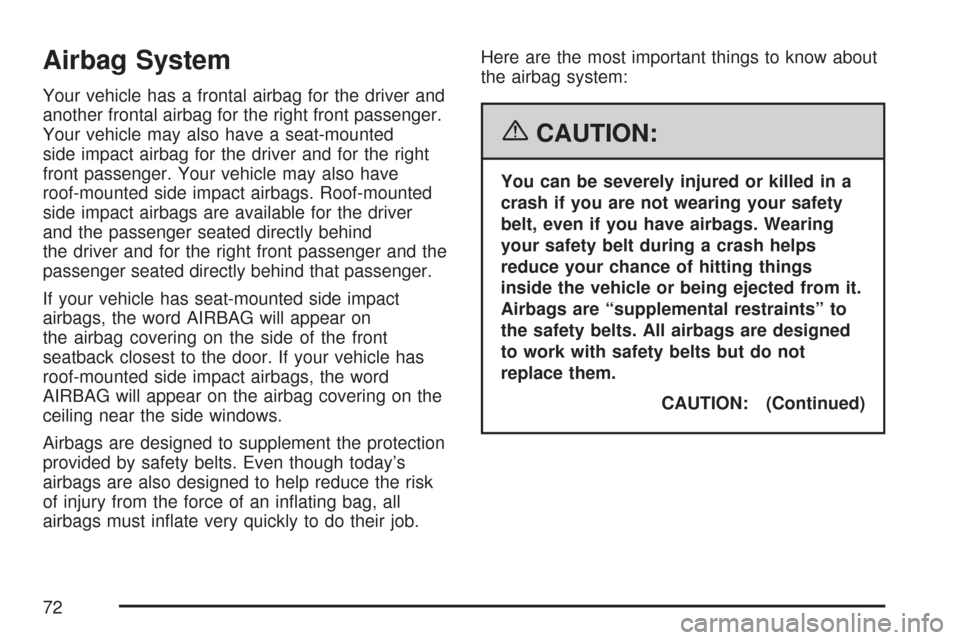

Airbag System
Your vehicle has a frontal airbag for the driver and
another frontal airbag for the right front passenger.
Your vehicle may also have a seat-mounted
side impact airbag for the driver and for the right
front passenger. Your vehicle may also have
roof-mounted side impact airbags. Roof-mounted
side impact airbags are available for the driver
and the passenger seated directly behind
the driver and for the right front passenger and the
passenger seated directly behind that passenger.
If your vehicle has seat-mounted side impact
airbags, the word AIRBAG will appear on
the airbag covering on the side of the front
seatback closest to the door. If your vehicle has
roof-mounted side impact airbags, the word
AIRBAG will appear on the airbag covering on the
ceiling near the side windows.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt, even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
CAUTION: (Continued)
72
