2007 CHEVROLET MALIBU MAXX Owners Manual

DVD Player
The DVD player is located on the end of the oor
console under the video screen.
The DVD player can be controlled by the buttons
on the RSE system and/or by the buttons on
the remote control. See “Remote Control” later
in this section for more information.
The DVD player is only compatible with DVDs
of the appropriate region code for the country that
the vehicle was sold in. The DVD region code
is printed on the jackets of most DVDs. Video CDs,
standard audio CDs, and audio CD-Rs can be
played by the DVD player. The video screen
displays a menu when an audio CD or CD-R
is playing.
If an error message appears on the video screen,
see “DVD Messages” later in this section.
DVD Player Buttons
O(Power):Press theObutton to turn the
RSE system on and off.
c/Z(Stop/Eject):Press thec/Z(stop)
button to stop playing, rewinding, or fast forwarding.
Press the
c/Z(eject) button again to eject
a DVD or CD.
265

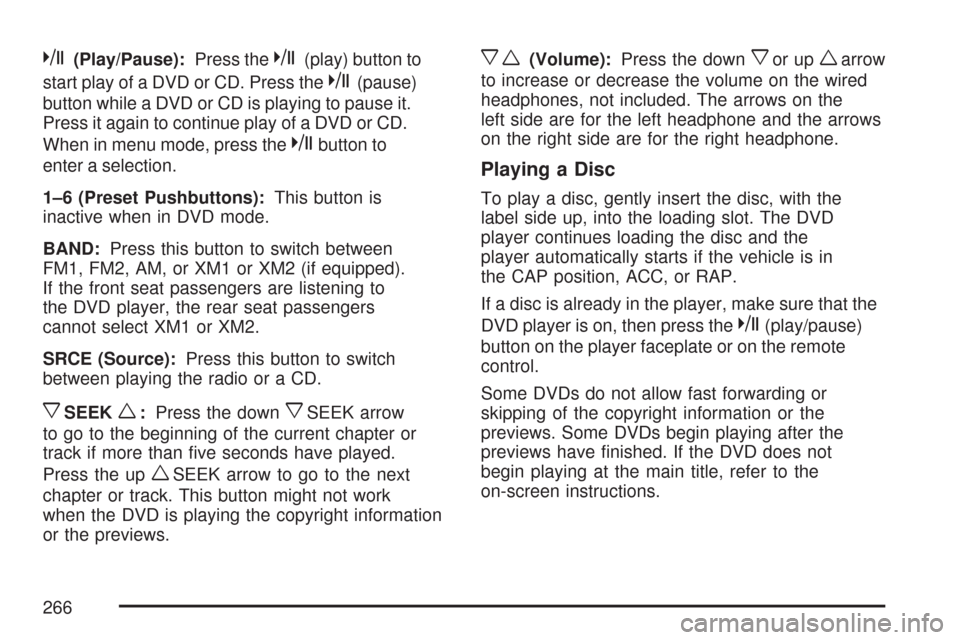

k(Play/Pause):Press thek(play) button to
start play of a DVD or CD. Press the
k(pause)
button while a DVD or CD is playing to pause it.
Press it again to continue play of a DVD or CD.
When in menu mode, press the
kbutton to
enter a selection.
1–6 (Preset Pushbuttons):This button is
inactive when in DVD mode.
BAND:Press this button to switch between
FM1, FM2, AM, or XM1 or XM2 (if equipped).
If the front seat passengers are listening to
the DVD player, the rear seat passengers
cannot select XM1 or XM2.
SRCE (Source):Press this button to switch
between playing the radio or a CD.
xSEEKw:Press the downxSEEK arrow
to go to the beginning of the current chapter or
track if more than ve seconds have played.
Press the up
wSEEK arrow to go to the next
chapter or track. This button might not work
when the DVD is playing the copyright information
or the previews.
xw(Volume):Press the downxor upwarrow
to increase or decrease the volume on the wired
headphones, not included. The arrows on the
left side are for the left headphone and the arrows
on the right side are for the right headphone.
Playing a Disc
To play a disc, gently insert the disc, with the
label side up, into the loading slot. The DVD
player continues loading the disc and the
player automatically starts if the vehicle is in
the CAP position, ACC, or RAP.
If a disc is already in the player, make sure that the
DVD player is on, then press the
k(play/pause)
button on the player faceplate or on the remote
control.
Some DVDs do not allow fast forwarding or
skipping of the copyright information or the
previews. Some DVDs begin playing after the
previews have nished. If the DVD does not
begin playing at the main title, refer to the
on-screen instructions.
266

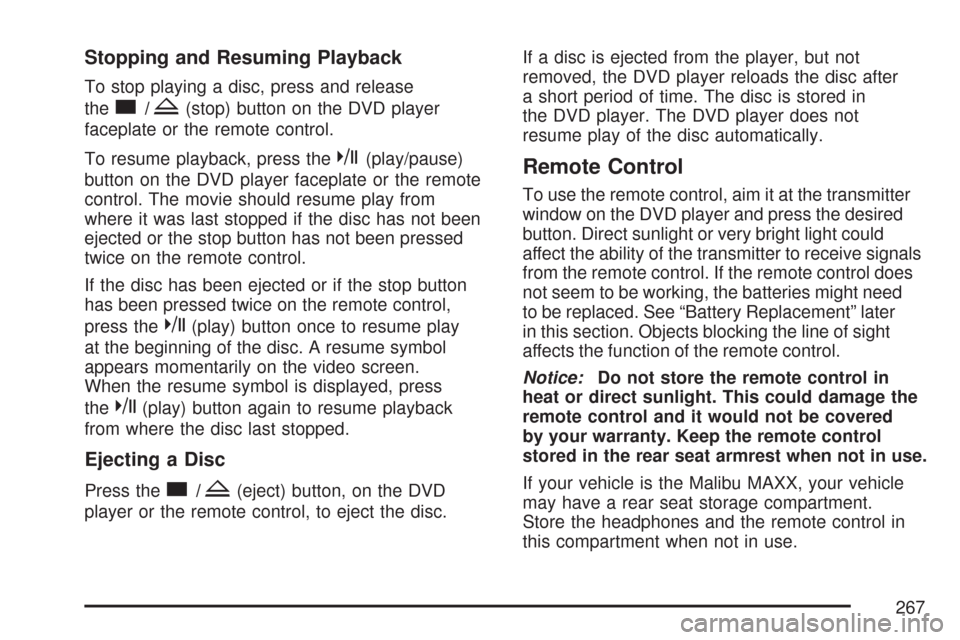

Stopping and Resuming Playback
To stop playing a disc, press and release
the
c/Z(stop) button on the DVD player
faceplate or the remote control.
To resume playback, press the
k(play/pause)
button on the DVD player faceplate or the remote
control. The movie should resume play from
where it was last stopped if the disc has not been
ejected or the stop button has not been pressed
twice on the remote control.
If the disc has been ejected or if the stop button
has been pressed twice on the remote control,
press the
k(play) button once to resume play
at the beginning of the disc. A resume symbol
appears momentarily on the video screen.
When the resume symbol is displayed, press
the
k(play) button again to resume playback
from where the disc last stopped.
Ejecting a Disc
Press thec/Z(eject) button, on the DVD
player or the remote control, to eject the disc.If a disc is ejected from the player, but not
removed, the DVD player reloads the disc after
a short period of time. The disc is stored in
the DVD player. The DVD player does not
resume play of the disc automatically.
Remote Control
To use the remote control, aim it at the transmitter
window on the DVD player and press the desired
button. Direct sunlight or very bright light could
affect the ability of the transmitter to receive signals
from the remote control. If the remote control does
not seem to be working, the batteries might need
to be replaced. See “Battery Replacement” later
in this section. Objects blocking the line of sight
affects the function of the remote control.
Notice:Do not store the remote control in
heat or direct sunlight. This could damage the
remote control and it would not be covered
by your warranty. Keep the remote control
stored in the rear seat armrest when not in use.
If your vehicle is the Malibu MAXX, your vehicle
may have a rear seat storage compartment.
Store the headphones and the remote control in
this compartment when not in use.
267

Remote Control Buttons
O(Power):Press theObutton to turn the
DVD player on and off.
Z(Eject):Press theZbutton to eject or to
load the disc.
P(Backlight):Press thePbutton to turn
the remote control backlight on. The backlight
times out after about eight seconds.
r(Enter):Press therbutton to select the
choices that are highlighted in any menu.
w,x,o,p(Directional Arrows):Press these
buttons to navigate through DVD menus.
y(Main DVD Menu):Press theybutton to
view the media menu. The media menu is different
on every disc. Use the
w,x,o,pdirectional
arrows to move the cursor around the media menu.
After making a selection, press the
rbutton.
Press this button again to start play of the disc.
+
u−(Wired Headphone Volume):Press
the + (plus) or−(minus)
ubutton to increase or
to decrease the volume of both wired headphones
(not included).
E(Screen Brightness):Press the + (plus)
or−(minus)
Ebutton to increase or to decrease
the intensity of the video screen.
q(Return):Press theqbutton to exit the
current active menu and return to the previous
menu. This button operates only when a DVD is
playing and/or a menu is active.
268

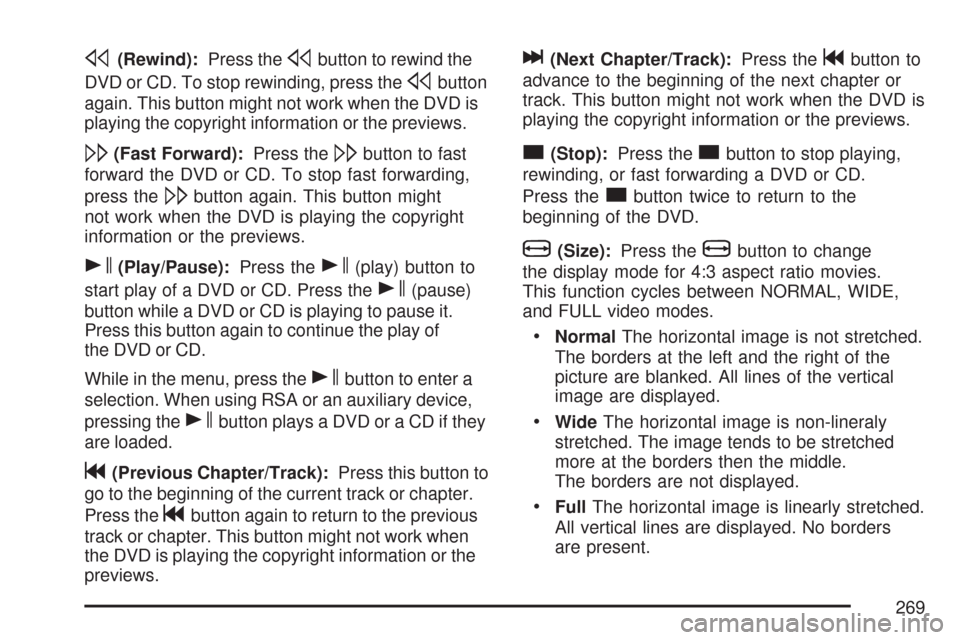

s(Rewind):Press thesbutton to rewind the
DVD or CD. To stop rewinding, press the
sbutton
again. This button might not work when the DVD is
playing the copyright information or the previews.
\(Fast Forward):Press the\button to fast
forward the DVD or CD. To stop fast forwarding,
press the
\button again. This button might
not work when the DVD is playing the copyright
information or the previews.
s(Play/Pause):Press thes(play) button to
start play of a DVD or CD. Press the
s(pause)
button while a DVD or CD is playing to pause it.
Press this button again to continue the play of
the DVD or CD.
While in the menu, press the
sbutton to enter a
selection. When using RSA or an auxiliary device,
pressing the
sbutton plays a DVD or a CD if they
are loaded.
g(Previous Chapter/Track):Press this button to
go to the beginning of the current track or chapter.
Press the
gbutton again to return to the previous
track or chapter. This button might not work when
the DVD is playing the copyright information or the
previews.
l(Next Chapter/Track):Press thegbutton to
advance to the beginning of the next chapter or
track. This button might not work when the DVD is
playing the copyright information or the previews.
c(Stop):Press thecbutton to stop playing,
rewinding, or fast forwarding a DVD or CD.
Press the
cbutton twice to return to the
beginning of the DVD.
b(Size):Press thebbutton to change
the display mode for 4:3 aspect ratio movies.
This function cycles between NORMAL, WIDE,
and FULL video modes.
NormalThe horizontal image is not stretched.
The borders at the left and the right of the
picture are blanked. All lines of the vertical
image are displayed.
WideThe horizontal image is non-lineraly
stretched. The image tends to be stretched
more at the borders then the middle.
The borders are not displayed.
FullThe horizontal image is linearly stretched.
All vertical lines are displayed. No borders
are present.
269

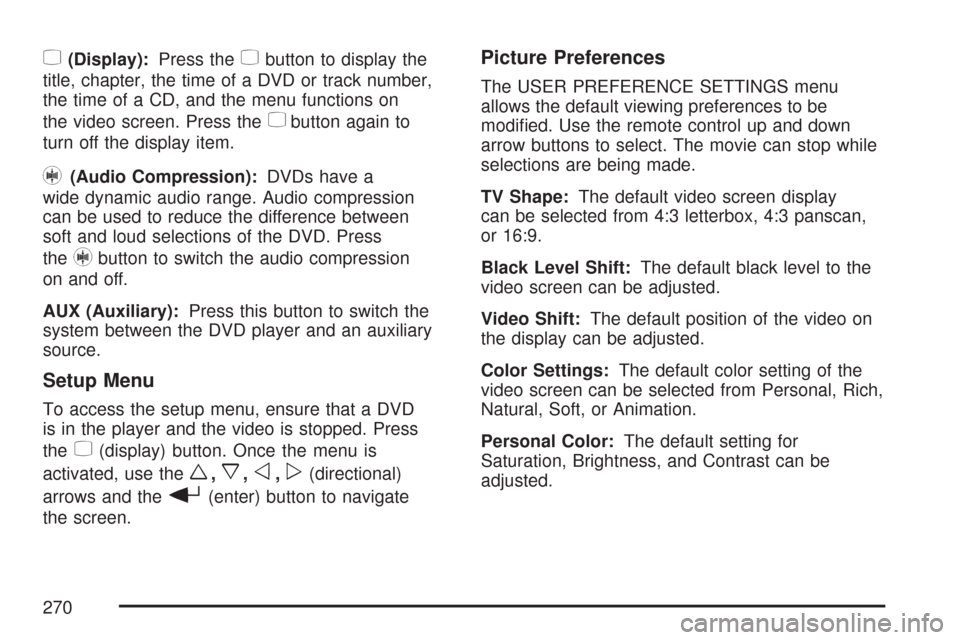

z(Display):Press thezbutton to display the
title, chapter, the time of a DVD or track number,
the time of a CD, and the menu functions on
the video screen. Press the
zbutton again to
turn off the display item.
}(Audio Compression):DVDs have a
wide dynamic audio range. Audio compression
can be used to reduce the difference between
soft and loud selections of the DVD. Press
the
}button to switch the audio compression
on and off.
AUX (Auxiliary):Press this button to switch the
system between the DVD player and an auxiliary
source.
Setup Menu
To access the setup menu, ensure that a DVD
is in the player and the video is stopped. Press
the
z(display) button. Once the menu is
activated, use the
w,x,o,p(directional)
arrows and the
r(enter) button to navigate
the screen.
Picture Preferences
The USER PREFERENCE SETTINGS menu
allows the default viewing preferences to be
modied. Use the remote control up and down
arrow buttons to select. The movie can stop while
selections are being made.
TV Shape:The default video screen display
can be selected from 4:3 letterbox, 4:3 panscan,
or 16:9.
Black Level Shift:The default black level to the
video screen can be adjusted.
Video Shift:The default position of the video on
the display can be adjusted.
Color Settings:The default color setting of the
video screen can be selected from Personal, Rich,
Natural, Soft, or Animation.
Personal Color:The default setting for
Saturation, Brightness, and Contrast can be
adjusted.
270

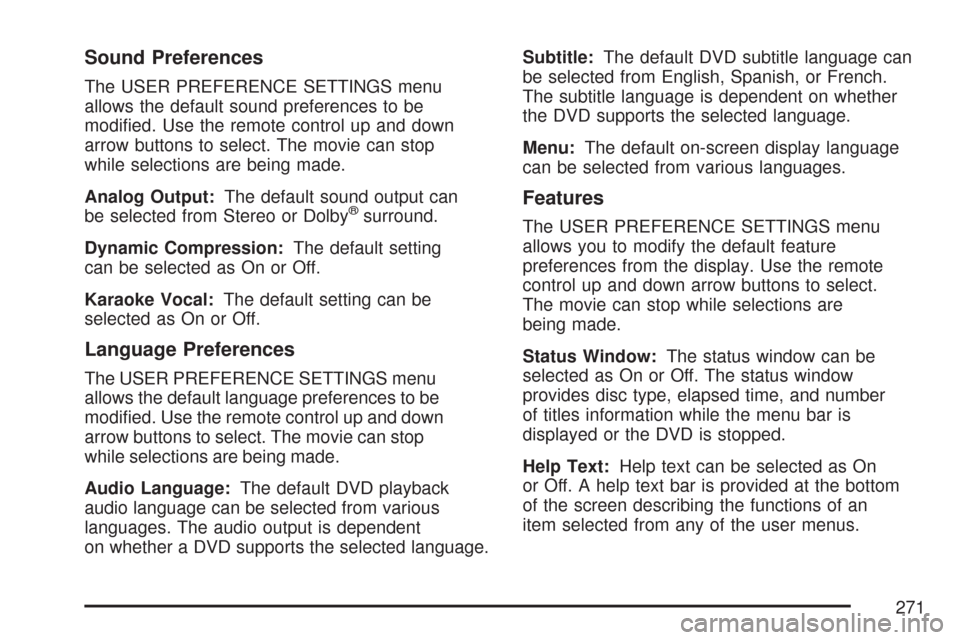

Sound Preferences
The USER PREFERENCE SETTINGS menu
allows the default sound preferences to be
modied. Use the remote control up and down
arrow buttons to select. The movie can stop
while selections are being made.
Analog Output:The default sound output can
be selected from Stereo or Dolby
®surround.
Dynamic Compression:The default setting
can be selected as On or Off.
Karaoke Vocal:The default setting can be
selected as On or Off.
Language Preferences
The USER PREFERENCE SETTINGS menu
allows the default language preferences to be
modied. Use the remote control up and down
arrow buttons to select. The movie can stop
while selections are being made.
Audio Language:The default DVD playback
audio language can be selected from various
languages. The audio output is dependent
on whether a DVD supports the selected language.Subtitle:The default DVD subtitle language can
be selected from English, Spanish, or French.
The subtitle language is dependent on whether
the DVD supports the selected language.
Menu:The default on-screen display language
can be selected from various languages.
Features
The USER PREFERENCE SETTINGS menu
allows you to modify the default feature
preferences from the display. Use the remote
control up and down arrow buttons to select.
The movie can stop while selections are
being made.
Status Window:The status window can be
selected as On or Off. The status window
provides disc type, elapsed time, and number
of titles information while the menu bar is
displayed or the DVD is stopped.
Help Text:Help text can be selected as On
or Off. A help text bar is provided at the bottom
of the screen describing the functions of an
item selected from any of the user menus.
271

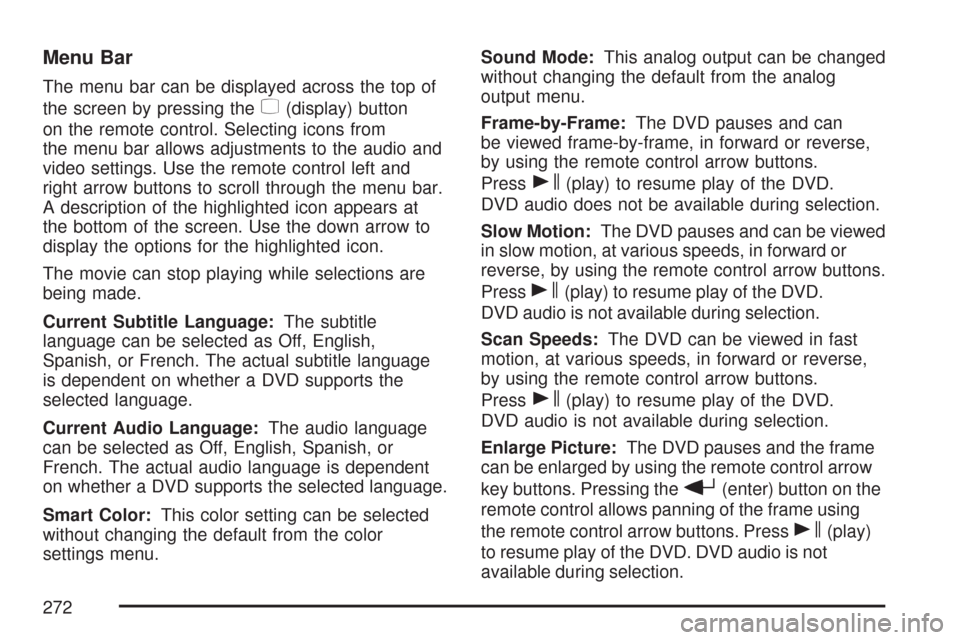

Menu Bar
The menu bar can be displayed across the top of
the screen by pressing the
z(display) button
on the remote control. Selecting icons from
the menu bar allows adjustments to the audio and
video settings. Use the remote control left and
right arrow buttons to scroll through the menu bar.
A description of the highlighted icon appears at
the bottom of the screen. Use the down arrow to
display the options for the highlighted icon.
The movie can stop playing while selections are
being made.
Current Subtitle Language:The subtitle
language can be selected as Off, English,
Spanish, or French. The actual subtitle language
is dependent on whether a DVD supports the
selected language.
Current Audio Language:The audio language
can be selected as Off, English, Spanish, or
French. The actual audio language is dependent
on whether a DVD supports the selected language.
Smart Color:This color setting can be selected
without changing the default from the color
settings menu.Sound Mode:This analog output can be changed
without changing the default from the analog
output menu.
Frame-by-Frame:The DVD pauses and can
be viewed frame-by-frame, in forward or reverse,
by using the remote control arrow buttons.
Press
s(play) to resume play of the DVD.
DVD audio does not be available during selection.
Slow Motion:The DVD pauses and can be viewed
in slow motion, at various speeds, in forward or
reverse, by using the remote control arrow buttons.
Press
s(play) to resume play of the DVD.
DVD audio is not available during selection.
Scan Speeds:The DVD can be viewed in fast
motion, at various speeds, in forward or reverse,
by using the remote control arrow buttons.
Press
s(play) to resume play of the DVD.
DVD audio is not available during selection.
Enlarge Picture:The DVD pauses and the frame
can be enlarged by using the remote control arrow
key buttons. Pressing the
r(enter) button on the
remote control allows panning of the frame using
the remote control arrow buttons. Press
s(play)
to resume play of the DVD. DVD audio is not
available during selection.
272
