2007 CHEVROLET MALIBU MAXX Owners Manual

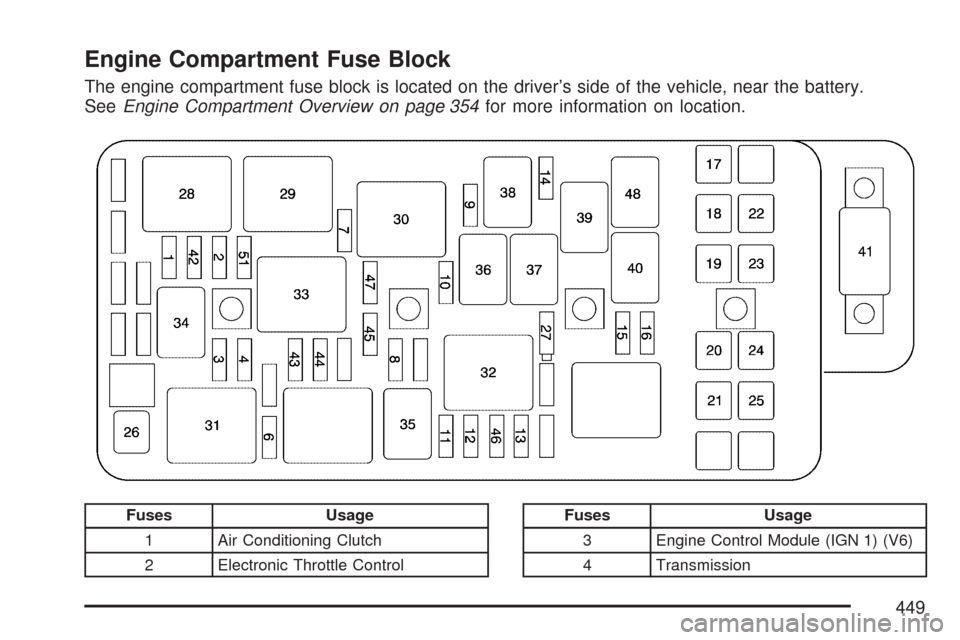

Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.
SeeEngine Compartment Overview on page 354for more information on location.
Fuses Usage
1 Air Conditioning Clutch
2 Electronic Throttle ControlFuses Usage
3 Engine Control Module (IGN 1) (V6)
4 Transmission
449

Fuses Usage
6 Emission 1
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Engine Control Module (BATT) (L4)
14 Windshield Wiper
15 Anti-lock Brake System
16 Engine Control Module (IGN 1) (L4)
17 Cooling Fan 1
18 Cooling Fan 2
19 Run Relay
20 IBCM 1
21 IBCM (R/C)
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Anti-lock Brake SystemFuses Usage
25 IBCM 2
26 Starter
27 (DIODE) Windshield Wiper
41 Electric Power Steering
42 Transaxle Control Module
43 Ignition Module
44 Fuel Injectors
45 Rear Oxygen Sensors
46 (Resistor) Brake Lamp Diagnostic
47 Daytime Running Lamps
51 Engine Control Module (BATT) (V6)
Relays Usage
28 Cooling Fan 1
29 Cooling Fan Mode Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank Ignition
33 Powertrain
450

Relays Usage
34 Air Conditioning Clutch
35 High-Beam Headlamps
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running LampsRear Compartment Fuse Block
The rear compartment fuse block is located in the
trunk of the vehicle. Access the fuse block
through the trunk panel on the driver’s side of the
rear cargo area.
451

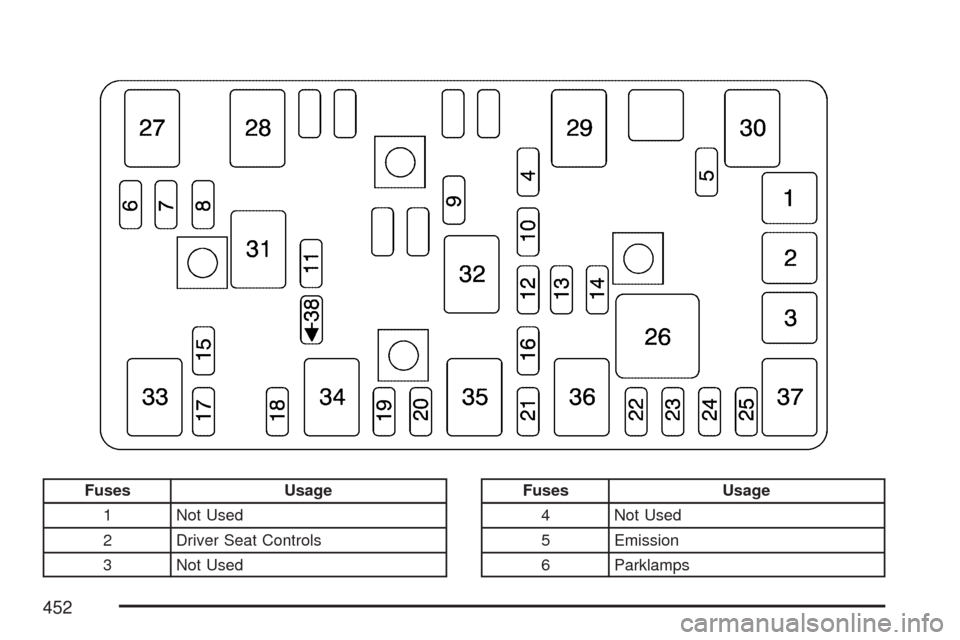

Fuses Usage
1 Not Used
2 Driver Seat Controls
3 Not UsedFuses Usage
4 Not Used
5 Emission
6 Parklamps
452

Fuses Usage
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Auxiliary Power 2
13 Not Used
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry System,
XM Satellite Radio, Rear Seat
Entertainment System, Homelink
17 Back-up Lamps
18 Not Used
19 Not Used
20Cigarette Lighter, Auxiliary Power
Outlet
21 Not Used
22 TrunkFuses Usage
23 Rear Window Defogger
24 Heated Mirror Controls
25 Fuel Pump
Relays Usage
26 Rear Window Defogger
27 Parklamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk
37 Fuel Pump
38 (Diode) Trunk, Cargo Lamps
453

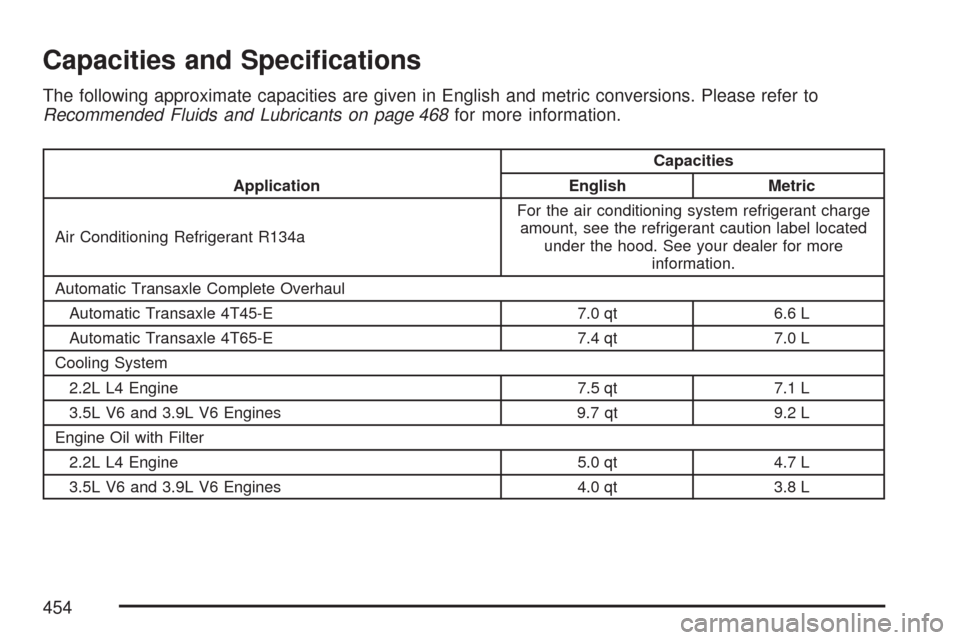

Capacities and Specications
The following approximate capacities are given in English and metric conversions. Please refer to
Recommended Fluids and Lubricants on page 468for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Automatic Transaxle Complete Overhaul
Automatic Transaxle 4T45-E 7.0 qt 6.6 L
Automatic Transaxle 4T65-E 7.4 qt 7.0 L
Cooling System
2.2L L4 Engine 7.5 qt 7.1 L
3.5L V6 and 3.9L V6 Engines 9.7 qt 9.2 L
Engine Oil with Filter
2.2L L4 Engine 5.0 qt 4.7 L
3.5L V6 and 3.9L V6 Engines 4.0 qt 3.8 L
454

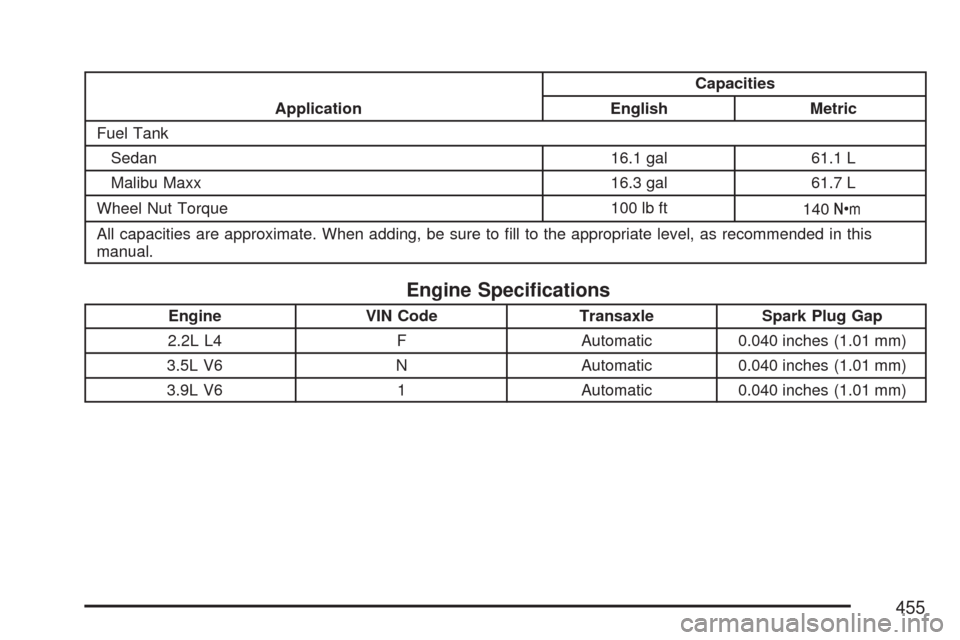

ApplicationCapacities
English Metric
Fuel Tank
Sedan 16.1 gal 61.1 L
Malibu Maxx 16.3 gal 61.7 L
Wheel Nut Torque100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this
manual.
Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
2.2L L4 F Automatic 0.040 inches (1.01 mm)
3.5L V6 N Automatic 0.040 inches (1.01 mm)
3.9L V6 1 Automatic 0.040 inches (1.01 mm)
455
