2007 CHEVROLET MALIBU MAXX Owners Manual

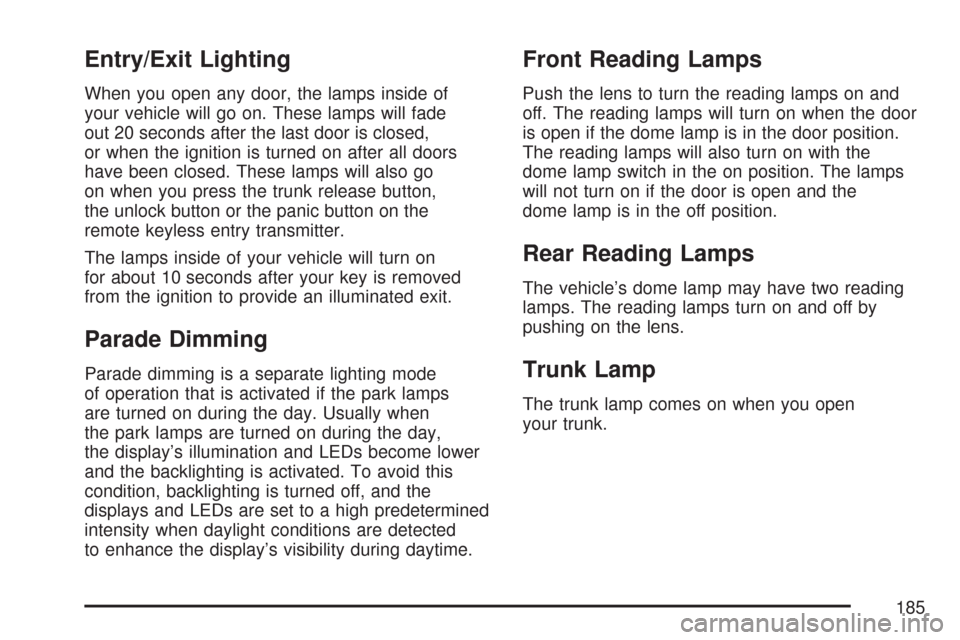

Entry/Exit Lighting
When you open any door, the lamps inside of
your vehicle will go on. These lamps will fade
out 20 seconds after the last door is closed,
or when the ignition is turned on after all doors
have been closed. These lamps will also go
on when you press the trunk release button,
the unlock button or the panic button on the
remote keyless entry transmitter.
The lamps inside of your vehicle will turn on
for about 10 seconds after your key is removed
from the ignition to provide an illuminated exit.
Parade Dimming
Parade dimming is a separate lighting mode
of operation that is activated if the park lamps
are turned on during the day. Usually when
the park lamps are turned on during the day,
the display’s illumination and LEDs become lower
and the backlighting is activated. To avoid this
condition, backlighting is turned off, and the
displays and LEDs are set to a high predetermined
intensity when daylight conditions are detected
to enhance the display’s visibility during daytime.
Front Reading Lamps
Push the lens to turn the reading lamps on and
off. The reading lamps will turn on when the door
is open if the dome lamp is in the door position.
The reading lamps will also turn on with the
dome lamp switch in the on position. The lamps
will not turn on if the door is open and the
dome lamp is in the off position.
Rear Reading Lamps
The vehicle’s dome lamp may have two reading
lamps. The reading lamps turn on and off by
pushing on the lens.
Trunk Lamp
The trunk lamp comes on when you open
your trunk.
185

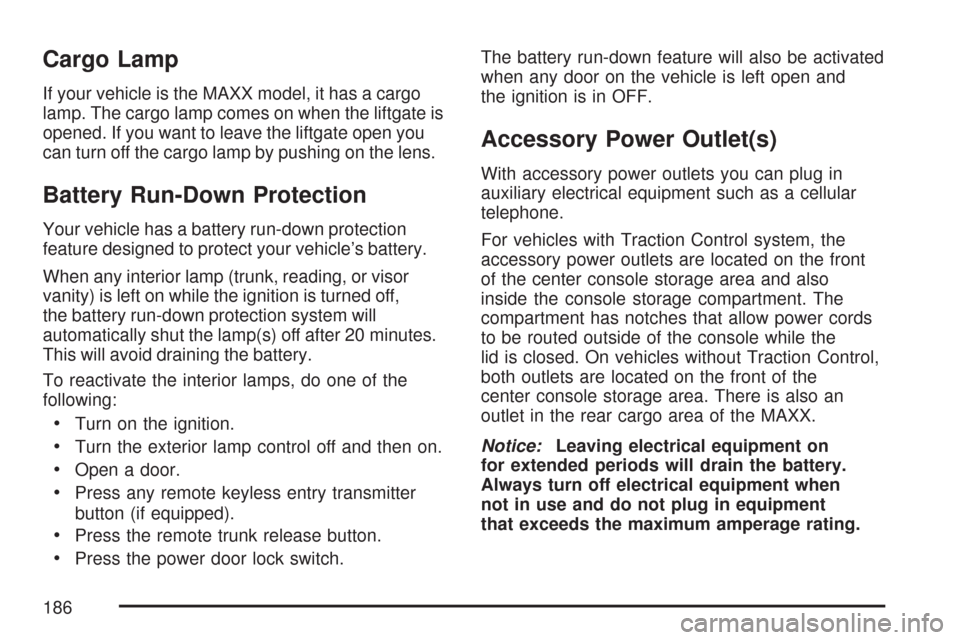

Cargo Lamp
If your vehicle is the MAXX model, it has a cargo
lamp. The cargo lamp comes on when the liftgate is
opened. If you want to leave the liftgate open you
can turn off the cargo lamp by pushing on the lens.
Battery Run-Down Protection
Your vehicle has a battery run-down protection
feature designed to protect your vehicle’s battery.
When any interior lamp (trunk, reading, or visor
vanity) is left on while the ignition is turned off,
the battery run-down protection system will
automatically shut the lamp(s) off after 20 minutes.
This will avoid draining the battery.
To reactivate the interior lamps, do one of the
following:
Turn on the ignition.
Turn the exterior lamp control off and then on.
Open a door.
Press any remote keyless entry transmitter
button (if equipped).
Press the remote trunk release button.
Press the power door lock switch.The battery run-down feature will also be activated
when any door on the vehicle is left open and
the ignition is in OFF.
Accessory Power Outlet(s)
With accessory power outlets you can plug in
auxiliary electrical equipment such as a cellular
telephone.
For vehicles with Traction Control system, the
accessory power outlets are located on the front
of the center console storage area and also
inside the console storage compartment. The
compartment has notches that allow power cords
to be routed outside of the console while the
lid is closed. On vehicles without Traction Control,
both outlets are located on the front of the
center console storage area. There is also an
outlet in the rear cargo area of the MAXX.
Notice:Leaving electrical equipment on
for extended periods will drain the battery.
Always turn off electrical equipment when
not in use and do not plug in equipment
that exceeds the maximum amperage rating.
186

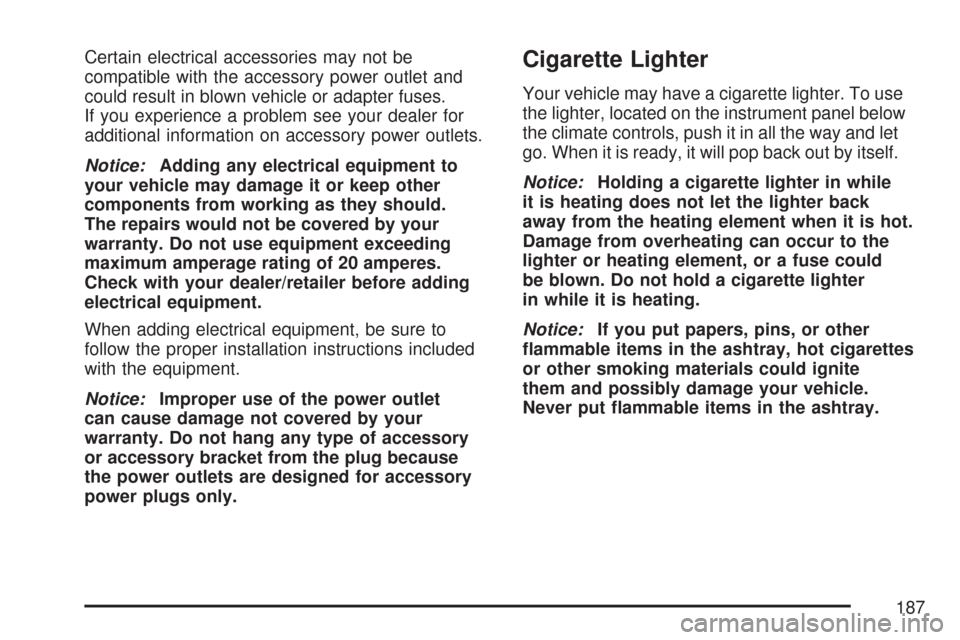

Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem see your dealer for
additional information on accessory power outlets.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer/retailer before adding
electrical equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet
can cause damage not covered by your
warranty. Do not hang any type of accessory
or accessory bracket from the plug because
the power outlets are designed for accessory
power plugs only.Cigarette Lighter
Your vehicle may have a cigarette lighter. To use
the lighter, located on the instrument panel below
the climate controls, push it in all the way and let
go. When it is ready, it will pop back out by itself.
Notice:Holding a cigarette lighter in while
it is heating does not let the lighter back
away from the heating element when it is hot.
Damage from overheating can occur to the
lighter or heating element, or a fuse could
be blown. Do not hold a cigarette lighter
in while it is heating.
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle.
Never put ammable items in the ashtray.
187

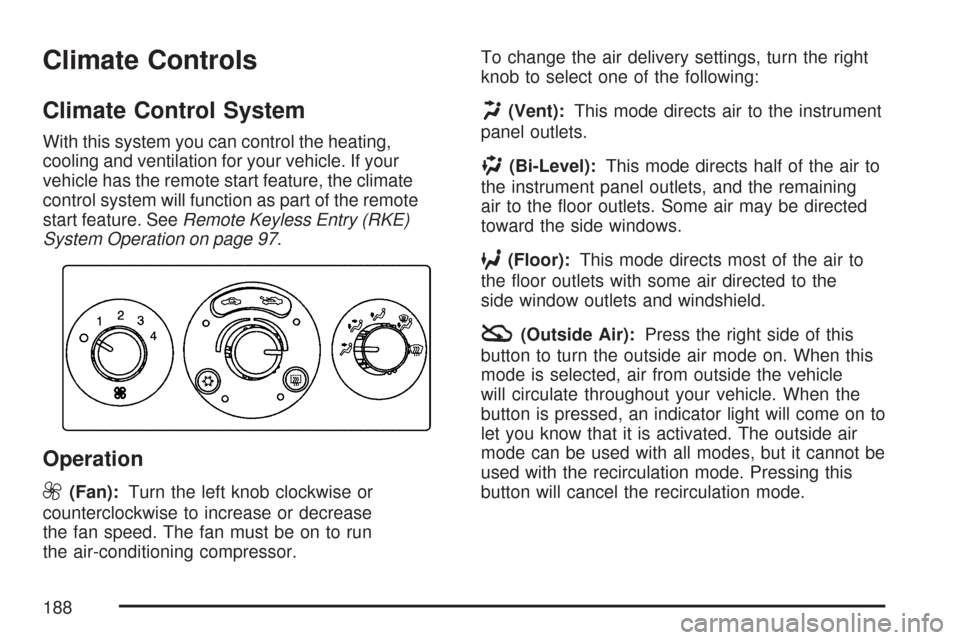

Climate Controls
Climate Control System
With this system you can control the heating,
cooling and ventilation for your vehicle. If your
vehicle has the remote start feature, the climate
control system will function as part of the remote
start feature. SeeRemote Keyless Entry (RKE)
System Operation on page 97.
Operation
9
(Fan):Turn the left knob clockwise or
counterclockwise to increase or decrease
the fan speed. The fan must be on to run
the air-conditioning compressor.To change the air delivery settings, turn the right
knob to select one of the following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs half of the air to
the instrument panel outlets, and the remaining
air to the oor outlets. Some air may be directed
toward the side windows.
6(Floor):This mode directs most of the air to
the oor outlets with some air directed to the
side window outlets and windshield.
:(Outside Air):Press the right side of this
button to turn the outside air mode on. When this
mode is selected, air from outside the vehicle
will circulate throughout your vehicle. When the
button is pressed, an indicator light will come on to
let you know that it is activated. The outside air
mode can be used with all modes, but it cannot be
used with the recirculation mode. Pressing this
button will cancel the recirculation mode.
188

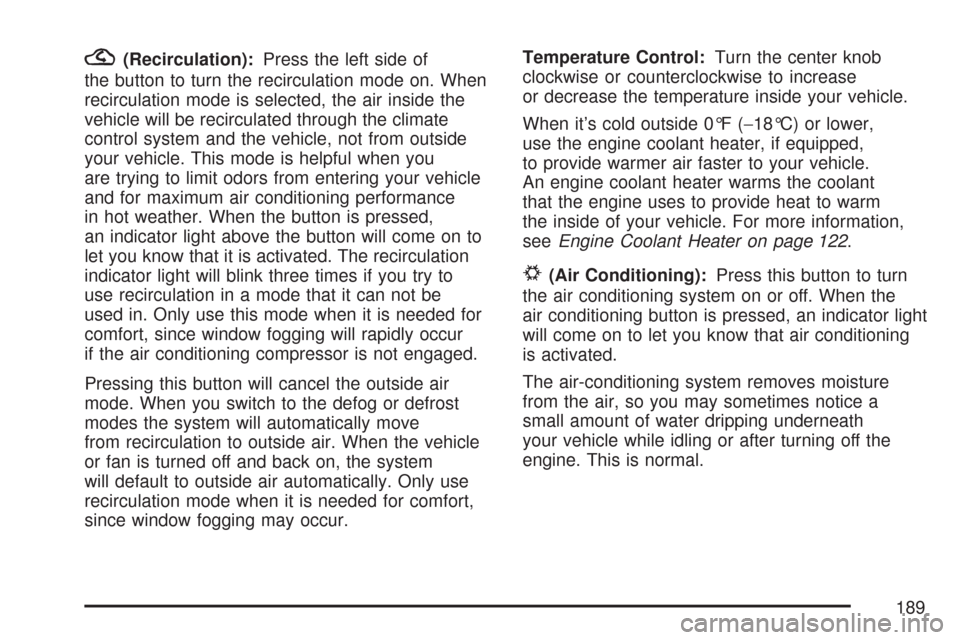

?(Recirculation):Press the left side of
the button to turn the recirculation mode on. When
recirculation mode is selected, the air inside the
vehicle will be recirculated through the climate
control system and the vehicle, not from outside
your vehicle. This mode is helpful when you
are trying to limit odors from entering your vehicle
and for maximum air conditioning performance
in hot weather. When the button is pressed,
an indicator light above the button will come on to
let you know that it is activated. The recirculation
indicator light will blink three times if you try to
use recirculation in a mode that it can not be
used in. Only use this mode when it is needed for
comfort, since window fogging will rapidly occur
if the air conditioning compressor is not engaged.
Pressing this button will cancel the outside air
mode. When you switch to the defog or defrost
modes the system will automatically move
from recirculation to outside air. When the vehicle
or fan is turned off and back on, the system
will default to outside air automatically. Only use
recirculation mode when it is needed for comfort,
since window fogging may occur.Temperature Control:Turn the center knob
clockwise or counterclockwise to increase
or decrease the temperature inside your vehicle.
When it’s cold outside 0°F (−18°C) or lower,
use the engine coolant heater, if equipped,
to provide warmer air faster to your vehicle.
An engine coolant heater warms the coolant
that the engine uses to provide heat to warm
the inside of your vehicle. For more information,
seeEngine Coolant Heater on page 122.
#(Air Conditioning):Press this button to turn
the air conditioning system on or off. When the
air conditioning button is pressed, an indicator light
will come on to let you know that air conditioning
is activated.
The air-conditioning system removes moisture
from the air, so you may sometimes notice a
small amount of water dripping underneath
your vehicle while idling or after turning off the
engine. This is normal.
189

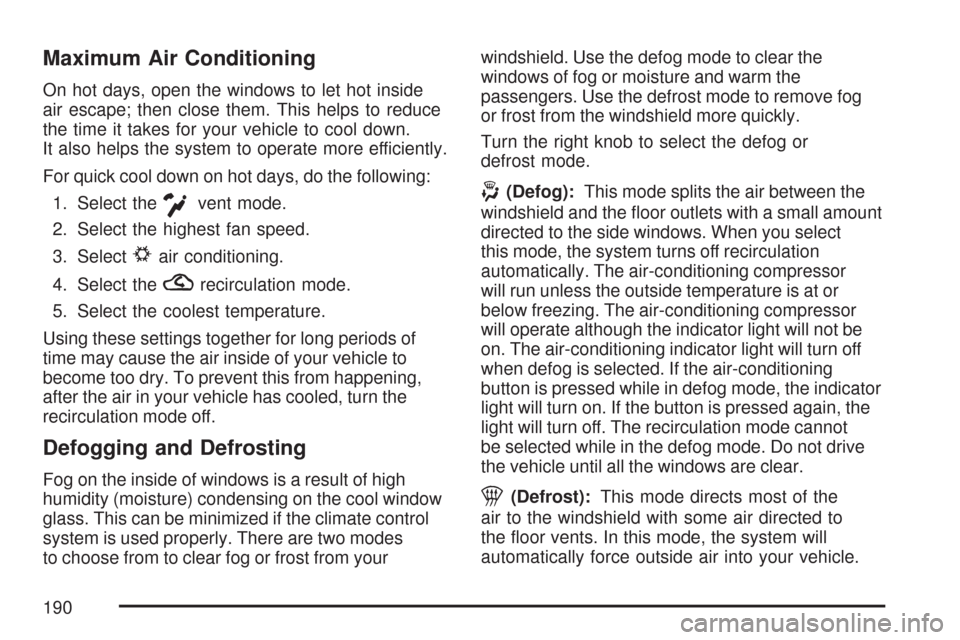

Maximum Air Conditioning
On hot days, open the windows to let hot inside
air escape; then close them. This helps to reduce
the time it takes for your vehicle to cool down.
It also helps the system to operate more efficiently.
For quick cool down on hot days, do the following:
1. Select the
Cvent mode.
2. Select the highest fan speed.
3. Select
#air conditioning.
4. Select the
?recirculation mode.
5. Select the coolest temperature.
Using these settings together for long periods of
time may cause the air inside of your vehicle to
become too dry. To prevent this from happening,
after the air in your vehicle has cooled, turn the
recirculation mode off.
Defogging and Defrosting
Fog on the inside of windows is a result of high
humidity (moisture) condensing on the cool window
glass. This can be minimized if the climate control
system is used properly. There are two modes
to choose from to clear fog or frost from yourwindshield. Use the defog mode to clear the
windows of fog or moisture and warm the
passengers. Use the defrost mode to remove fog
or frost from the windshield more quickly.
Turn the right knob to select the defog or
defrost mode.
-(Defog):This mode splits the air between the
windshield and the oor outlets with a small amount
directed to the side windows. When you select
this mode, the system turns off recirculation
automatically. The air-conditioning compressor
will run unless the outside temperature is at or
below freezing. The air-conditioning compressor
will operate although the indicator light will not be
on. The air-conditioning indicator light will turn off
when defog is selected. If the air-conditioning
button is pressed while in defog mode, the indicator
light will turn on. If the button is pressed again, the
light will turn off. The recirculation mode cannot
be selected while in the defog mode. Do not drive
the vehicle until all the windows are clear.
1(Defrost):This mode directs most of the
air to the windshield with some air directed to
the oor vents. In this mode, the system will
automatically force outside air into your vehicle.
190

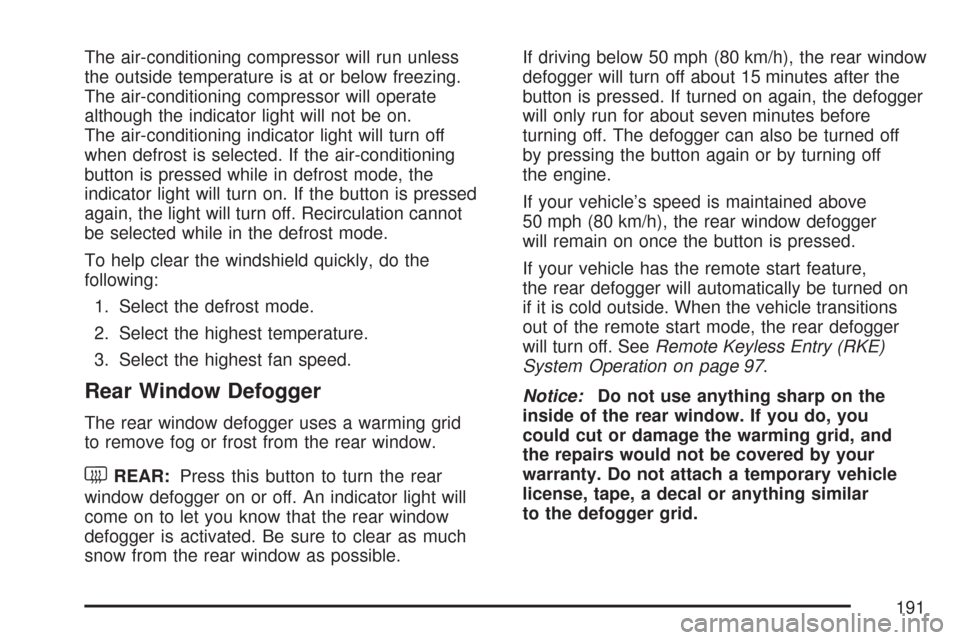

The air-conditioning compressor will run unless
the outside temperature is at or below freezing.
The air-conditioning compressor will operate
although the indicator light will not be on.
The air-conditioning indicator light will turn off
when defrost is selected. If the air-conditioning
button is pressed while in defrost mode, the
indicator light will turn on. If the button is pressed
again, the light will turn off. Recirculation cannot
be selected while in the defrost mode.
To help clear the windshield quickly, do the
following:
1. Select the defrost mode.
2. Select the highest temperature.
3. Select the highest fan speed.
Rear Window Defogger
The rear window defogger uses a warming grid
to remove fog or frost from the rear window.
window defogger on or off. An indicator light will
come on to let you know that the rear window
defogger is activated. Be sure to clear as much
snow from the rear window as possible.If driving below 50 mph (80 km/h), the rear window
defogger will turn off about 15 minutes after the
button is pressed. If turned on again, the defogger
will only run for about seven minutes before
turning off. The defogger can also be turned off
by pressing the button again or by turning off
the engine.
If your vehicle’s speed is maintained above
50 mph (80 km/h), the rear window defogger
will remain on once the button is pressed.
If your vehicle has the remote start feature,
the rear defogger will automatically be turned on
if it is cold outside. When the vehicle transitions
out of the remote start mode, the rear defogger
will turn off. SeeRemote Keyless Entry (RKE)
System Operation on page 97.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you
could cut or damage the warming grid, and
the repairs would not be covered by your
warranty. Do not attach a temporary vehicle
license, tape, a decal or anything similar
to the defogger grid.
191

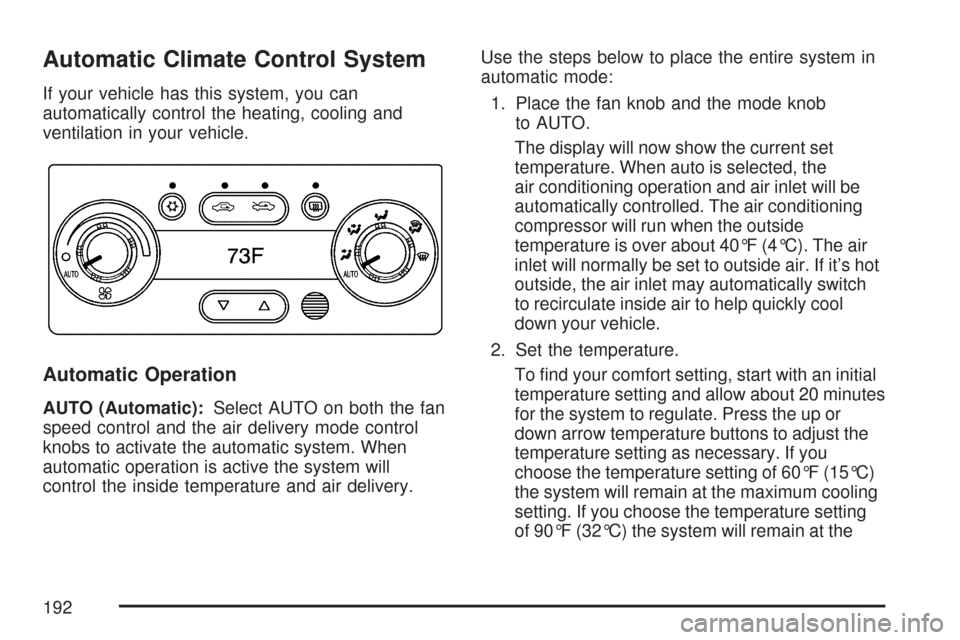

Automatic Climate Control System
If your vehicle has this system, you can
automatically control the heating, cooling and
ventilation in your vehicle.
Automatic Operation
AUTO (Automatic):Select AUTO on both the fan
speed control and the air delivery mode control
knobs to activate the automatic system. When
automatic operation is active the system will
control the inside temperature and air delivery.Use the steps below to place the entire system in
automatic mode:
1. Place the fan knob and the mode knob
to AUTO.
The display will now show the current set
temperature. When auto is selected, the
air conditioning operation and air inlet will be
automatically controlled. The air conditioning
compressor will run when the outside
temperature is over about 40°F (4°C). The air
inlet will normally be set to outside air. If it’s hot
outside, the air inlet may automatically switch
to recirculate inside air to help quickly cool
down your vehicle.
2. Set the temperature.
To nd your comfort setting, start with an initial
temperature setting and allow about 20 minutes
for the system to regulate. Press the up or
down arrow temperature buttons to adjust the
temperature setting as necessary. If you
choose the temperature setting of 60°F (15°C)
the system will remain at the maximum cooling
setting. If you choose the temperature setting
of 90°F (32°C) the system will remain at the
192
