2007 CHEVROLET MALIBU MAXX Owners Manual

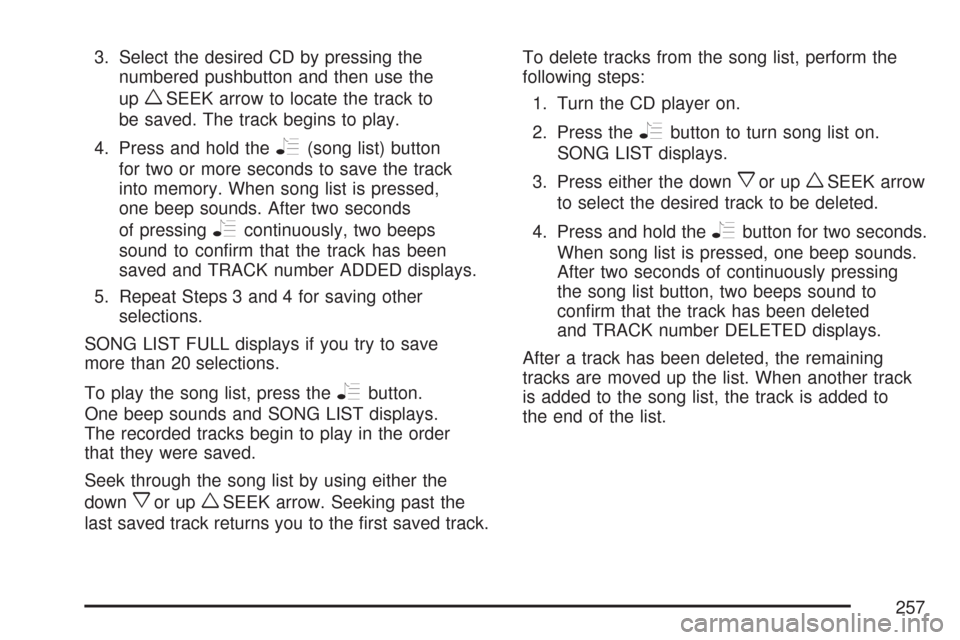

3. Select the desired CD by pressing the
numbered pushbutton and then use the
up
wSEEK arrow to locate the track to
be saved. The track begins to play.
4. Press and hold the
R(song list) button
for two or more seconds to save the track
into memory. When song list is pressed,
one beep sounds. After two seconds
of pressing
Rcontinuously, two beeps
sound to conrm that the track has been
saved and TRACK number ADDED displays.
5. Repeat Steps 3 and 4 for saving other
selections.
SONG LIST FULL displays if you try to save
more than 20 selections.
To play the song list, press the
Rbutton.
One beep sounds and SONG LIST displays.
The recorded tracks begin to play in the order
that they were saved.
Seek through the song list by using either the
down
xor upwSEEK arrow. Seeking past the
last saved track returns you to the rst saved track.To delete tracks from the song list, perform the
following steps:
1. Turn the CD player on.
2. Press the
Rbutton to turn song list on.
SONG LIST displays.
3. Press either the down
xor upwSEEK arrow
to select the desired track to be deleted.
4. Press and hold the
Rbutton for two seconds.
When song list is pressed, one beep sounds.
After two seconds of continuously pressing
the song list button, two beeps sound to
conrm that the track has been deleted
and TRACK number DELETED displays.
After a track has been deleted, the remaining
tracks are moved up the list. When another track
is added to the song list, the track is added to
the end of the list.
257

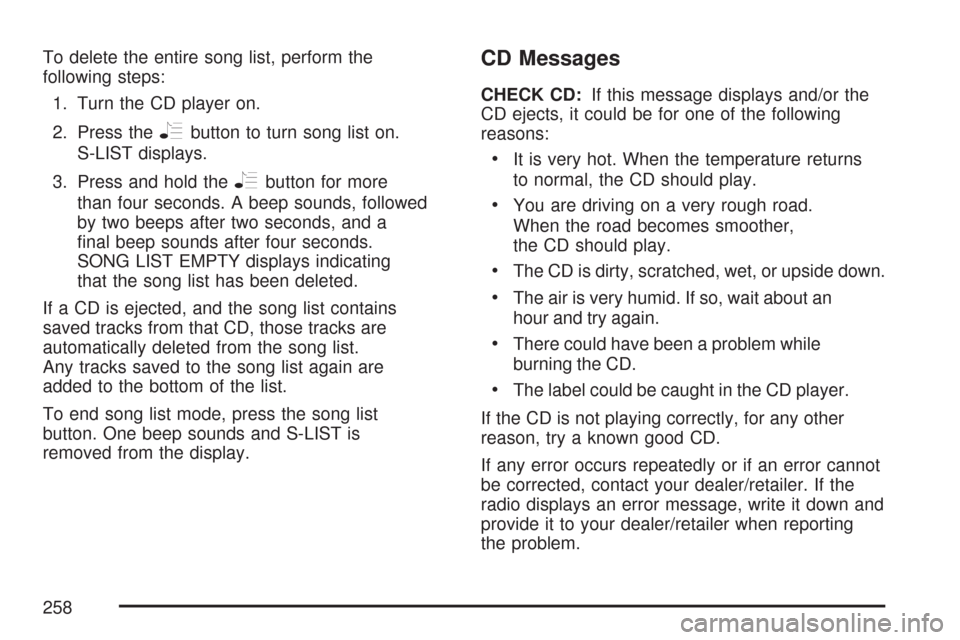

To delete the entire song list, perform the
following steps:
1. Turn the CD player on.
2. Press the
Rbutton to turn song list on.
S-LIST displays.
3. Press and hold the
Rbutton for more
than four seconds. A beep sounds, followed
by two beeps after two seconds, and a
nal beep sounds after four seconds.
SONG LIST EMPTY displays indicating
that the song list has been deleted.
If a CD is ejected, and the song list contains
saved tracks from that CD, those tracks are
automatically deleted from the song list.
Any tracks saved to the song list again are
added to the bottom of the list.
To end song list mode, press the song list
button. One beep sounds and S-LIST is
removed from the display.
CD Messages
CHECK CD:If this message displays and/or the
CD ejects, it could be for one of the following
reasons:
It is very hot. When the temperature returns
to normal, the CD should play.
You are driving on a very rough road.
When the road becomes smoother,
the CD should play.
The CD is dirty, scratched, wet, or upside down.
The air is very humid. If so, wait about an
hour and try again.
There could have been a problem while
burning the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer/retailer. If the
radio displays an error message, write it down and
provide it to your dealer/retailer when reporting
the problem.
258

XM Radio Messages
Radio Display Message Condition Action Required
XL
(Explicit Language
Channels)XL on the radio display,
after the channel name,
indicates content with
explicit language.These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
Updating Updating
encryption codeThe encryption code in the receiver is being updated, and
no action is required. This process should take no longer
than 30 seconds.
No Signal Loss of signal The system is functioning correctly, but the vehicle is in a
location that is blocking the XM™ signal. When the vehicle
is moved into an open area, the signal should return.
Loading XM Acquiring channel audio
(after 4 second delay)The audio system is acquiring and processing audio and
text data. No action is needed. This message should
disappear shortly.
CH Off Air Channel not in service This channel is not currently in service. Tune to another
channel.
CH Unavail Channel no longer
availableThis previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the
presets, choose another station for that preset button.
No Info Artist Name/Feature
not availableNo artist information is available at this time on this channel.
The system is working properly.
259

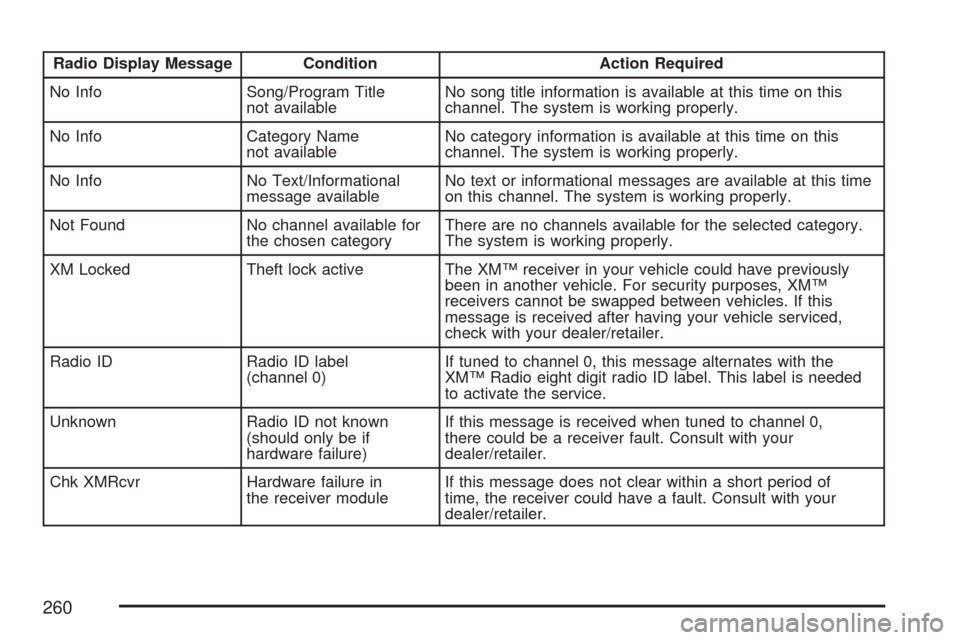

Radio Display Message Condition Action Required
No Info Song/Program Title
not availableNo song title information is available at this time on this
channel. The system is working properly.
No Info Category Name
not availableNo category information is available at this time on this
channel. The system is working properly.
No Info No Text/Informational
message availableNo text or informational messages are available at this time
on this channel. The system is working properly.
Not Found No channel available for
the chosen categoryThere are no channels available for the selected category.
The system is working properly.
XM Locked Theft lock active The XM™ receiver in your vehicle could have previously
been in another vehicle. For security purposes, XM™
receivers cannot be swapped between vehicles. If this
message is received after having your vehicle serviced,
check with your dealer/retailer.
Radio ID Radio ID label
(channel 0)If tuned to channel 0, this message alternates with the
XM™ Radio eight digit radio ID label. This label is needed
to activate the service.
Unknown Radio ID not known
(should only be if
hardware failure)If this message is received when tuned to channel 0,
there could be a receiver fault. Consult with your
dealer/retailer.
Chk XMRcvr Hardware failure in
the receiver moduleIf this message does not clear within a short period of
time, the receiver could have a fault. Consult with your
dealer/retailer.
260

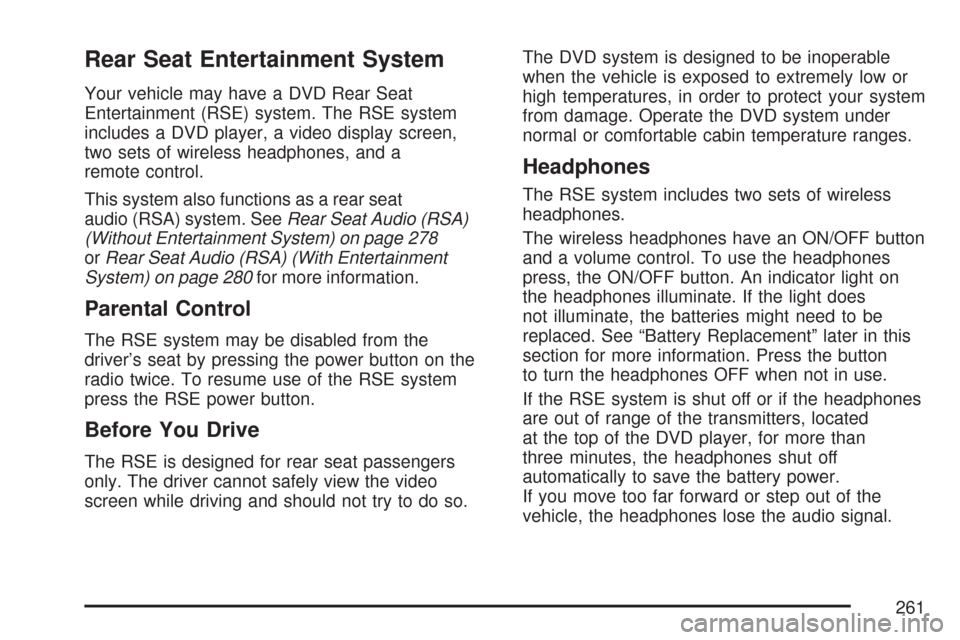

Rear Seat Entertainment System
Your vehicle may have a DVD Rear Seat
Entertainment (RSE) system. The RSE system
includes a DVD player, a video display screen,
two sets of wireless headphones, and a
remote control.
This system also functions as a rear seat
audio (RSA) system. SeeRear Seat Audio (RSA)
(Without Entertainment System) on page 278
orRear Seat Audio (RSA) (With Entertainment
System) on page 280for more information.
Parental Control
The RSE system may be disabled from the
driver’s seat by pressing the power button on the
radio twice. To resume use of the RSE system
press the RSE power button.
Before You Drive
The RSE is designed for rear seat passengers
only. The driver cannot safely view the video
screen while driving and should not try to do so.The DVD system is designed to be inoperable
when the vehicle is exposed to extremely low or
high temperatures, in order to protect your system
from damage. Operate the DVD system under
normal or comfortable cabin temperature ranges.
Headphones
The RSE system includes two sets of wireless
headphones.
The wireless headphones have an ON/OFF button
and a volume control. To use the headphones
press, the ON/OFF button. An indicator light on
the headphones illuminate. If the light does
not illuminate, the batteries might need to be
replaced. See “Battery Replacement” later in this
section for more information. Press the button
to turn the headphones OFF when not in use.
If the RSE system is shut off or if the headphones
are out of range of the transmitters, located
at the top of the DVD player, for more than
three minutes, the headphones shut off
automatically to save the battery power.
If you move too far forward or step out of the
vehicle, the headphones lose the audio signal.
261

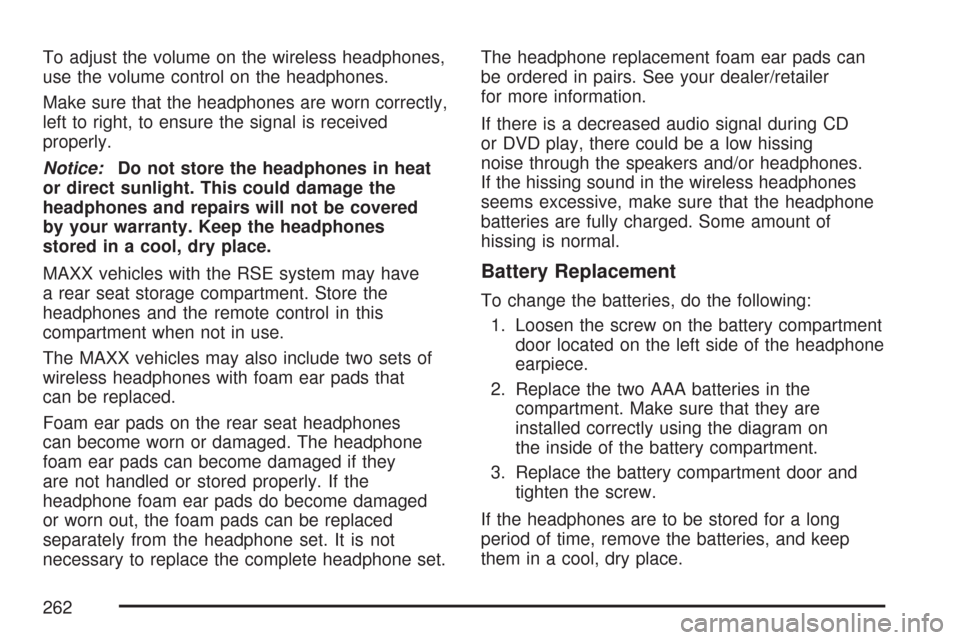

To adjust the volume on the wireless headphones,
use the volume control on the headphones.
Make sure that the headphones are worn correctly,
left to right, to ensure the signal is received
properly.
Notice:Do not store the headphones in heat
or direct sunlight. This could damage the
headphones and repairs will not be covered
by your warranty. Keep the headphones
stored in a cool, dry place.
MAXX vehicles with the RSE system may have
a rear seat storage compartment. Store the
headphones and the remote control in this
compartment when not in use.
The MAXX vehicles may also include two sets of
wireless headphones with foam ear pads that
can be replaced.
Foam ear pads on the rear seat headphones
can become worn or damaged. The headphone
foam ear pads can become damaged if they
are not handled or stored properly. If the
headphone foam ear pads do become damaged
or worn out, the foam pads can be replaced
separately from the headphone set. It is not
necessary to replace the complete headphone set.The headphone replacement foam ear pads can
be ordered in pairs. See your dealer/retailer
for more information.
If there is a decreased audio signal during CD
or DVD play, there could be a low hissing
noise through the speakers and/or headphones.
If the hissing sound in the wireless headphones
seems excessive, make sure that the headphone
batteries are fully charged. Some amount of
hissing is normal.
Battery Replacement
To change the batteries, do the following:
1. Loosen the screw on the battery compartment
door located on the left side of the headphone
earpiece.
2. Replace the two AAA batteries in the
compartment. Make sure that they are
installed correctly using the diagram on
the inside of the battery compartment.
3. Replace the battery compartment door and
tighten the screw.
If the headphones are to be stored for a long
period of time, remove the batteries, and keep
them in a cool, dry place.
262

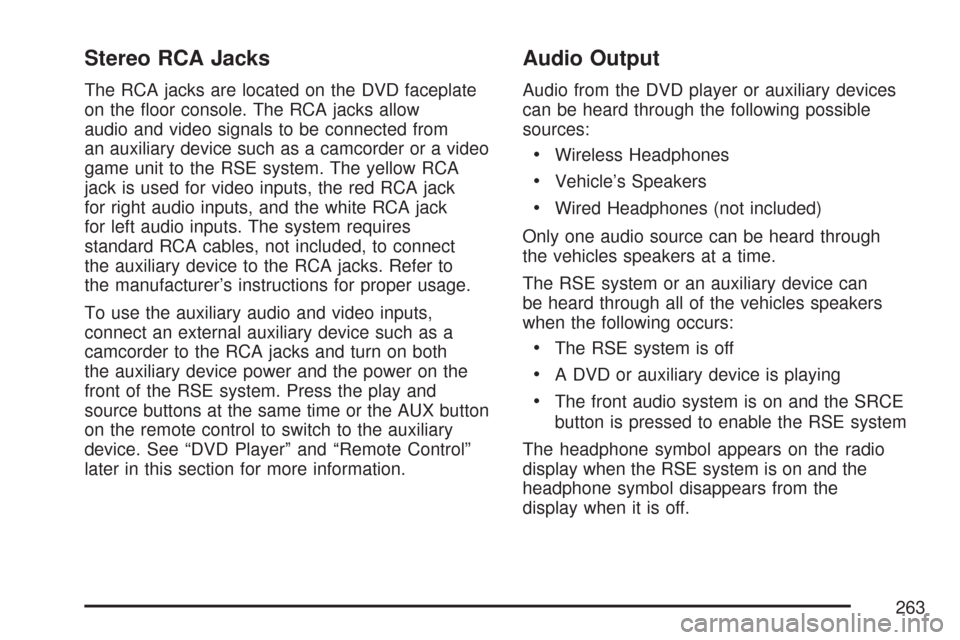

Stereo RCA Jacks
The RCA jacks are located on the DVD faceplate
on the oor console. The RCA jacks allow
audio and video signals to be connected from
an auxiliary device such as a camcorder or a video
game unit to the RSE system. The yellow RCA
jack is used for video inputs, the red RCA jack
for right audio inputs, and the white RCA jack
for left audio inputs. The system requires
standard RCA cables, not included, to connect
the auxiliary device to the RCA jacks. Refer to
the manufacturer’s instructions for proper usage.
To use the auxiliary audio and video inputs,
connect an external auxiliary device such as a
camcorder to the RCA jacks and turn on both
the auxiliary device power and the power on the
front of the RSE system. Press the play and
source buttons at the same time or the AUX button
on the remote control to switch to the auxiliary
device. See “DVD Player” and “Remote Control”
later in this section for more information.
Audio Output
Audio from the DVD player or auxiliary devices
can be heard through the following possible
sources:
Wireless Headphones
Vehicle’s Speakers
Wired Headphones (not included)
Only one audio source can be heard through
the vehicles speakers at a time.
The RSE system or an auxiliary device can
be heard through all of the vehicles speakers
when the following occurs:
The RSE system is off
A DVD or auxiliary device is playing
The front audio system is on and the SRCE
button is pressed to enable the RSE system
The headphone symbol appears on the radio
display when the RSE system is on and the
headphone symbol disappears from the
display when it is off.
263

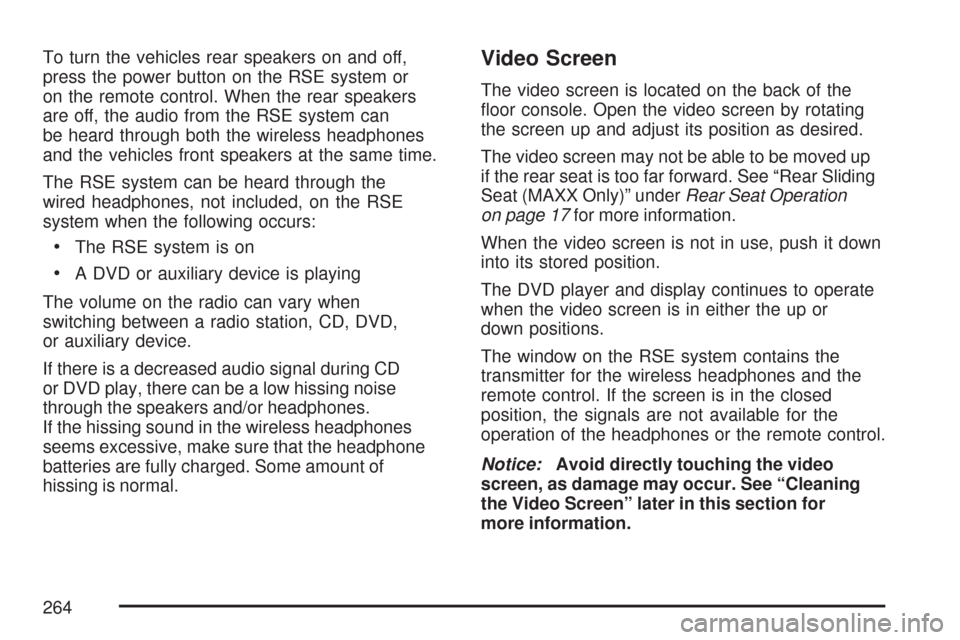

To turn the vehicles rear speakers on and off,
press the power button on the RSE system or
on the remote control. When the rear speakers
are off, the audio from the RSE system can
be heard through both the wireless headphones
and the vehicles front speakers at the same time.
The RSE system can be heard through the
wired headphones, not included, on the RSE
system when the following occurs:
The RSE system is on
A DVD or auxiliary device is playing
The volume on the radio can vary when
switching between a radio station, CD, DVD,
or auxiliary device.
If there is a decreased audio signal during CD
or DVD play, there can be a low hissing noise
through the speakers and/or headphones.
If the hissing sound in the wireless headphones
seems excessive, make sure that the headphone
batteries are fully charged. Some amount of
hissing is normal.
Video Screen
The video screen is located on the back of the
oor console. Open the video screen by rotating
the screen up and adjust its position as desired.
The video screen may not be able to be moved up
if the rear seat is too far forward. See “Rear Sliding
Seat (MAXX Only)” underRear Seat Operation
on page 17for more information.
When the video screen is not in use, push it down
into its stored position.
The DVD player and display continues to operate
when the video screen is in either the up or
down positions.
The window on the RSE system contains the
transmitter for the wireless headphones and the
remote control. If the screen is in the closed
position, the signals are not available for the
operation of the headphones or the remote control.
Notice:Avoid directly touching the video
screen, as damage may occur. See “Cleaning
the Video Screen” later in this section for
more information.
264
