2007 CHEVROLET MALIBU MAXX Owners Manual

Top Tether Anchor
A top tether (A, C) anchors the top of the child
restraint to the vehicle. A top tether anchor is built
into the vehicle. The top tether attachment (B)
on the child restraint connects to the top tether
anchor in the vehicle in order to reduce the forward
movement and rotation of the child restraint
during driving or in a crash.Your child restraint may have a single tether (A)
or a dual tether (C). Either will have a single
attachment (B) to secure the top tether to
the anchor.
Some child restraints that have a top tether are
designed for use with or without the top tether
being attached. Others require the top tether
always to be attached. In Canada, the law requires
that forward-facing child restraints have a top
tether, and that the tether be attached. In
the United States, some child restraints also
have a top tether. Be sure to read and follow the
instructions for your child restraint.
If the child restraint does not have a top tether,
one can be obtained, in kit form, for many
child restraints. Ask the child restraint
manufacturer whether or not a kit is available.
57

Lower Anchor and Top Tether Anchor
Locations
i(Top Tether Anchor):
Seating positions with
top tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
To assist you in locating
the lower anchors, each
rear anchor position
has a label, near
the crease between
the seatback and
the seat cushion.For sedan models, each rear seating position
has exposed metal lower anchors in the crease
between the seatback and the seat cushion.
To assist you in locating
the top tether anchors,
the top tether anchor
symbol is located on
the back of the rear
seatback near the top
tether anchors.
Rear Seat
MAXX Models
MAXX Models
58

For sedan models, the top tether anchors are
located behind the rear seat on the ller panel.For MAXX models, the top tether anchors are
located on the back of the rear seatback. Be sure
to use an anchor located on the same side of
the vehicle as the seating position where the child
restraint will be placed.
Do not secure a child restraint in the right front
passenger’s position if a national or local law
requires that the top tether be attached, or if the
instructions that come with the child restraint
say that the top tether must be attached. There is
no place to attach the top tether in this position.
SedanMAXX
59

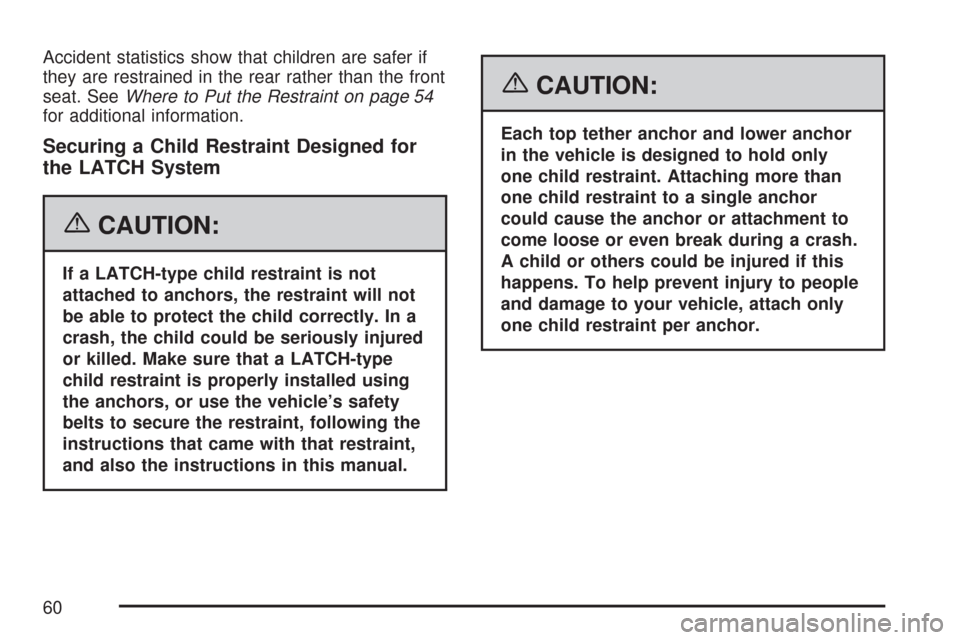

Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. SeeWhere to Put the Restraint on page 54
for additional information.
Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not
attached to anchors, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured
or killed. Make sure that a LATCH-type
child restraint is properly installed using
the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint,
and also the instructions in this manual.
{CAUTION:
Each top tether anchor and lower anchor
in the vehicle is designed to hold only
one child restraint. Attaching more than
one child restraint to a single anchor
could cause the anchor or attachment to
come loose or even break during a crash.
A child or others could be injured if this
happens. To help prevent injury to people
and damage to your vehicle, attach only
one child restraint per anchor.
60

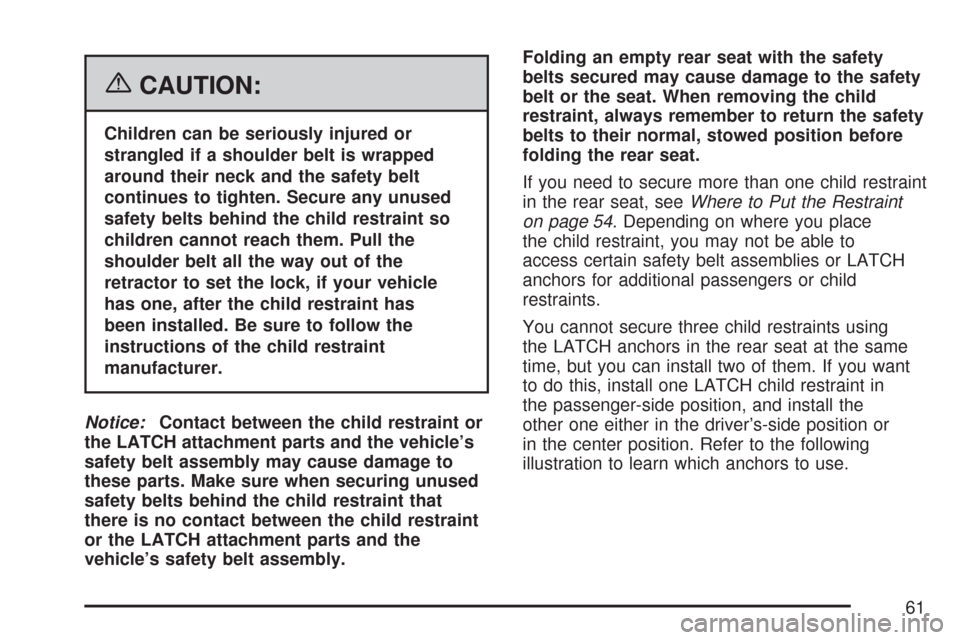

{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle
has one, after the child restraint has
been installed. Be sure to follow the
instructions of the child restraint
manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
If you need to secure more than one child restraint
in the rear seat, seeWhere to Put the Restraint
on page 54. Depending on where you place
the child restraint, you may not be able to
access certain safety belt assemblies or LATCH
anchors for additional passengers or child
restraints.
You cannot secure three child restraints using
the LATCH anchors in the rear seat at the same
time, but you can install two of them. If you want
to do this, install one LATCH child restraint in
the passenger-side position, and install the
other one either in the driver’s-side position or
in the center position. Refer to the following
illustration to learn which anchors to use.
61

A. Passenger’s Side Rear Seat Lower Anchors
B. Center Rear Seat Lower Anchors
C. Driver’s Side Rear Seat Lower AnchorsA. Passenger’s Side Rear Seat Lower Anchors
B. Center Rear Seat Lower Anchors
C. Driver’s Side Rear Seat Lower Anchors
Make sure to attach the child restraint at the
proper anchor location.
Sedan
MAXX
62

This system is designed to make installation of
child restraints easier. When using lower anchors,
do not use the vehicle’s safety belts. Instead
use the vehicle’s anchors and child restraint
attachments to secure the restraints. Some
restraints also use another vehicle anchor to
secure a top tether.
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower
attachments on the child restraint to
the lower anchors.2. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor,
if equipped. Refer to the child restraint
instructions and the following steps:
2.1. Find the top tether anchor.
2.2. If the position you are using has an
adjustable head restraint, raise it.
SeeHead Restraints on page 13.
2.3. Route, attach and tighten the top
tether according to your child
restraint instructions and the
following instructions:
If the position you
are using does not
have a head restraint
and you are using
a single tether,
route the tether over
the seatback.
63

If the position you
are using does not
have a head restraint
and you are using
a dual tether, route
the tether over
the seatback.
If the position you are
using has an adjustable
head restraint and
you are using a single
tether, route the
tether under the head
restraint and in between
the head restraint
posts. SeeHead
Restraints on page 13.If the position you are
using has an adjustable
head restraint and you
are using a dual tether
route the tether under
the head restraint and in
between the head
restraint posts. See
Head Restraints on
page 13.
3. Push and pull the child restraint in different
directions to be sure it is secure.
64
