2007 CHEVROLET EXPRESS CARGO VAN Owners Manual

Secondary Latch System
Your vehicle has an underbody-mounted tire
hoist assembly equipped with a secondary latch
system. It is designed to stop the spare tire
from suddenly falling off the vehicle if the cable
holding the spare tire is damaged. For the
secondary latch to work, the tire must be
stowed with the valve stem pointing down.
SeeStoring a Flat or Spare Tire and Tools on
page 380for instructions on storing the spare
tire correctly.
{CAUTION:
Before beginning this procedure read all
the instructions. Failure to read and follow
the instructions could damage the hoist
assembly and you and others could get
hurt. Read and follow the instructions
listed next.To release the spare tire from the secondary latch:
{CAUTION:
Someone standing too close during the
procedure could be injured by the jack.
If the spare tire does not slide off the jack
completely, make sure no one is behind
you or on either side of you as you pull
the jack out from the under spare.
1. Check under the vehicle to see if the cable
end is visible.
If the cable is not
visible, start this
procedure at Step 6.
377

2. Turn the wrench counterclockwise until
approximately 6 inches (15 cm) of cable
is exposed.
3. Connect the jack handle (A) and jack handle
extension (B) together and press the retention
clip (arrow) so it engages.4. Attach the jack handle/jack handle extension
to the jack. With the UP mark facing you,
slide the ratchet onto the end of the jack
handle extension.
378

5. Place the jack under the vehicle, ahead of the
rear bumper. Position the center lift point of
the jack under the center of the spare tire and
turn the handle clockwise to raise the jack
until it lifts the secondary latch spring.
6. Keep raising the jack until the spare tire stops
moving upward and is held firmly in place.
This lets you know that the secondary
latch has released. The spare tire is now
balancing on the jack.7. Lower the jack by turning the ratchet
counterclockwise. Keep lowering the jack
until the spare tire slides off the jack or
is hanging by the cable.
8. Disconnect the jack handle from the jack and
carefully remove the jack. Use one hand to
push against the spare while firmly pulling the
jack out from under the spare tire with the
other hand.
If the spare tire is hanging from the cable,
slide the ratchet onto the wheel wrench
and insert the wheel wrench into the hoist
shaft hole above the bumper. Turn the
wheel wrench counterclockwise to lower
the spare the rest of the way. Be sure the
DOWN mark on the ratchet is facing you.
379

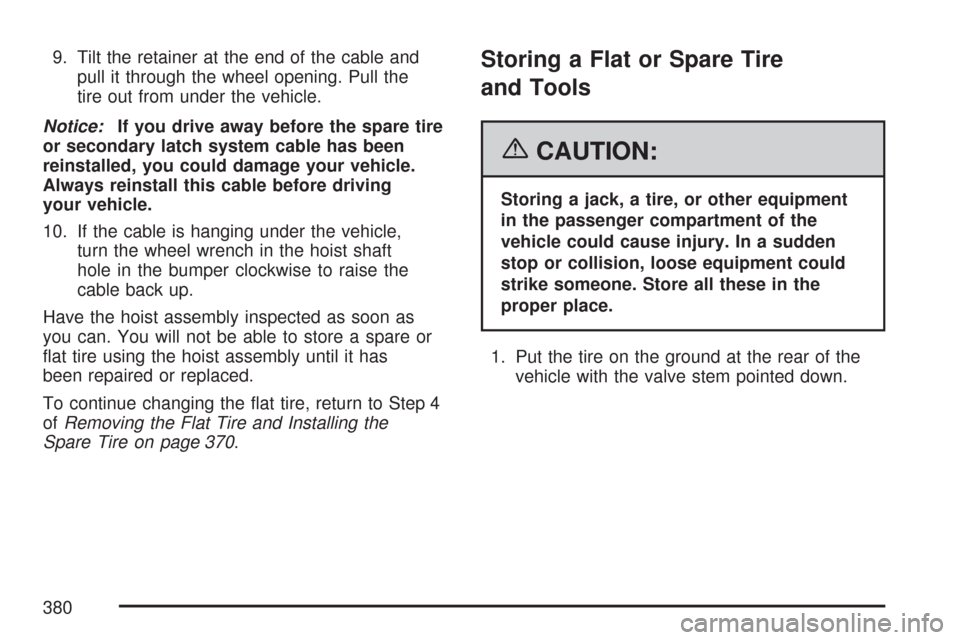

9. Tilt the retainer at the end of the cable and
pull it through the wheel opening. Pull the
tire out from under the vehicle.
Notice:If you drive away before the spare tire
or secondary latch system cable has been
reinstalled, you could damage your vehicle.
Always reinstall this cable before driving
your vehicle.
10. If the cable is hanging under the vehicle,
turn the wheel wrench in the hoist shaft
hole in the bumper clockwise to raise the
cable back up.
Have the hoist assembly inspected as soon as
you can. You will not be able to store a spare or
flat tire using the hoist assembly until it has
been repaired or replaced.
To continue changing the flat tire, return to Step 4
ofRemoving the Flat Tire and Installing the
Spare Tire on page 370.Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.
1. Put the tire on the ground at the rear of the
vehicle with the valve stem pointed down.
380

2. Pull the retaining bar through the center of the
wheel, making sure it is properly attached.
3. Pull the wheel toward the rear of the vehicle,
keeping the cable tight.
4. With the UP side facing you, attach the
ratchet to the wheel wrench.
5. Put the flat end of the wheel wrench on an
angle through the hole in the rear door
frame, above the bumper.
6. Raise the tire fully against the underside of
the vehicle. Continue turning the ratchet until
the tire is secure and the cable is tight.
The spare tire hoist cannot be overtightened.7. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire. If the
tire moves, use the ratchet to tighten the cable.
You will hear two clicks when the tire is up all
the way.
8. Return the jacking equipment to the proper
location. Secure the items and replace the
jack cover.
381

Spare Tire
Your vehicle, when new, had a fully inflated
spare tire. A spare tire may lose air over time,
so check its inflation pressure regularly. See
Ination - Tire Pressure on page 354andLoading
Your Vehicle on page 261for information regarding
proper tire inflation and loading your vehicle. For
instructions on how to remove, install or store a
spare tire, seeRemoving the Flat Tire and Installing
the Spare Tire on page 370andStoring a Flat or
Spare Tire and Tools on page 380.
Your vehicle may have a different size spare tire
than the road tires originally installed on your
vehicle. This spare tire was developed for use
on your vehicle, so it is all right to drive on it.
After installing the spare tire on your vehicle,
you should stop as soon as possible and make
sure the spare tire is correctly inflated. Have
the damaged or flat road tire repaired or
replaced as soon as you can and installed
back onto your vehicle. This way, a spare tire
will be available in case you need it again.Do not mix tires and wheels of different sizes,
because they will not fit. Keep your spare tire and
its wheel together. If your vehicle has a spare
tire that does not match your vehicle’s original road
tires and wheels in size and type, do not include
the spare tire in the tire rotation.
Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes
of heat that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and
garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
382

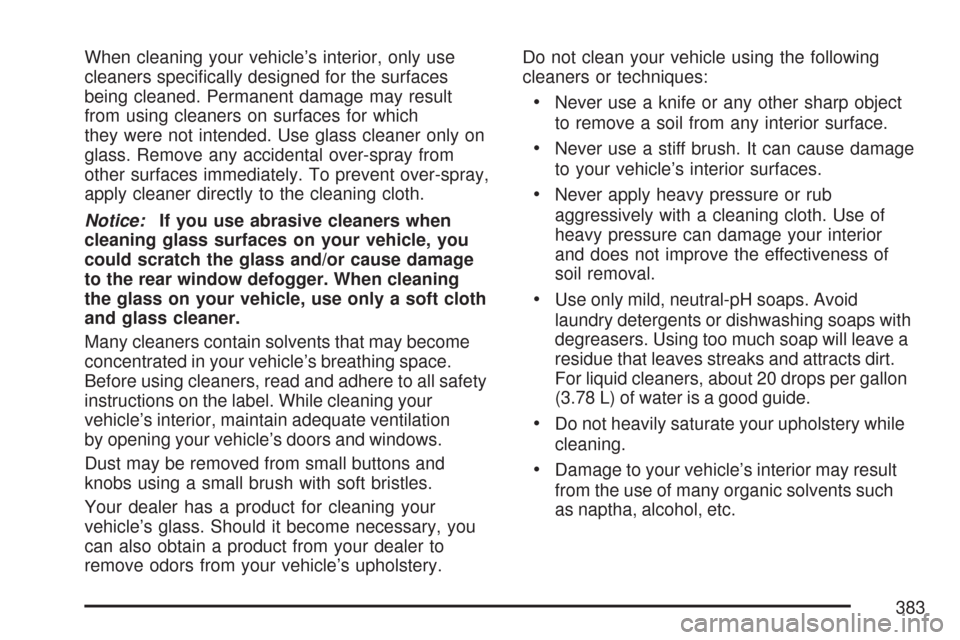

When cleaning your vehicle’s interior, only use
cleaners specifically designed for the surfaces
being cleaned. Permanent damage may result
from using cleaners on surfaces for which
they were not intended. Use glass cleaner only on
glass. Remove any accidental over-spray from
other surfaces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass and/or cause damage
to the rear window defogger. When cleaning
the glass on your vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your
vehicle’s interior, maintain adequate ventilation
by opening your vehicle’s doors and windows.
Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your dealer has a product for cleaning your
vehicle’s glass. Should it become necessary, you
can also obtain a product from your dealer to
remove odors from your vehicle’s upholstery.Do not clean your vehicle using the following
cleaners or techniques:
•Never use a knife or any other sharp object
to remove a soil from any interior surface.
•Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
•Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior
and does not improve the effectiveness of
soil removal.
•Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave a
residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per gallon
(3.78 L) of water is a good guide.
•Do not heavily saturate your upholstery while
cleaning.
•Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
383

Fabric/Carpet
Use a vacuum cleaner with a soft brush
attachment frequently to remove dust and loose
dirt. A canister vacuum with a beater bar in
the nozzle may only be used on floor carpet and
carpeted floor mats. For soils, always try to remove
them first with plain water or club soda. Before
cleaning, gently remove as much of the soil
as possible using one of the following techniques:
•For liquids: gently blot the remaining soil with a
paper towel. Allow the soil to absorb into the
paper towel until no more can be removed.
•For solid dry soils: remove as much as possible
and then vacuum.
To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.3. Start on the outside edge of the soil and
gently rub toward the center. Continue
cleaning, using a clean area of the cloth
each time it becomes soiled.
4. Continue to gently rub the soiled area until
the cleaning cloth remains clean.
5. If the soil is not completely removed, use a
mild soap solution and repeat the cleaning
process that was used with plain water.
If any of the soil remains, a commercial fabric
cleaner or spot lifter may be necessary. When a
commercial upholstery cleaner or spot lifter is to
be used, test a small hidden area for colorfastness
first. If the locally cleaned area gives any
impression that a ring formation may result,
clean the entire surface.
After the cleaning process has been completed,
a paper towel can be used to blot excess moisture
from the fabric or carpet.
384
