2007 CHEVROLET EXPRESS CARGO VAN Owners Manual

To turn the right front passenger’s airbag on,
insert your ignition key into the switch, push in,
and move the switch to the on position.
Passenger Sensing System
If your instrument panel has one of the indicators
pictured in the following illustrations, your vehicle
has a passenger sensing system. The passenger
airbag status indicator will be visible when you
start your vehicle in the instrument panel.
If your vehicle does not have a passenger
sensing system, it may have an airbag off switch.
SeeAirbag Off Switch on page 86.
United StatesCanada
United StatesCanada
89

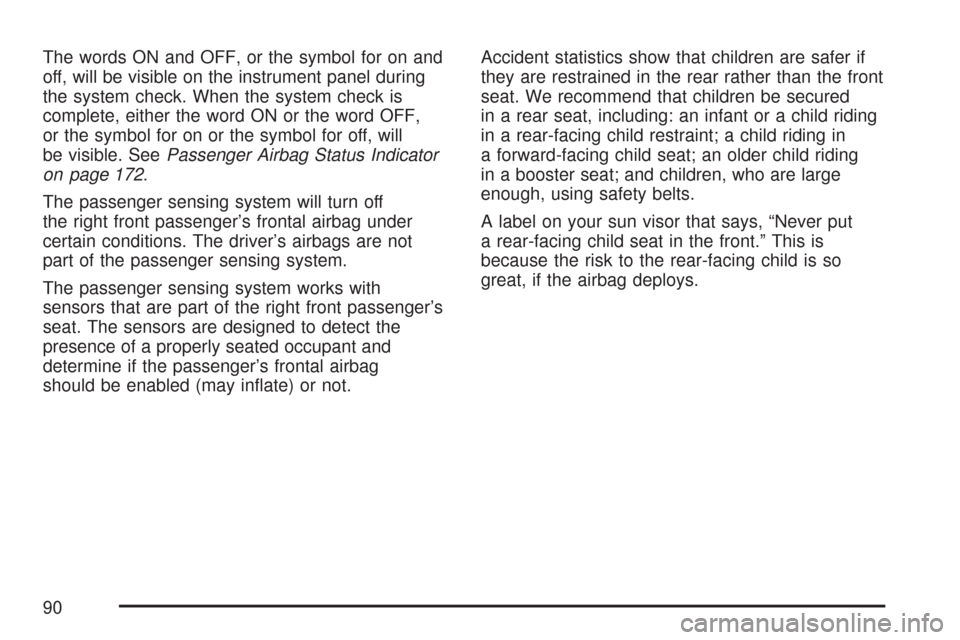

The words ON and OFF, or the symbol for on and
off, will be visible on the instrument panel during
the system check. When the system check is
complete, either the word ON or the word OFF,
or the symbol for on or the symbol for off, will
be visible. SeePassenger Airbag Status Indicator
on page 172.
The passenger sensing system will turn off
the right front passenger’s frontal airbag under
certain conditions. The driver’s airbags are not
part of the passenger sensing system.
The passenger sensing system works with
sensors that are part of the right front passenger’s
seat. The sensors are designed to detect the
presence of a properly seated occupant and
determine if the passenger’s frontal airbag
should be enabled (may inflate) or not.Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that children be secured
in a rear seat, including: an infant or a child riding
in a rear-facing child restraint; a child riding in
a forward-facing child seat; an older child riding
in a booster seat; and children, who are large
enough, using safety belts.
A label on your sun visor that says, “Never put
a rear-facing child seat in the front.” This is
because the risk to the rear-facing child is so
great, if the airbag deploys.
90

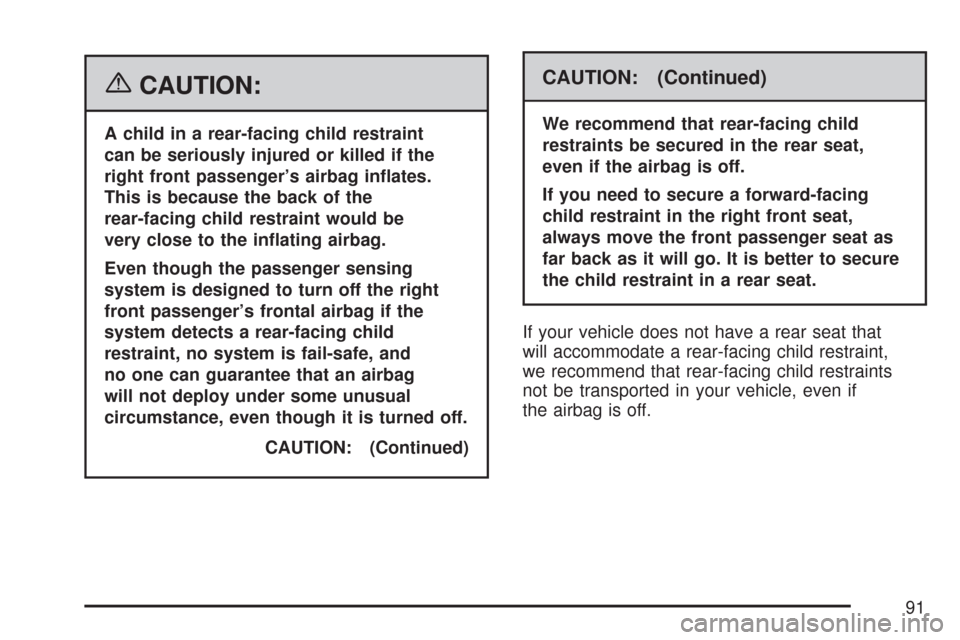

{CAUTION:
A child in a rear-facing child restraint
can be seriously injured or killed if the
right front passenger’s airbag inates.
This is because the back of the
rear-facing child restraint would be
very close to the inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and
no one can guarantee that an airbag
will not deploy under some unusual
circumstance, even though it is turned off.
CAUTION: (Continued)
CAUTION: (Continued)
We recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
If your vehicle does not have a rear seat that
will accommodate a rear-facing child restraint,
we recommend that rear-facing child restraints
not be transported in your vehicle, even if
the airbag is off.
91

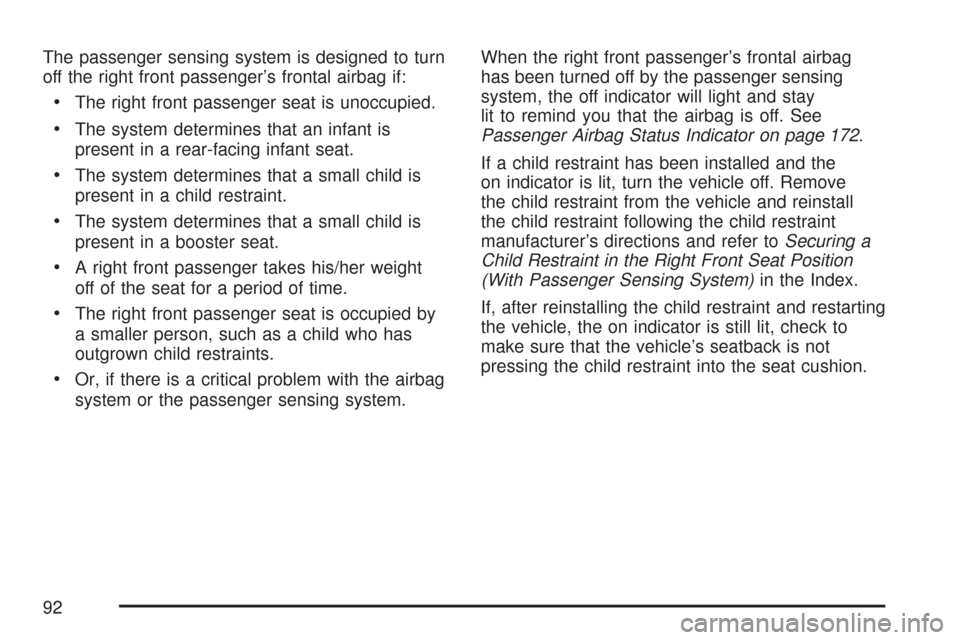

The passenger sensing system is designed to turn
off the right front passenger’s frontal airbag if:
•The right front passenger seat is unoccupied.
•The system determines that an infant is
present in a rear-facing infant seat.
•The system determines that a small child is
present in a child restraint.
•The system determines that a small child is
present in a booster seat.
•A right front passenger takes his/her weight
off of the seat for a period of time.
•The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
•Or, if there is a critical problem with the airbag
system or the passenger sensing system.When the right front passenger’s frontal airbag
has been turned off by the passenger sensing
system, the off indicator will light and stay
lit to remind you that the airbag is off. See
Passenger Airbag Status Indicator on page 172.
If a child restraint has been installed and the
on indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall
the child restraint following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Right Front Seat Position
(With Passenger Sensing System)in the Index.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
92

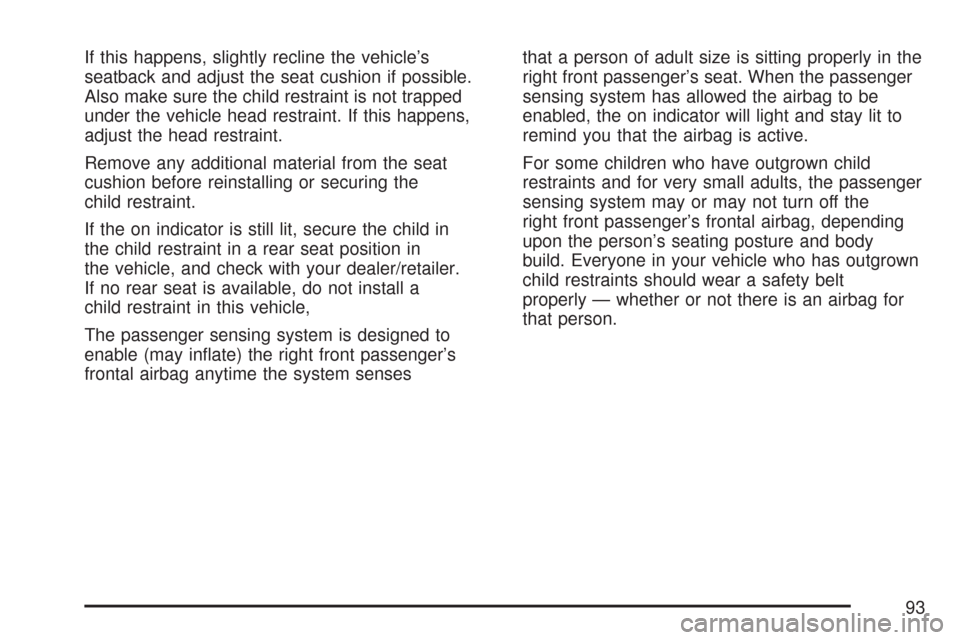

If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
Remove any additional material from the seat
cushion before reinstalling or securing the
child restraint.
If the on indicator is still lit, secure the child in
the child restraint in a rear seat position in
the vehicle, and check with your dealer/retailer.
If no rear seat is available, do not install a
child restraint in this vehicle,
The passenger sensing system is designed to
enable (may inflate) the right front passenger’s
frontal airbag anytime the system sensesthat a person of adult size is sitting properly in the
right front passenger’s seat. When the passenger
sensing system has allowed the airbag to be
enabled, the on indicator will light and stay lit to
remind you that the airbag is active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the
right front passenger’s frontal airbag, depending
upon the person’s seating posture and body
build. Everyone in your vehicle who has outgrown
child restraints should wear a safety belt
properly — whether or not there is an airbag for
that person.
93

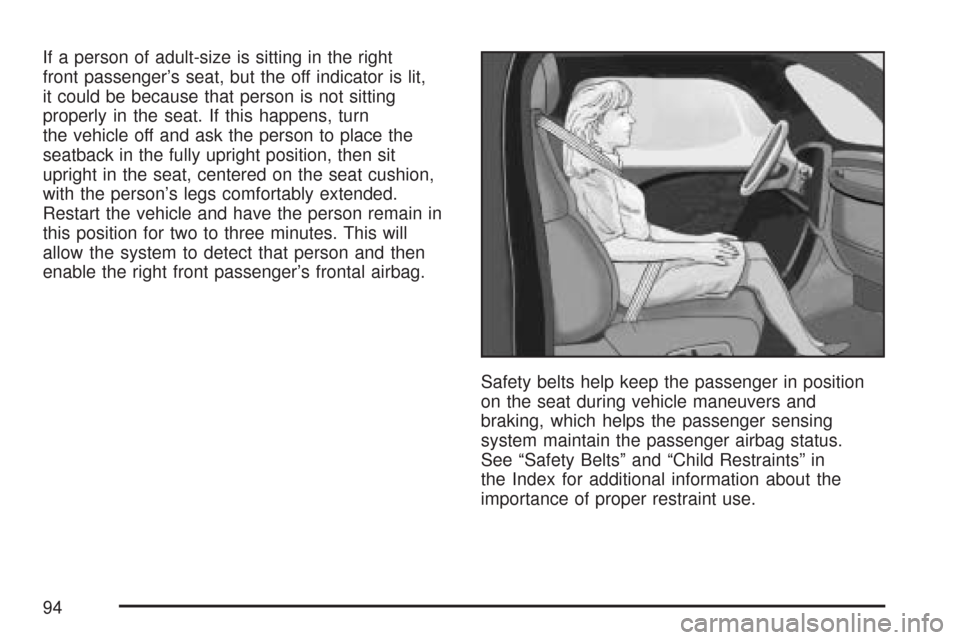

If a person of adult-size is sitting in the right
front passenger’s seat, but the off indicator is lit,
it could be because that person is not sitting
properly in the seat. If this happens, turn
the vehicle off and ask the person to place the
seatback in the fully upright position, then sit
upright in the seat, centered on the seat cushion,
with the person’s legs comfortably extended.
Restart the vehicle and have the person remain in
this position for two to three minutes. This will
allow the system to detect that person and then
enable the right front passenger’s frontal airbag.
Safety belts help keep the passenger in position
on the seat during vehicle maneuvers and
braking, which helps the passenger sensing
system maintain the passenger airbag status.
See “Safety Belts” and “Child Restraints” in
the Index for additional information about the
importance of proper restraint use.
94

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s
seat may not have the protection of the
airbag(s). SeeAirbag Readiness Light
on page 169for more on this, including
important safety information.A thick layer of additional material, such as a
blanket or cushion, or aftermarket equipment such
as seat covers, seat heaters, and seat massagers
can affect how well the passenger sensing
system operates. You may want to consider not
using seat covers or other aftermarket equipment.
SeeAdding Equipment to Your Airbag-Equipped
Vehicle on page 97for more information about
modifications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
95

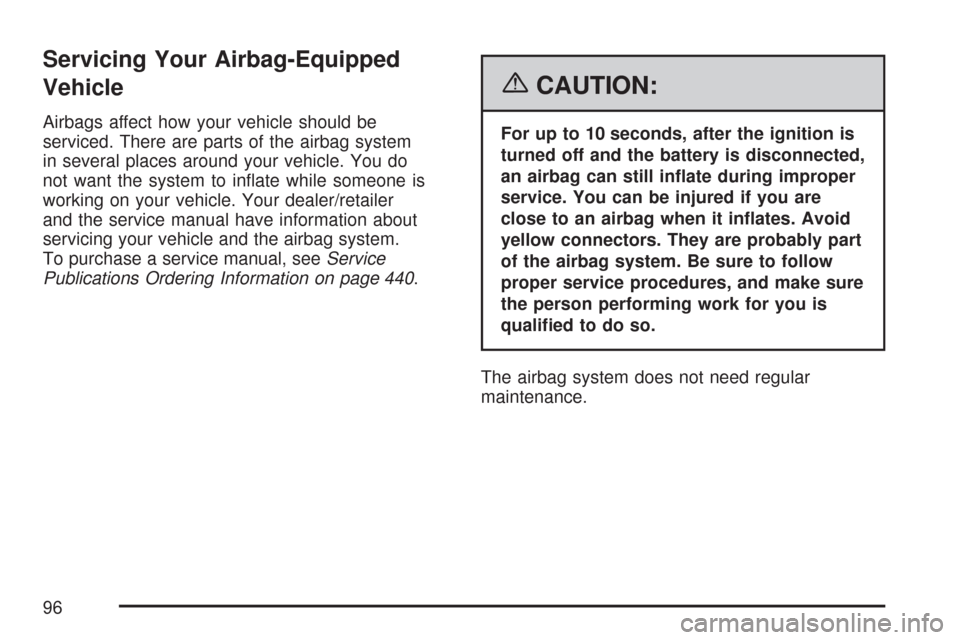

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system
in several places around your vehicle. You do
not want the system to inflate while someone is
working on your vehicle. Your dealer/retailer
and the service manual have information about
servicing your vehicle and the airbag system.
To purchase a service manual, seeService
Publications Ordering Information on page 440.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
96
