ANormal operating position
(run)
B Engine switched off.
You cannot start the engine
unless the kill switch is in
the run position.
Grip heating
OE
1 Grip-heating switch
The handlebar grips have two-
stage heating. Grip heating can
be activated only when the en-
gine is running. The increase in power con-
sumption caused by the
grip heating can drain the bat-
tery if you are riding at low en-
gine speeds. If the charge level
is low, grip heating is switched
off to ensure the battery's start-
ing capability. 2
Heating off.
3 50 % heat output (one dot
visible)
4 100 % heat output (three
dots visible)

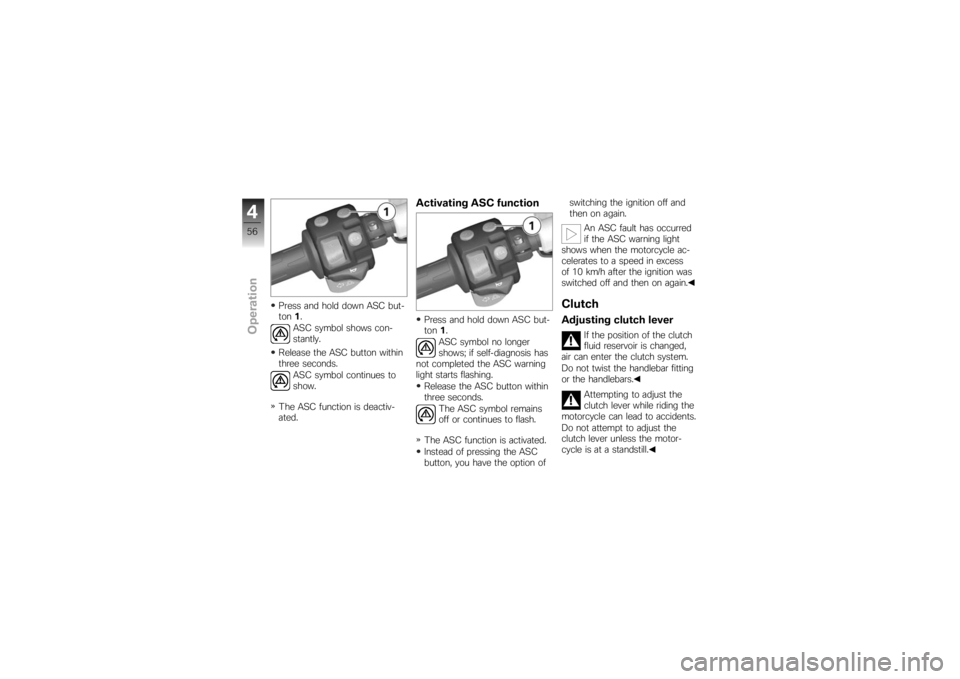

Automatic Stability
Control ASC
OE
Deactivating ASC functionSwitch on the ignition.
You have the option of de-
activating the ASC function
while the motorcycle is on the
move.
455zOperation

Press and hold down ASC but-
ton1.
ASC symbol shows con-
stantly.
Release the ASC button within
three seconds. ASC symbol continues to
show.
The ASC function is deactiv-
ated.
Activating ASC functionPress and hold down ASC but-
ton 1.
ASC symbol no longer
shows; if self-diagnosis has
not completed the ASC warning
light starts flashing.
Release the ASC button within
three seconds. The ASC symbol remains
off or continues to flash.
The ASC function is activated.
Instead of pressing the ASC
button, you have the option of switching the ignition off and
then on again.
An ASC fault has occurred
if the ASC warning light
shows when the motorcycle ac-
celerates to a speed in excess
of 10 km/h after the ignition was
switched off and then on again.

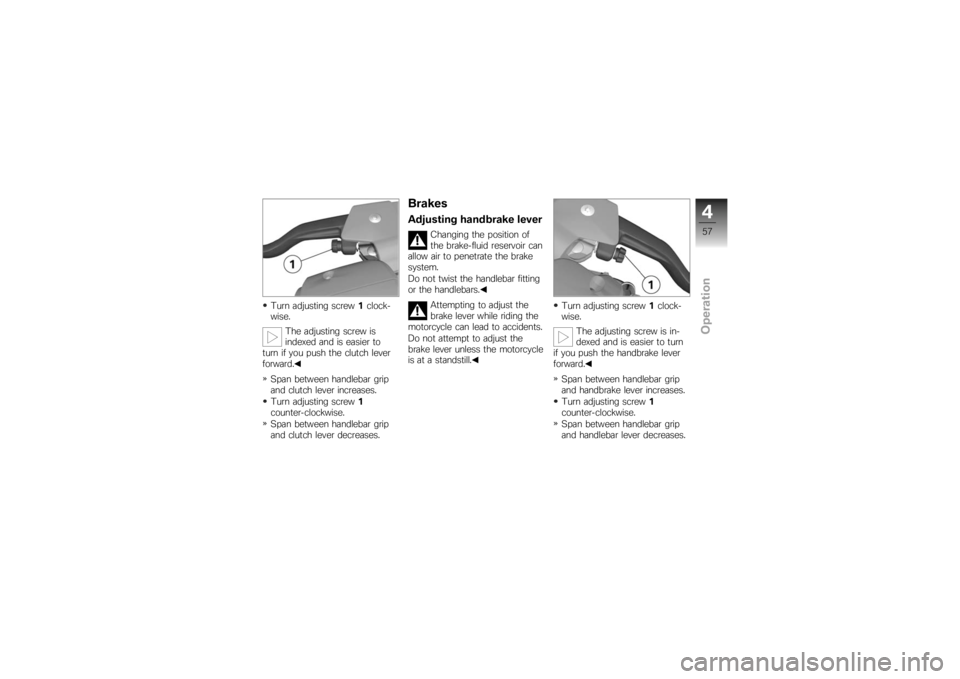

ClutchAdjusting clutch lever
If the position of the clutch
fluid reservoir is changed,
air can enter the clutch system.
Do not twist the handlebar fitting
or the handlebars.
Attempting to adjust the
clutch lever while riding the
motorcycle can lead to accidents.
Do not attempt to adjust the
clutch lever unless the motor-
cycle is at a standstill.
456zOperation

Turn adjusting screw1clock-
wise.
The adjusting screw is
indexed and is easier to
turn if you push the clutch lever
forward.
Span between handlebar grip
and clutch lever increases.
Turn adjusting screw 1
counter-clockwise.
Span between handlebar grip
and clutch lever decreases.
BrakesAdjusting handbrake lever
Changing the position of
the brake-fluid reservoir can
allow air to penetrate the brake
system.
Do not twist the handlebar fitting
or the handlebars.
Attempting to adjust the
brake lever while riding the
motorcycle can lead to accidents.
Do not attempt to adjust the
brake lever unless the motorcycle
is at a standstill. Turn adjusting screw
1clock-
wise.
The adjusting screw is in-
dexed and is easier to turn
if you push the handbrake lever
forward.
Span between handlebar grip
and handbrake lever increases.
Turn adjusting screw 1
counter-clockwise.
Span between handlebar grip
and handlebar lever decreases.
457zOperation

MirrorsAdjusting mirrorsPivot the mirror to the correct
position by pressing gently at
the edge.Spring preloadSettingIt is essential to set spring pre-
load of the rear suspension to
suit the load carried by the mo-
torcycle. Increase spring preload
when the motorcycle is heavily
loaded and reduce spring preloadaccordingly when the motorcycle
is lightly loaded.
Adjusting spring preload
for rear wheelMake sure the ground is level
and firm and place the motor-
cycle on its stand.
Your motorcycle's hand-
ling will suffer if you do not
match the spring-preload and
damping-characteristic settings.
Adjust the damping characteristic
to suit spring preload. Adjusting spring preload
while the motorcycle is be-
ing ridden can lead to accidents.
Do not attempt to adjust spring
preload unless the motorcycle is
at a standstill.
If you want to increase spring
preload, turn knob 1in the dir-
ection indicated by the HIGH
arrow.
If you want to reduce spring
preload, turn knob 1in the dir-
ection indicated by the LOW
arrow.
Basic setting of spring
preload, rear
Turn the knob as far as it will
go in the direction indicated
by the LOW arrow and then
turn it back 13 clicks in the
direction indicated by the
HIGH arrow. (Full load of
fuel, with rider 85 kg)
458zOperation

DampingSettingDamping must be adapted to
suit spring preload. An increase
in spring preload requires firmer
damping, a reduction in spring
preload requires softer damping.Adjusting damping for
rear wheelMake sure the ground is level
and firm and place the motor-
cycle on its stand.
Adjust the damping character-
istic, using the tool from theon-board toolkit to turn adjust-
ing screw
1.
If you want a harder damping
characteristic, use a screw-
driver to turn adjusting screw 1
in the direction indicated by the
H arrow.
If you want a softer damping
characteristic, use a screw-
driver to turn adjusting screw 1
in the direction indicated by the
S arrow. Basic setting of rear-sus-
pension damping charac-
teristic
Turn the adjusting screw as
far as it will go in the dir-
ection indicated by the H
arrow and then turn it back
one and a half turns in the
direction indicated by the S
arrow. (One-up 85 kg)
Electronic Suspension
Adjustment ESA
OE
SettingsElectronic Suspension Adjust-
ment ESA provides a convenient
way of adapting the motorcycle
to the load it carries and the sur-
face over which you intend riding.
459zOperation

The damping characteristic is
shown in panel1of the multi-
function display, and spring pre-
load in panel 2. The odometer
readings are not shown while
the ESA readout is active. Three
spring preload settings can each
be combined with three damping
characteristics to fine-tune the
motorcycle's suspension.Adjuster, spring preloadThe ESA control unit is protected
by an overload cutout designed
to stop the spring-preload ad-
justment process if current con-
sumption reaches an unaccept- ably high level. Please note that
a combination of low ambient
temperature and a high payload
tends to increase the possibility
of elevated current consumption,
and under these circumstances
adjustment might be interrupted
by the overload cutout.
If the motorcycle is to be used
for two-up riding and ambient
temperature is below 0 °C, BMW
Motorrad recommends adjusting
the suspension to the setting for
two-up riding and allowing ad-
justment to complete before your
passenger mounts the motor-
cycle. Similarly, BMW Motorrad
recommends relieving the weight
on the motorcycle when you are
going to adjust over a long range
of travel (adjusting from "one-up"
to "two-up with luggage").
The ESA indicator continues to
flash until adjustment completes.
If adjustment is interrupted the
process resumes as soon as
current consumption drops be-
low the defined threshold, for
example when the above-men-
tioned measures are adopted.
Calling up settingsSwitch on the ignition.
Press button
1.
The current setting is
displayed.
The reading remains visible for
a few seconds before disap-
pearing automatically.
460zOperation

Adjusting suspension
dampingSwitch on the ignition.You can adjust the damp-
ing characteristic while the
motorcycle is on the move.
Press button 1.
The current setting is
displayed.
Press button 1once at each
step.
The display field starts at the
current status and cycles through
the following sequence:
COMF
: Comfortable damping
characteristic
NORM
: Normal damping char-
acteristic
SPORT
: Sporty damping
characteristic
The setting shown on the dis-
play is automatically accepted
as the damping characteristic
if you allow a certain length of
time to pass without making
further changes.
Adjusting spring preloadStart the engine.
You cannot adjust spring
preload while the motor-
cycle is on the move. Press button
1.
The current setting is
displayed.
Press and hold down button 1
until the reading changes.
The display field starts at the
current status and cycles through
the following sequence: One-up
One-up with luggage
Two-up (with luggage)
461zOperation

The settings shown on the
display are automatically ac-
cepted as the spring preload
and, if applicable, the damp-
ing characteristic if you allow a
certain length of time to pass
without pressing making further
changes. The reading flashes
while spring preload adjustment
is in progress.
Wait until adjustment com-
pletes (reading stops flashing)
before pulling away.TyresChecking tyre pressureMake sure the ground is level
and firm and place the motor-
cycle on its stand.Incorrect tyre pressures im-
pair the motorcycle's hand-
ling characteristics and increase
the rate of tyre wear.
Always check that the tyre pres-
sures are correct. At high road speeds, tyre
valves have a tendency to
open as a result of centrifugal
force.
Fit metal valve caps with rubber
seals and screw them on firmly
to prevent sudden deflation.
Check that tyre pressures are
correct as per the data below.
Tyre pressure, front
2.5 bar (one-up, tyre cold)
2.5 bar (two-up and/or with
luggage, tyre cold) Tyre pressure, rear
2.9 bar (one-up, tyre cold)
2.9 bar (two-up and/or with
luggage, tyre cold) If tyre pressure is too low:
Correct tyre pressure.
HeadlightAdjusting headlight for
driving on left/driving on
rightIf the motorcycle is ridden in a
country where the opposite rule
of the road applies, its asymmet-
ric low-beam headlight will tend
to dazzle oncoming traffic.
Have the headlight set accord-
ingly by a specialist workshop,
preferably an authorised BMW
Motorrad dealer.
Commercially available ad-
hesive tape will damage the
plastic lens of the light.
Consult a specialist workshop,
preferably an authorised BMW
Motorrad dealer, in order to avoid
damaging the plastic lens of the
light.
