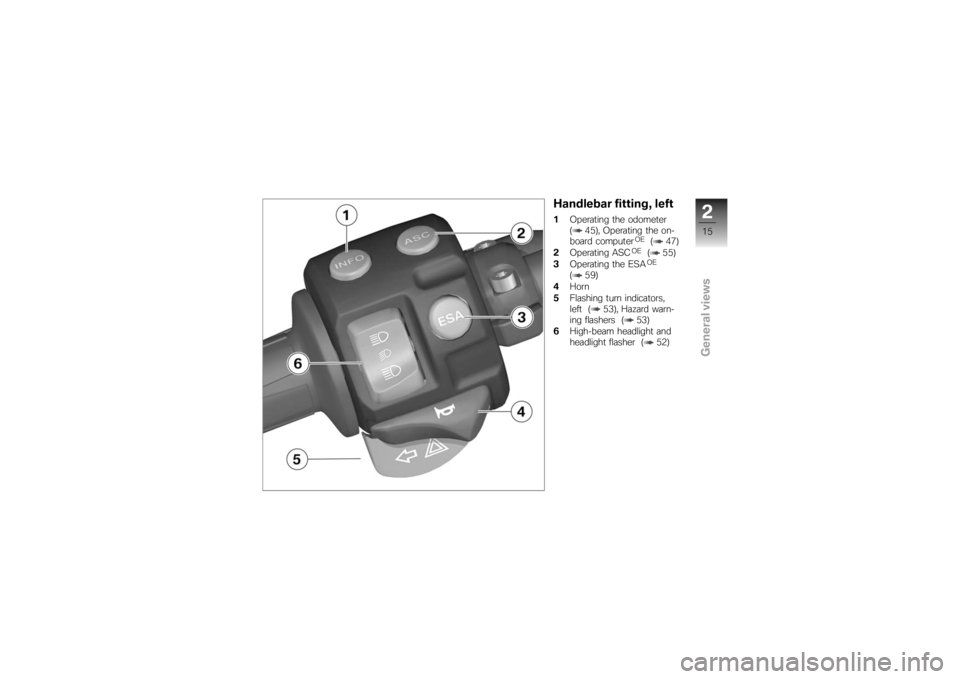

Handlebar fitting, left1Operating the odometer
( 45), Operating the on-
board computer
OE
( 47)
2 Operating ASC
OE
( 55)
3 Operating the ESAOE
( 59)
4 Horn
5 Flashing turn indicators,
left ( 53), Hazard warn-
ing flashers ( 53)
6 High-beam headlight and
headlight flasher ( 52)
215zGeneral views

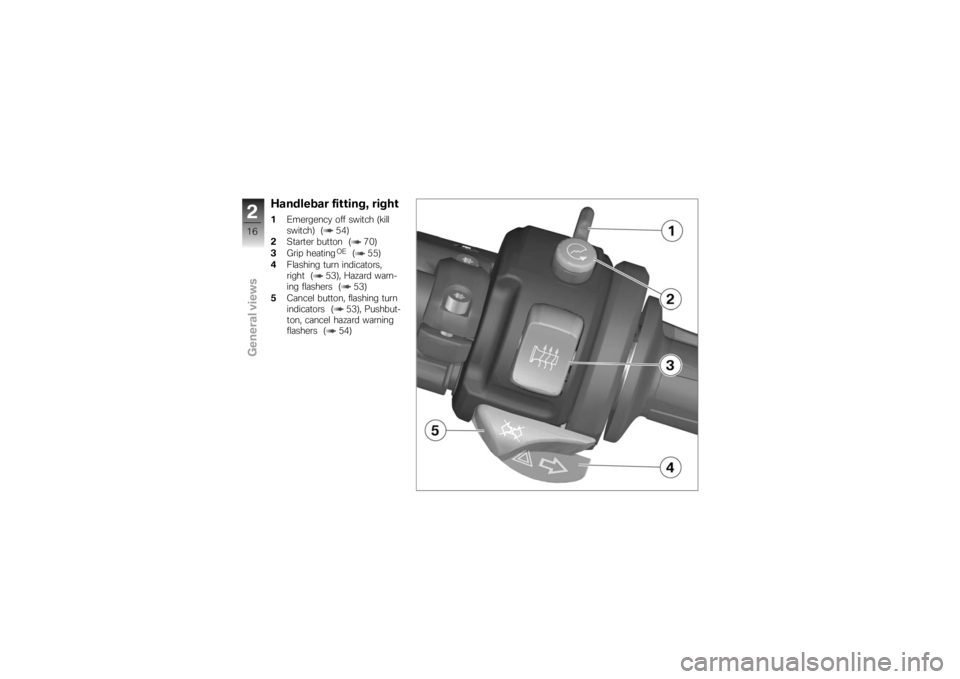

Handlebar fitting, right1Emergency off switch (kill
switch) ( 54)
2 Starter button ( 70)
3 Grip heating
OE
( 55)
4 Flashing turn indicators,
right ( 53), Hazard warn-
ing flashers ( 53)
5 Cancel button, flashing turn
indicators ( 53), Pushbut-
ton, cancel hazard warning
flashers ( 54)
216zGeneral views

Instrument cluster1Rev. counter
2 Speedometer
3 Telltale lights ( 20)
4 Multifunction display
( 20)
5 Telltale light, anti-theft alarm
(OE) and sensor for instru-
ment lighting
6 Select readings ( 45)
Reset the tripmeter ( 46)
Set the clock ( 44)
The instrument-cluster
lighting has automatic day
and night switchover.
217zGeneral views

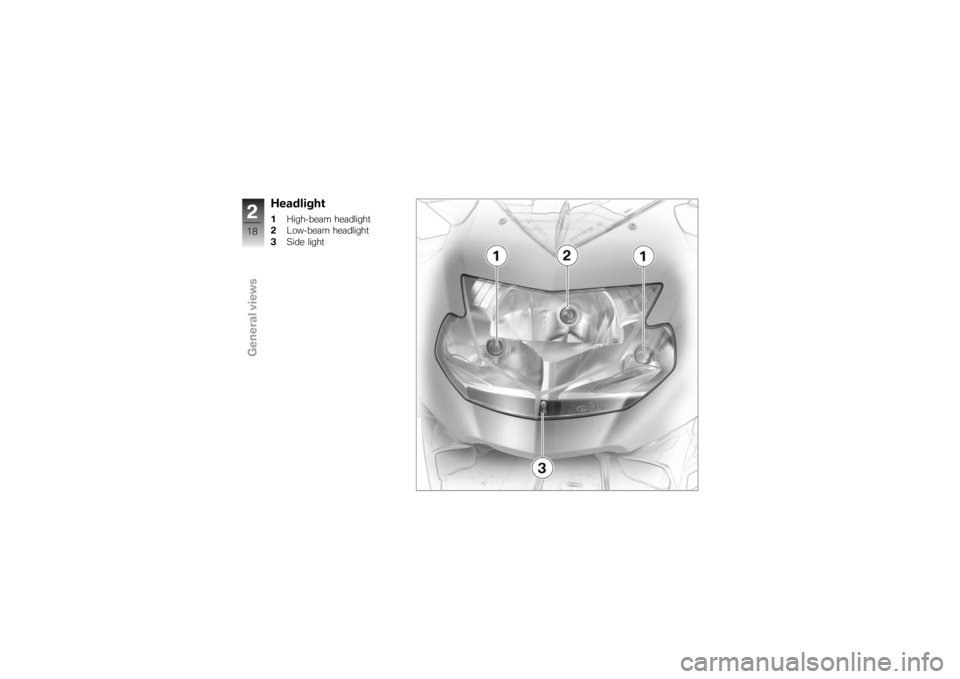

Headlight1High-beam headlight
2 Low-beam headlight
3 Side light
218zGeneral views

Status indicators
Status indicators
Standard status indicators........... 20
Status indicators with on-board com-
puter
OE
.............................. 21
Status indicators with tyre-pressure
monitoring (RDC)
OE
................. 22
Standard warnings ................... 22
Warnings issued by the on-board
computer
OE
......................... 27
ABS warnings ....................... 29
ASC warningsOE
..................... 31
RDC warnings
OE
.................... 33
Anti-theft alarm warnings
OE
......... 38
319zStatus indicators

Standard status
indicatorsMultifunction display1Clock ( 44)
2 Gear ( 20)
3 Coolant temperature
( 20)
4 Odometer and tripmeters
( 45)
5 Fuel capacity ( 20)
Telltale lights1Flashing turn indicators, left
2 High-beam headlight
3 Idle
4 Flashing turn indicators,
rightFuel capacity
The horizontal bars below
the fuel-pump symbol in-
dicate the remaining quantity of
fuel.
When the fuel in the tank is
topped up the gauge briefly
shows the original level, before
the reading is updated.
Gear
The gear engaged or
N
for neutral appears on the
display.
If no gear is engaged, the
'neutral' telltale light also
lights up.
Coolant temperature
The horizontal bars below
the temperature symbol
indicate the coolant temperature.
Service-due indicatorIf the next service is due in less
than one month, the date for the
320zStatus indicators

next service is shown briefly after
the Pre-Ride Check completes.
Month and year are both shown
as two-digit numbers with a line
as separator, so in this example
the next service is due in March
2007.
If the motorcycle covers long dis-
tances in the course of the year,
under certain circumstances it
might be necessary to have it
serviced at a date in advance
of the forecast due date. If the
countdown distance to the odo-
meter reading at which a service
will be due is less than 1000 km,the distance is counted down in
steps of 100 km and is shown
briefly after the Pre-Ride Check
completes.
If service is overdue, the date or
the odometer reading is accom-
panied by the 'General' warning
light showing yellow. The word
"Service" remains permanently
visible.
If the service-due indicat-
or appears more than a
month in advance of the actual
due date or if the word "Service"
does not show permanently even
though a service is overdue, the
date stored in memory in the in-
strument cluster is incorrect and
must be set. This situation can
occur if the battery was discon-
nected for a prolonged period of
time.
If you want to have the date set
consult a specialist workshop, preferably an authorised BMW
Motorrad dealer.
Status indicators with
on-board computer
OE
1 Status-indicator panel of
the on-board computerOE
( 47)
321zStatus indicators

Status indicators
with tyre-pressure
monitoring (RDC)
OE
1 Tyre pressures alternate
with the clock; if the motor-
cycle is fitted with an on-
board computer tyre pres-
sures displayed as an ad-
ditional set of readings by
the on-board computer.
OE
( 51)
Standard warningsMode of presentation
Warnings are indicated by the
'General' warning light 1show-
ing in combination with a warning
word, for example 2or in com-
bination with one of the warning
symbols 3. The 'General' warn-
ing light shows red or yellow, de-
pending on the urgency of the
warning. If two or more warn-
ings occur at the same time, all
the appropriate warning lights
and warning symbols appear, al-
ternating with warning words as
applicable. The possible warnings are listed
on the next page.
322zStatus indicators
