2007 BMW MOTORRAD K 1200 S Rider's Manual (in English)

Accessories
Accessories
General instructions.................. 88
Power socket . ....................... 88
Luggage ............................. 89
Case
OA
.............................. 90
Breakdown assistance kit
OA
......... 93
787zAccessories

General instructionsBMW Motorrad recommends
the use of parts and accessories
for your motorcycle that are ap-
proved by BMW for this purpose.
Genuine BMW parts and ac-
cessories and other products
which BMW has approved can
be obtained from your authorised
BMW Motorrad dealer, together
with expert advice on their install-
ation and use.
These parts and products have
been tested by BMW for safety,
function and suitability. BMW
accepts product liability for them.
Conversely, BMW is unable to
accept any liability whatsoever
for parts and accessories which it
has not approved.BMW Motorrad cannot
assess each non-BMW
product to determine wheth-
er it can be used on or in con-
nection with BMW motorcycles without constituting a safety haz-
ard. Country-specific official au-
thorisation does not suffice as
assurance. Tests conducted by
these instances cannot make
provision for all operating con-
ditions experienced by BMW mo-
torcycles and, consequently, they
are not sufficient in some circum-
stances.
Use only parts and accessor-
ies approved by BMW for your
motorcycle.
Whenever you are planning
modifications, comply with all
the legal requirements. Make
sure that the motorcycle does
not infringe national road-vehicle
construction and use regulations.
Power socketRatingsThe supply to standard socket
1
and the extra socket (OE) is cut
off automatically if battery voltage
is low or the load exceeds the
maximum for the two sockets.Operating electrical
accessoriesYou can start using electrical ac-
cessories only when the ignition
is switched on. The accessory
remains operational if the ignition
is subsequently switched off. In
order to ensure that the drain on
788zAccessories

the on-board power supply sys-
tem is minimised, the supply to
the power socket is cut off ap-
proximately 15 minutes after the
ignition is switched off, and it is
also temporarily interrupted dur-
ing the start procedure.Cable routingThe cables from the power sock-
et to the auxiliary device must be
routed in such a way that they:Do not impede the rider
Do not restrict or obstruct the
steering angle and handling
characteristics
Cannot be trapped
Incorrectly routed cables
can impede the rider.
Route the cables as described
above.
LuggageCorrect loading
Overloading and imbal-
anced loads can adversely
affect the motorcycle's handling.
Do not exceed the permissible
gross weight and be sure to
comply with the instructions on
loading.
Set spring preload, damping
characteristic and tyre pres-
sures to suit total weight.
Adjust the spring preload for
rear wheel ( 58)
Check the tyre pressure
( 62)
Adjust the damping for rear
wheel ( 59)
Ensure that the case volumes
on the left and right are equal.
Make sure that the weight is
uniformly distributed between
right and left. Pack heavy items at the bot-
tom and toward the inboard
side.
Note the maximum permissible
payload of the cases and the
speed limit for riding with cases
on the motorcycle.
Payload of cases
with OA Case: ≤8kg
Maximum permissible
speed for riding with
cases fitted to the motorcycle
with OA Case:
≤180 km/h
Note the maximum permissible
payload of the tank rucksack
and the speed limit for riding
with a tank rucksack on the
motorcycle.
789zAccessories

Payload of tank rucksack
with OA Tank rucksack: ≤5kg
Maximum permissible
speed for riding with the
tank rucksack fitted to the mo-
torcycle
with OA Tank rucksack:
≤130 km/h
Note the maximum permissible
payload of the tankbag and
the speed limit for riding with
a tankbag on the motorcycle.
Payload of tankbag
with OA Tankbag: ≤5kg Maximum permissible
speed for riding with the
tankbag fitted to the motor-
cycle
with OA Tankbag:
≤130 km/h
Case
OA
Release leversEach case has two levers, one on
each side of the lock.
The grey lever marked OPEN is
for opening and closing the case.
The black lever marked
RELEASE is for removing and
attaching the case.

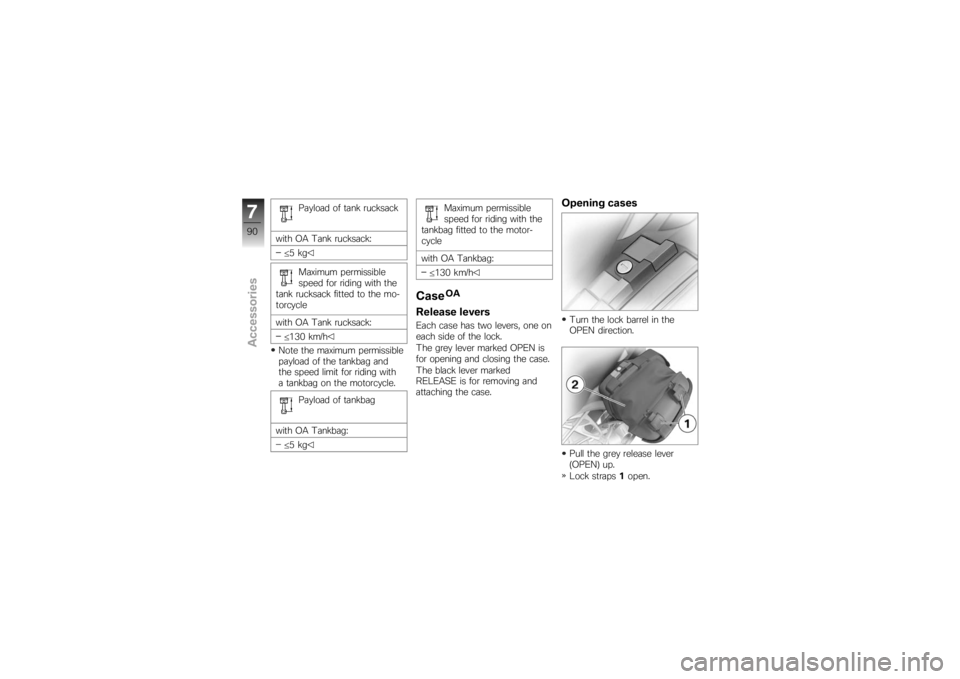

Opening casesTurn the lock barrel in the
OPEN direction.
Pull the grey release lever
(OPEN) up.
Lock straps 1open.
790zAccessories

Pull the grey release lever
(OPEN) up again.
Pull case lid2out of the retain-
er.Closing casesPress catches 1of the case lid
into retainers 2.
The catches engage with an
audible click.
Press the catches on the lock
straps into retainers 2.
The catches engage with an
audible click.
Check that the catches are
locked securely into place.
Adjusting case volumeClose the case lid.
Turn the lock strap
buckles 1of the lock straps
out.
Pull the lock straps up and out.
This expands the case to max-
imum volume. Close the lock straps.
Press the lock straps against
the case body.
The case volume adapts to the
contents.
791zAccessories

Removing casesTurn the lock barrel in the RE-
LEASE direction.
Pull the black release lever
(RELEASE) up.Pull the case out of the top
holder.
Lift the case out of the bottom
holder.

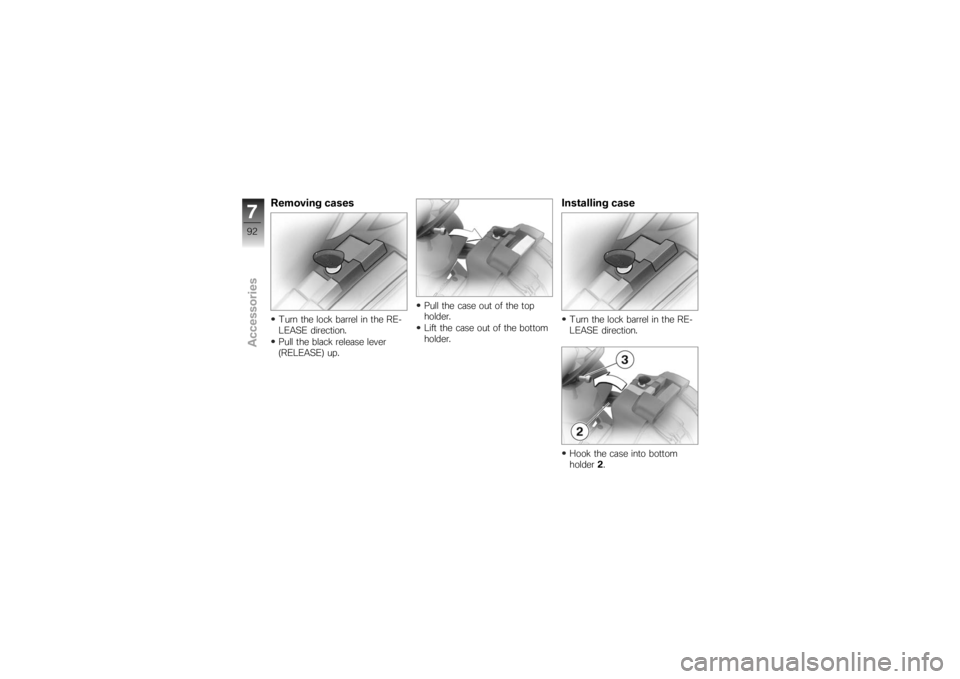

Installing caseTurn the lock barrel in the RE-
LEASE direction.
Hook the case into bottom
holder
2.
792zAccessories

Pull the black release lever
(RELEASE) up.
Press the case into top hold-
er3.
Push the black release lever
(RELEASE) down.
The case is locked into place.
Lock the case.
Check that it is correctly en-
gaged.Secure attachmentIf a case wobbles or is difficult
to fit, it has to be adapted to the
gap between the top and bottom
holders. The bottom bracket on the case can be moved up or
down for this purpose.
Adapting caseOpen the case.
Remove screws
1.
Adjust the height of the holder.
Tighten screws 1.
Breakdown assistance
kit
OA
UseThe stowage space for the
breakdown assistance kit is under
the left side panel.
See the description enclosed
with the breakdown assistance
kit for instructions detailing the
procedure and for safety informa-
tion.Removing breakdown
assistance kitMake sure the ground is level
and firm and place the motor-
cycle on its stand.
Remove the seat ( 63)
793zAccessories

Remove screws1.
Remove the side panel.
Lay the panel on the seat
to protect the side panel
from scratches.
Open the retaining strap and
remove the breakdown assist-
ance kit.
794zAccessories
