Check the brake fluid level in
brake fluid reservoir1.
The brake fluid level in the
brake fluid reservoir drops
as the brake pads wear. Brake fluid level, rear
DOT4 brake fluid
Do not permit the brake fluid
level to drop below the MIN
mark. (Brake-fluid reservoir
horizontal)
If the brake fluid level drops be-
low the permitted level: Have the defect rectified as
quickly as possible by a spe-
cialist workshop, preferably
an authorised BMW Motorrad
dealer.
ClutchChecking clutch operationPull the clutch lever.
The pressure point must be
clearly perceptible.
If the pressure point is not clearly
perceptible:
Have the clutch checked by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.Checking clutch fluid levelMake sure the ground is level
and firm and hold the motor-
cycle upright.
with OA Centre stand:
Make sure the ground is level
and firm and place the motor-
cycle on its centre stand.
Move the handlebars to the
straight-ahead position.
8103zMaintenance

Check the clutch fluid level in
clutch fluid reservoir1.
Wear of the clutch causes
the fluid level in the clutch
fluid reservoir to rise. Clutch fluid level
Do not permit the clutch flu-
id level to drop.
If the fluid level drops: Unsuitable hydraulic fluids
could cause damage to the
clutch system.
Do not attempt to top up the
system with fluids of any kind.
Have the defect rectified as
quickly as possible by a spe-
cialist workshop, preferably an authorised BMW Motorrad
dealer.
The clutch system is filled
with a special hydraulic
fluid that does not have to be
changed.
TyresMeasuring tread depth of
tyres
Your motorcycle's handling
and grip can be impaired
even before the tyres wear to
the minimum tyre tread depth
permitted by law.
Have the tyres changed in good
time before they wear to the
minimum permissible tread
depth.
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
8104zMaintenance

Measure the tyre tread depth
in the main tread grooves with
wear marks.Tyres have wear indicators
integrated into the main
tread grooves. The tyre is worn
out when the tyre tread has worn
down to the level of the marks.
The locations of the marks are
indicated on the edge of the tyre,
e.g. by the letters TI, TWI or by
an arrow.
If the tyre tread is worn to minim-
um:
Replace tyre or tyres, as applic-
able.RimsVisual inspectionMake sure the ground is level
and firm and place the motor-
cycle on its stand.
Visually inspect the rims for
defects. Have damaged rims checked
and, if necessary, replaced by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
WheelsRecommended tyresFor each size of tyre BMW Mo-
torrad tests and classifies as
roadworthy certain makes. BMW
Motorrad cannot assess the suit-
ability or provide any guarantee
of road safety for other tyres.
BMW Motorrad recommends
using only tyres tested by BMW
Motorrad.
You can obtain detailed informa-
tion from your authorised BMW
Motorrad dealer or on the Inter-
net at www.bmw-motorrad.com.
RDC label
OE
Incorrect tyre-removal pro-
cedures can result in dam-
age to the RDC sensors.
Be sure to notify the authorised
BMW Motorrad dealer or spe-
cialist workshop that the wheel is
fitted with an RDC sensor.
If the motorcycle is equipped
with RDC, each wheel rim bears
an adhesive label indicating the
position of the RDC sensor.
When changing the tyre, take
care not to damage the RDC
sensor. Be sure to draw the
attention of the authorised BMW
8105zMaintenance

Motorrad dealer or specialist
workshop to the fact that the
wheel is fitted with an RDC
sensor.Remove the front wheelPlace the motorcycle on an
auxiliary stand; BMW Motorrad
recommends the BMW Motor-
rad rear-wheel stand.
Install the rear-wheel stand
( 114)
with OA Centre stand:
Make sure the ground is level
and firm and place the motor-
cycle on its centre stand. Remove screws
1on left and
right.
Pull the front mudguard for-
ward to remove. Once the calipers have
been removed, there is
a risk of the brake pads being
pressed together to the extent
that they cannot be slipped back
over the brake disc on reas-
sembly.
Do not operate the handbrake
lever when the brake calipers
have been removed.
Remove securing screws 3of
the brake calipers on left and
right.
8106zMaintenance

Force the brake pads slightly
apart by rocking brake
calipers4back and forth A
against brake discs 5.
Mask off the parts of the wheel
rim that could be scratched in
the process of removing the
brake calipers.
Carefully pull the brake calipers
back and out until clear of the
brake discs.
When removing the left brake
caliper, take care not to dam-
age the ABS sensor cable.
Raise front of motorcycle until
the front wheel can turn freely.
BMW Motorrad recommends the BMW Motorrad front-wheel
stand for lifting the motorcycle.
Install the front-wheel stand
( 113)
The left axle clamping
screw locates the threaded
bush in the front suspension.
If the threaded bush is not
correctly aligned the gap
between the ABS sensor ring
and the ABS sensor will not be
correct and this can cause the
ABS to malfunction or allow the
ABS sensor to be damaged.
In order to ensure that the
threaded bush remains correctly aligned, do not slacken or
remove the left axle camping
screw.
Remove right-hand axle clamp-
ing screw 6.
Remove quick-release axle 7,
holding the wheel as you do
so.
Lower the front wheel to the
ground between the front forks.
Take care not to dam-
age the ABS sensor when
rolling out the front wheel.
Note the ABS sensor when
rolling out the front wheel.
Roll the front wheel forward to
remove.
Installing front wheel
ABS malfunctions on ac-
count of incorrect speed
signal.
Segmentation differs between in-
dividual types of sensor ring; it is
very important to ensure that the
8107zMaintenance

correct sensor ring is installed.
Install only the sensor ring that
matches the motorcycle's con-
struction status.Threaded fasteners not
tightened to the specified
torque can work loose or their
threads can suffer damage.
Always have the security of the
fasteners checked by a specialist
workshop, preferably an author-
ised BMW Motorrad dealer.
The front wheel must be
installed right way round to
rotate in the correct direction.
Note the direction-of-rotation ar-
rows on the tyre or the wheel
rim.
There is a risk of damaging
parts of the front brake,
particularly the BMW Motorrad
Integral ABS, in the course of the
procedure described below.
Take care not to damage the
brake system, in particular the ABS sensor with cable and the
ABS sensor ring.
Roll the front wheel into posi-
tion between the front forks.
Raise the front wheel, insert
quick-release axle 7and tight-
en to specified torque.
Quick-release axle in
threaded bush
50 Nm
Tighten right axle clamping
screw 6to the specified tight-
ening torque. Clamping screw for
quick-release axle in
wheel carrier
19 Nm
Remove the front-wheel stand.

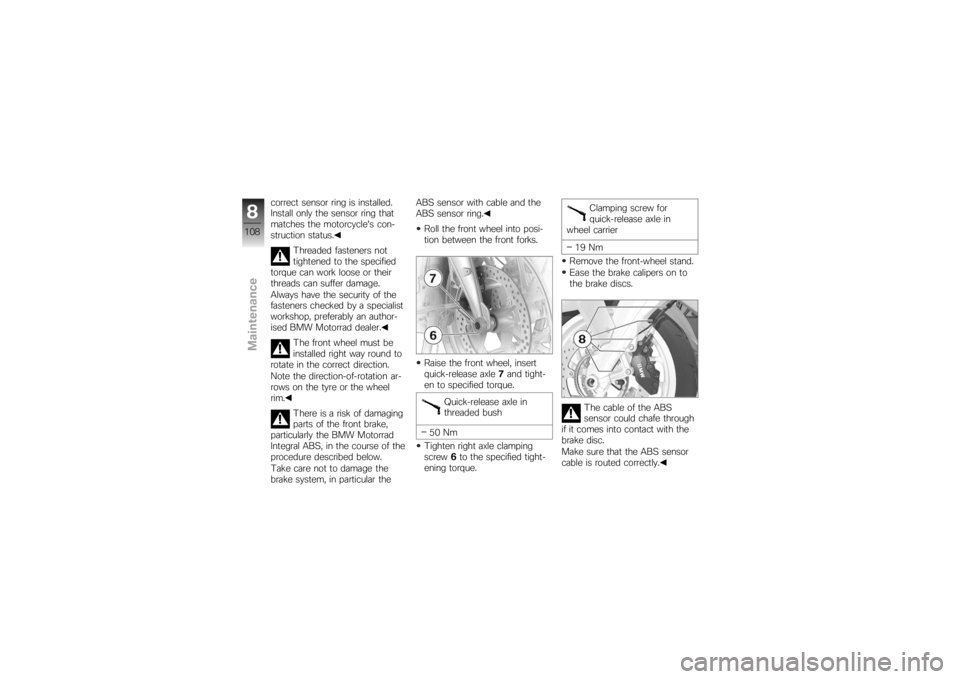

Ease the brake calipers on to
the brake discs.
The cable of the ABS
sensor could chafe through
if it comes into contact with the
brake disc.
Make sure that the ABS sensor
cable is routed correctly.
8108zMaintenance

Carefully route the ABS sensor
cable. Make sure that the ABS
sensor cable is clipped into
holders8.
Install securing screws 3on
left and right and tighten to
specified tightening torque.
Front brake caliper to
wheel carrier
30 Nm
Remove the adhesive tape
from the wheel rim.
Firmly pull the handbrake lever
until the pressure point is per- ceptible, and repeat this opera-
tion several times.
Install the front mudguard and
install screws
1on left and
right.
Remove the rear wheel stand,
if installed beforehand.
Removing rear wheelPlace the motorcycle on an
auxiliary stand; BMW Motorrad
recommends the BMW Motor-
rad rear-wheel stand.
Install the rear-wheel stand
( 114) with OA Centre stand:
Make sure the ground is level
and firm and place the motor-
cycle on its centre stand.
Remove screw 1from silencer
cover 2.
Pull the cover to the rear to
remove.
8109zMaintenance

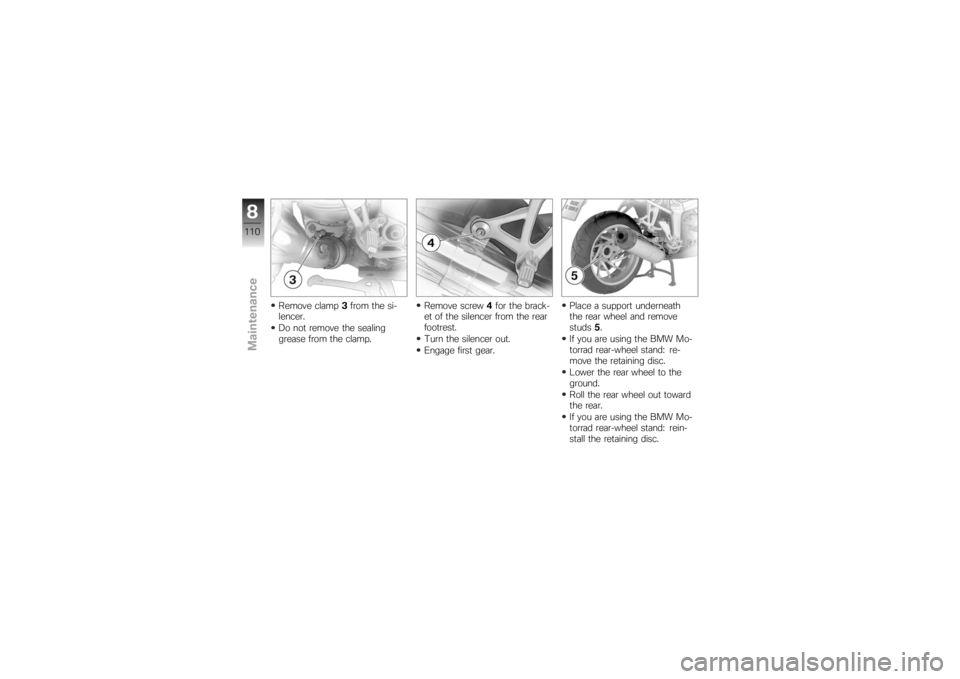

Remove clamp3from the si-
lencer.
Do not remove the sealing
grease from the clamp. Remove screw
4for the brack-
et of the silencer from the rear
footrest.
Turn the silencer out.
Engage first gear. Place a support underneath
the rear wheel and remove
studs
5.
If you are using the BMW Mo-
torrad rear-wheel stand: re-
move the retaining disc.
Lower the rear wheel to the
ground.
Roll the rear wheel out toward
the rear.
If you are using the BMW Mo-
torrad rear-wheel stand: rein-
stall the retaining disc.
8110zMaintenance
