2006 SUZUKI SX4 Service Workshop Manual

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-3

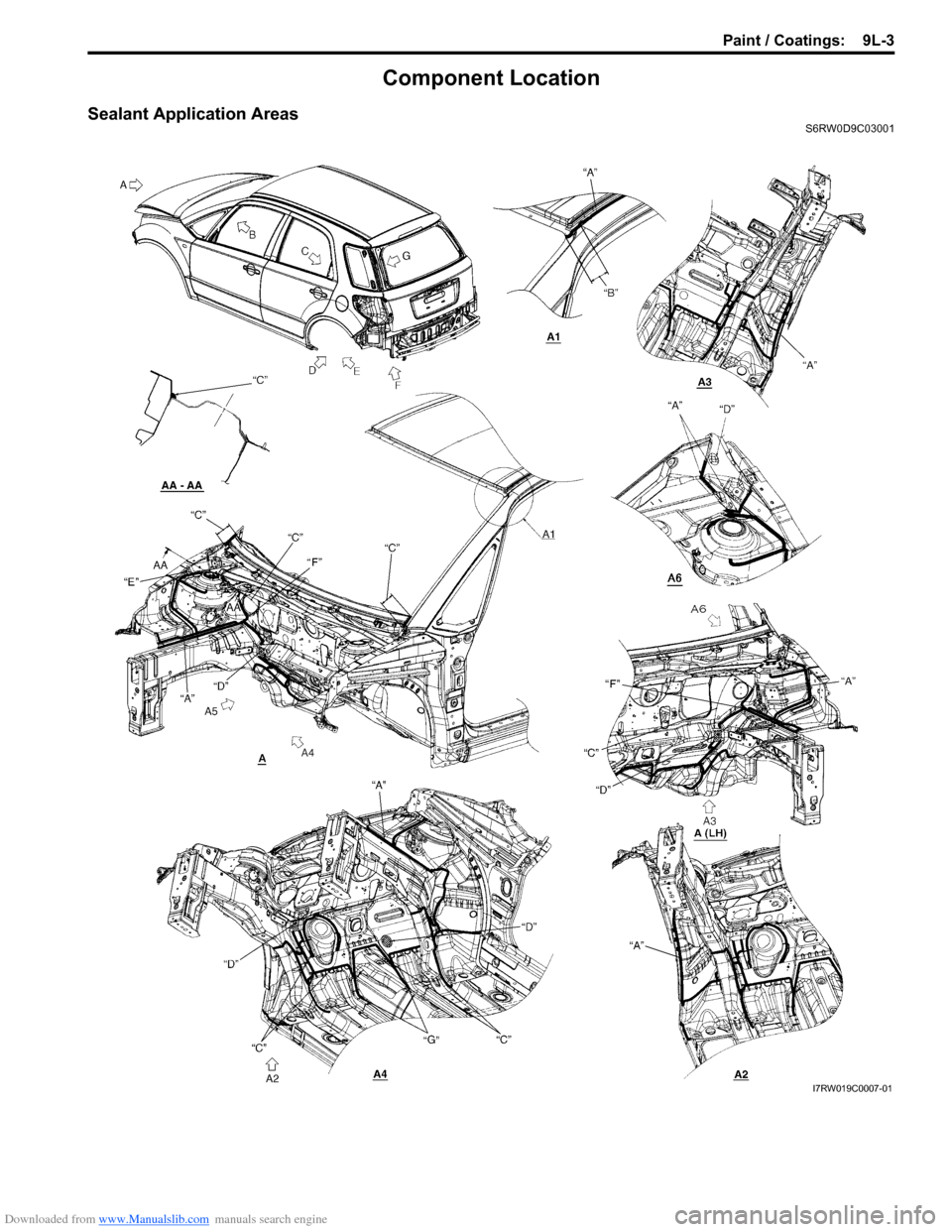

Component Location
Sealant Application AreasS6RW0D9C03001
I7RW019C0007-01

Downloaded from www.Manualslib.com manuals search engine 9L-4 Paint / Coatings:

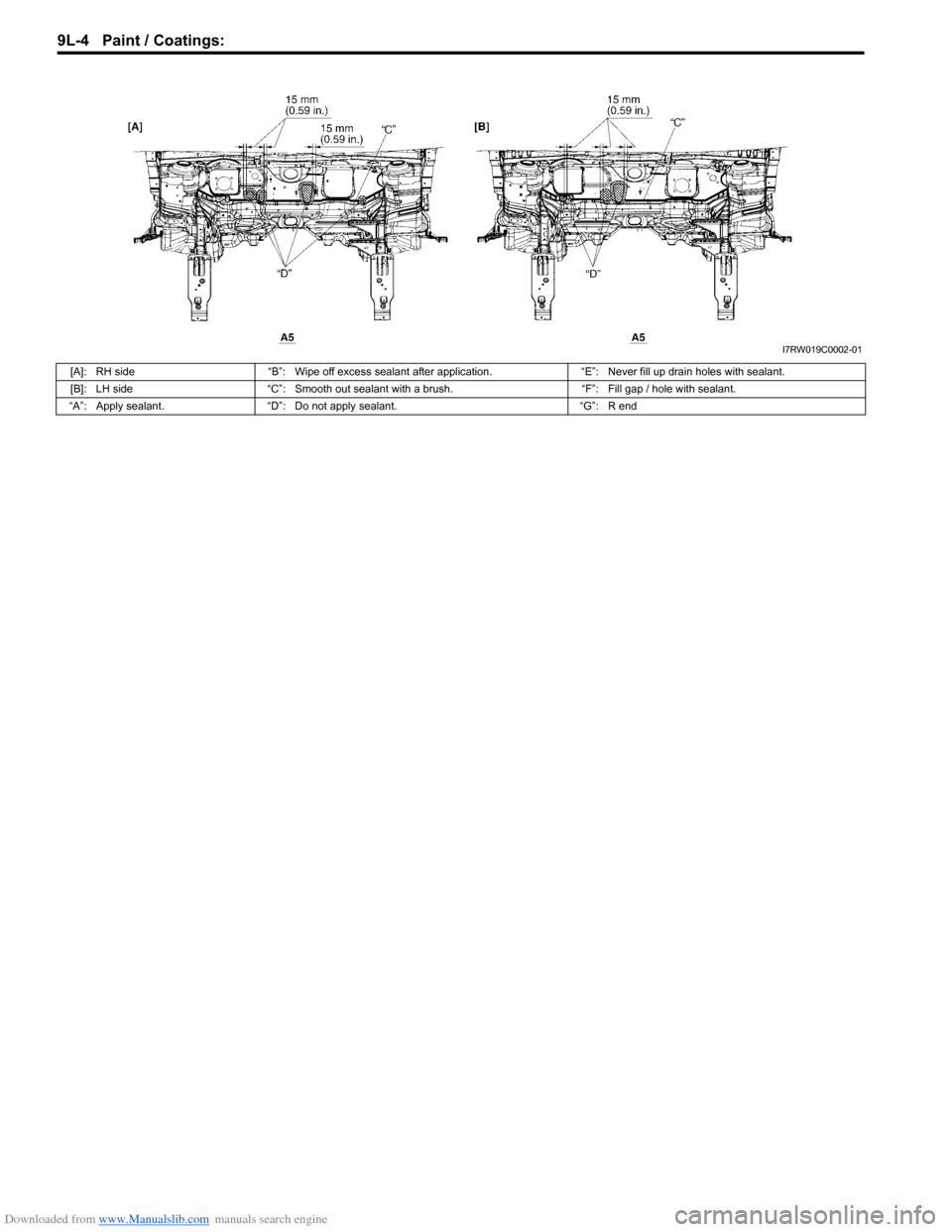

I7RW019C0002-01
[A]: RH side “B”: Wipe off excess sealant after application. “E”: Never fill up drain holes with sealant.
[B]: LH side “C”: Smooth out sealant with a brush. “F”: Fill gap / hole with sealant.
“A”: Apply sealant. “D”: Do not apply sealant. “G”: R end

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-5

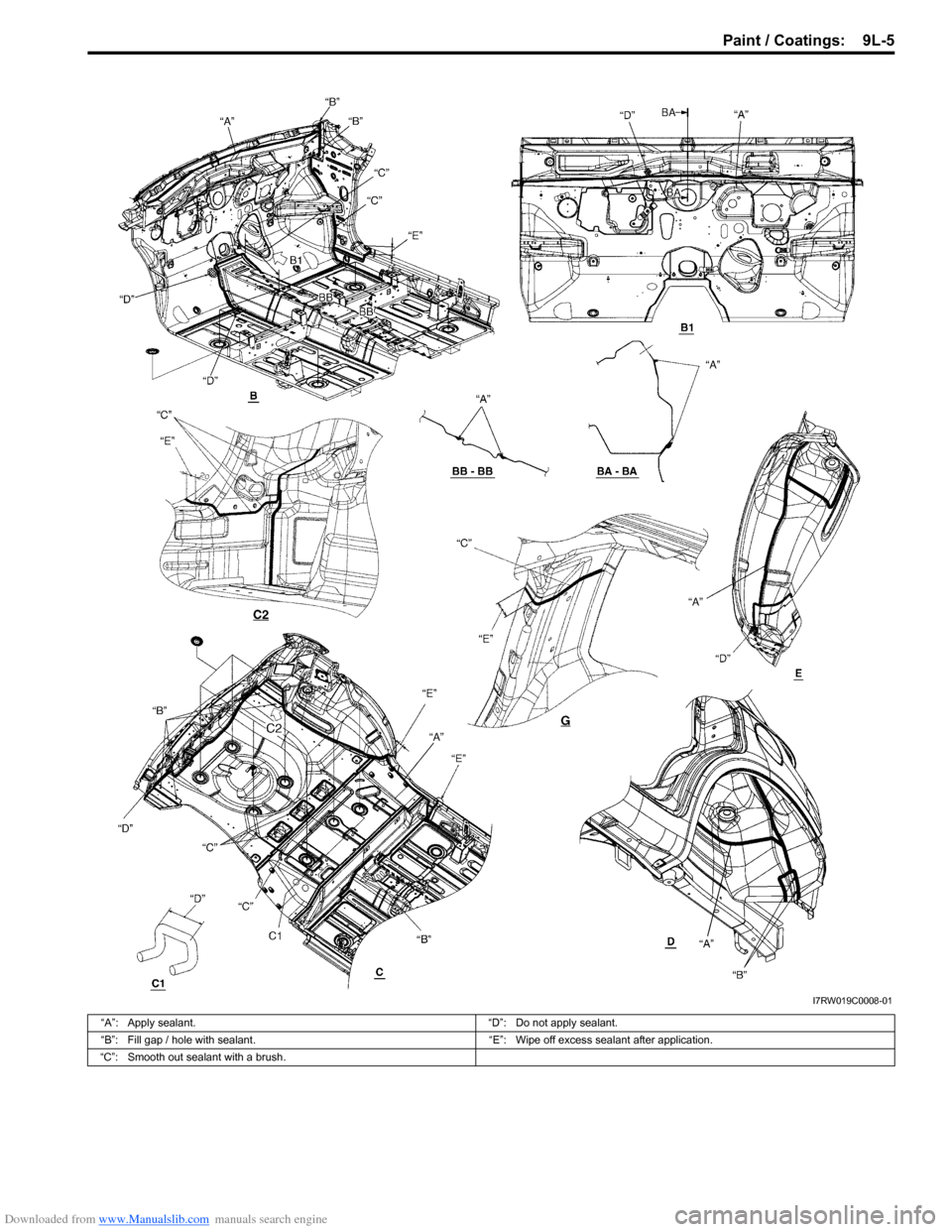

I7RW019C0008-01
“A”: Apply sealant. “D”: Do not apply sealant.
“B”: Fill gap / hole with sealant. “E”: Wipe off excess sealant after application.
“C”: Smooth out sealant with a brush.

Downloaded from www.Manualslib.com manuals search engine 9L-6 Paint / Coatings:

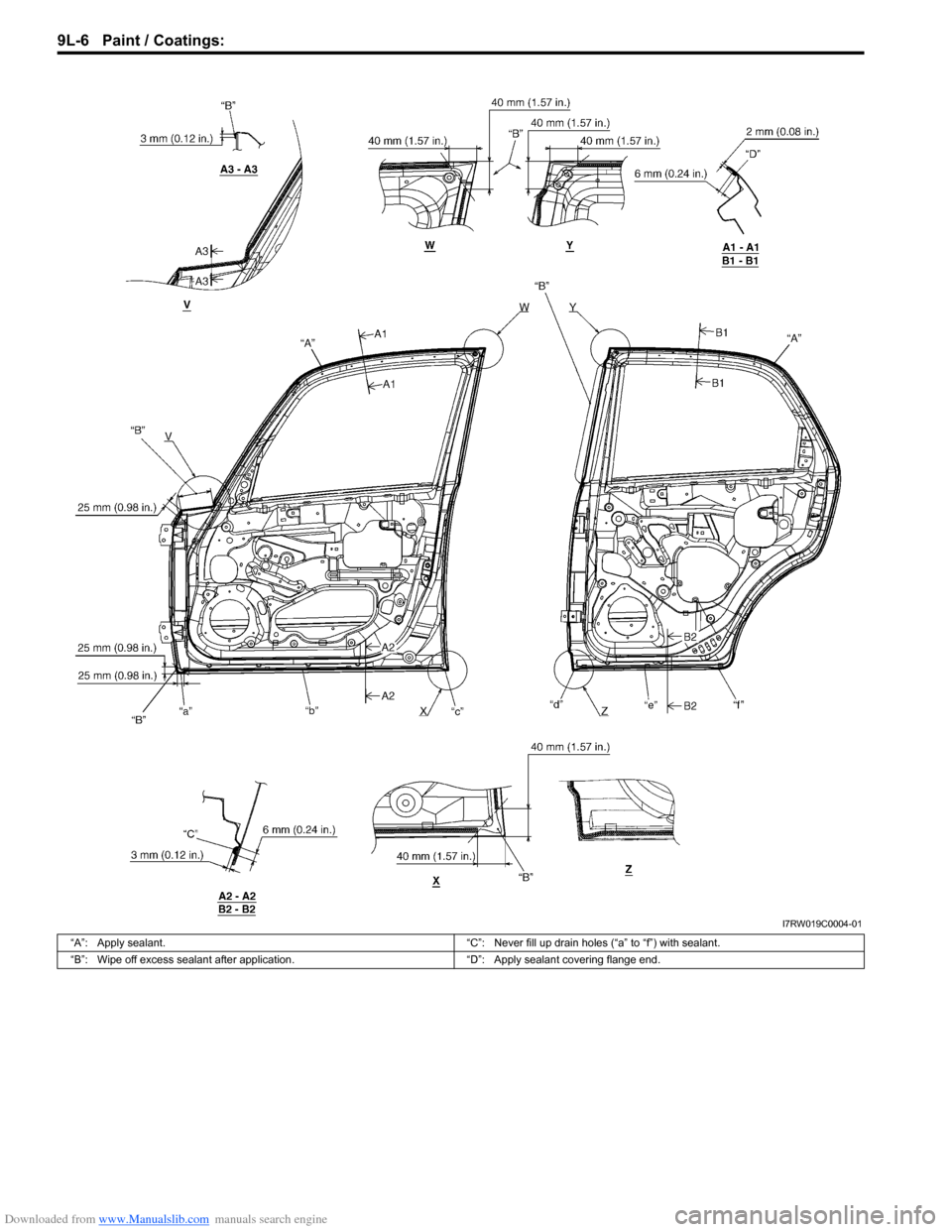

I7RW019C0004-01
“A”: Apply sealant. “C”: Never fill up drain holes (“a” to “f”) with sealant.
“B”: Wipe off excess sealant after application. “D”: Apply sealant covering flange end.

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-7

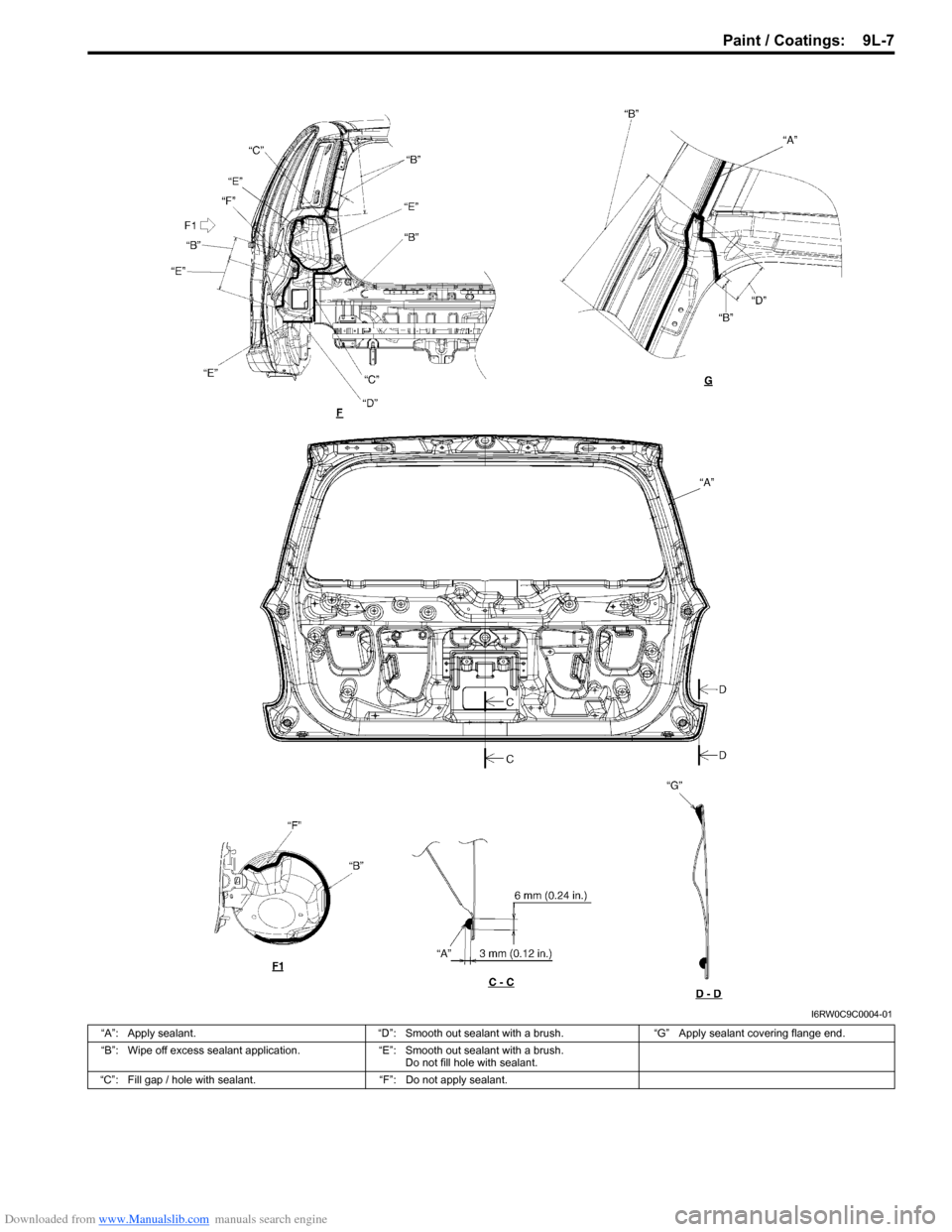

I6RW0C9C0004-01
“A”: Apply sealant. “D”: Smooth out sealant with a brush. “G” Apply sealant covering flange end.
“B”: Wipe off excess sealant application. “E”: Smooth out sealant with a brush.
Do not fill hole with sealant.
“C”: Fill gap / hole with sealant. “F”: Do not apply sealant.

Downloaded from www.Manualslib.com manuals search engine 9L-8 Paint / Coatings:

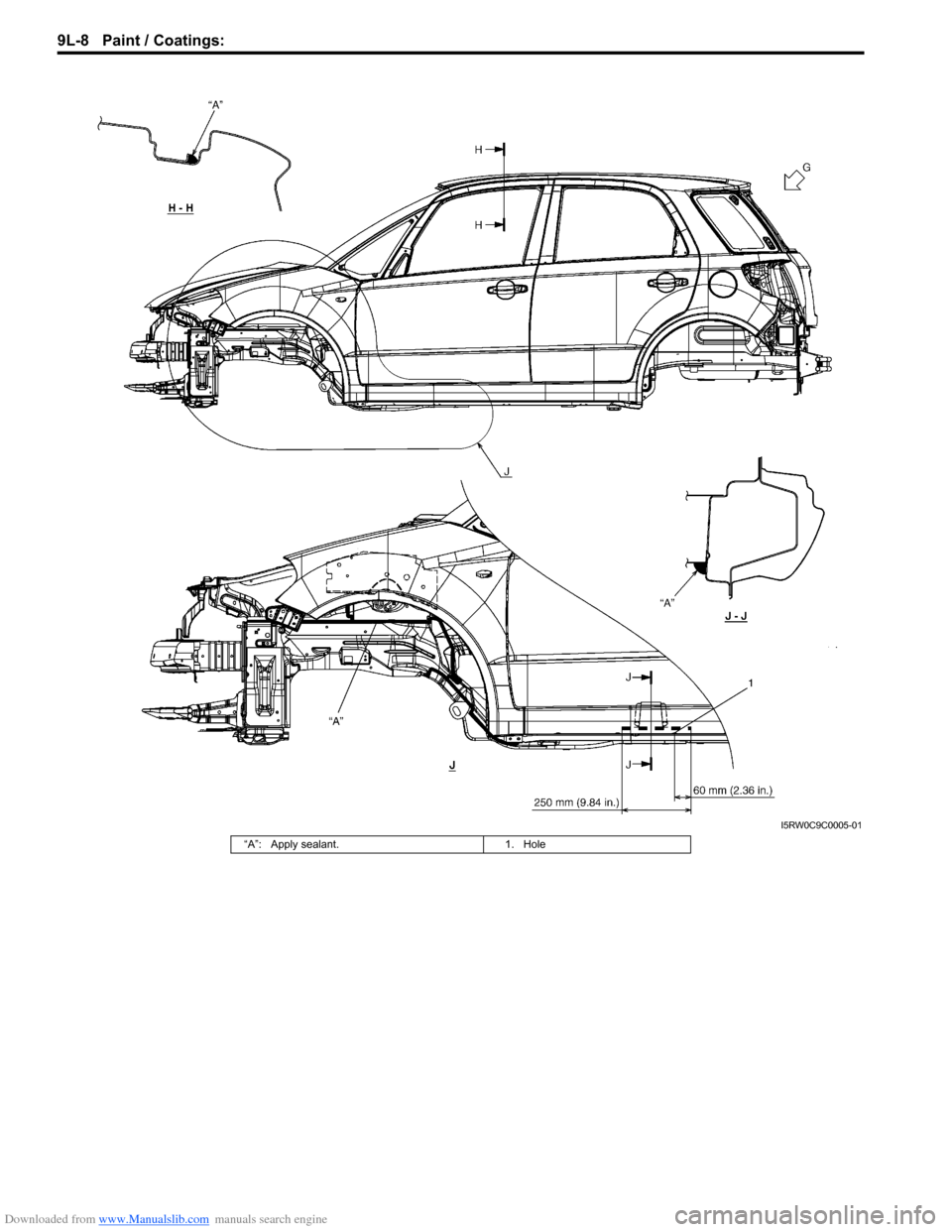

I5RW0C9C0005-01
“A”: Apply sealant. 1. Hole

Downloaded from www.Manualslib.com manuals search engine Paint / Coatings: 9L-9

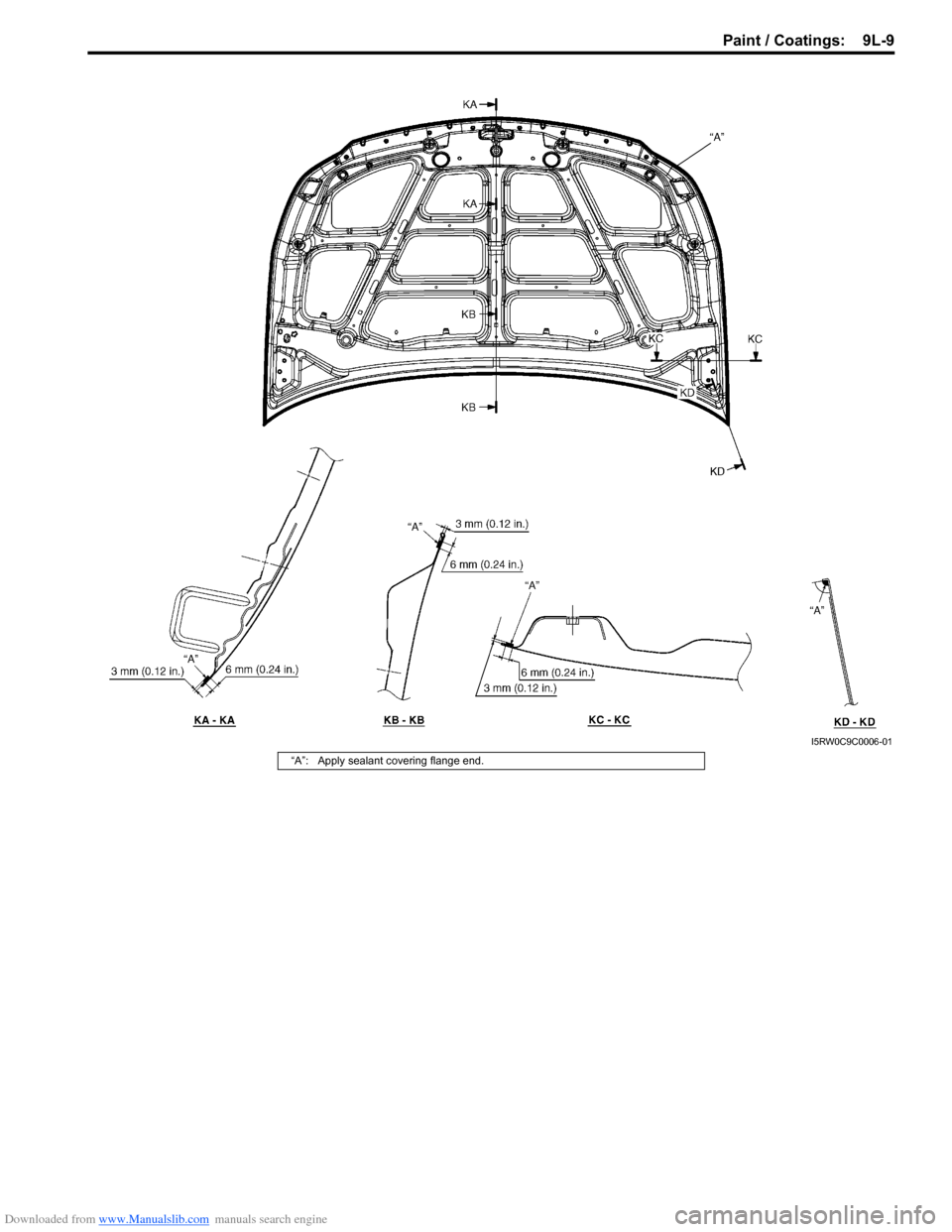

I5RW0C9C0006-01
“A”: Apply sealant covering flange end.

Downloaded from www.Manualslib.com manuals search engine 9L-10 Paint / Coatings:
Under Coating Application AreasS6RW0D9C03002
I6RW0C9C0005-02
[A]: LH side “C”: Do not apply undercoating.
[B]: RH side “D”: Apply under coating after panting black color.
