Connector “L04” (SDM connector)
Terminal Circuit Terminal Circuit
L04-1 — L04-27 Ignition switch (power source)
L04-2 “AIR BAG” warning light L04-28 Ground
L04-3 Driver air bag (–) L04-29 —
L04-4 Driver air bag (+) L04-30 —
L04-5 Passenger air bag (+) L04-31 —
L04-6 Passenger air bag (–) L04-32 DLC
L04-7 Driver seat belt pretensioner (–) L04-33 —
L04-8 Driver seat belt pretensioner (+) L04-34 —
L04-9 Passenger seat belt pretensioner (+) L04-35 —
L04-10 Passenger seat belt pretensioner (–) L04-36 —
L04-11 Driver side-air bag (–) (8-channel
system)L04-37 BCM communication line (air bag deployment
signal)
L04-12 Driver side-air bag (+) (8-channel
system)L04-38 —
L04-13 Passenger side-air bag (+) (8-
channel system)L04-39 —
L04-14 Passenger side-air bag (–) (8-
channel system)L04-40 —
L04-15 — L04-41 —
L04-16 — L04-42 —
L04-17 — L04-43 —
L04-18 — L04-44 Passenger side impact-sensor (–) (8-channel
system)
L04-19 Driver side curtain-air bag (–) (8-
channel system)L04-45 Passenger side impact-sensor (+) (8-channel
system)
L04-20 Driver side curtain-air bag (+) (8-
channel system)L04-46 Driver side impact-sensor (+) (8-channel
system)
L04-21 Passenger side curtain-air bag (+)
(8-channel system)L04-47 Driver side impact-sensor (–) (8-channel
system)
L04-22 Passenger side curtain-air bag (–)
(8-channel system)L04-48 —
L04-23 — L04-49 —
L04-24 — L04-50 Forward impact-sensor (+)
L04-25 — L04-51 Forward impact-sensor (–)
L04-26 —

Downloaded from www.Manualslib.com manuals search engine 8B-11 Air Bag System:
Component Location
Air Bag System Components, Wiring and Connectors LocationS6RW0D8203001
17 147B19
A
20
16
1818
43
1 A
5
C
2 B
10
11
8
9
6
15
C
5
5
13
12
I6RW0C820004-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-12
Diagnostic Information and Procedures
Air Bag Diagnostic System CheckS6RW0D8204001
WARNING!
To avoid deployment when troubleshooting
the air bag system, do not use electrical test
equipment such as a battery powered or AC
powered voltmeter, ohmmeter, etc., or any
type of electrical equipment other than that
specified in this manual. Do not use a non-
powered probe type tester.
Instructions in this manual must be followed
carefully, otherwise personal injury may
result.

CAUTION!
• The order in which DTCs are diagnosed is
very important. Failure to diagnose the
DTCs in the order specified may result in
extended diagnostic time, incorrect
diagnosis and incorrect parts replacement.
• When measurement of resistance or
voltage is required in the flow, use a tester
along with a correct terminal adapter from
special tool (Connector test adapter kit).
• When a check for proper connection is
required, refer to “Inspection of
Intermittent and Poor Connections”.
• If an open circuit in the air bag wire
harness damaged, connector or terminal is
found, replace the wire harness,
connectors and terminals as an assembly.

The diagnostic procedures used are designed to find
and repair air bag system malfunctions.
To get the best results, it is important to use the
diagnostic flow and follow the sequence in the following.
1) Perform the “Air Bag Diagnostic System Check
Flow”.
(The “Air Bag Diagnostic System Check Flow” must
be the starting point of any air bag system diagnosis.
The “Air Bag Diagnostic System Check Flow” checks
for proper “AIR BAG” warning light operation through
“AIR BAG” warning light and whether air bag DTCs
exist.)
2) Refer to the proper diagnostic flow as directed by the
“Air Bag Diagnostic System Check Flow”.
(The “Air Bag Diagnostic System Check Flow” will
lead you to the correct flow to diagnose any air bag
system malfunctions. Bypassing these procedures
may result in extended diagnostic time, incorrect
diagnosis and incorrect parts replacement.)
3) Repeat the “Air Bag Diagnostic System Check Flow”
after any repair or diagnostic procedures have been
performed.
(Performing the “Air Bag Diagnostic System Check
Flow” after all repair or diagnostic procedures will
ensure that the repair has been made correctly and
that no other malfunctions exist.)
A: Combination meter 6. Side curtain-air bag (inflator) module (8-
channel system)14. “A/B” fuse in junction block assembly
B: Steering wheel 7. Contact coil assembly 15. Air bag harness in main harness
C: Seat 8. Forward impact-sensor 16. Air bag harness in instrument panel harness
1. “AIR BAG” warning light 9. Apron-side-member (driver side) 17. Air bag harness in floor harness
2. Driver air bag (inflator) module 10. Side impact-sensor (8-channel system) 18. Side-air bag harness (8-channel system)
3. Passenger air bag facing cover 11. Side sill inner panel 19. Side curtain-air bag harness (8-channel
system)
4. Passenger air bag (inflator) module 12. SDM 20. Ground for air bag system
5. Side-air bag (inflator) module (8-channel
system)13. Seat belt pretensioner

Downloaded from www.Manualslib.com manuals search engine 8B-13 Air Bag System:
Air Bag Diagnostic System Check FlowS6RW0D8204002
CAUTION!
• Be sure to perform “Air Bag Diagnostic System Check” before starting diagnosis according to each
flow.
• When measurement of resistance or voltage is required in the flow, use a tester along with a correct
terminal adapter from special tool (Connector test adapter kit).
• When a check for proper connection is required, refer to “Inspection of Intermittent and Poor
Connections”.
• If an open circuit in the air bag wire harness damaged, connector or terminal is found, replace the
wire harness, connectors and terminals as an assembly.

Step Action Yes No
1Battery voltage check.
1) Measure battery voltage.
Is it 10 – 14 V?Go to Step 2. Proceed to “Battery
Inspection in Section
1J”.
2“AIR BAG” warning light check (6 times flushing check).
1) Turn ON ignition switch, and then check that “AIR BAG”
warning light flushes.
Does “AIR BAG” warning light flash 6 times?Go to Step 3. Go to Step 4.
3“AIR BAG” warning light check (turning off check).
1) In the state of Step 2. check that “AIR BAG” warning light
turn OFF after flashing 6 times.
Does “AIR BAG” warning light turn OFF?Go to Step 5. Go to Step 6.
4“AIR BAG” warning light circuit check
Does “AIR BAG” warning light come ON steady?Go to checking flow of
““AIR BAG” Warning
Light Comes ON
Steady”. After carrying
out it flow, proceed to
St ep 6 .Go to checking flow of
““AIR BAG” Warning
Light Does Not Come
ON”. After carrying out it
flow, proceed to Step 6.
5DTC check
1) Check DTC using SUZUKI scan tool referring to “DTC
Check”.
Is “NO CODES” displayed on SUZUKI scan tool?Air bag system is in
good condition.Check intermittent
troubles referring to
“Inspection of
Intermittent and Poor
Connections”.
If intermittent troubles
are OK, check and
repair applicable DTC
flow and then repeat
this flow.
6DTC check
1) Check DTC using SUZUKI scan tool, referring to “DTC
Check”.
Is “NO CODES” displayed on SUZUKI scan tool?Substitute a known-
good SDM and recheck.Check and repair
applicable DTC flow,
and then repeat this
flow.

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-14
DTC TableS6RW0D8204003
NOTE
The DTCs (B1022 and B1023) shown with asterisk (*) below have been established only for the M15A
engine model with 4A/T equipped with slip-control (i.e., Hong Kong model). These codes are meant to
be recorded when External Scrapping Deployment Controller is operated by a Japanese authorized
special scrapping trader. Therefore, normally these codes will not appear outside Japan. However,
should these codes be detected, SDM must be replaced because the cause is due to SDM detection
failure.

SDM DTC
DTC No. Detecting itemDetecting condition
(DTC will set when detecting)Trouble area
—Normal — —
) B1013 SDM internal failureMalfunctioned SDM internal
circuit, G sensor, memory or
CPU.•SDM
) B1014 “AIR BAG” warning light circuit“AIR BAG” warning light circuit
has been shorted to ground,
shorted to power or opened for
more than 4 sec.• “AIR BAG” warning light circuit
• Combination meter
•SDM
) B1016 Power supply voltage too highPower supply voltage is more
than 21.4 V for, more than 16
sec.• Charging system
•SDM
) B1017 Power supply voltage too lowPower supply voltage is less
than 7.2 V for more than 16 sec.• Charging system
•SDM
) B1021Front air bag deployment
recordDeployment of front air bag has
been recorded in SDM.If this DTC has been recorded
even though air bag has not
been deployed
•SDM
• Driver and/or Passenger air
bag module
• Those initiator circuit.
*B1022Scrapping deployment
controller activatedScrapping deployment command
has been input to SDM from
external scrapping deployment
controller•SDM
*B1023 Scraping deployment recordScrapping deployment execution
has been recorded in SDM•SDM
) B1024Driver side-air bag deployment
recordDeployment of driver side-air
bag has been recorded in SDM.If this DTC has been recorded
even though side-air bag has not
been deployed
•SDM
• Driver side-air bag module
• Its initiator circuit
) B1025Passenger side-air bag
deployment recordDeployment of passenger side-
air bag has been recorded in
SDM.If this DTC has been recorded
even though side-air bag has not
been deployed
•SDM
• Passenger side-air bag
module
• Its initiator circuit

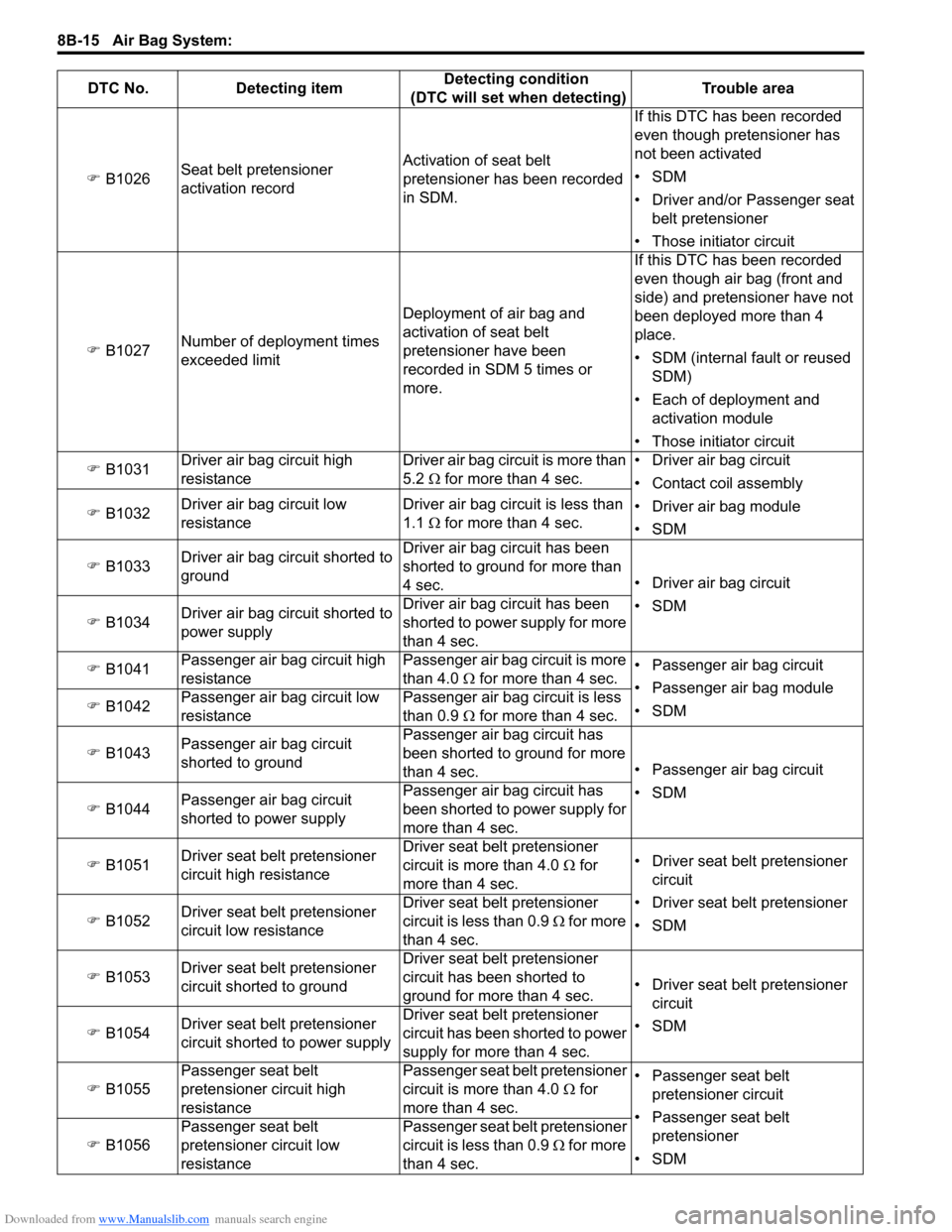

Downloaded from www.Manualslib.com manuals search engine 8B-15 Air Bag System:
) B1026Seat belt pretensioner
activation recordActivation of seat belt
pretensioner has been recorded
in SDM.If this DTC has been recorded
even though pretensioner has
not been activated
•SDM
• Driver and/or Passenger seat
belt pretensioner
• Those initiator circuit
) B1027Number of deployment times
exceeded limitDeployment of air bag and
activation of seat belt
pretensioner have been
recorded in SDM 5 times or
more.If this DTC has been recorded
even though air bag (front and
side) and pretensioner have not
been deployed more than 4
place.
• SDM (internal fault or reused
SDM)
• Each of deployment and
activation module
• Those initiator circuit
) B1031Driver air bag circuit high
resistanceDriver air bag circuit is more than
5.2 Ω for more than 4 sec.• Driver air bag circuit
• Contact coil assembly
• Driver air bag module
•SDM ) B1032Driver air bag circuit low
resistanceDriver air bag circuit is less than
1.1 Ω for more than 4 sec.
) B1033Driver air bag circuit shorted to
groundDriver air bag circuit has been
shorted to ground for more than
4 sec.• Driver air bag circuit
•SDM
) B1034Driver air bag circuit shorted to
power supplyDriver air bag circuit has been
shorted to power supply for more
than 4 sec.
) B1041Passenger air bag circuit high
resistancePassenger air bag circuit is more
than 4.0 Ω for more than 4 sec.• Passenger air bag circuit
• Passenger air bag module
•SDM ) B1042Passenger air bag circuit low
resistancePassenger air bag circuit is less
than 0.9 Ω for more than 4 sec.
) B1043Passenger air bag circuit
shorted to groundPassenger air bag circuit has
been shorted to ground for more
than 4 sec.• Passenger air bag circuit
•SDM
) B1044Passenger air bag circuit
shorted to power supplyPassenger air bag circuit has
been shorted to power supply for
more than 4 sec.
) B1051Driver seat belt pretensioner
circuit high resistance Driver seat belt pretensioner
circuit is more than 4.0 Ω for
more than 4 sec.• Driver seat belt pretensioner
circuit
• Driver seat belt pretensioner
•SDM ) B1052Driver seat belt pretensioner
circuit low resistance Driver seat belt pretensioner
circuit is less than 0.9 Ω for more
than 4 sec.
) B1053Driver seat belt pretensioner
circuit shorted to groundDriver seat belt pretensioner
circuit has been shorted to
ground for more than 4 sec.• Driver seat belt pretensioner
circuit
•SDM
) B1054Driver seat belt pretensioner
circuit shorted to power supplyDriver seat belt pretensioner
circuit has been shorted to power
supply for more than 4 sec.
) B1055Passenger seat belt
pretensioner circuit high
resistance Passenger seat belt pretensioner
circuit is more than 4.0 Ω for
more than 4 sec.• Passenger seat belt
pretensioner circuit
• Passenger seat belt
pretensioner
•SDM ) B1056Passenger seat belt
pretensioner circuit low
resistancePassenger seat belt pretensioner
circuit is less than 0.9 Ω for more
than 4 sec. DTC No. Detecting itemDetecting condition
(DTC will set when detecting)Trouble area

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-16
) B1057Passenger seat belt
pretensioner circuit shorted to
groundPassenger seat belt pretensioner
circuit has been shorted to
ground for more than 4 sec.• Passenger seat belt
pretensioner circuit
•SDM
) B1058Passenger seat belt
pretensioner circuit shorted to
power supplyPassenger seat belt pretensioner
circuit has been shorted to power
circuit for more than 4 sec.
) B1061Driver side-air bag circuit high
resistance Driver side-air bag circuit is more
than 3.7 Ω for more than 4 sec.• Driver side-air bag circuit
• Driver side-air bag module
•SDM ) B1062Driver side-air bag circuit low
resistance Driver side-air bag circuit is less
than 1.0 Ω for more than 4 sec.
) B1063Driver side-air bag circuit
shorted to groundDriver side-air bag circuit has
been shorted to ground for more
than 4 sec.• Driver side-air bag circuit
•SDM
) B1064Driver side-air bag circuit
shorted to power supplyDriver side-air bag circuit has
been shorted to power supply for
more than 4 sec.
) B1065Passenger side-air bag circuit
high resistance Passenger side-air bag circuit is
more than 3.7 Ω for more than 4
sec.• Passenger side-air bag circuit
• Driver side-air bag module
•SDM
) B1066Passenger side-air bag circuit
low resistance Passenger side-air bag circuit is
less than 1.0 Ω for more than 4
sec.
) B1067Passenger side-air bag circuit
shorted to groundPassenger side-air bag circuit
has been shorted to ground for
more than 4 sec.• Passenger side-air bag circuit
•SDM
) B1068Passenger side-air bag circuit
shorted to powerPassenger side-air bag circuit
has been shorted to power circuit
for more than 4 sec.
) B1071Driver forward impact-sensor
communication data
inconsistent Driver forward impact-sensor
has been communicated with no
response or inconsistent ID code
for more than 4 sec.• Driver forward impact-sensor
• Driver forward impact-sensor
circuit
•SDM
) B1072Driver forward impact-sensor
communication data invalid Driver forward impact-sensor
has been communicated with
invalid data for more than 4 sec.• Driver forward impact-sensor
•SDM
)
B1073Driver forward impact-sensor
circuit shorted to groundDriver forward impact-sensor
circuit has been shorted to
ground for more than 4 sec.• Driver forward impact-sensor
• Driver forward impact-sensor
circuit
•SDM ) B1074Driver forward impact-sensor
circuit openDriver forward impact-sensor
circuit has been shorted to power
circuit or opened for more than 4
sec.
) B1081Driver side impact-sensor no
responseDriver side impact-sensor has
been communicated with no
response for more than 4 sec.• Driver side impact-sensor
circuit
• Driver side impact-sensor
•SDM
) B1082Driver side impact-sensor
communication data invalidDriver side impact-sensor has
been communicated with invalid
data for more than 4 sec.• Driver side impact-sensor
•SDM
) B1083Driver side impact-sensor
circuit shorted to groundDriver side impact-sensor circuit
has been shorted to ground for
more than 4 sec.• Driver side impact-sensor
circuit
• Driver side impact-sensor
•SDM ) B1084Driver side impact-sensor
circuit openDriver side impact-sensor circuit
has been shorted to power circuit
or opened for more than 4 sec. DTC No. Detecting itemDetecting condition
(DTC will set when detecting)Trouble area

Downloaded from www.Manualslib.com manuals search engine 8B-17 Air Bag System:
) B1085Driver side impact-sensor
communication data
inconsistent Driver side impact-sensor has
been communicated with
inconsistent ID code for more
than 4 sec.• Driver side impact-sensor
•SDM
) B1091Passenger side impact-sensor
no responseCommunication with passenger
side impact-sensor has been no
response for more than 4 sec.• Passenger side impact-sensor
circuit
• Passenger side impact-sensor
•SDM
) B1092Passenger side impact-sensor
communication data invalidPassenger side impact-sensor
has been communicated with
invalid data for more than 4 sec.• Passenger side impact-sensor
circuit
•SDM
) B1093Passenger side impact-sensor
circuit shorted to groundPassenger side impact-sensor
circuit has been shorted to
ground for more than 4 sec.
• Passenger side impact-sensor
•SDM
) B1094Passenger side impact-sensor
circuit openPassenger side impact-sensor
circuit has been shorted to power
circuit or opened for more than 4
sec.
) B1095Passenger side impact-sensor
communication data
inconsistentPassenger side impact-sensor
has been communicated with
inconsistent ID code for more
than 4 sec.• Passenger side impact-sensor
•SDM
) B1361Driver curtain-air bag circuit
high resistanceDriver curtain-air bag circuit is
more than 3.8 Ω for more than 4
sec. • Driver curtain-air bag circuit
• Driver curtain-air bag module
•SDM
) B1362Driver curtain-air bag circuit low
resistanceDriver curtain-air bag circuit is
less than 1.0 Ω for more than 4
sec.
) B1363Driver curtain-air bag circuit
shorted to groundDriver curtain-air bag circuit has
been shorted to ground for more
than 4 sec.• Driver curtain-air bag circuit
•SDM
) B1364Driver curtain-air bag circuit
shorted to powerDriver curtain-air bag circuit has
been shorted to power circuit for
more than 4 sec.
) B1365Passenger curtain-air bag
circuit high resistancePassenger curtain-air bag circuit
is more than 3.8 Ω for more than
4 sec.• Passenger curtain-air bag
circuit
• Passenger curtain-air bag
module
•SDM ) B1366Passenger curtain-air bag
circuit low resistancePassenger curtain-air bag circuit
is less than 1.0 Ω for more than 4
sec.
) B1367Passenger curtain-air bag
circuit shorted to groundPassenger curtain-air bag circuit
has been shorted to ground for
more than 4 sec.• Passenger curtain-air bag
circuit
•SDM
) B1368Passenger curtain-air bag
circuit shorted to powerPassenger curtain-air bag circuit
has been shorted to power circuit
for more than 4 sec. DTC No. Detecting itemDetecting condition
(DTC will set when detecting)Trouble area
