Repair Instructions
Front Seat ComponentsS6RW0D9706001
3
2
8
7
a
c
4
d
b
1
5
5
4
6
64
a
b
c
d
(b)
(b)
(b)
(b)
(a)
(a)
(a)
(a)
A
A
A
(b)
(c)
BA
A
A
B
A
B
I6RW0C970001-01

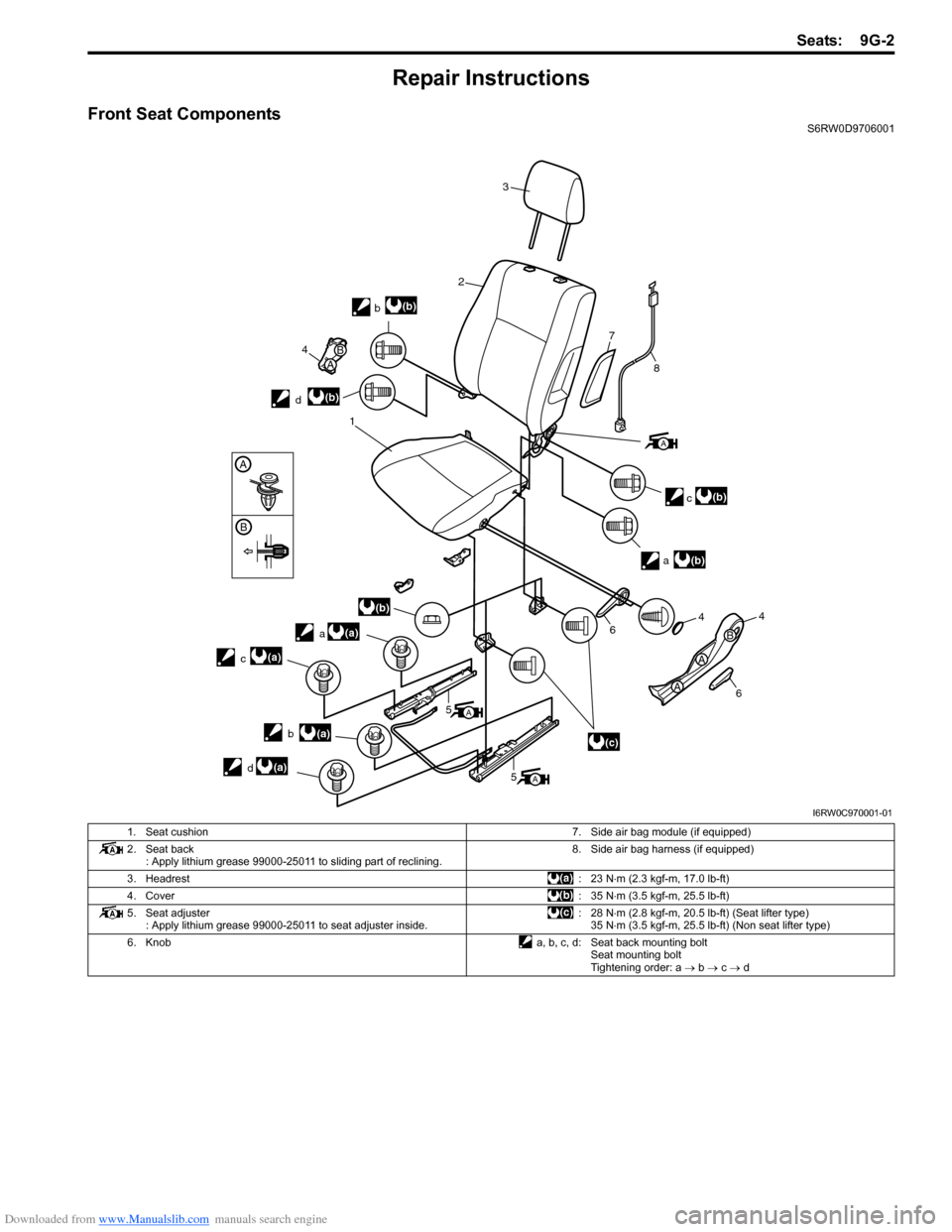

1. Seat cushion7. Side air bag module (if equipped)
2. Seat back
: Apply lithium grease 99000-25011 to sliding part of reclining.8. Side air bag harness (if equipped)
3. Headrest: 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
4. Cover: 35 N⋅m (3.5 kgf-m, 25.5 lb-ft)
5. Seat adjuster
: Apply lithium grease 99000-25011 to seat adjuster inside.: 28 N⋅m (2.8 kgf-m, 20.5 lb-ft) (Seat lifter type)
35 N⋅m (3.5 kgf-m, 25.5 lb-ft) (Non seat lifter type)
6. Knoba, b, c, d: Seat back mounting bolt
Seat mounting bolt
Tightening order: a → b → c → d
