2006 INFINITI M35 Ras

LAN-46
[CAN]
CAN COMMUNICATION
Revision: 2006 January2006 M35/M45
A/C evaporator temperature signal R T
Distance to empty signalTR
Fuel level low warning signalTR
Fuel level sensor signal R T
Manual mode shift down signal R T
Manual mode shift up signal R T
Manual mode signal R T
Not manual mode signal R T
Parking brake switch signal R R T
Seat belt buckle switch signal R T
Snow mode switch signalRT
TRR
Stop lamp switch signalRR T
TR
TR
Target A/C evaporator temperature signal R T
A/C switch/indicator signalRT
TR
System setting signalRTR
TRT
A/T shift schedule change demand signal R T
ABS malfunction signalTR
ABS operation signal TR
ABS warning lamp signalRT
Brake pressure control signalTR
Brake warning lamp signalRT
Side G sensor signal R T
SLIP indicator lamp signalRT
TCS malfunction signalTR
TCS operation signal TR
VDC malfunction signalTR
VDC OFF indicator lamp signal R T
VDC OFF switch signalTR
VDC operation signalTR Signals
ECM
TCM
AWD control unit
AFS control unit*1
BCM
LDW camera unit*2
Low tire pressure warning control unit
Steering angle sensor
Intelligent Key unit
Unified meter and A/C amp.
AV (NAVI) control unit
Pre-crash seat belt control unit*3
Driver seat control unit
ABS actuator and electric unit (control unit)
ICC sensor integrated unit*4
IPDM E/R

CAN COMMUNICATION
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
*1:with AFS model only
*2:with LDW model only
*3:with pre-crash seat belt model only
*4:with ICC model only Vehicle speed signalRRRRR TR
RR RR R TRRR R
Deceleration degree commandment value signalRT
ICC OD cancel request signal R T
ICC operation signal R T
ICC warning lamp signalRT
Front wiper stop position signal R T
High beam status signal RT
Hood switch signal R T
Low beam status signal R R T
Oil pressure switch signalRT
TR
Rear window defogger control signal R R T
Starter relay status signal R TSignals
ECM
TCM
AWD control unit
AFS control unit*1
BCM
LDW camera unit*2
Low tire pressure warning control unit
Steering angle sensor
Intelligent Key unit
Unified meter and A/C amp.
AV (NAVI) control unit
Pre-crash seat belt control unit*3
Driver seat control unit
ABS actuator and electric unit (control unit)
ICC sensor integrated unit*4
IPDM E/R

LAN-140
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45
Case 2
Check harness between data link connector and pre-crash seat belt control unit. Refer to LAN-159, "Inspec-
tion Between Data Link Connector and Pre-Crash Seat Belt Control Unit Circuit" .
PKIB8401E
SKIB4113E

CAN SYSTEM (TYPE 3)
LAN-141
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 3
Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-160,
"Inspection Between Pre-Crash Seat Belt Control Unit and Driver Seat Control Unit Circuit" .
PKIB8402E
SKIB4114E

CAN SYSTEM (TYPE 3)
LAN-153
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 15
Check pre-crash seat belt control unit circuit. Refer to LAN-166, "Pre-Crash Seat Belt Control Unit Circuit
Inspection" .
PKIB8414E
SKIB4126E

CAN SYSTEM (TYPE 3)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector (A) and data link con-
nector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Data Link Connector and Pre-Crash Seat Belt Control Unit
Circuit
NKS003Z8
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector M13
–Harness connector B2
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector M13.
2. Check continuity between data link connector (A) and harness
connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
AB
Continuity
Connector Terminal Connector Terminal
M621
M606 Yes
214Yes
PKIC0280E
AB
Continuity
Connector Terminal Connector Terminal
M606
M1320M Yes
14 21M Yes
PKIC0281E

LAN-160
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45

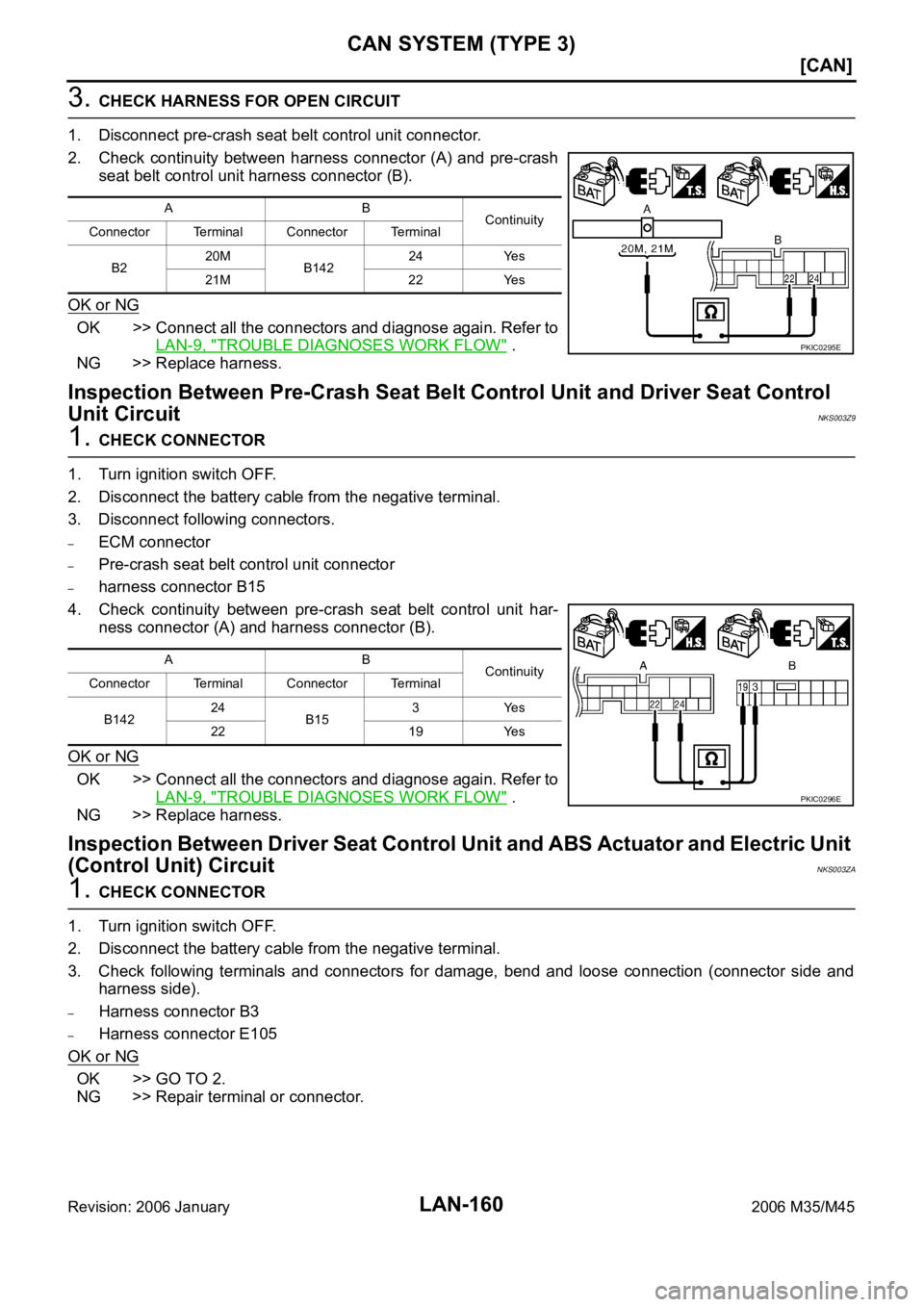

3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.
2. Check continuity between harness connector (A) and pre-crash
seat belt control unit harness connector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Replace harness.
Inspection Between Pre-Crash Seat Belt Control Unit and Driver Seat Control
Unit Circuit
NKS003Z9
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect following connectors.
–ECM connector
–Pre-crash seat belt control unit connector
–harness connector B15
4. Check continuity between pre-crash seat belt control unit har-
ness connector (A) and harness connector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Replace harness.
Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit
(Control Unit) Circuit
NKS003ZA
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector B3
–Harness connector E105
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
AB
Continuity
Connector Terminal Connector Terminal
B220M
B14224 Yes
21M 22 Yes
PKIC0295E
AB
Continuity
Connector Terminal Connector Terminal
B14224
B15 3 Yes
22 19 Yes
PKIC0296E

LAN-166
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AV control unit connector.
2. Check resistance between AV control unit harness connector
terminals.
OK or NG
OK >> Replace AV control unit.
NG >> Repair harness between AV control unit and data link
connector.
Data Link Connector Circuit InspectionNKS003ZK
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector terminals.
OK or NG
OK >> Diagnose again. Refer to LAN-9, "TROUBLE DIAG-
NOSES WORK FLOW" .
NG >> Repair harness between data link connector and har-
ness connector M13.
Pre-Crash Seat Belt Control Unit Circuit InspectionNKS003ZL
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of pre-crash seat belt control unit for damage, bend and loose connection
(control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
AV control unit
connectorTerminalResistance
(Approx.)
M210 71 72 54 – 66
PKIC0288E
Data link
connectorTerminalResistance
(Approx.)
M60 6 14 54 – 66
PKIA9865E
