SB-20
PRE-CRASH SEAT BELT
Revision: 2006 January2006 M35/M45

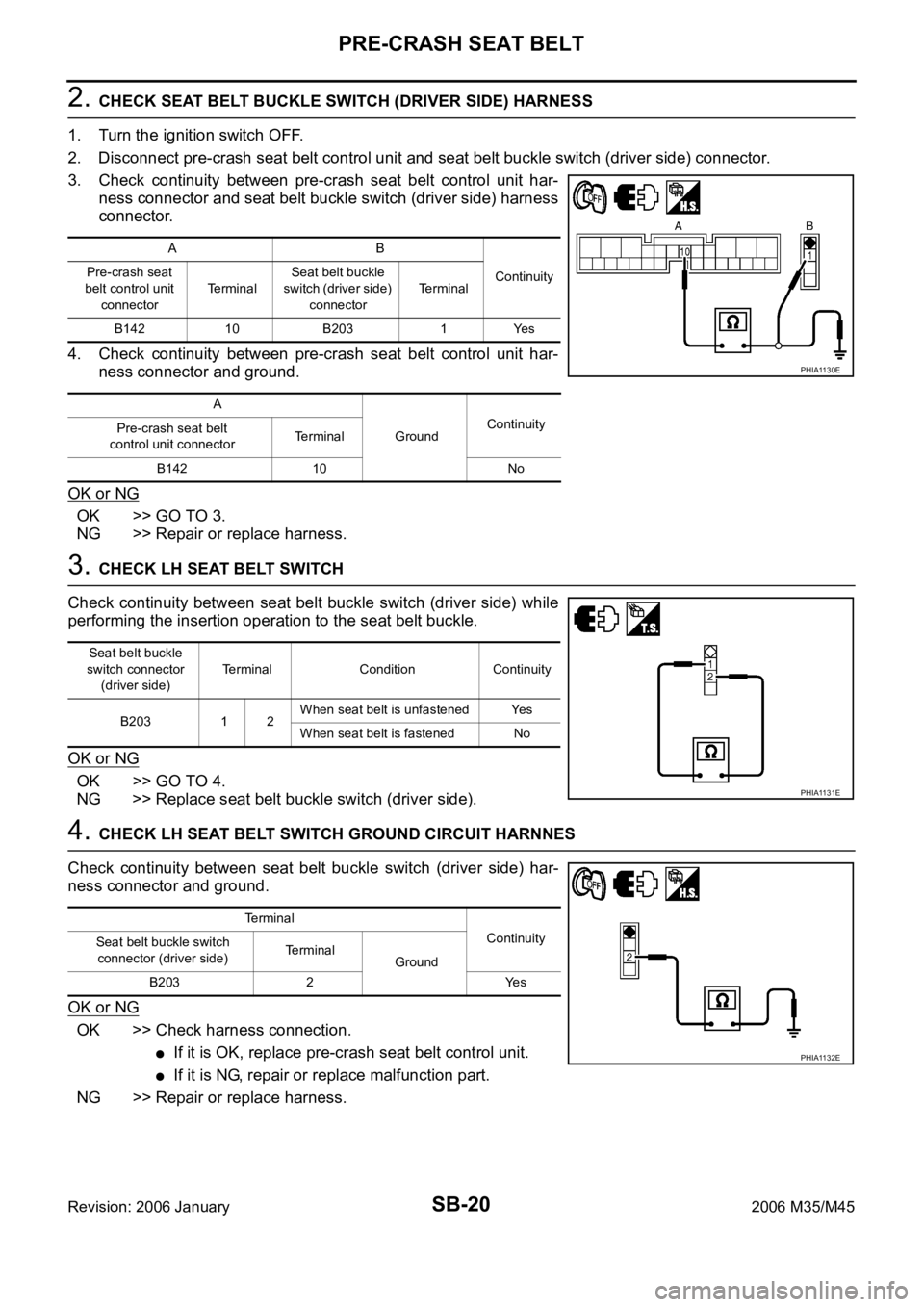

2. CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE) HARNESS
1. Turn the ignition switch OFF.
2. Disconnect pre-crash seat belt control unit and seat belt buckle switch (driver side) connector.
3. Check continuity between pre-crash seat belt control unit har-
ness connector and seat belt buckle switch (driver side) harness
connector.
4. Check continuity between pre-crash seat belt control unit har-
ness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK LH SEAT BELT SWITCH
Check continuity between seat belt buckle switch (driver side) while
performing the insertion operation to the seat belt buckle.
OK or NG
OK >> GO TO 4.
NG >> Replace seat belt buckle switch (driver side).
4. CHECK LH SEAT BELT SWITCH GROUND CIRCUIT HARNNES
Check continuity between seat belt buckle switch (driver side) har-
ness connector and ground.
OK or NG
OK >> Check harness connection.
If it is OK, replace pre-crash seat belt control unit.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace harness.
AB
Continuity Pre-crash seat
belt control unit
connectorTe r m i n a lSeat belt buckle
switch (driver side)
connectorTerminal
B142 10 B203 1 Yes
A
GroundContinuity
Pre-crash seat belt
control unit connectorTerminal
B142 10 No
PHIA1130E
Seat belt buckle
switch connector
(driver side) Terminal Condition Continuity
B203 1 2When seat belt is unfastened Yes
When seat belt is fastened No
PHIA1131E
Te r m i n a l
Continuity
Seat belt buckle switch
connector (driver side) Terminal
Ground
B203 2 Yes
PHIA1132E

PRE-CRASH SEAT BELT
SB-21
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2006 January2006 M35/M45

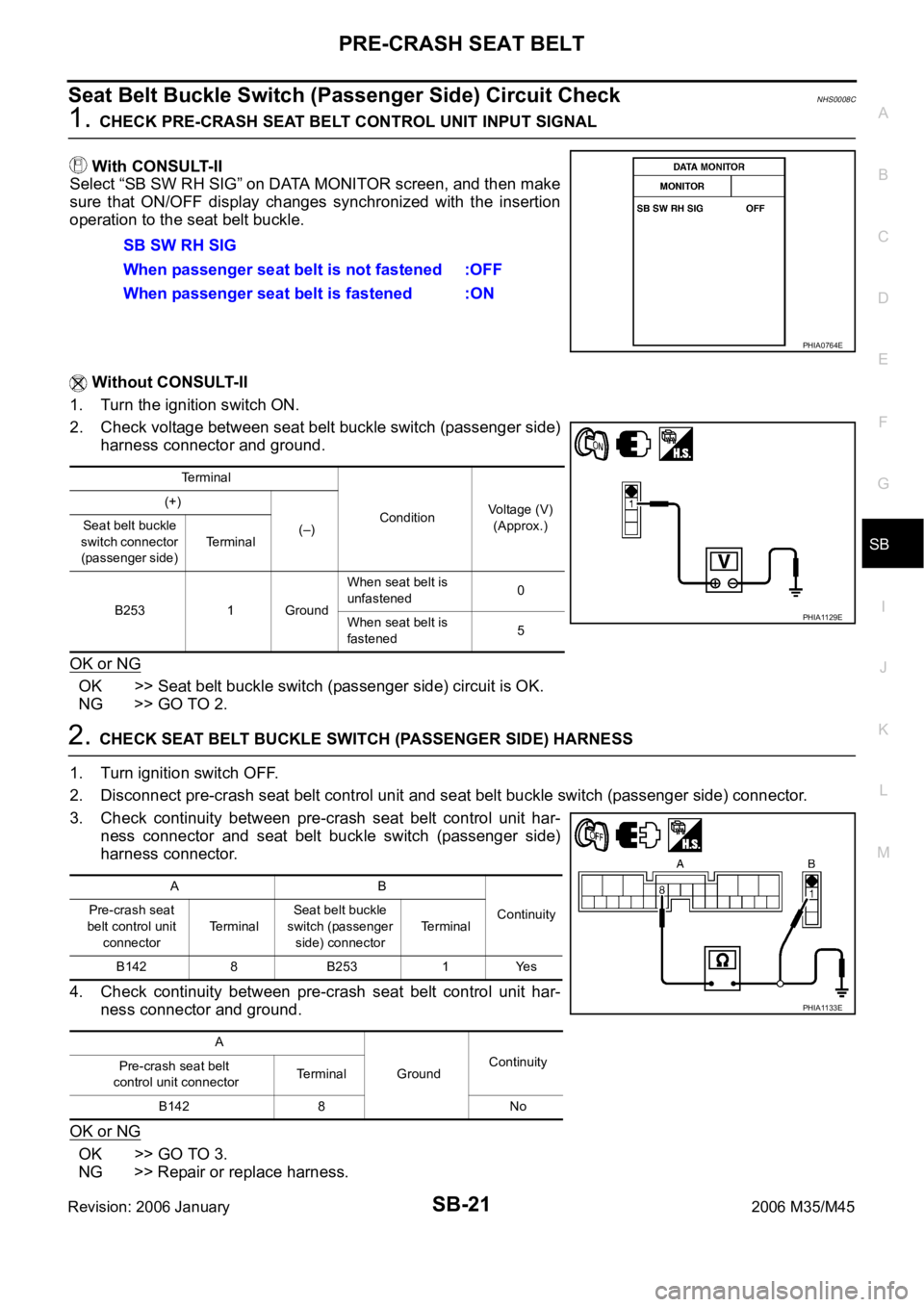

Seat Belt Buckle Switch (Passenger Side) Circuit CheckNHS0008C
1. CHECK PRE-CRASH SEAT BELT CONTROL UNIT INPUT SIGNAL
With CONSULT-II
Select “SB SW RH SIG” on DATA MONITOR screen, and then make
sure that ON/OFF display changes synchronized with the insertion
operation to the seat belt buckle.
Without CONSULT-II
1. Turn the ignition switch ON.
2. Check voltage between seat belt buckle switch (passenger side)
harness connector and ground.
OK or NG
OK >> Seat belt buckle switch (passenger side) circuit is OK.
NG >> GO TO 2.
2. CHECK SEAT BELT BUCKLE SWITCH (PASSENGER SIDE) HARNESS
1. Turn ignition switch OFF.
2. Disconnect pre-crash seat belt control unit and seat belt buckle switch (passenger side) connector.
3. Check continuity between pre-crash seat belt control unit har-
ness connector and seat belt buckle switch (passenger side)
harness connector.
4. Check continuity between pre-crash seat belt control unit har-
ness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.SB SW RH SIG
When passenger seat belt is not fastened :OFF
When passenger seat belt is fastened :ON
PHIA0764E
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Seat belt buckle
switch connector
(passenger side) Te r m i n a l
B253 1 GroundWhen seat belt is
unfastened0
When seat belt is
fastened5
PHIA1129E
AB
Continuity Pre-crash seat
belt control unit
connectorTerminalSeat belt buckle
switch (passenger
side) connectorTerminal
B142 8 B253 1 Yes
A
GroundContinuity
Pre-crash seat belt
control unit connectorTerminal
B142 8 No
PHIA1133E

SB-22
PRE-CRASH SEAT BELT
Revision: 2006 January2006 M35/M45
3. CHECK RH SEAT BELT SWITCH
Check continuity between seat belt buckle switch (passenger side)
while performing the insertion operation to the seat belt buckle.
OK or NG
OK >> GO TO 4.
NG >> Replace seat belt buckle (passenger side).
4. CHECK RH SEAT BELT SWITCH GROUND CIRCUIT HARNNES
Check continuity between seat belt buckle switch (passenger side)
harness connector and ground.
OK or NG
OK >> Check harness connection.
If it is OK, replace pre-crash seat belt control unit.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace harness.
Brake Pedal Stroke Sensor Circuit Check [B2453]NHS0008D
1. INSPECTION WITH CONSULT-II
With CONSULT-II
Select “SELF-DIAG RESULTS”, and then make sure that “BR
STROKE SEN CIRC” is displayed.
Without CONSULT-II
When CONSULT-II is not used, omit this inspection, and then GO TO 2.
Displayed B2453?
Yes >> GO TO 3.
No >> GO TO 2.
Seat belt buckle
switch connector
(passenger side)Terminal Condition Continuity
B253 1 2When seat belt is unfastened Yes
When seat belt is fastened No
PHIA1131E
Te r m i n a l
Continuity
Seat belt buckle switch
connector (passenger side) Terminal
Ground
B253 2 Yes
PHIA1132E
CONSULT-II display CONSULT-II display code
NO DTC –
BR STROKE SEN CIRC B2453
PHIA0769E

PRE-CRASH SEAT BELT
SB-23
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2006 January2006 M35/M45
2. CHECK PRE-CRASH SEAT BELT CONTOROL UNIT INPUT SIGNAL
With CONSULT-II
Select “B PEDAL SIG1” and “B PEDAL SIG2”, and then make sure that the voltage changes synchronized
with brake pedal operation.
Without CONSULT-II
1. Turn the ignition switch ON.
2. Check voltage between pre-crash seat belt control unit harness
connector and ground.
OK or NG
OK >> Brake pedal stroke sensor system is normal.
NG >> GO TO 3.B PEDAL SIG1
Brake released
depressed : Approx. 1 4V
B PEDAL SIG 2
Brake released
depressed : Approx. 4 1V
PHIA0766E
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Pre-crash seat
belt control unit
connectorTe r m i n a l
B14216
GroundBrake released

depressed1 4
20 4
1PHIA1134E

SB-24
PRE-CRASH SEAT BELT
Revision: 2006 January2006 M35/M45
3. CHECK BRAKE PEDAL STROKE SENSOR HARNESS
1. Turn the ignition switch OFF.
2. Disconnect pre-crash seat belt control unit connector and brake pedal stroke sensor connector.
3. Check continuity between pre-crash seat belt control unit har-
ness connector and brake pedal stroke sensor harness connec-
tor.
4. Check continuity between pre-crash seat belt control unit harness connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between pre-crash seat belt control unit and brake pedal stroke sensor.
4. CHECK BRAKE PEDAL STROKE SENSOR POWER SUPPLY
1. Connect pre-crash seat belt control unit connector.
2. Turn the ignition switch ON.
3. Check voltage between pre-crash seat belt control unit harness
connector and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace pre-crash seat belt control unit.
AB
Continuity Pre-crash seat
belt control unit
connectorTe r m i n a lBrake pedal stroke
sensor connectorTerminal
B14216
E1251
Ye s 18 2
20 3
21 4
A
GroundContinuity
Pre-crash seat belt
control unit connectorTerminal
B14216
No 18
20
21
PHIA1135E
Terminal
Voltage (V)
(Approx.) (+)
(–) Pre-crash seat
belt control unit
connectorTerminal
B142 18 Ground 5
PHIA1136E

SB-26
PRE-CRASH SEAT BELT
Revision: 2006 January2006 M35/M45

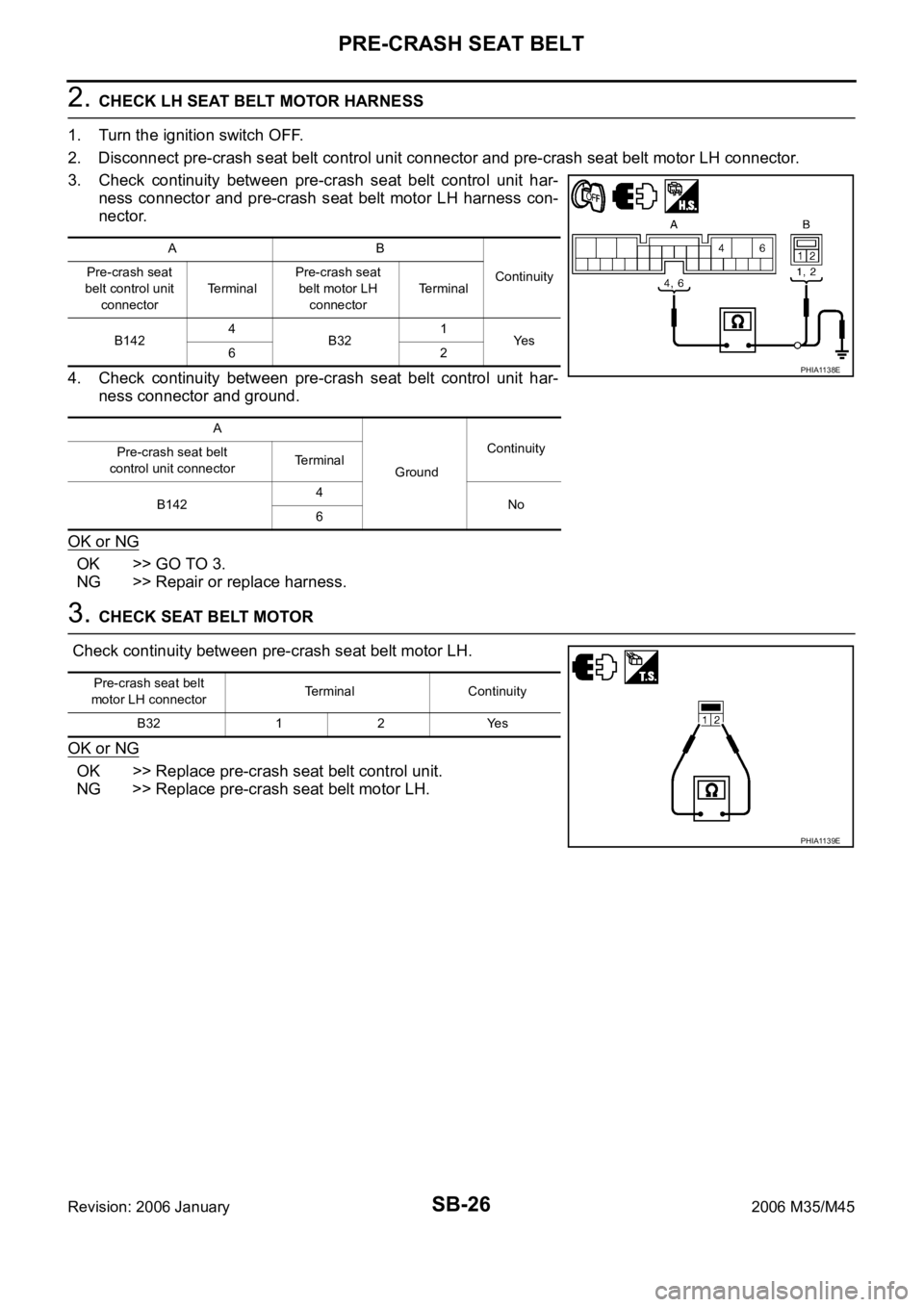

2. CHECK LH SEAT BELT MOTOR HARNESS
1. Turn the ignition switch OFF.
2. Disconnect pre-crash seat belt control unit connector and pre-crash seat belt motor LH connector.
3. Check continuity between pre-crash seat belt control unit har-
ness connector and pre-crash seat belt motor LH harness con-
nector.
4. Check continuity between pre-crash seat belt control unit har-
ness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK SEAT BELT MOTOR
Check continuity between pre-crash seat belt motor LH.
OK or NG
OK >> Replace pre-crash seat belt control unit.
NG >> Replace pre-crash seat belt motor LH.
AB
Continuity Pre-crash seat
belt control unit
connectorTe r m i n a lPre-crash seat
belt motor LH
connectorTerminal
B1424
B321
Ye s
62
A
GroundContinuity
Pre-crash seat belt
control unit connectorTerminal
B1424
No
6
PHIA1138E
Pre-crash seat belt
motor LH connectorTerminal Continuity
B32 1 2 Yes
PHIA1139E

PRE-CRASH SEAT BELT
SB-27
C
D
E
F
G
I
J
K
L
MA
B
SB
Revision: 2006 January2006 M35/M45
Pre-Crash Seat Belt Motor RH Circuit Check [B2451]NHS0008F
1. CHECK RH SEAT BELT MOTOR CIRCUIT
With CONSULT-II
Select SELF-DIAG RESULTS” of CONSULT-II, and then make sure
that “SB MOTOR RH CIRC” is displayed.
Without CONSULT-II
When CONSULT-II is not used, omit this inspection, and then GO TO 2.
Displayed B2451?
Ye s > > G O T O 2 .
No >> Pre-crash seat belt motor RH circuit is OK.
2. CHECK RH SEAT BELT MOTOR HARNESS
1. Turn the ignition switch OFF.
2. Disconnect pre-crash seat belt control unit connector and pre-crash seat belt motor RH connector.
3. Check continuity between pre-crash seat belt control unit har-
ness connector and pre-crash seat belt motor RH harness con-
nector.
4. Check continuity between pre-crash seat belt control unit har-
ness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
CONSULT-II display CONSULT-II display code
NO DTC –
SB MOTOR RH CIRC B2451
PHIA0767E
AB
Continuity Pre-crash seat
belt control unit
connectorTerminalPre-crash seat
belt motor RH
connectorTerminal
B1421
B82
Ye s
3 1
A
GroundContinuity
Pre-crash seat belt
control unit connectorTerminal
B1421
No
3
PHIA1140E

SB-28
PRE-CRASH SEAT BELT
Revision: 2006 January2006 M35/M45
3. CHECK SEAT BELT MOTOR
Check continuity between pre-crash seat belt motor RH.
OK or NG
OK >> Replace pre-crash seat belt control unit.
NG >> Replace pre-crash seat belt motor RH.
Brake Pedal Stroke Sensor Shield Wire Circuit CheckNHS0008G
1. CHECK PRE-CRASH SEAT BELT INPUT SIGNAL
With CONSULT-II
Select “B PEDAL SIG1 and 2” on DATA MONITOR screen, and then
make sure that the voltage does not change if brake pedal is not
operated.
NOTE:
Diagnosis should be performed with engine running, audio and air
conditioner operating.
Without CONSULT-II
1. Start engine.
2. Check voltage between pre-crash seat belt harness connector.
OK or NG
OK >> Brake pedal stroke sensor shield wire circuit is OK.
NG >> Check shield wire for damage. Repair or replace if necessary.
Pre-crash seat belt
motor RH connectorTerminal Continuity
B8 1 2 Yes
PHIA1139E
B PEDAL SIG1
Brake released :There is no change in the voltage
value, and it is almost constant
B PEDAL SIG2
Brake released :There is no change in the voltage
value, and it is almost constant.
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Pre-crash seat
belt control unit
connectorTerminal
B14216
GroundPerformed with
engine running, audio
and air conditioner
operating and brake
pedal released.There is no
change in the
voltage value,
and it is almost
constant 20
PHIA0766E
