Bulbs (contd)

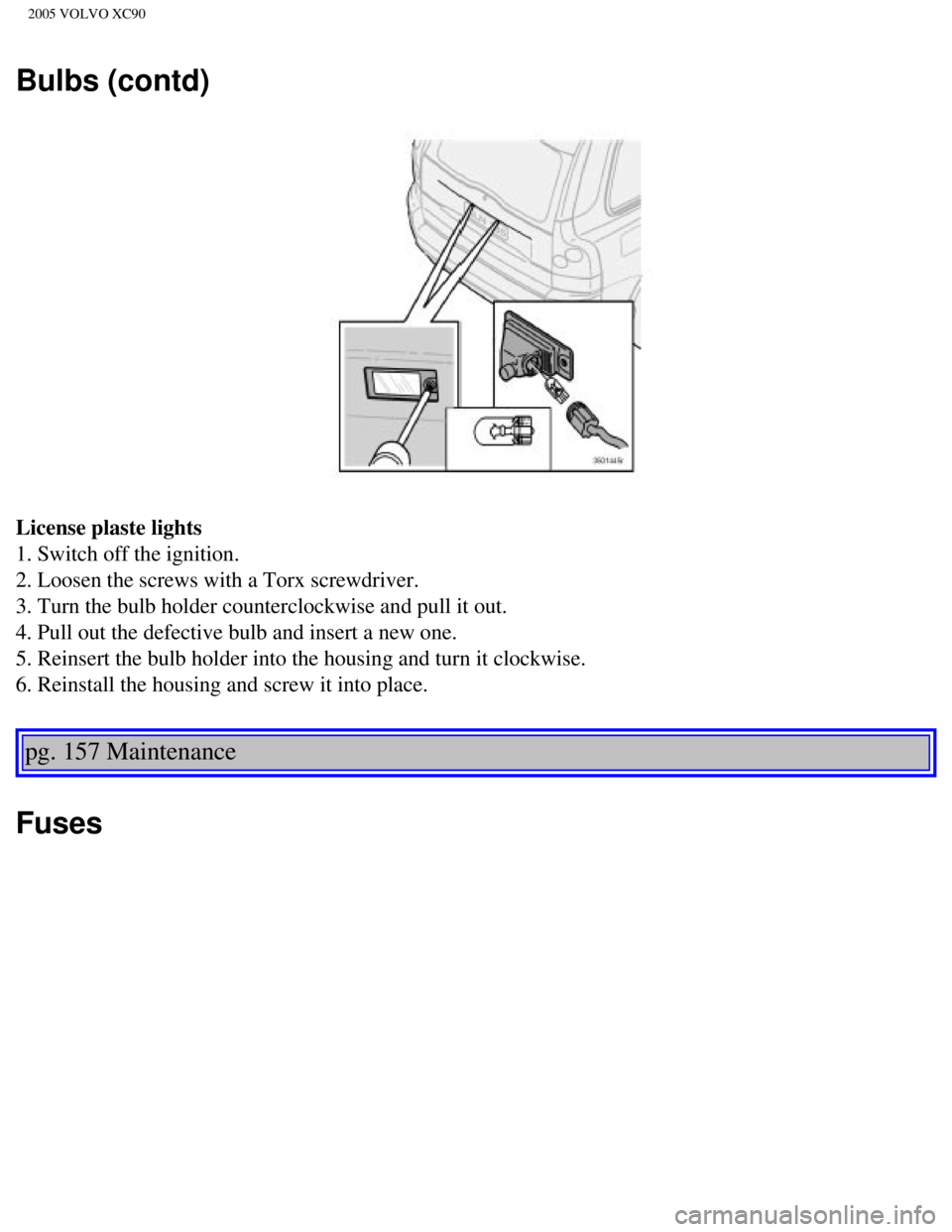

License plaste lights
1. Switch off the ignition.
2. Loosen the screws with a Torx screwdriver.
3. Turn the bulb holder counterclockwise and pull it out.
4. Pull out the defective bulb and insert a new one.
5. Reinsert the bulb holder into the housing and turn it clockwise.
6. Reinstall the housing and screw it into place.
pg. 157 Maintenance
Fuses
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (16 of 25)12/30/20\
06 4:42:40 PM

2005 VOLVO XC90
Replacing fuses
If an electrical component fails to function, it is possible that a fuse\
has blown.
The fuse boxes are located in four different places:
1. Relays/fuse box in the engine compartment
2. Fuse box in the passenger compartment, behind the plastic cover
3. Fuse box in the passenger compartment, on the edge of the dashboard
4. Fuse box in the cargo compartment.
A label on the inside of each cover indicates the amperage and the elect\
rical components that are
connected to each fuse.

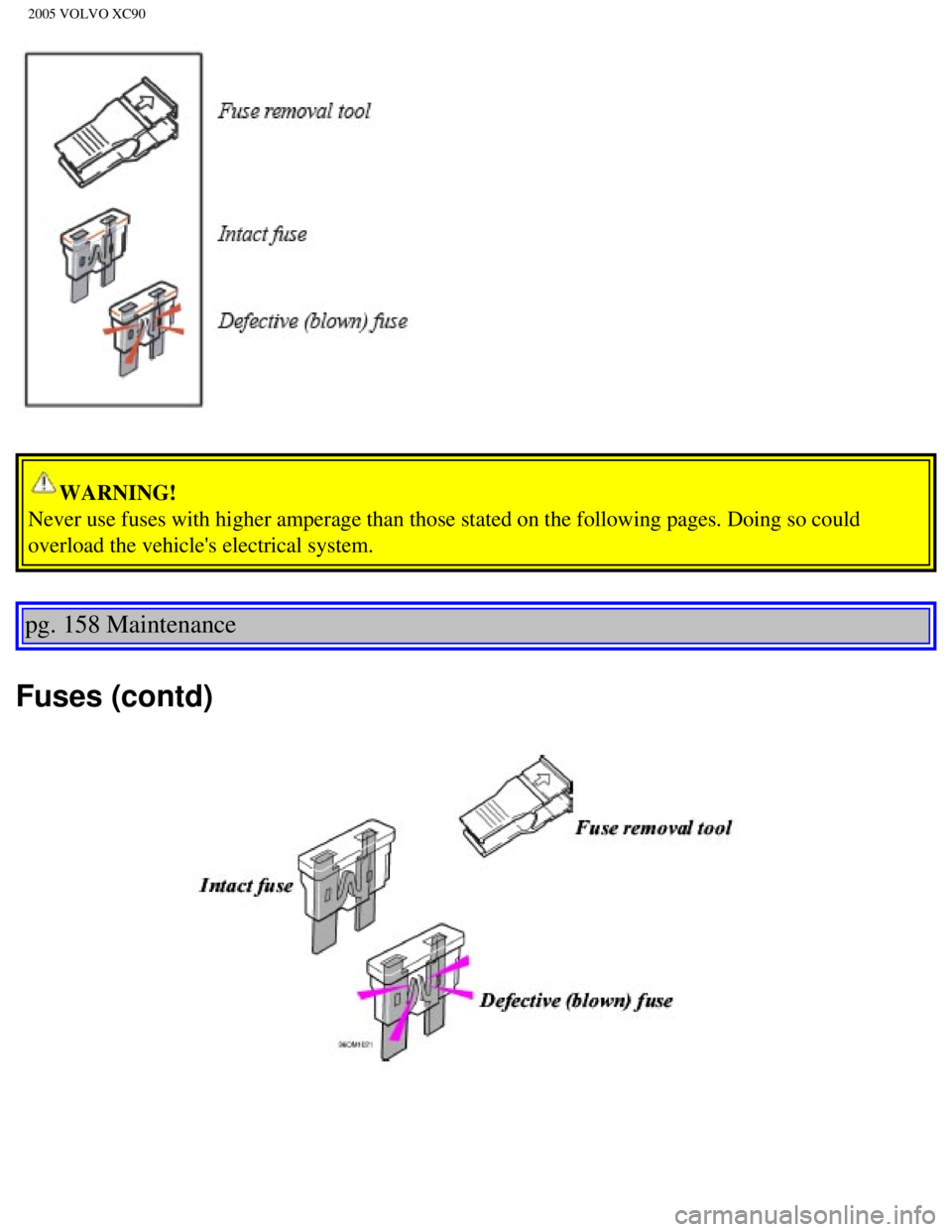

The easiest way to see if a fuse is blown is to remove it. Pull the fuse\
straight out. If a fuse is difficult to
remove, you will find a special fuse removal tool in the passenger compa\
rtment fuse box. From the side,
examine the curved metal wire (see next page) to see if it is broken. \
If so, put in a new fuse of the same
color and amperage (written on the fuse). Spare fuses are stored in the fuse box in the \
engine
compartment and the passenger compartment. If fuses burn out repeatedly,\
have the electrical system
inspected by an authorized Volvo retailer.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (17 of 25)12/30/20\
06 4:42:40 PM

2005 VOLVO XC90

WARNING!
Never use fuses with higher amperage than those stated on the following \
pages. Doing so could
overload the vehicle's electrical system.
pg. 158 Maintenance
Fuses (contd)
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (18 of 25)12/30/20\
06 4:42:40 PM

2005 VOLVO XC90

A-To open, press the plastice catches on the rear side of the fuse box c\
over and lift.
Fuse box in the engine compartment
When replacing fuses, be sure to replace a blown fuse with a new one of \
the same color and amperage
(written on the fuse). Fuses in positions marked X are replacement fus\
es.
Fuses in the engine compartment
No. Amperage
1. -
2. Auxiliary lights (accessory) 20A
3. -
4. Oxygen sensors 20A
5. Crankcase ventilation heater, solenoid valves, fuel tank leakage moni\
tor 10A
6. Mass air flow sensor, engine control module, injectors 15A
7. -
8. A/C compressor, accelerator pedal position sensor, E-box fan 10A
9. -
10. -
11. Ignition coils 20A
12. -
13. Windshield wipers 25A
14. ABS 30A
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (19 of 25)12/30/20\
06 4:42:40 PM

2005 VOLVO XC90
15. Headlight washers35A
16. -
17. Driver's side low beam 20A
18. Front parking lights 15A
19. ABS 30A
20. Passenger's side low beam 20A
21. Fuel pump 15A
22. Starter motor 35A
23. Engine control module, engine relay 10A
24. -
pg. 159 Maintenance
Fuses in the passenger compartment
Fuses are located inside the access panel on the edge of the dashboard, \
on the driver's side. There are
also a number of spare fuses. When replacing a blown fuse, be sure to re\
place it with a new one of the
same color and amperage (written on the fuse).
No. Amperage
1. Blower - climate system 30A
2. Audio amplifier 30A
3. Power driver's seat (option) 25A
4. Power passenger's seat (option) 25A
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (20 of 25)12/30/20\
06 4:42:40 PM

2005 VOLVO XC90
5. Driver's door - central locking, power windows, door mirror25A
6. Front passenger's door - central locking, power windows, door mirror \
25A
7. -
8. -
9. Audio, navigation system (option) 10A
10. On-board diagnostics, headlight switch, steering wheel angle sensor,\
steering wheel
module 5A
11. Ignition switch, SRS, engine control module, immobilizer 7.5A
12. Ceiling lighting, upper electronic control module 10A
13. Moonroof (option) 15A
14. -
15. -
16. -
17. -
18. -
19. -
20. -
21. -
22. -
23. -
24. -
25. -
26. -
27. -
28. -
29. -
30. -
31. -
32. -
33. -
34. -
35. -
36. -
37. -
38.-
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (21 of 25)12/30/20\
06 4:42:40 PM

2005 VOLVO XC90
pg. 160 Maintenance
Fuses (contd)
No. Amperage
1. Heated passenger's seat 15A
2. Heated driver's seat 15A
3. Horn 15A
4. -
5. Audio system 10A
6. -
7. -
8. Alarm siren 5A
9. Brake light switch feed 5A
10. Instrument panel, climate system, power driver's seat, Occupant Weig\
ht Sensor (USA) 10A
11. 12-volt sockets - front and rear seats 15A
12. -
13. -
14. -
15. ABS, STC/DSTC 5A
16. Power steering, Bi-Xenon headlights (option) 10A
17. Driver's side front fog light (option) 7.5A
18. Passenger's side front fog light (option) 7.5A
19. -
20. -
21. Transmission control module 10A
22. Driver's side high beam 10A
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (22 of 25)12/30/20\
06 4:42:40 PM

2005 VOLVO XC90
23. Passenger's side high beam10A
24. -
25. -
26. -
27. -
28. Power passenger's seat (option) 5A
29. -
30. -
31. -
32. -
33. Vacuum pump 20A
34. Pump - windshield and tailgate washers 15A
35. -
36. -
pg. 161 Maintenance
Fuses (contd)
Fuses in the cargo compartment
The fuses in the cargo area are located behind the panel on the driver's\
side of the cargo compartment.
When replacing a blown fuse, be sure to replace it with a new one of the\
same color and amperage
(written on the fuse).
