2005 VOLVO XC90 Owners Manual

2005 VOLVO XC90
If the system is functioning normally, the status of the front passenger\
's side airbag (enabled/ disabled)
will be shown by the OWS indicator light as explained in the table to th\
e left. The OWS indicator light is
separate and in addition to the SRS warning light in the instrument pane\
l.
NOTE: When the ignition is switched on, the OWS indicator light will go on fo\
r up to 10 seconds while
the system performs a self diagnostic test and then go out. However, if \
a fault is detected in the system:
l The OWS indicator light will stay on
l The safety system warning light (see page 6) will come on and stay on
l The message PASS. AIRBAG OFF SERVICE URGENT will be displayed in the inf\
ormation display.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (10 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
WARNING! If a fault in the system is detected and indicated as explained above, \
be aware that
the passenger's side front airbag will not deploy in the event of a coll\
ision. In this case, the safety
systems and Occupant Weight Sensor should be inspected by an authorized \
Volvo retailer as soon as
possible.
pg. 8 Safety
WARNING!
Never try to open, remove, or repair any components in the OWS system. T\
his could result in system
malfunction. Maintenance or repairs should only be carried out by an aut\
horized Volvo service
technician.
WARNING!
Keep the following points in mind with respect to the OWS system. Failur\
e to follow these
instructions could adversely affect the system's function and result in \
serious injury to the occupant of
the front passenger's seat:
The full weight of the front seat passenger should always be on the seat\
cushion. The passenger
should never lift him/herself off the seat cushion using the armrest in \
the door or the center console,
by pressing the feet on the floor, by sitting on the edge of the seat cu\
shion, or by pressing against the
backrest in a way that reduces pressure on the seat cushion. This could \
cause OWS to disable the
front, passenger's side airbag.
The front passenger's seat should not be modified in any way. This could\
reduce pressure on the seat
cushion, which might interfere with the OWS system's function.
Do not place any type of object on the front passenger's seat in such a \
way that jamming, pressing, or
squeezing occurs between the object and the front seat, other than as a \
direct result of the correct use
of the ALR/ELR seat belt (see
page 22).
No objects should be placed under the front passenger's seat. This could\
interfere with the OWS
system's function.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (11 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
WARNING!
No objects that add to the total weight on the seat should be placed on \
the front passenger's seat. If a
child is seated in the front passenger's seat with any additional weight\
, this extra weight could cause
the OWS system to enable the airbag, which might cause it to deploy in t\
he event of a collision,
thereby injuring the child. The seat belt should never be wrapped around\
an object on the front
passenger's seat. This could interfere with the OWS system's function.
The front passenger's seat belt should never be used in a way that exert\
s more pressure on the
passenger than normal. This could increase the pressure exerted on the w\
eight sensor by a child, and
could result in the airbag being enabled, which might cause it to deploy\
in the event of a collision,
thereby injuring the child.
pg. 9 Safety
When are the airbags deployed?
The information on this page pertains to SRS (front) airbags only. For\
information about Side Impact
Protection System (SIPS) airbags, please see
page 12. For Inflatable Curtain (IC) airbags, please see
page 14.
The SRS system is designed to deploy during certain frontal or front-ang\
ular collisions, impacts, or
decelerations, depending on the crash severity, angle, speed and object \
impacted. The SRS sensor is
designed to react to both the impact of the collision and the inertial f\
orces generated by it and to
determine if the intensity of the collision is sufficient for the seat b\
elt pretensioners or airbags to be
deployed.
If the airbags have been deployed, we recommend the following:
l Have the vehicle towed to an authorized Volvo retailer. Never drive with\
the airbags deployed.
l Have an authorized Volvo retailer replace the SRS system components.
l Use only new, Genuine Volvo Parts when replacing SRS components (airbag\
s, seat belts,
pretensioners, etc.).
When are the airbags NOT deployed?
Not all frontal collisions activate the SRS system. If the collision inv\
olves a nonrigid object (e.g., a snow
drift or bush), or a rigid, fixed object at a low speed, the SRS system\
will not necessarily deploy. Front
airbags do not normally deploy in a side impact collision, in a collisio\
n from the rear or in a rollover
situation. The amount of damage to the bodywork does not reliably indica\
te if the airbags should have
deployed or not.
Seat belts - the heart of the Volvo safety system
The heart of the Volvo safety system is the three-point seat belt (a Vo\
lvo invention)! In order for the
SRS system to provide the protection intended, seat belts must be worn a\
t all times by everyone in the
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (12 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
vehicle. The SRS system is a supplement to the seat belts.

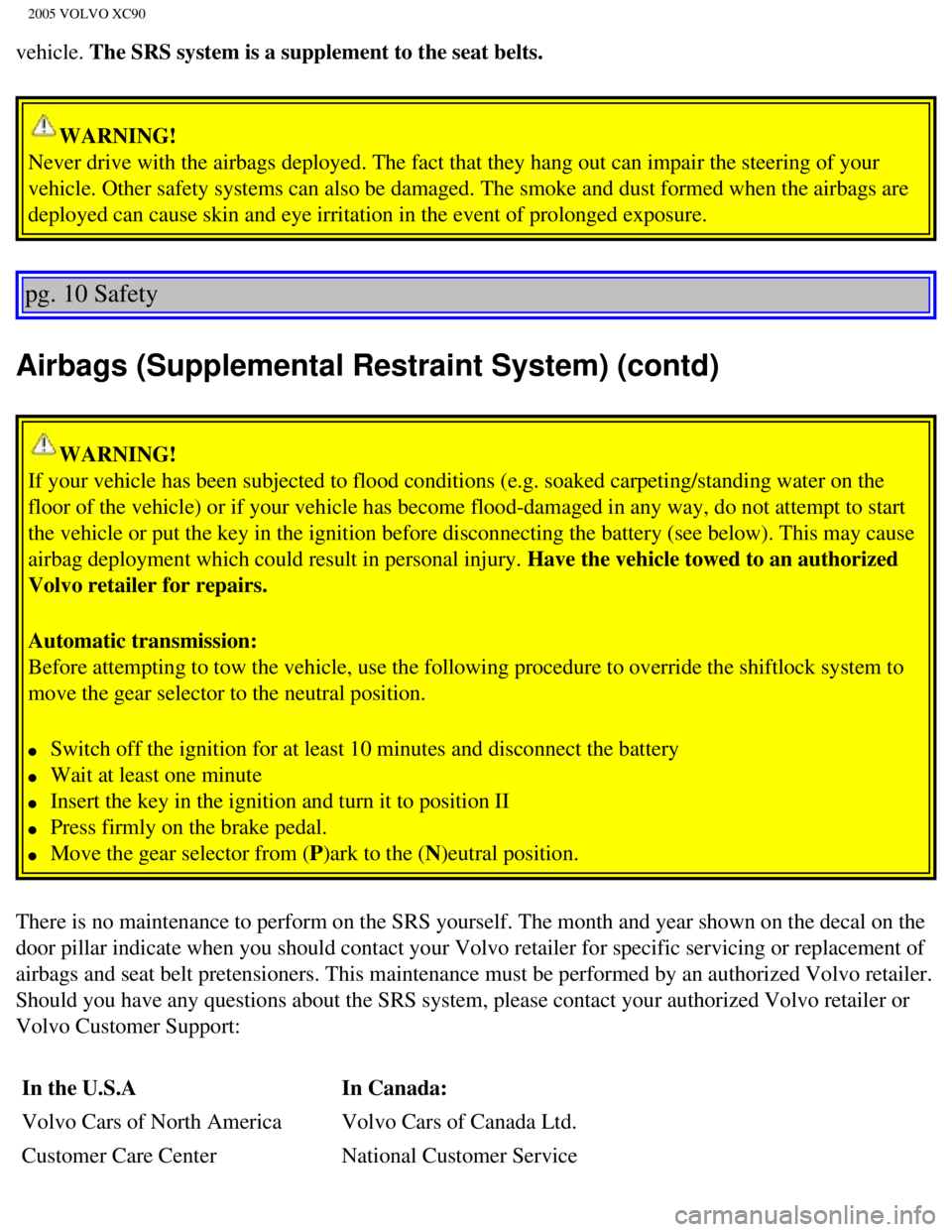

WARNING!
Never drive with the airbags deployed. The fact that they hang out can i\
mpair the steering of your
vehicle. Other safety systems can also be damaged. The smoke and dust fo\
rmed when the airbags are
deployed can cause skin and eye irritation in the event of prolonged exp\
osure.
pg. 10 Safety
Airbags (Supplemental Restraint System) (contd)
WARNING!
If your vehicle has been subjected to flood conditions (e.g. soaked car\
peting/standing water on the
floor of the vehicle) or if your vehicle has become flood-damaged in an\
y way, do not attempt to start
the vehicle or put the key in the ignition before disconnecting the batt\
ery (see below). This may cause
airbag deployment which could result in personal injury. Have the vehicle towed to an authorized
Volvo retailer for repairs.
Automatic transmission:
Before attempting to tow the vehicle, use the following procedure to ove\
rride the shiftlock system to
move the gear selector to the neutral position.
l Switch off the ignition for at least 10 minutes and disconnect the batte\
ry
l Wait at least one minute
l Insert the key in the ignition and turn it to position II
l Press firmly on the brake pedal.
l Move the gear selector from (P)ark to the (N)eutral position.
There is no maintenance to perform on the SRS yourself. The month and ye\
ar shown on the decal on the
door pillar indicate when you should contact your Volvo retailer for spe\
cific servicing or replacement of
airbags and seat belt pretensioners. This maintenance must be performed \
by an authorized Volvo retailer.
Should you have any questions about the SRS system, please contact your \
authorized Volvo retailer or
Volvo Customer Support: In the U.S.A In Canada:
Volvo Cars of North America Volvo Cars of Canada Ltd.
Customer Care Center National Customer Service
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (13 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
P.O. Box 914175 Gordon Baker Road
Rockleigh, New Jersey 07647-0914 North York, Ontario M2H 2N7
1-800-458-1552 1-800-663-8255
pg. 11 Safety
Front airbag (SRS) system
As an enhancement to the three-point seat belt system, your Volvo is equ\
ipped with a Supplemental
Restraint System (SRS). The Volvo SRS consists of an airbag (2) on b\
oth the driver's and passenger's
sides and seat belt pretensioners in both front door pillars. The system\
is designed to supplement the
protection provided by the three-point seat belt system. All rear seat b\
elts are also equipped with
pretensioners.
The SRS system is indicated by the "SRS" embossed on the steering wheel \
pad and above the glove
compartment, and by decals on both sun visors and on the front and far r\
ight side of the dash.
The airbags are folded and located in the steering wheel hub and above t\
he glove compartment.
Deployment:
The SRS airbags are designed to deploy during certain frontal or front-a\
ngular collisions, impacts, or
decelerations, depending on the crash severity, angle, speed and object \
impacted. The airbags may also
deploy in certain non-frontal collisions where rapid deceleration occurs\
.
The airbag system includes gas generators (1) surrounded by the airbag\
s (2) and front seat belt
pretensioners for both of the front seats. To deploy the system, the sen\
sor (3) activates the gas generators
causing the airbags to be inflated with nitrogen gas.
As the movement of the seats' occupants compresses the airbags, some of \
the gas is expelled at a
controlled rate to provide better cushioning. Both seat belt pretensione\
rs also deploy, minimizing any
seat belt slack. The entire process, including inflation and deflation o\
f the airbags, takes approximately
two-tenths of a second.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (14 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90

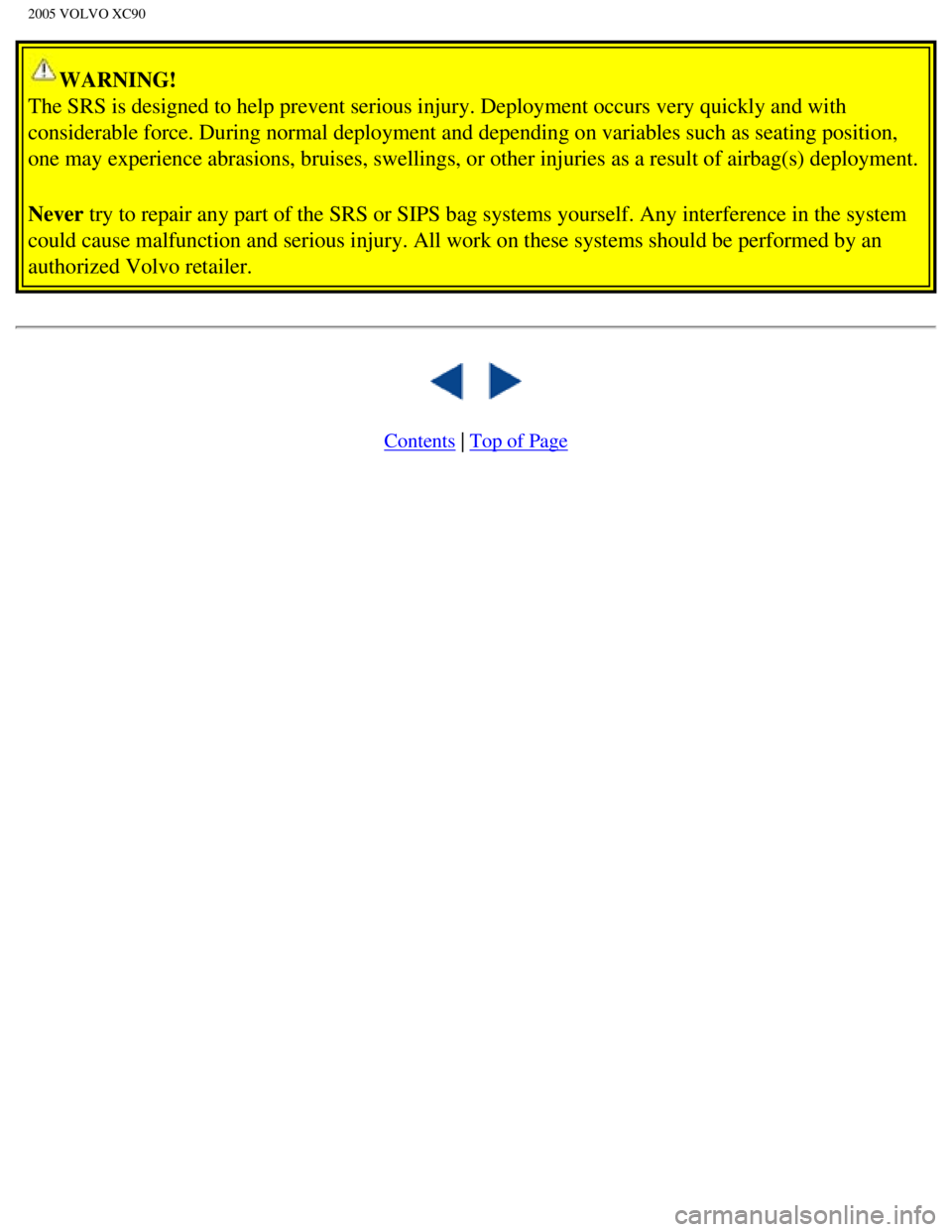

WARNING!
The SRS is designed to help prevent serious injury. Deployment occurs ve\
ry quickly and with
considerable force. During normal deployment and depending on variables \
such as seating position,
one may experience abrasions, bruises, swellings, or other injuries as a\
result of airbag(s) deployment.
Never try to repair any part of the SRS or SIPS bag systems yourself. Any int\
erference in the system
could cause malfunction and serious injury. All work on these systems sh\
ould be performed by an
authorized Volvo retailer.




Contents | Top of Page
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (15 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
pg. 12 Safety
Side airbags (SIPS airbags)

SIPS airbag*
SIPS airbag (front seats only)
As an enhancement to the structural Side Impact Protection System built \
into your vehicle, the vehicle is
also equipped with Side Impact Protection System (SIPS) airbags. The S\
IPS airbag system consists of
airbag modules built into the sides of both front seat backrests, wires \
and gas generators/sensor units
(see illustration on next page).
The SIPS airbag system is designed to help increase occupant protection \
in the event of certain side
impact collisions. The SIPS airbags are designed to deploy only during c\
ertain side-impact collisions,
depending on the crash severity, angle, speed and point of impact.
The airbags are not designed to deploy in all side impact situations.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01b.htm (1 of 16)12/30/200\
6 4:42:25 PM

2005 VOLVO XC90
NOTE: SIPS airbag deployment (one airbag) occurs only on the side of the ve\
hicle affected by the
impact.The airbags are not designed to deploy in all side impact situati\
ons.
*A SIPS airbag warning decal is also located at the end of the instrumen\
t panel on the driver's side of the
vehicle.
WARNING!
l The SIPS airbag system is a supplement to the Side Impact Protection Sys\
tem and the three-point
seat belt system. It is not designed to deploy during collisions from th\
e front or rear of the vehicle,
and will only deploy in certain rollover situations.
l The use of seat covers on the front seats may impede SIPS airbag deploym\
ent.
l No objects, accessory equipment or stickers may be placed on, attached t\
o or installed near, the
SIPS airbag system or in the area affected by SIPS airbag deployment (s\
ee illustration above).
l Never try to open or repair any components of the SIPS airbag system. Th\
is should be done only
by an authorized Volvo service technician.
l In order for the SIPS airbag to provide its best protection, both front \
seat occupants should sit in an
upright position with the seat belt properly fastened.
l Failure to follow these instructions can result in injury to the occupan\
ts of the vehicle in the event
of an accident.
pg. 13 Safety
The SIPS airbag system
This system consists of a gas generator (1), the side airbags (2), a\
nd electronic sensors/cables (3).
pg. 14 Safety
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01b.htm (2 of 16)12/30/200\
6 4:42:25 PM
