2005 VOLVO XC90 Owners Manual

2005 VOLVO XC90
NOTE: A chime will sound several times if the driver has not fastened his/her\
seat belt.
The seat belts are equipped with tensioners that reduce slack in the sea\
t belts. These tensioners are
triggered in situations where the airbags deploy.
The front seat belts also include a tension reducing device which, in th\
e event of a collision, limits the
peak forces exerted by the seat belt on the occupant.

Extending the lap belt
To buckle a seat belt:
Pull the belt out far enough to insert the latch plate into the receptac\
le until a distinct click is heard. The
seat belt retractor is normally "unlocked" and you can move freely, prov\
ided that the shoulder belt is not
pulled out too far. The retractor will lock up as follows:
l if the belt is pulled out rapidly
l during braking and acceleration
l if the vehicle is leaning excessively
l when driving in turns
For the seat belt to provide maximum protection in the event of an accid\
ent, it must be worn correctly.
When wearing the seat belt remember:
l The belt should not be twisted or turned.
l The lap belt must be positioned low on the hips (not pressing against t\
he abdomen).
Make sure that the shoulder belt is rolled up into its retractor and tha\
t the shoulder and lap belts are taut.
Before exiting the vehicle, check that the seat belt retracts fully afte\
r being unbuckled. If necessary,
guide the belt back into the retractor slot.
Child seats:
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (2 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
Please refer to page 22 for information on securing child seats with the seat belts.
pg. 3 Safety

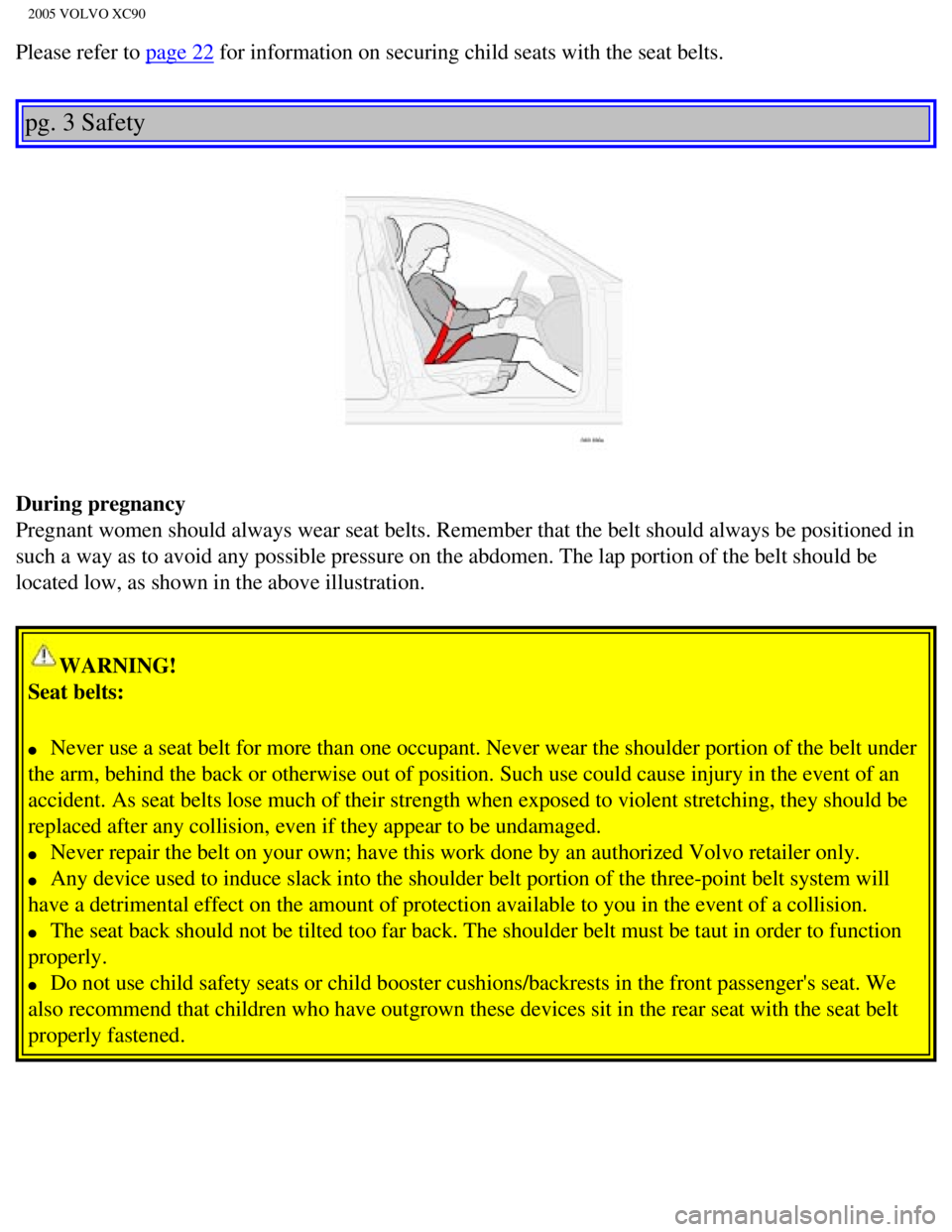

During pregnancy
Pregnant women should always wear seat belts. Remember that the belt sho\
uld always be positioned in
such a way as to avoid any possible pressure on the abdomen. The lap por\
tion of the belt should be
located low, as shown in the above illustration.
WARNING!
Seat belts:
l Never use a seat belt for more than one occupant. Never wear the shoulde\
r portion of the belt under
the arm, behind the back or otherwise out of position. Such use could ca\
use injury in the event of an
accident. As seat belts lose much of their strength when exposed to viol\
ent stretching, they should be
replaced after any collision, even if they appear to be undamaged.
l Never repair the belt on your own; have this work done by an authorized \
Volvo retailer only.
l Any device used to induce slack into the shoulder belt portion of the th\
ree-point belt system will
have a detrimental effect on the amount of protection available to you i\
n the event of a collision.
l The seat back should not be tilted too far back. The shoulder belt must \
be taut in order to function
properly.
l Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We
also recommend that children who have outgrown these devices sit in the \
rear seat with the seat belt
properly fastened.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (3 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90

Sample label found on all seat belts with pretensioners
pg. 4 Safety
Airbags (Supplemental Restraint System)
Driver's side airbag
As an enhancement to the three-point seat belt system, your Volvo is equ\
ipped with a Supplemental
Restraint System (SRS) to complement the three-point seat belt system.\
The inflatable airbag is installed
folded up in the center of the steering wheel. The wheel is embossed wit\
h SRS.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (4 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
WARNING!
Never drive an SRS equipped vehicle with your hands on the steering whee\
l pad/airbag
housing.
Passenger side airbag
The airbag on the front passenger side is folded up in a compartment abo\
ve the glove compartment. The
panel is embossed SRS.
WARNING!
No objects, accessory equipment or stickers may be placed on, attached t\
o, or installed near the SRS
cover in the center of the steering wheel, the SRS cover above the glove\
compartment or the area
affected by airbag deployment.

Passenger side airbag - location
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (5 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90

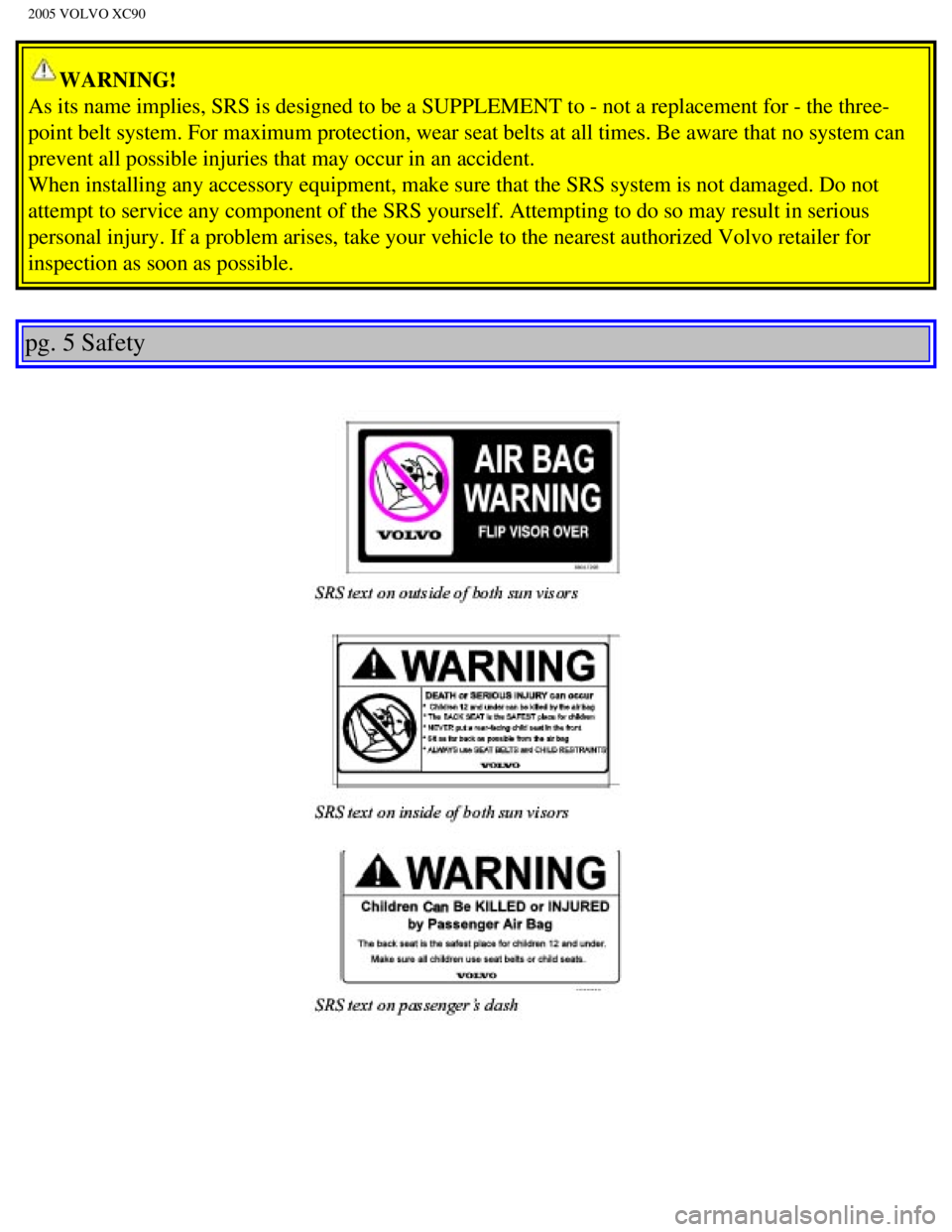

WARNING!
As its name implies, SRS is designed to be a SUPPLEMENT to - not a repla\
cement for - the three-
point belt system. For maximum protection, wear seat belts at all times.\
Be aware that no system can
prevent all possible injuries that may occur in an accident.
When installing any accessory equipment, make sure that the SRS system i\
s not damaged. Do not
attempt to service any component of the SRS yourself. Attempting to do s\
o may result in serious
personal injury. If a problem arises, take your vehicle to the nearest a\
uthorized Volvo retailer for
inspection as soon as possible.
pg. 5 Safety
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (6 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
NOTE:
l Deployment of SRS components occurs only one time during an accident. In\
a collision where
deployment occurs, the airbags and seat belt pretensioners activate. Som\
e noise occurs and a small
amount of powder is released. The release of the powder may appear as sm\
oke-like matter. This is a
normal characteristic and does not indicate fire.
l Volvo's dual-threshold, dual-stage airbags use special sensors to contro\
l deployment. The point at
which the airbag deploys is determined by whether or not the seat belt i\
s being used, as well as the
severity of the collision. Collisions can occur where only one of the ai\
rbags deploys.
l If the impact is less severe, but severe enough to present a clear injur\
y risk, the dual-stage airbags are
triggered at 70-80% of their total capacity. If the impact is more sever\
e, the dualstage airbags are
triggered at full capacity.
WARNING!
Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We also
recommend that occupants under 4 feet 7 inches (140 cm) in height who \
have outgrown these devices
sit in the rear seat with the seat belt fastened.
Never drive with the airbags deployed. The fact that they hang out can i\
mpair the steering of your
vehicle. Other safety systems can also be damaged. The smoke and dust fo\
rmed when the airbags are
deployed can cause skin and eye irritation in the event of prolonged exp\
osure.
pg. 6 Safety
Airbags (Supplemental Restraint System) (contd)
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (7 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
WARNING!
Children must never be allowed in the front passenger's seat. Volvo reco\
mmends that ALL occupants
(adults and children) shorter than 4 feet 7 inches (140 cm) be seate\
d in the back seat of any vehicle
with a front passenger-side airbag. See
page 22 for guidelines.
Occupants in the front passenger's seat must never sit on the edge of th\
e seat, sit leaning toward the
instrument panel or otherwise sit out of position. The occupant's back m\
ust be as upright as comfort
allows and be against the seat back with the seat belt properly fastened\
.
Feet must be on the floor, e.g. not on the dash, seat or out of the wind\
ow.
No objects or accessory equipment, e.g. dashboard covers, may be placed \
on, attached to, or installed
near the SRS hatch (the area above the glove compartment) or the area \
affected by airbag deployment
(see illustration on
page 4).
There should be no loose articles, e.g. coffee cups, on the floor, seat \
or dashboard area.
Never try to open the SRS cover on the steering wheel or the passenger s\
ide dash. This should only be
done by an authorized Volvo service technician.
Failure to follow these instructions can result in injury to the vehicle\
occupants.
Safety system warning light in the instrument panel
A self-diagnostic system incorporated in the sensor monitors certain saf\
ety system components. A check
is performed on components such as seat belt locks, SRS, Occupant Weight\
Sensor, SIPS, and/or the
VIC system. If a fault is detected, the warning light will illuminate. T\
he light is included in the warning/
indicator light cluster in the instrument panel. Normally, the safety sy\
stem warning lamp should light up
when the ignition key is turned to positions I, II or III and should go \
out after approximately 7 seconds
or when the engine is started. Check that this light is functioning prop\
erly every time the vehicle is
started.
WARNING!
If the SRS warning light stays on after the engine has started or if it \
comes on while you are driving,
drive the vehicle to the nearest authorized Volvo retailer for inspectio\
n as soon as possible.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (8 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
pg. 7 Safety
Disabling the passenger's side front airbag.
Volvo recommends that ALL occupants (adults and children) shorter than\
four feet seven inches (140
cm) be seated in the back seat of any vehicle with a front passenger si\
de airbag, and be properly
restrained for their size and weight. See also the child safety recommen\
dations on
page 22.
The passenger's side front airbag is automatically enabled/disabled by t\
he Occupant Weight Sensor
(OWS), a system that monitors the weight of the person or object in th\
e front passenger's seat. The
system consists of a silicon-filled bag located under the padding in the\
front passenger's seat cushion, a
control module located under this seat, and a seat belt tension sensor, \
located on the outboard side of the
seat.
